Interchangeable heating Block / 교환식 히팅 블럭, for IKA dry block heater

■ IKA Dry Block Heater 전제품에 사용이 가능
■ 제품 규격은 w95×d76×h51로 동일 (Plate용 제외)
■ 별매품으로 블럭없이는 사용 불가한 제품임

(0개)

for Centrifuge Tubes
Cat. No	Model	Type	Hole 크기	Hole 수	깊이

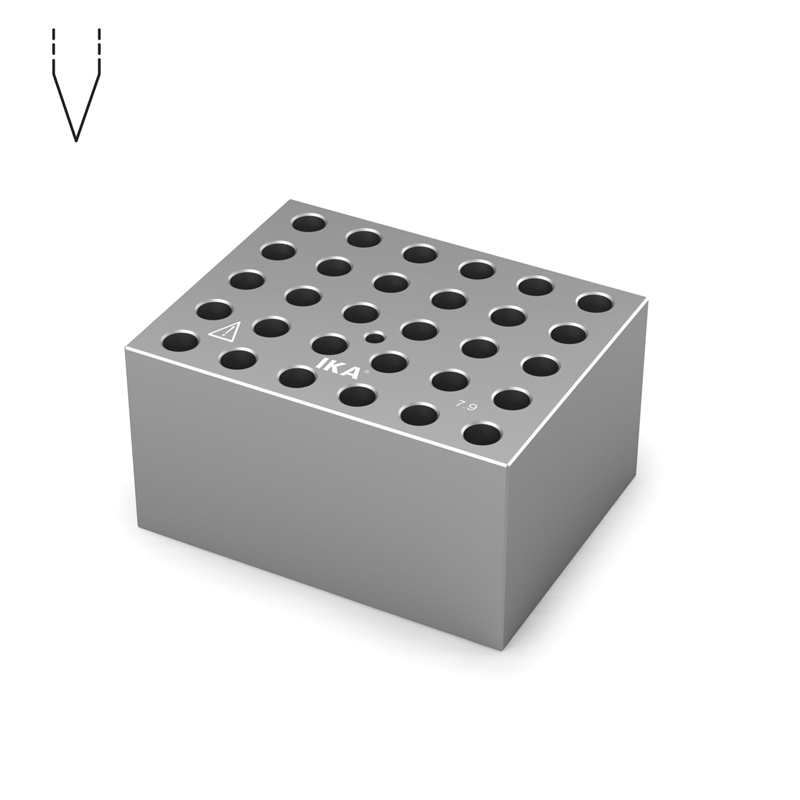

H04-05-501	4467600	DB1.1	Φ7.9	30	27.6
H04-05-505	4467700	DB1.2	Φ11.5	20	36.9
H04-05-509	4467800	DB1.3	Φ11.1		39.1
H04-05-513	4467900	DB1.4	Φ11.5		38.1

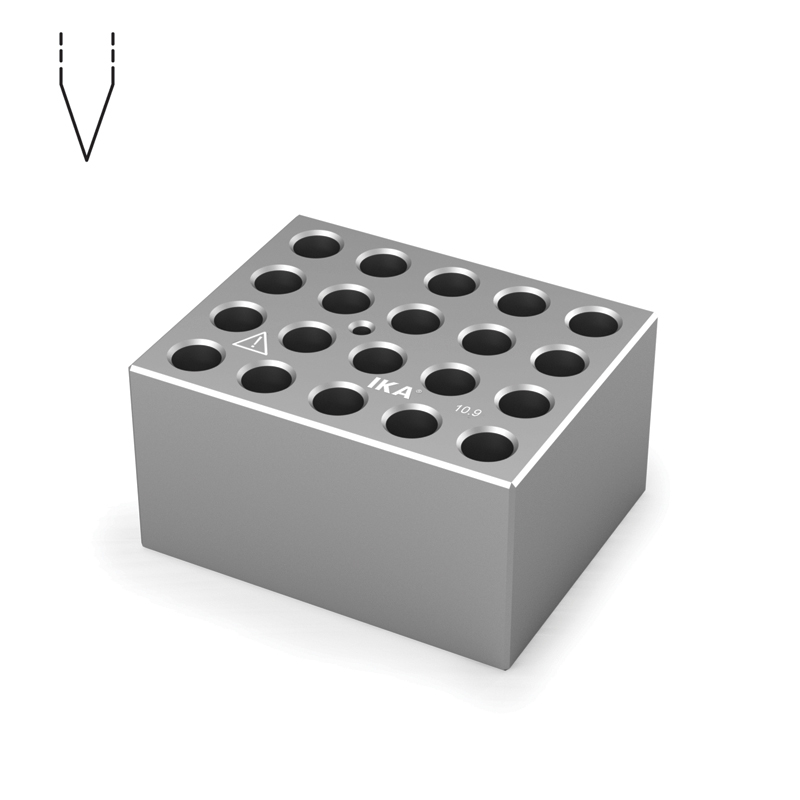

H04-05-517	4468000	DB1.5	Φ10.9		38.1

for Conical Bottom Centrifuge Tubes
Cat. No	Model	Type	Hole 크기	Hole 수	깊이

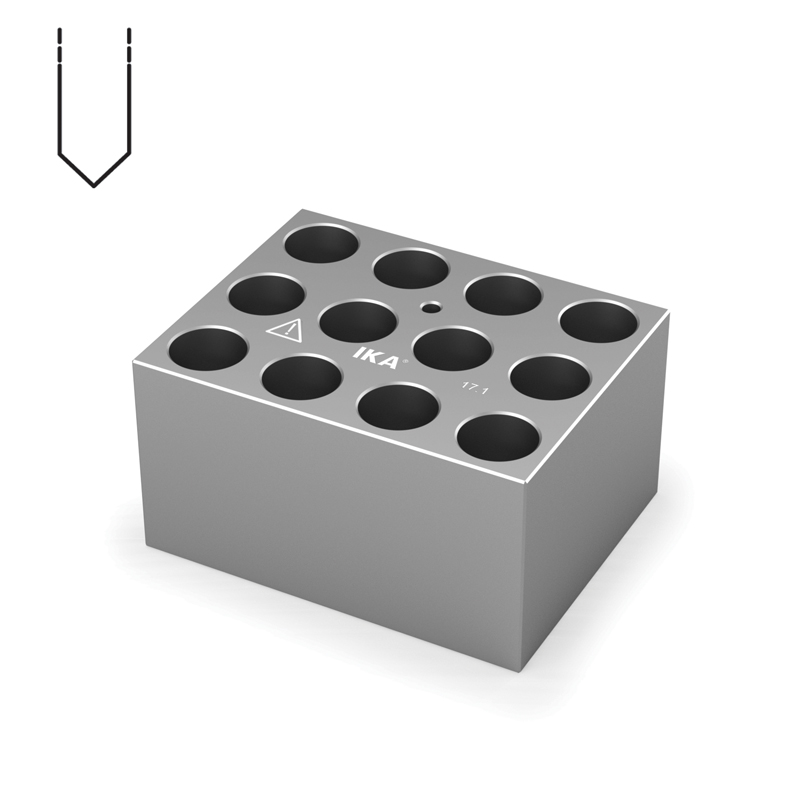

H04-05-521	4468100	DB2.1	Φ17.1	12	44.5
H04-05-525	4468200	DB2.2	Φ29.0	5	47.6

for Combination Block
Cat. No	Model	Type	Hole 크기	Hole 수
H04-05-529	4468300	DB3.1	Φ8.3 / 13.9 / 26.2	6/5/3

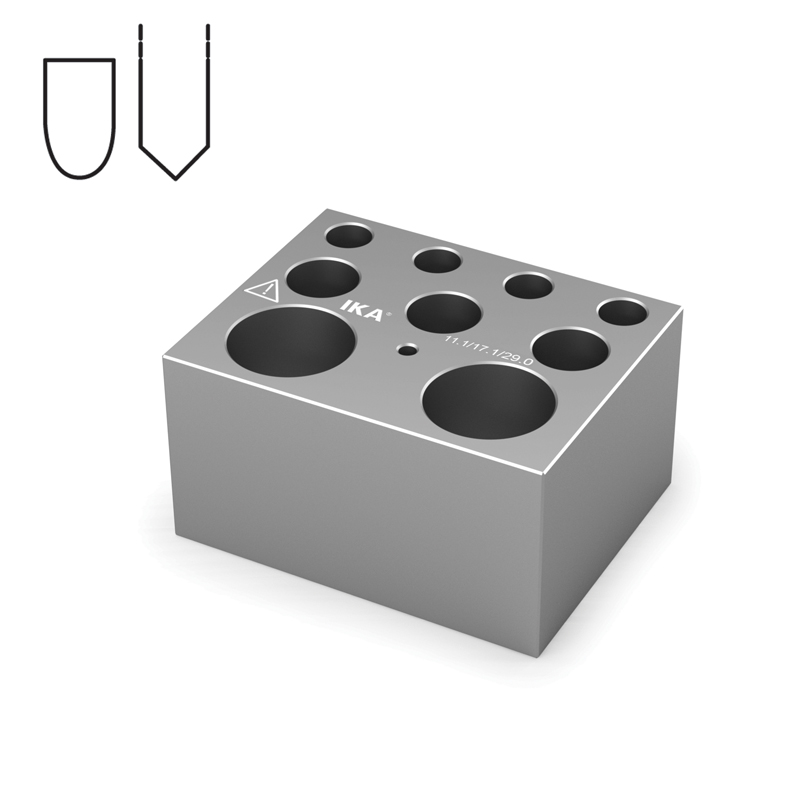

H04-05-533	4468400	DB3.2	Φ11.1 / 17.1 / 29.0	4/3/2
H04-05-537	4468500	DB3.3	Φ7.9 / 11.1 / 11.5	6/10/5

● Combination detail
- 4468300 : 6 mm / 12 ~ 13 mm / 25 mm (깊이 : 48.4 / 48.4 / 48.4)
- 4468400 : 1.5 ml / 40 ml / 50 ml (깊이 : 39.1 / 44.5 / 47.6)
- 4468500 : 0.5 ml / 1.5 ml / 2.0 ml (깊이 : 27.6 / 39.1 / 38.1)

for Standard Test Tube
Cat. No	Model	Type	Hole 크기	Hole 수	깊이
H04-05-541	4468600	DB4.1	Φ8.3	30	48.4
H04-05-545	4468700	DB4.2	Φ10.7	24

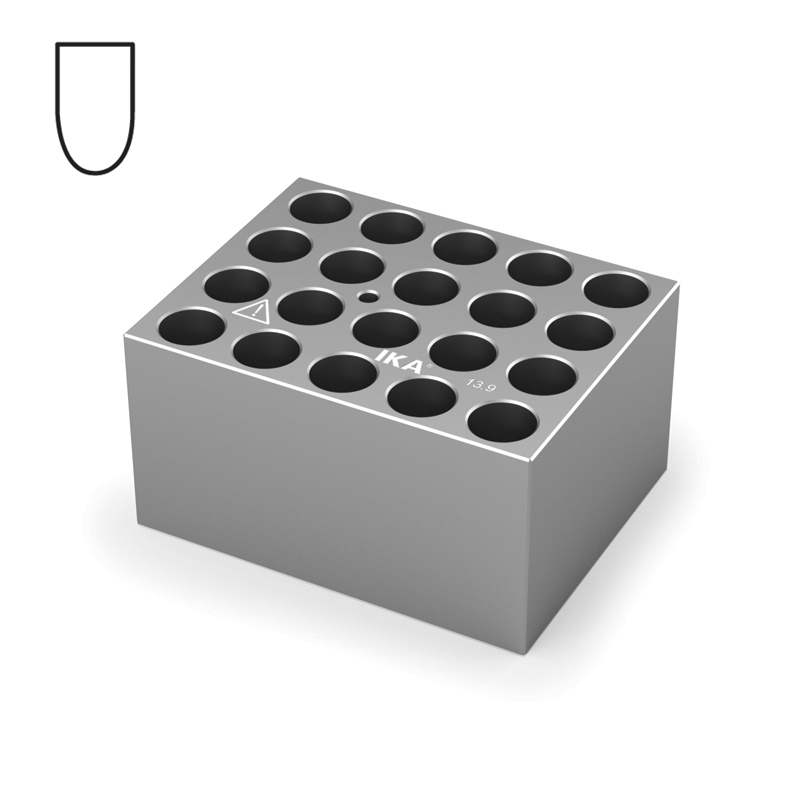

H04-05-549	4468800	DB4.3	Φ13.9	16
H04-05-553	4468900	DB4.4	Φ13.9	20
H04-05-557	4469000	DB4.5	Φ17.5	12
H04-05-561	4469100	DB4.6	Φ21.0	8
H04-05-565	4469200	DB4.7	Φ26.2	6

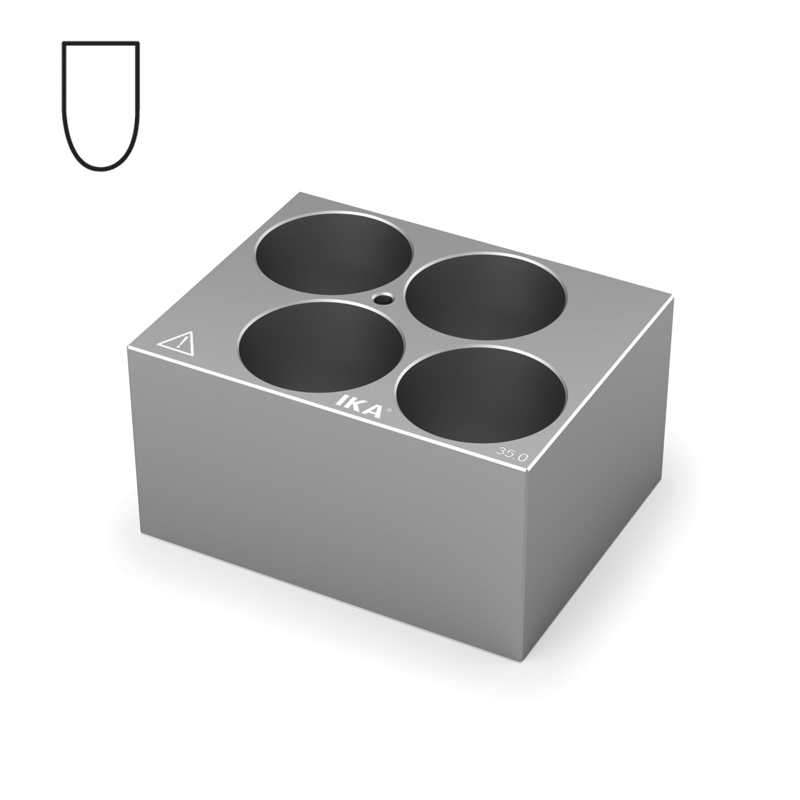

H04-05-569	4469300	DB4.8	Φ35.0	4	47.6
H04-05-573	4469400	DB4.9	Φ19.1	12	48.4

for Standard Test Tube
Cat. No	Model	Type	Hole 크기	Hole 수	깊이
H04-05-577	4469500	DB5.1	Φ12.7	20	30.0
H04-05-581	4469600	DB5.2	Φ15.8	20	35.0
H04-05-585	4469700	DB5.3	Φ17.8	12	45.0
H04-05-589	4469800	DB5.4	Φ19.7	12
H04-05-593	4469900	DB5.5	Φ21.7	9
H04-05-597	4470000	DB5.6	Φ23.8	12
H04-05-601	4470100	DB5.7	Φ25.8	12
H04-05-605	4470200	DB5.8	Φ28.8	6

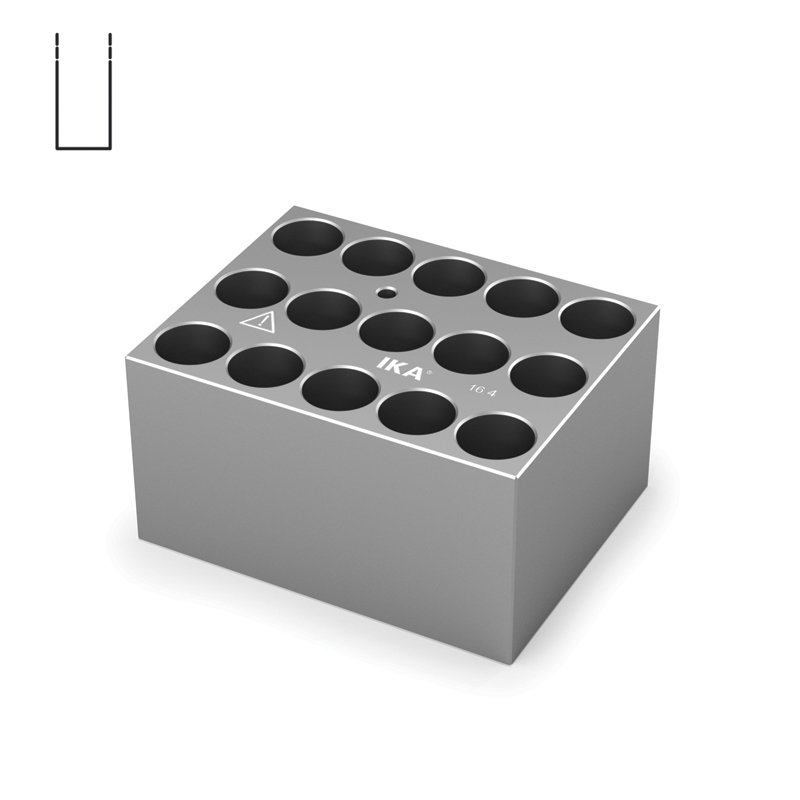

H04-05-609	4470300	DB5.9	Φ16.4	15

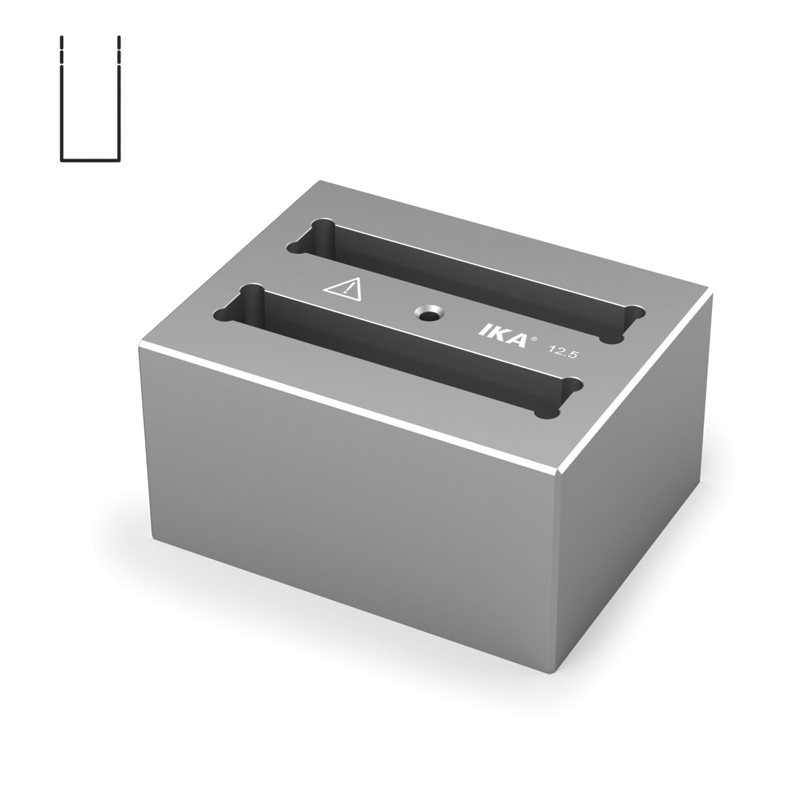

for Cuvettes
Cat. No	Model	Type	Hole 크기	Hole 수	깊이
H04-05-613	4470700	DB8.1	12.5×6	2	25.4

for Microtitre Plate
Cat. No	Model	Type	가용 Plate	깊이

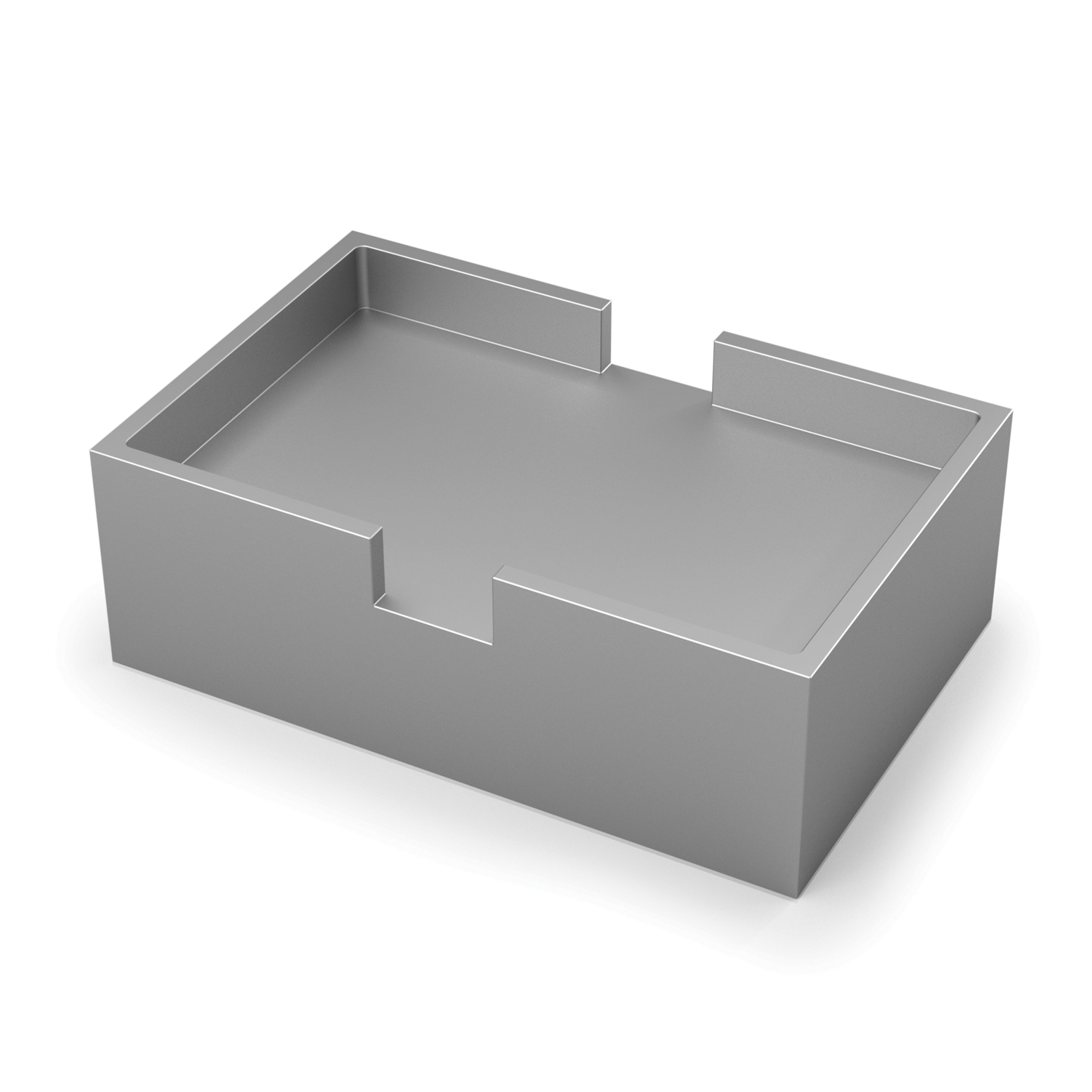

H04-05-617	4470800	DB7.1	96/384 Well Plate	25.4

● Demension of Plate(Double Block)
- w95×d152×h57 : 다른블럭에 2배 크기로 짝수 블럭 제품에만 사용 가능
