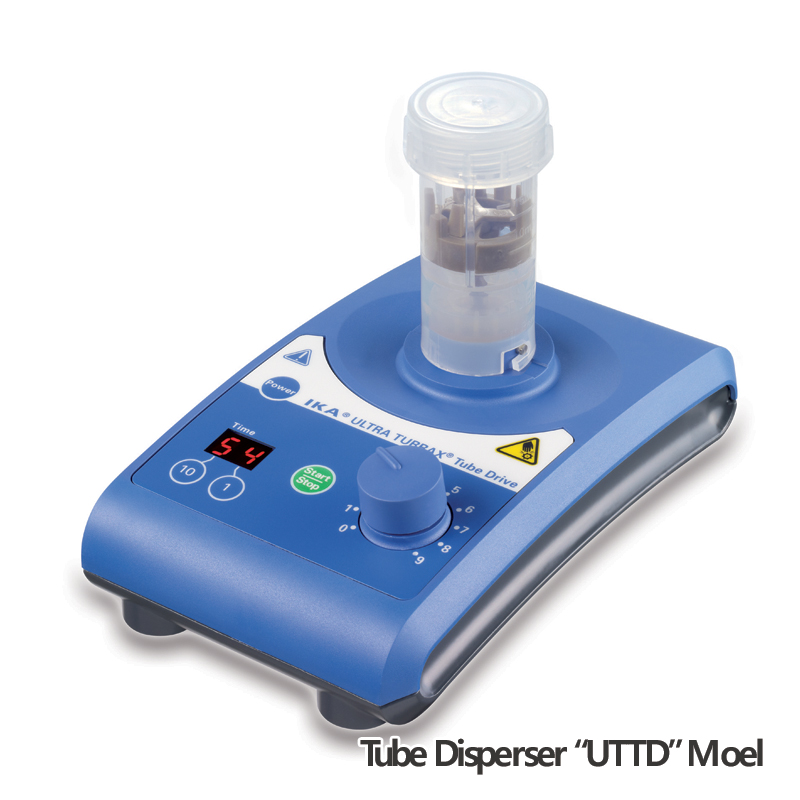

IKA Tube Disperser, ULTRA-TURRAX® / 소용량 튜브 균질기, Workstation

Cat. No	Model	Description	Unit	Price (VAT별도)	납기	재고	주문/견적
H01-05-010	3645000	Tube Dispenser UTTD Package	1/EA	0원	30 Day	0	문의
H01-05-020	3827500	Tube Dispenser UTTD Control Package	1/EA	0원	30 Day	0	문의

Optional Tube - Standard Type

Cat. No	Model	Description	Unit	Price (VAT별도)	납기	재고	주문/견적
H01-05-711	3703000	Tube for UTTD ST-20 20ml STD	25/PK	580,000원	30 Day	0
H01-05-714	3703100	Tube for UTTD DT-20 20ml STD	25/PK	600,000원	30 Day	0
H01-05-717	3703200	Tube for UTTD BMT-20-SUS Ball 20ml STD	25/PK	630,000원	30 Day	0
H01-05-720	3703300	Tube for UTTD BMT-20-Glass Ball 20ml STD	25/PK	630,000원	30 Day	0
H01-05-723	3699500	Tube for UTTD ST-50 50ml STD	10/PK	290,000원	30 Day	0
H01-05-726	3699600	Tube for UTTD DT-50 50ml STD	10/PK	330,000원	30 Day	0
H01-05-729	3699700	Tube for UTTD BMT-50-SUS Ball 50ml STD	10/PK	390,000원	30 Day	0
H01-05-732	3699800	Tube for UTTD BMT-50-Glass Ball 50ml STD	10/PK	390,000원	30 Day	0

Optional Tube - With Gamma Sterilized

Cat. No	Model	Description	Unit	Price (VAT별도)	납기	재고	주문/견적
H01-05-771	3700500	Tube for UTTD ST-20 20ml Sterile	25/PK	640,000원	30 Day	0
H01-05-774	3700600	Tube for UTTD DT-20 20ml Sterile	25/PK	710,000원	30 Day	0
H01-05-777	3700700	Tube for UTTD BMT-20-SUS Ball 20ml Sterile	25/PK	630,000원	30 Day	0
H01-05-780	3701500	Tube for UTTD ST-50 50ml Sterile	10/PK	460,000원	30 Day	0
H01-05-786	3701600	Tube for UTTD DT-50 50ml Sterile	10/PK	520,000원	30 Day	0
H01-05-789	3701700	Tube for UTTD BMT-50-SUS Ball 50ml Sterile	10/PK	550,000원	30 Day	0

(0개)

● 한 제품으로 Dispersing, Stirring and Grinding이 모두 가능
● Hermetically sealable disposable sample tubes
● 시료를 밀폐된 Tube에 넣고 뚜껑을 닫은 채로 Dispersing을 하기 때문에 오염의 염려가 없음
● Tube의 용량은 20 ml와 50 ml 두 종류임
- ST Tube : Mixing of fluids with higher viscocities (Standard Type)
- DT Tube : Homogenization of effluent samples (With Rotor Type)
- BMT Tube : Dry milling of freeze-dried samples (With SUS or Glass Ball)
● UTTD 구성 : UTTD Tube Drive, ST-20 Tube (2ea), DT-20 Tube (2ea), BMT-20 Tube (2ea), Glass Ball, Stainless Steel Ball
● UTTD contol 구성 : UTTD Tube Drive control, ST-20 Tube (2ea), DT-20 Tube (1ea), BMT-20 Tube (1ea), Glass Ball, Stainless Steel Ball

소용량 튜브 균질기, Workstation
Cat. No	Model	Type	조절방식
H01-05-010	3645000	UTTD	Scale (0 ~ 9)
H01-05-020	3827500	UTTD control	Digital

상세 규격 표
Cat. No.		H01-05-010	H01-05-020
Type		UTTD	UTTD control
Motor Rating in/out		20W / 17W
Volume Range	20ml Tube	2 ~ 15 ml
Volume Range	50ml Tube	15 ~ 50 ml
Speed Display		Scale (0 ~ 9)	Digital
Display		LED (Timer)	OLED
Speed Range		300 ~ 6000 rpm	400 ~ 6000 rpm / 8000rpm
Timer		1 ~ 59 sec : 300 ~ 6000 rpm 1 ~ 29 min : 300 ~ 4000 rpm	10 sec ~ 30 min
Size		w100×d160×h40 mm	w122×d178×h48 mm
Weight		0.75 kg	1.0 kg
Power		110V ~ 220V, 50/60 Hz

Optional Tube

Standard Type
Cat. No	Model	Tube Type	용량
H01-05-711	3703000	ST-20	20 ml
H01-05-714	3703100	DT-20
H01-05-717	3703200	BMT-20-SUS Ball
H01-05-720	3703300	BMT-20-Glass Ball
H01-05-723	3699500	ST-50	50 ml
H01-05-726	3699600	DT-20
H01-05-729	3699700	BMT-50-SUS Ball
H01-05-732	3699800	BMT-50-Glass Ball

Cover for BMT Tube (Membrane)
Cat. No	Model	Type	용량
H01-05-701	3749800	TC-50	50 ml
H01-05-704	3749900	TC-20-M, with PierceableMembrane	20 ml
H01-05-707	3750000	TC-50-M, with PierceableMembrane	50 ml

With Gamma Sterilized
Cat. No	Model	Tube Type	용량
H01-05-771	3700500	ST-20	20 ml
H01-05-774	3700600	DT-20
H01-05-777	3700700	BMT-20-SUS Ball
H01-05-780	3701500	ST-50	50 ml
H01-05-786	3701600	DT-50
H01-05-789	3701700	BMT-20-SUS Ball
