 IKA Homogenizer, ULTRA-TURRAX® / 소용량 균질기 |
|
|
Cat. No |
Model |
Description |
Unit |
Price
(VAT별도) |
납기 |
재고 |
주문/견적 |
|
|
H01-05-125 |
3737000P |

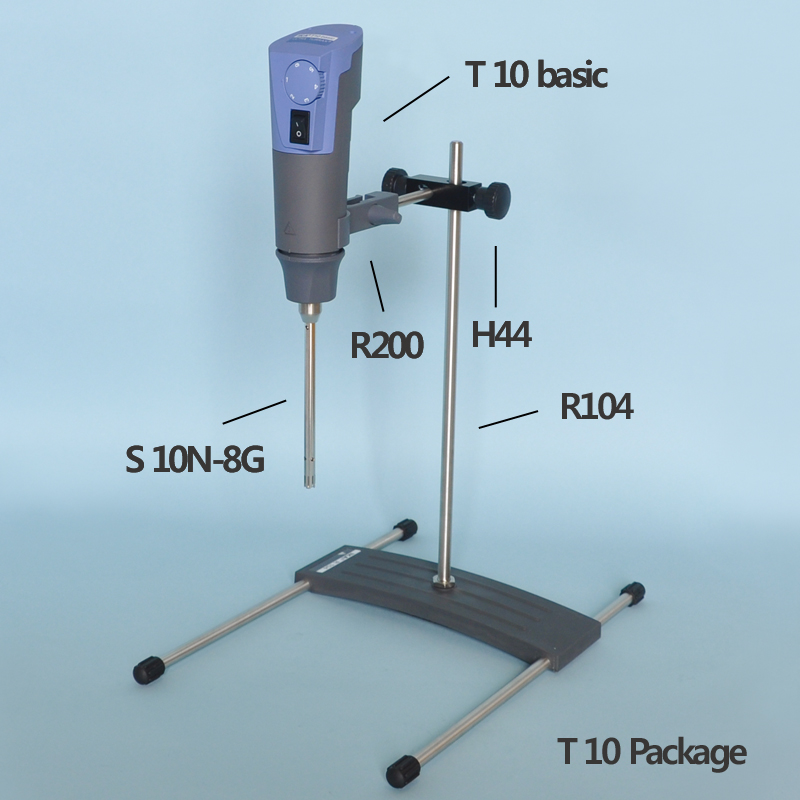

Homogenizer T10 basic, S10N-8G, R104, H44, R200 T10 Package |
1/EA |
4,192,800원 |
30 Day |
0 |
|
|
|
H01-05-920 |
3372000 |
R200 Clamp for T10 봉Φ8, L130mm |
1/EA |
140,000원 |
30 Day |
0 |
|
|
|
H01-05-935 |
2437700 |
H44 Boss Head Clamp Φ10~11mm Φ11mm |
1/EA |
65,000원 |
3 Day |
47 |
|
|
|
H01-05-960 |
3386000 |

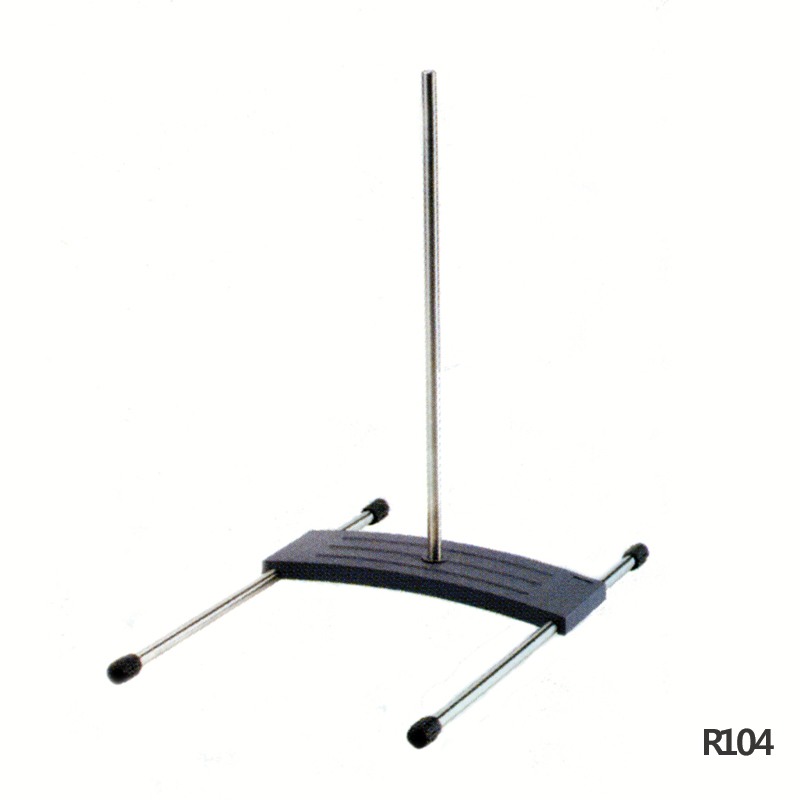

R104 Stand Φ10mm w242xd355 mm |
1/EA |
300,000원 240,000원 |
3 Day |
1 |
|
|
|
H01-05-205 |
3737000 |
T10 Basic Homogenizer 8000~30,000 rpm 0.5~100ml |
1/EA |
2,910,000원 |
3 Day |
1 |
|
|
|
H01-05-110 |
T8 |
T8 Homogenizer only 1~50ml |
1/EA |
1,761,500원 352,300원 |
3 Day |
3 |
|
|
|
| Tool/Dispersing Element for T10 basic |
|
| Plastic Dispersing Element for T10 basic |
|
| Sawtooth(ST) dispersing Tool for T10 basic |
|
|
 |
|
|
|
|
소용량 균질기
| Cat. No |
Model |
Type |
작업 가능 용량 |
| H01-05-205 |
3737000 |
T10 basic |
0.5 ~ 100 ml |
| H01-05-125 |
3737000P |
T10 Package |
| H01-05-208 |
4095500 |
T10 Standard PCR Kit |
| H01-05-920 |
3372000 |
R200 |
Clamp |
| H01-05-935 |
2437700 |
H44 |
Boss Head Clamp |
| H01-05-960 |
3386000 |
R104 |
Stand |
상세 규격 표
| Type |
T10 basic |
| Motor Rating in/out |
125W / 75W |
| Volume Range |
1 ~ 100 ml (H2O) |
| Max. Viscosity |
5,000 mPas |
| Speed Range |
8,000 ~ 30,000 rpm |
8,000 ~ 26,000 rpm |
| Speed 조절 |
6 단 (Scale) |
| Size |
Extension Arm |
Ø8×L100 mm |
| Overall |
w63×d57×h210 mm |
| Power |
230 V, 50/60 Hz |
Tool/Dispersing Element for T10 basic
| Cat. No. |
H01-05-514 |
H01-05-520 |
H01-05-526 |
| Model |
3304000 |
3305500 |
3370100 |
| Type |

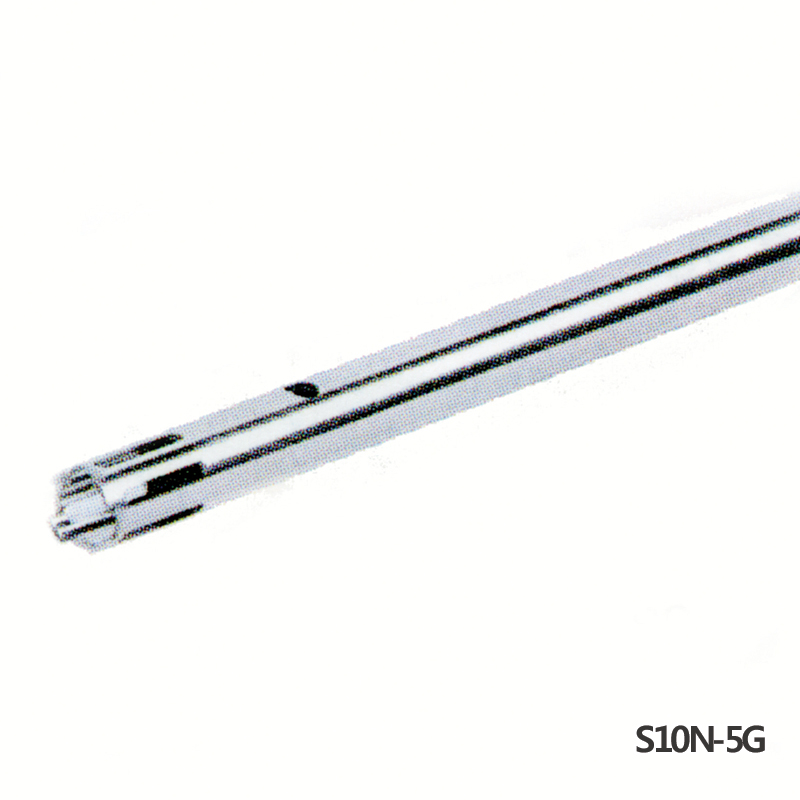

S10N-5G |

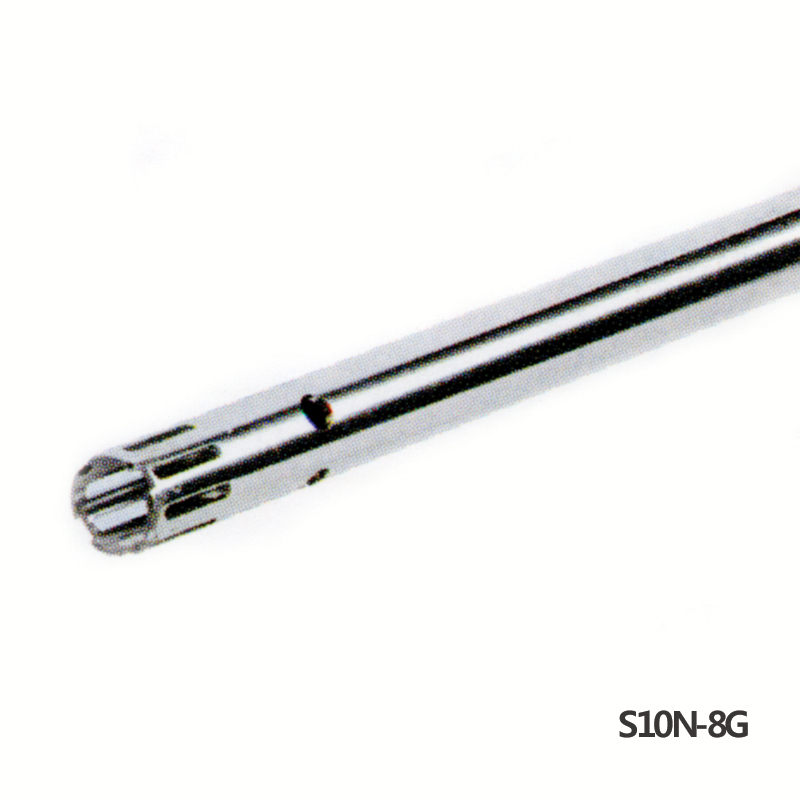

S10N-8G |

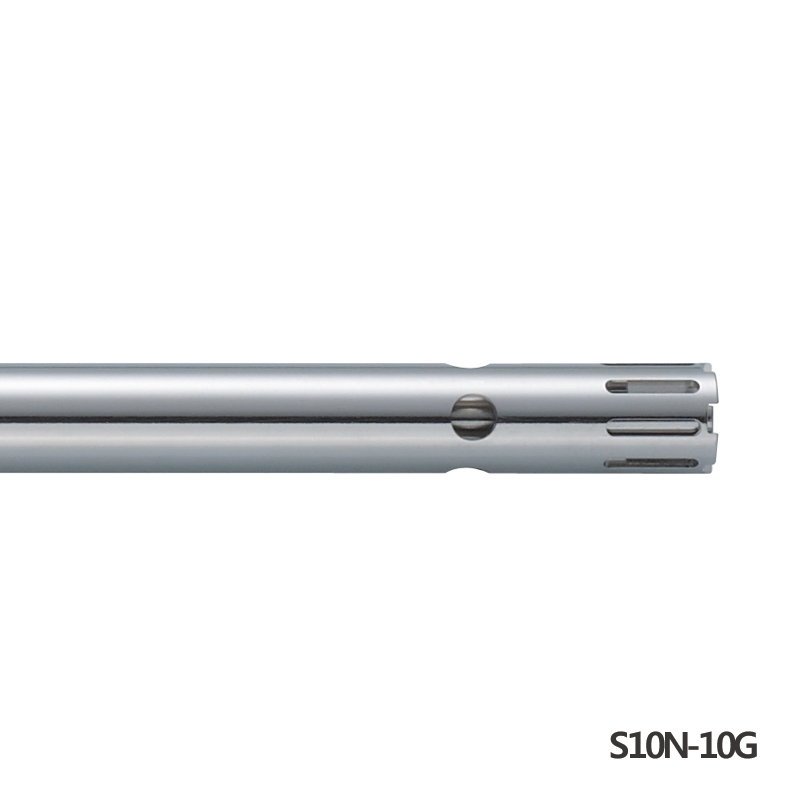

S10N-10G |
| Working Range |
0.5 ~ 10 ml |
1 ~ 50 ml |
1 ~ 100 ml |
| Stator Diameter |
5 mm |
8 mm |
10 mm |
| Roter Diameter |
3.8 mm |
6.1 mm |
7.6 mm |
| Immersion min/max |
20 / 75 mm |
20 / 95 mm |
20 / 100 mm |
| Shaft length |
92 mm |
115 mm |
| Ultimate Suspension |
5 - 25 um |
| Ultimate Emulsion |
1 - 10 um |

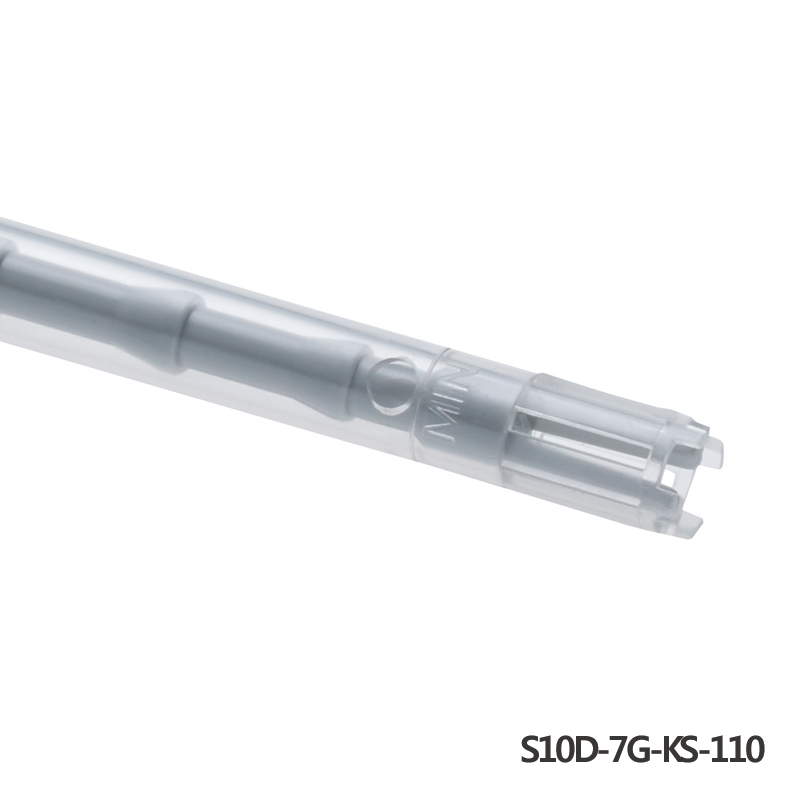

Plastic Dispersing Element for T10 basic
| Cat. No. |
H01-05-817 |
H01-05-829 |
| Model |
3433225 |
3433325 |
| Type |

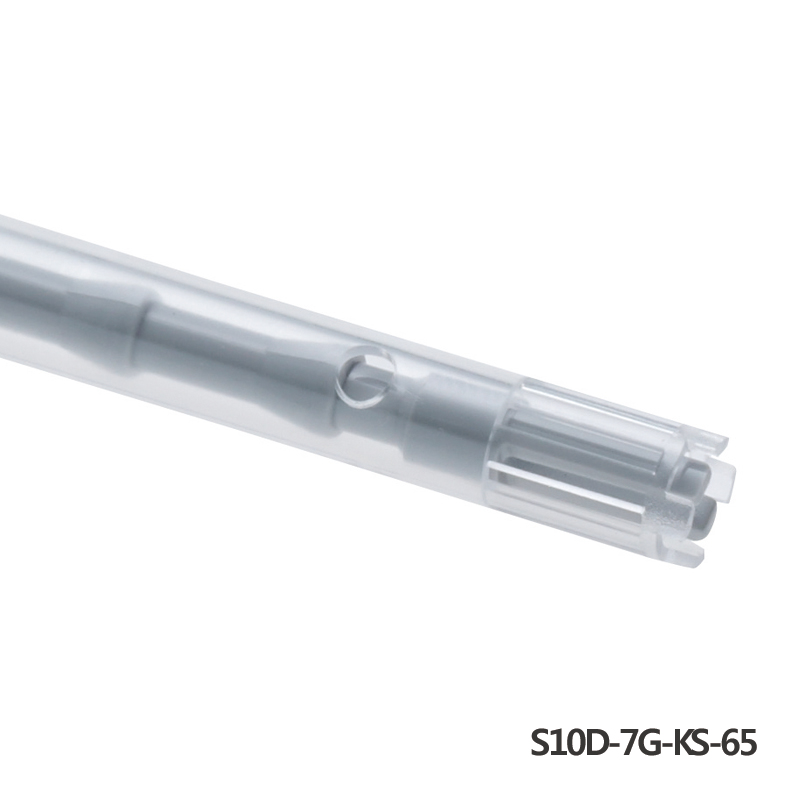

S10D-7G-KS-65 |
S10D-7G-KS-110 |
| Working Range |
1 ~ 20 ml |
1 ~ 40 ml |
| Stator Diameter |
7 mm |
| Rotor Diameter |
4.8 mm |
| Immersion min/max |
20 / 50 mm |
20 / 90 mm |
| Shaft length |
65 mm |
110 mm |
| Max. Temperature |
100℃, Autoclavable |
| 재질 |
Polycarbonate (PC) & Polysulfon (PCU), FDA 승인 |
- ● Ideal for Homogenizing Tissue Sample
Sawtooth(ST) dispersing Tool for T10 basic
| Cat. No. |
H01-05-831 |
H01-05-833 |
| Model |
4446500 |
4446700 |
| Type |

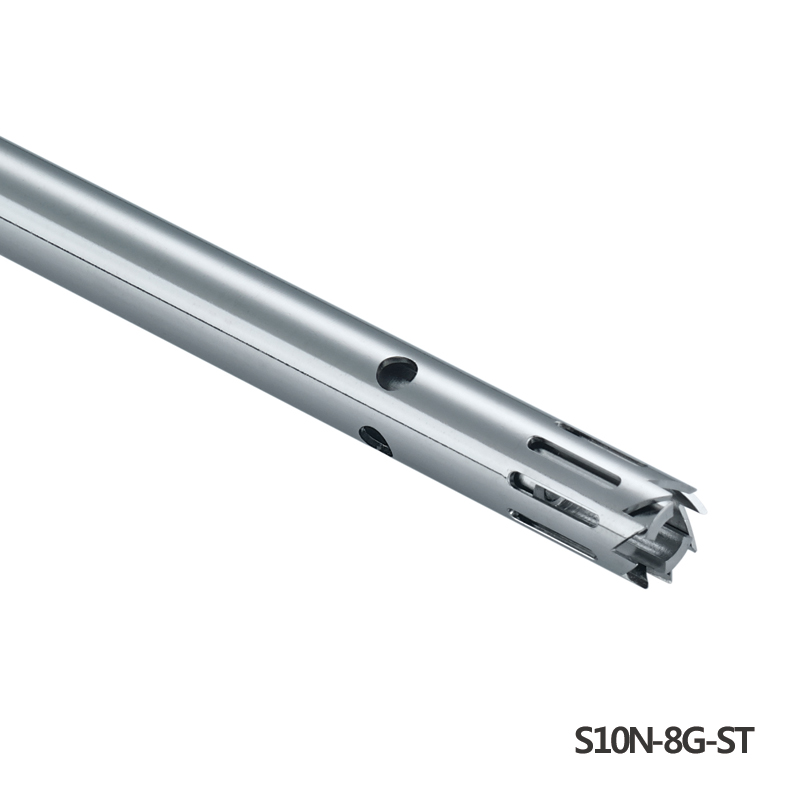

S10N-8G-ST |

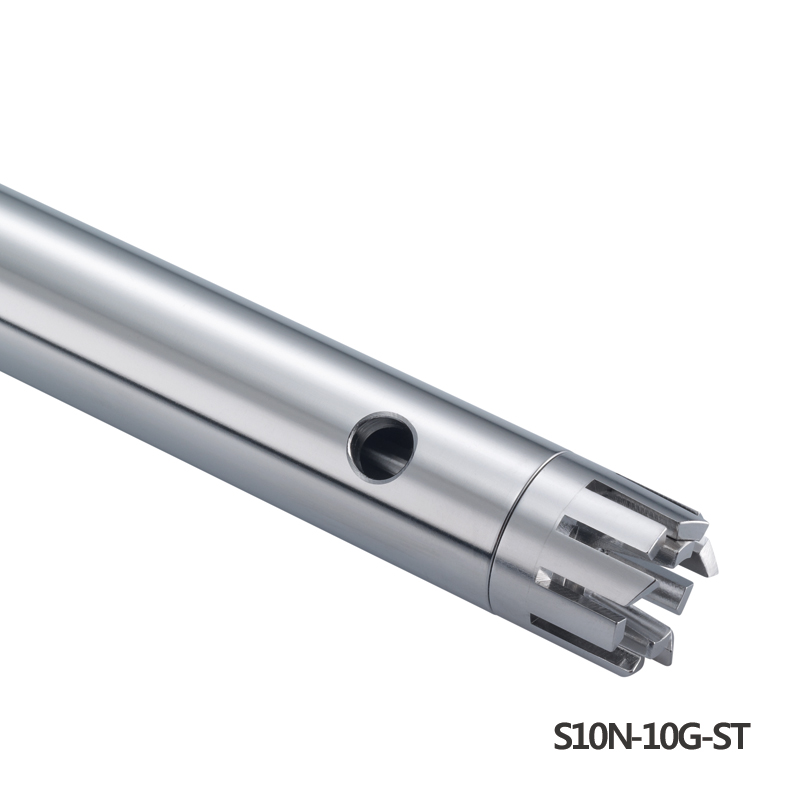

S10N-10G-ST |
| Working Range |
1 ~ 50 ml |
1 ~ 100 ml |
| Stator Diameter |
8 mm |
10 mm |
| Rotor Diameter |
6.1 mm |
7.6 mm |
| Immersion min/max |
22 / 95 mm |
23 / 100 mm |
| Shaft length |
115 mm |
| Rotor/Stator Gap |
0.25 um |
0.2 um |
| 재질 |
PTFE, AISI316L |
|
|
|
|
