IKA Homogenizer, ULTRA-TURRAX® / 중형 균질기

● 본체만의 가격이며, Tool 및 기타 Accessories는 별도임

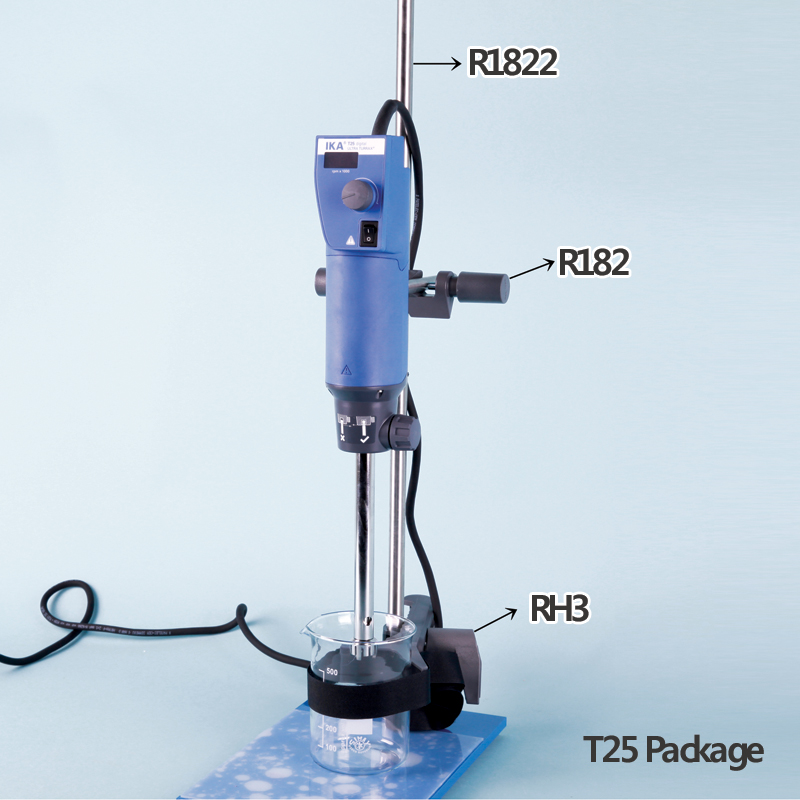

● T25 Package : T25 digital, S25N-25G, R182, RH3, R1822
● Motor Protection 기능 : 모터 과부하 방지
● Quick-Connect Coupling 채용으로 Tool 교체에 용이
● Rotating Knob을 통한 속도 조절
● 다양한 범위의 Dispersing Tool 제공
● 속도표시 : LED Digital Display
● 230V, 50/60 Hz
● IKA

(0개)

중형 균질기
Cat. No	Model	Type	사용 가능 용량

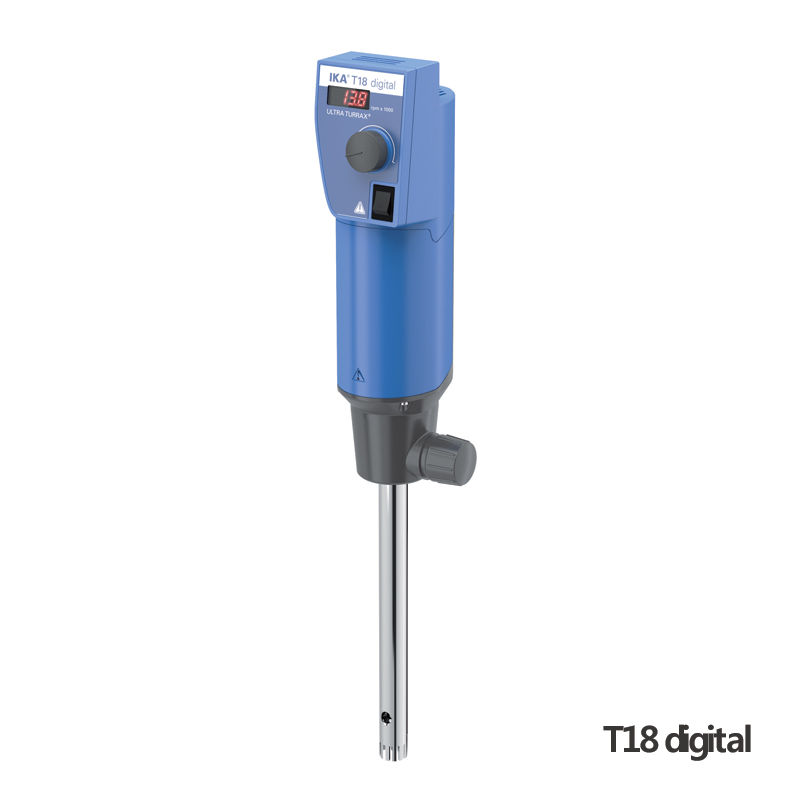

H01-05-210	3720000	T18 digital	1 ~ 1500 ml
H01-05-215	3725000	T25 digital	1 ~ 2000 ml
H01-05-145	3725000P	T25 package	1 ~ 2000 ml

상세 규격 표
Type	T18 Digital	T25 Digital
Motor Rating in/out	500W / 300W	800W / 500W
Volume Range	1 ~ 1500 ml (H2O)	1 ~ 2000 ml (H2O)
Max. Viscosity	5000 mPas
Speed Range	3000 ~ 25000 rpm
Speed 조절	Stepless
Speed display	Digital
Extension Arm	od13×L160 mm
Size	w87×d106×h271 mm

Optional Clamp for T25
Cat. No	Model	Type	Stand Rod	Extension Arm
H01-05-925	3008600	RH3	Strap	봉 Φ8 ~ 16 mm, Φ40 ~ 300 mm용
H01-05-930	3159000	RH5	Clamp	봉 Φ25 ~ 36 mm, Φ40 ~ 300mm용
H01-05-940	2657700	R182	Φ6 ~ 16 mm	Φ6 ~ 16 mm

Optional Stand for T25
Cat. No	Model	Type	Rod Size	Plate Size	Height
H01-05-968	1163100S	R1822	Φ16 mm	w200×d315 mm	800 mm
H01-05-970	3160100	R1826	Ø16 mm	w200×d316 mm	800 mm

Tool/Dispersing Element for T18
적용 Model	T18 digital
Cat. No.	H01-05-532	H01-05-538	H01-05-841	H01-05-853
Model	L004639	L004640	3452400	3452300

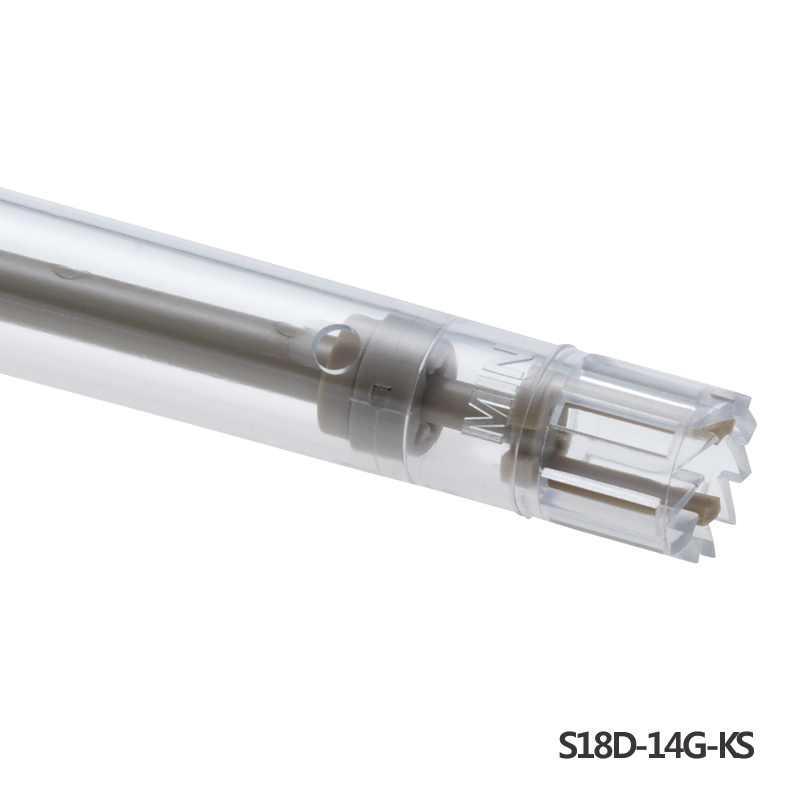

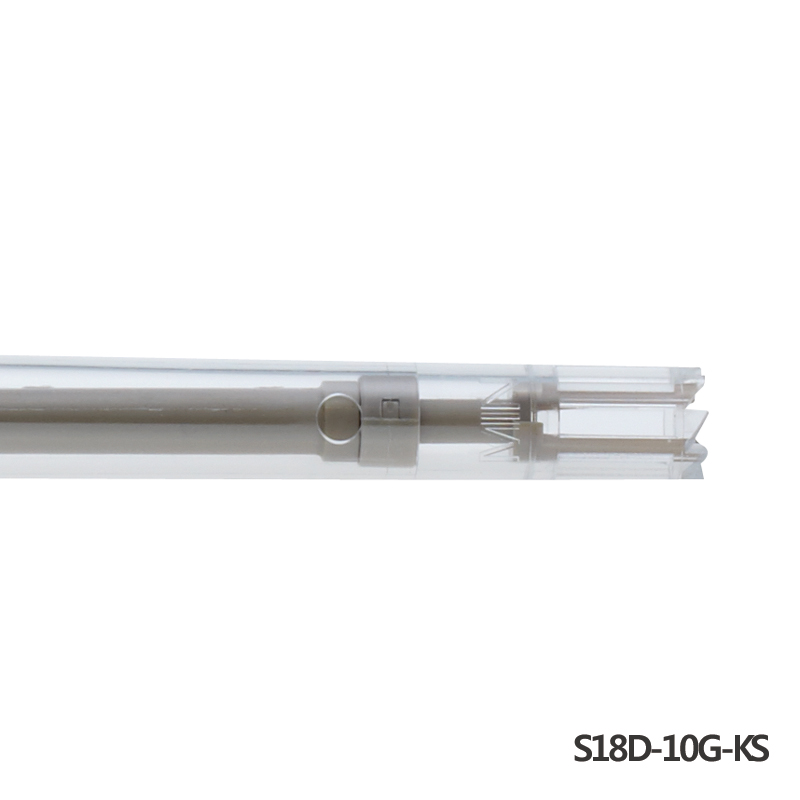

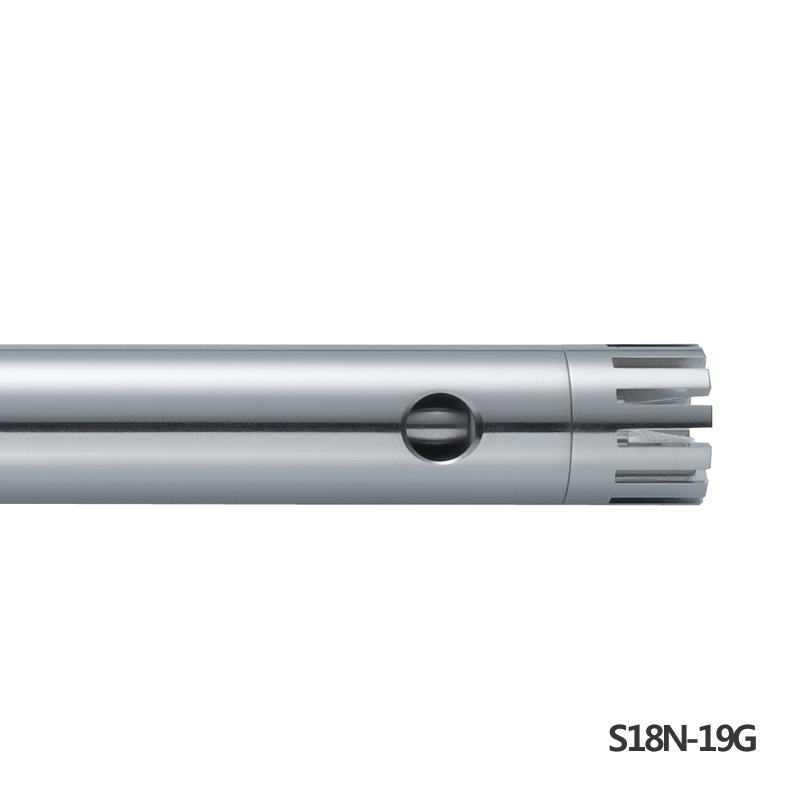

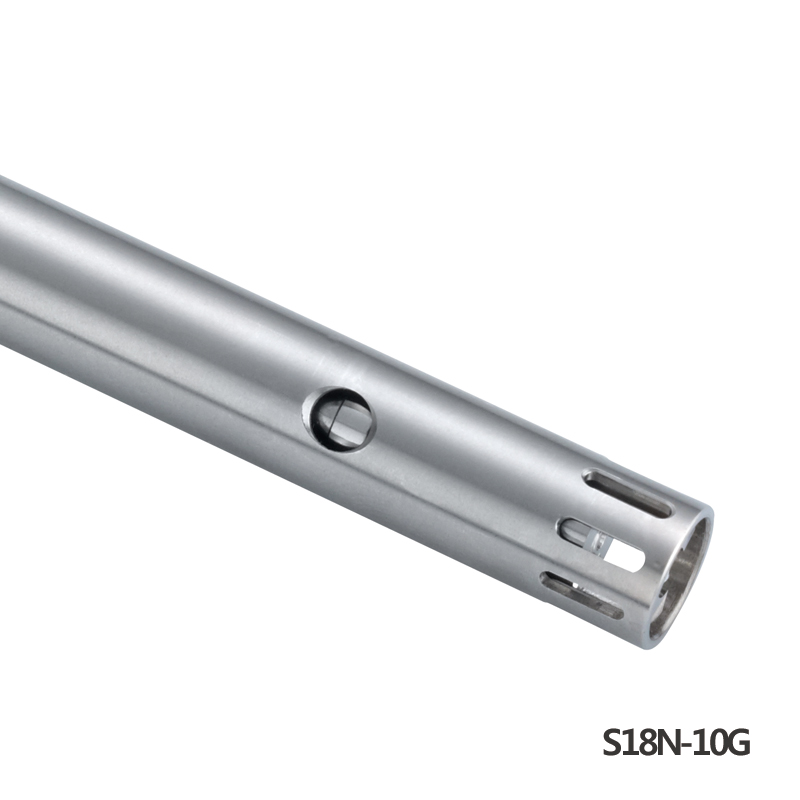

Type	S18N-10G	S18N-19G	S18D-10G-KS	S18D-14G-KS
Working Range	1 ~ 100 ml	10 ~ 1500 ml	10 ~ 100 ml	10 ~ 500 ml
Stator Diameter	10 mm	19 mm	10 mm	14 mm
Rotor Diameter	7.5 mm	12.7 mm	6.75 mm	9.5 mm
Immersion min/max	25 / 70 mm	35 / 170 mm	15 / 85 mm
Shaft length	108 mm	204 mm	150 mm
Ultimate Suspension	10 - 50 um		N/A
Ultimate Emulsion	1 - 10 um		N/A
Max. temperature	180℃		100℃, Autoclavable
재질	PTFE, AISI 316L		Polycarbonate (PC) & Polyetheretherketon (PEEK)

Tool/Dispersing Element for T25 digital
적용 Model	T25 digital
Cat. No.	H01-05-544	H01-05-550	H01-05-556	H01-05-562	H01-05-568
Model	1024200	0594000	0593400	1713300	1713800
Type	S25N-8G	S25N-10G	S25N-18G	S25N-25G	S25N-25F
Working Range	1 ~ 50 ml	1 ~ 100 ml	10 ~ 1500 ml	50 ~ 2000 ml	100 ~ 2000 ml
Stator Diameter	8 mm	10 mm	18 mm	25 mm	25 mm
Rotor Diameter	6.1 mm	7.5 mm	12.7 mm	17 mm	18 mm
Immersion min/max	27 / 85 mm	22 / 85 mm	40 / 165 mm	40 / 165 mm	40 / 165 mm
Shaft Length	108 mm	105 mm	194 mm	194 mm	194 mm
Ultimate Suspension	10 - 50 um			15 - 50 um	5 - 25 um
Ultimate Emulsion	1 - 10 um				1 - 5 um
Max. Temperature	180 ℃
재질	PTFE, AISI 316L

Tool/Dispersing Element for T25 digital
적용 Model	T25 digital
Cat. No.	H01-05-855	H01-05-858	H01-05-861	H01-05-863	H01-05-865	H01-05-877
Model	2348000	2466900	2404000	2494700	3452200	3452100

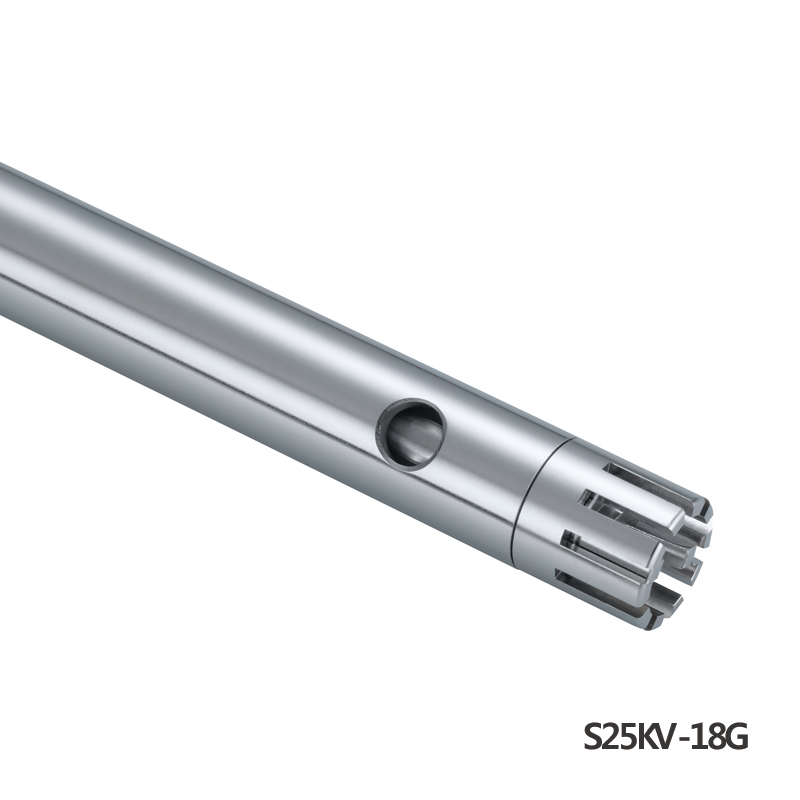

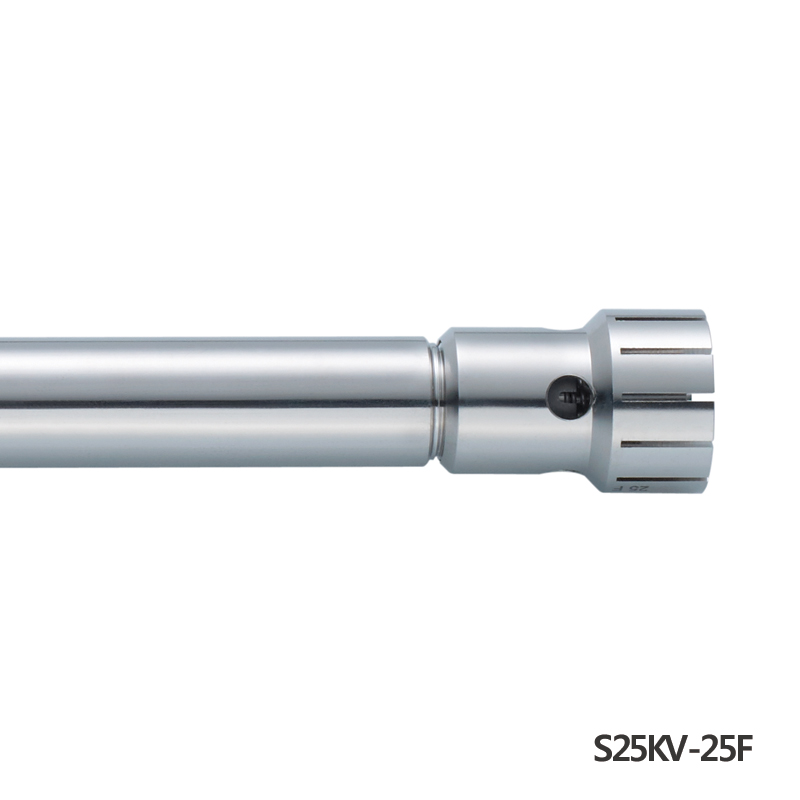

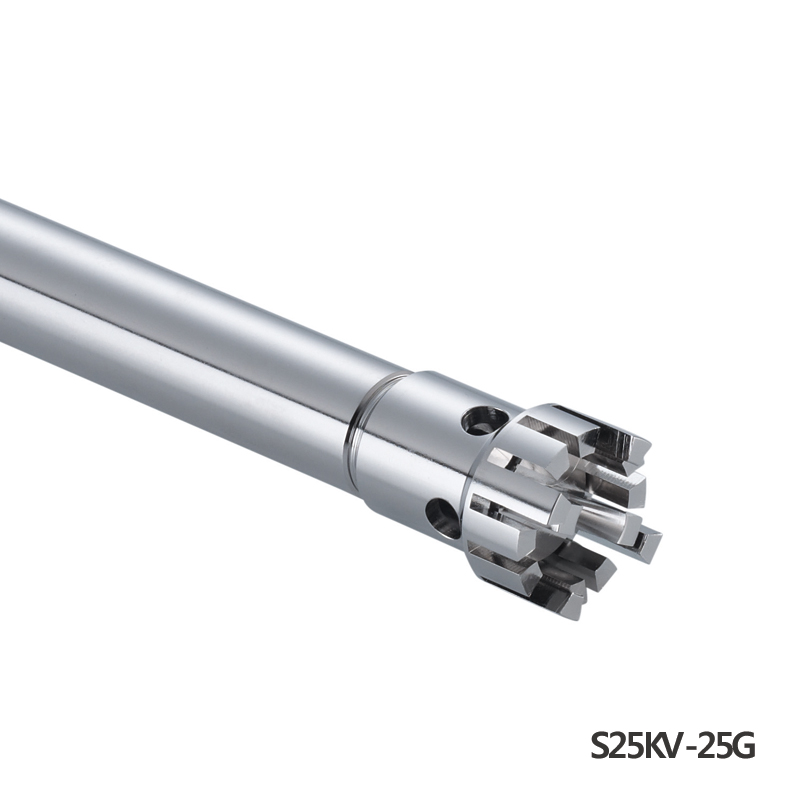

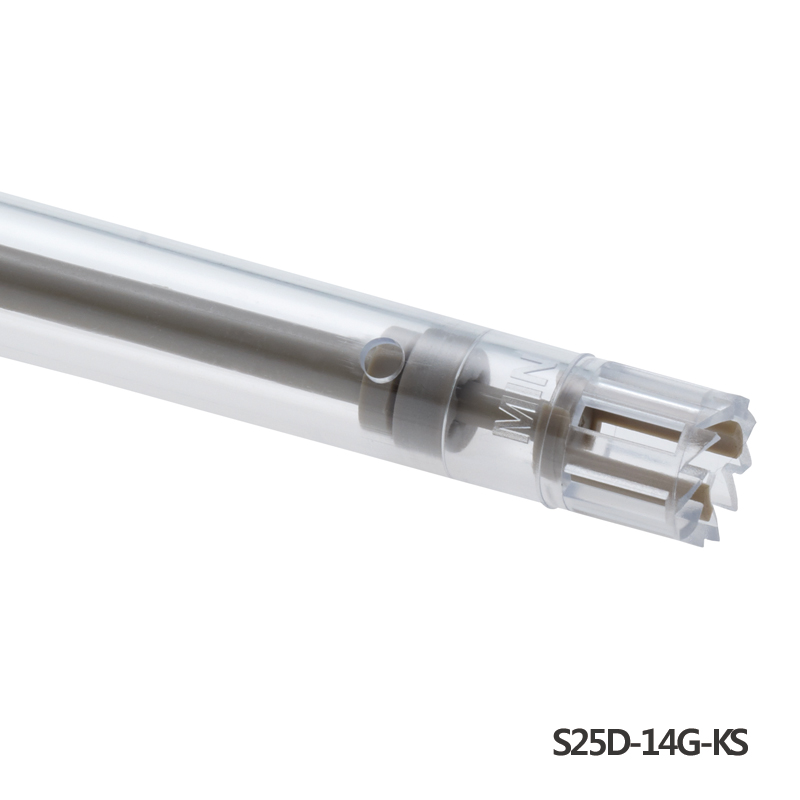

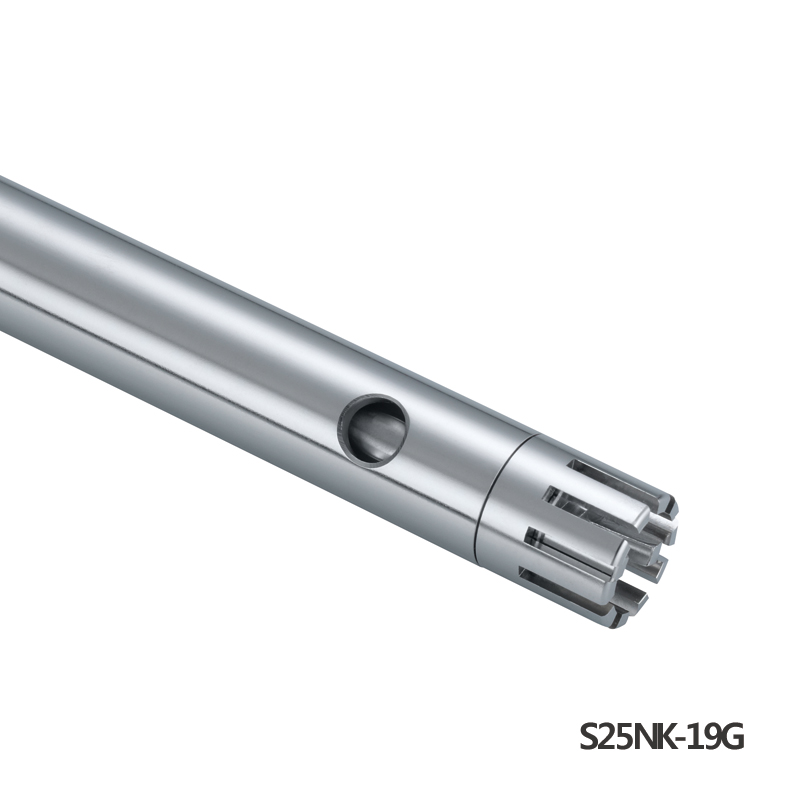

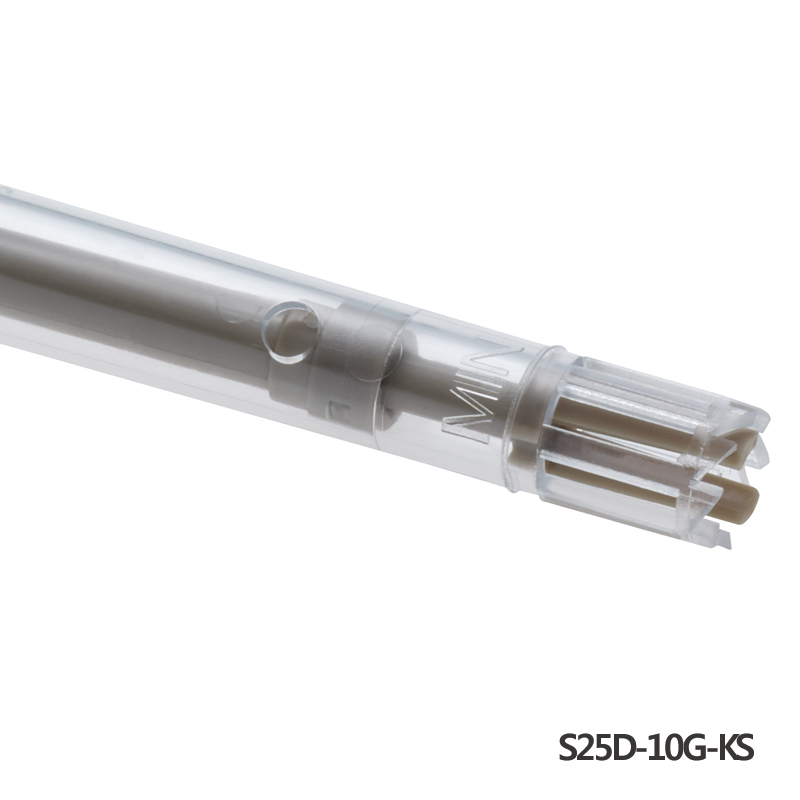

Type	S25KV-18G	S25KV-25G	S25KV-25F	S25NK-19G	S25D-10G-KS	S25D-14G-KS
Working Range	10 ~ 1500ml	50 ~ 2000ml	100 ~ 2000ml	25 ~ 1500ml	10 ~ 100ml	10 ~ 500ml
Sator Diameter	18 mm	25 mm	25 mm	19 mm	10 mm	14 mm
Rotor Diameter	12.7 mm	17 mm	18 mm	12.7 mm	6.75 mm	9.5 mm
Immersion min/max	40 / 225 mm	40 / 225 mm	40 / 225 mm	40 / 165 mm	15 / 85 mm	15 / 85 mm
Shaft Length	270 mm	270 mm	270 mm	194 mm	150 mm	150 mm
Ultimate Suspension	10 - 50 um	15 - 50 um	5 - 25 um	10 - 50 um	10 - 50 um	10 - 50 um
Ultimate Emulsion	1 - 10 um	1 - 10 um	1 - 5 um	1 - 10 um	5 - 20 um	5 - 20 um
Max. Temperature	220 ℃			120 ℃	100 ℃
재질	FFPM / SIC, AISI 316L			PTFE / AISI 316L	Polycarbonate (PC) & Polyetheretherketon (PEEK)

Sawtooth(ST) dispersing Tool for T10 basic
적용 Model	T25 digital
Cat. No.	H01-05-879	H01-05-881	H01-05-882	H01-05-884
Model	4446900	4447100	4447300	4447500

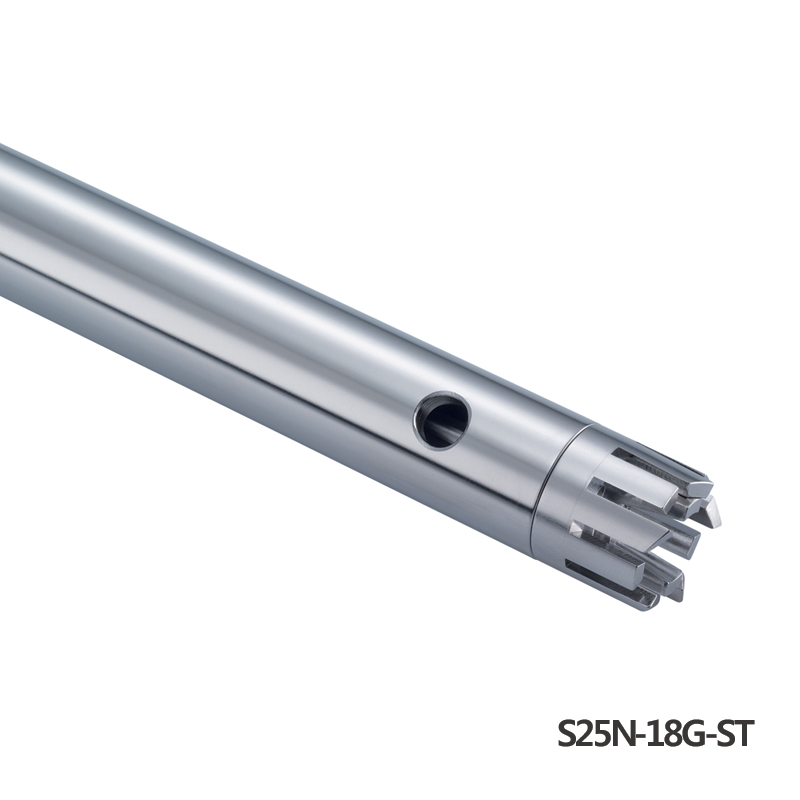

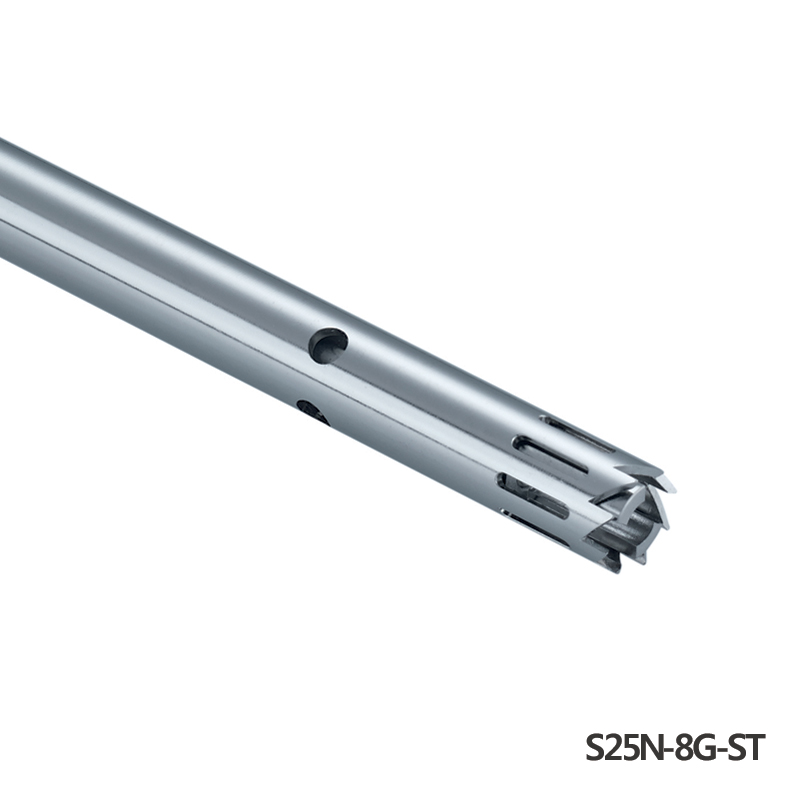

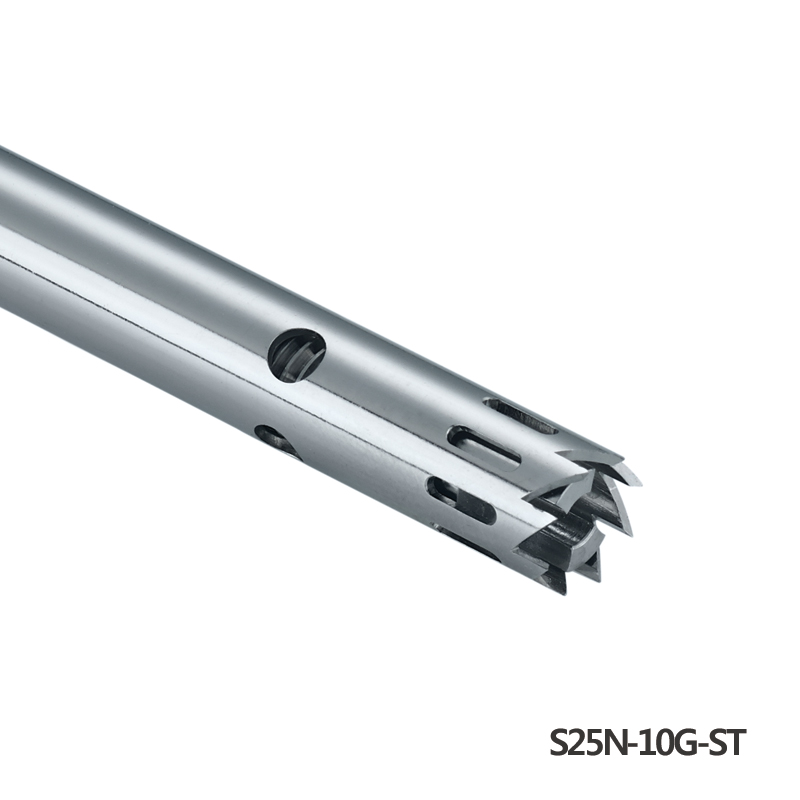

Type	S25N-8G-ST	S25N-10G-ST	S25N-18G-ST	S25N-25G-ST
Working Range	1 ~ 50 ml	1 ~ 100 ml	10 ~ 1500 ml	50 ~ 2000 ml
Stator Diameter	8 mm	10 mm	18 mm	25 mm
Rotor Diameter	6.1 mm	7.5 mm	12.7 mm	20 mm
Immersion min/max	27 / 85 mm	22 / 85 mm	40 / 165 mm	40 / 165 mm
Shaft length	108 mm	105 mm	194 mm	194 mm
재질	PTFE / AISI 316L
