IKA Inline Homogenizer / 연속 분산 균질기, MagicLAB®

● IKA

(0개)

IKA Inline Homogenizer / 연속 분산 균질기, MagicLAB®

	Cat. No	Model	Description	Unit	Price (VAT별도)	납기	재고	주문/견적
	H01-05-050	U078310	MagicLab InLine Homogenizer UTL	1/EA	0원	30 Day	0	문의

Optional Generator (Roto-stator Systems)for one-stage dispersing module ULTRA-TURRAX® UTL

Cat. No	Model	Description	Unit	Price (VAT별도)	납기	재고	주문/견적
H01-05-885	U075041	Generator for UTL 6F	1/EA	1,632,000원	30 Day	0	단종
H01-05-889	U075042	Generator for UTL 4M	1/EA	1,560,000원	30 Day	0	단종
H01-05-893	U075043	Generator for UTL 2G	1/EA	1,344,000원	30 Day	0	단종

Optional Module - Basic Module : ULTRA-TURRAX® UTL

	Cat. No	Model	Description	Unit	Price (VAT별도)	납기	재고	주문/견적
	H01-05-060	U079766	Module for Magic Lab UTL	1/EA	0원	30 Day	0	문의

Optional Module - Module : DISPAX-REACTOR® DR

	Cat. No	Model	Description	Unit	Price (VAT별도)	납기	재고	주문/견적
	H01-05-064	U078352	Module for Magic Lab DR	1/EA	0원	30 Day	0	문의

Optional Module - Module : MHD

	Cat. No	Model	Description	Unit	Price (VAT별도)	납기	재고	주문/견적
	H01-05-068	U075262	Module for Magic Lab MHD	1/EA	0원	30 Day	0	문의

Optional Module - Module : CMS

Cat. No	Model	Description	Unit	Price (VAT별도)	납기	재고	주문/견적
H01-05-072	U075333	Module for Magic Lab CMS	1/EA	0원	30 Day	0	문의
H01-05-076	U083136	Accessory for CMS Plant Magic Lab	1/EA	0원	30 Day	0	문의

Optional Module - Module : Colloid mill MK / Cone Mill MKO

Cat. No	Model	Description	Unit	Price (VAT별도)	납기	재고	주문/견적
H01-05-080	U076662	Module for Magic Lab MK	1/EA	0원	30 Day	0	문의
H01-05-084	U079664	Module for Magic Lab MKO	1/EA	0원	30 Day	0	문의

Optional Module - Module : Micro-Plant 1 L & 2 L

Cat. No	Model	Description	Unit	Price (VAT별도)	납기	재고	주문/견적
H01-05-088	U079665	Module for Magic Lab 1L Micro-Plant	1/EA	0원	30 Day	0	문의
H01-05-092	U082503	Module for Magic Lab 2L Micro-Plant	1/EA	0원	30 Day	0	문의
H01-05-096	U088067	Cover for 2L Micro-Plant Magic Lab	1/EA	0원	30 Day	0	문의

For Batch Process as ULTRA-TURRAX®

	Cat. No	Model	Description	Unit	Price (VAT별도)	납기	재고	주문/견적
	H01-05-100	U079767	Module for Magic Lab Batch Process	1/EA	0원	30 Day	0	문의

(0개)

● 대용량의 물질을 분산하거나 분산 후 다른 공정으로 이동시 사용
● Module UTL이 기본사양이나, 목적에 맞게 Module을 선택 바꾸어 사용 가능함
● Designed for mixing, dispersing, wet milling and incorporation of powder into liquids in laboratory scale
● Dispersing for manaufacturing of emulsions and suspensions
● 130 L/hr (H2O)의 처리 용량으로 연구용및 Pilot 라인에 사용되어지는 26,000 rpm의 강력한 회전력을 가진 Inline Dispersing Machine임
● Control & Info Center : Speed, Torque, Temperature
● Double-walled Working Chamber
● Module내 온도를 유지 시키기 위해 별도의 냉동 Circulation Bath가 필요함

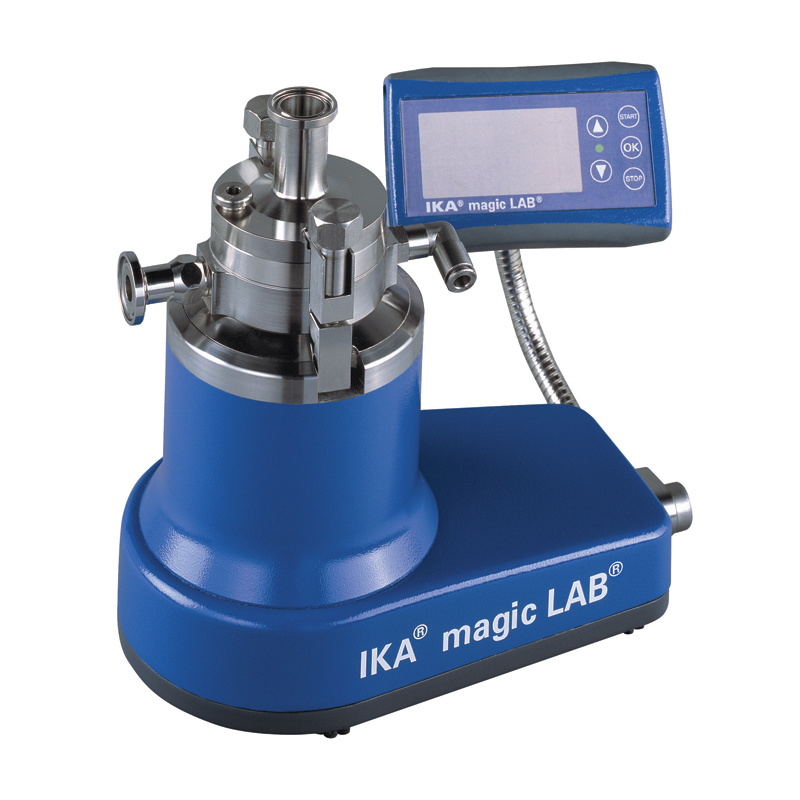

연속 분산 균질기, MagicLAB®
Cat. No	Model	Type	Flow Rate	Module
H01-05-050	U078310	MagicLab	130 L/hour	UTL

상세 규격 표
Cat. No.	H01-05-050
Type	MagicLab
Motor Power	900 W
Working Temp. (In Module)	Short Time Operation (3분 미만) : 120℃ Long Time Operation (30분 미만) : 80℃
Max. Process Pressure	2.5 bar
Speed	Standard Rotation Speed : 14600 rpm Adjustable Rotation Speed Range : 3000 ~ 26000 rpm
Flow Capacity	130 L/hour (H2O at Standard Speed)
Machine Dimension	w170×d270×h215 mm
Weight	7 kg
Power	230V, 50/60 Hz
Rotor-stator System	4 M (Medium)

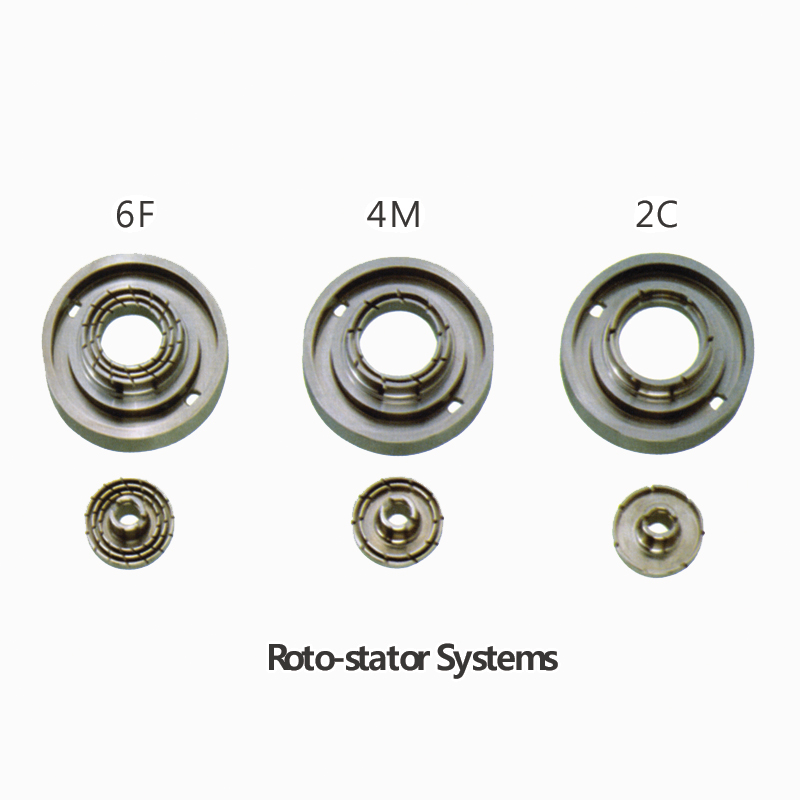

Optional Generator (Roto-stator Systems)
for one-stage dispersing module ULTRA-TURRAX® UTL
Cat. No	Model	Type	규격
H01-05-885	U075041	6F	Fine
H01-05-889	U075042	4M	Medium
H01-05-893	U075043	2C	Coarse

Optional Module

Basic Module : ULTRA-TURRAX® UTL
Cat. No	Model	Type	Flow Rate	Speed
H01-05-060	U079766	UTL	130 L/hour	14600 rpm

● 기본 Module로 재품과 같이 공급됨
● 연속 및 반복적인 작업용
● Single Stage Module
● Generator 4 M - 다른 Optional Generator로 교체 가능
● For mixing greatly different viscosities
● Adjustable Speed : 3000 ~ 26000 rpm
● Inlet / Outlet Socket : Clamp 3/4” / Clamp 1/2”

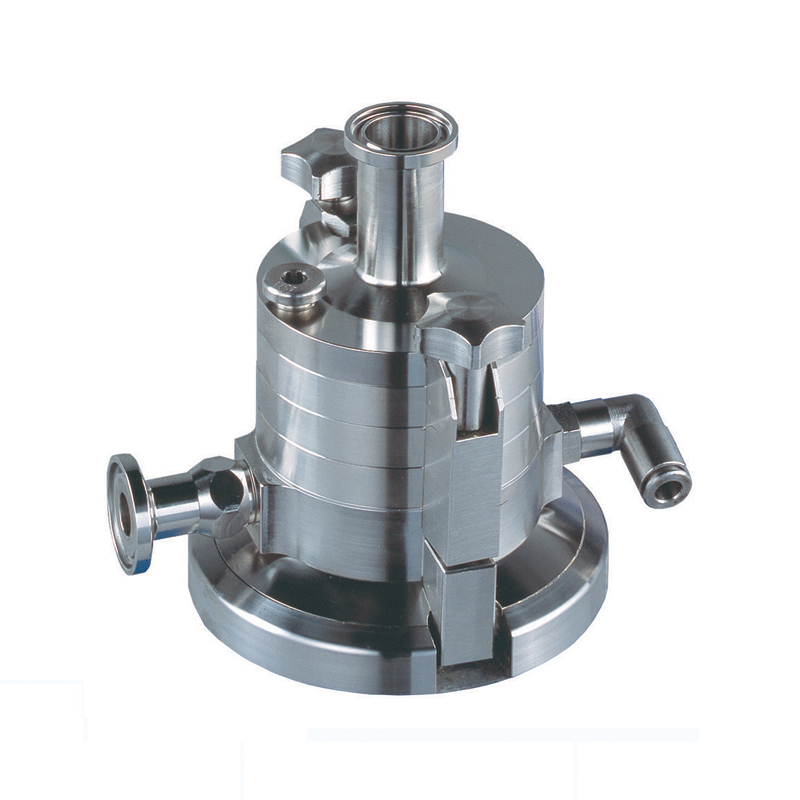

Module : DISPAX-REACTOR® DR
Cat. No	Model	Type	Flow Rate	Speed
H01-05-064	U078352	DR	80 L/hour	14600 rpm

● Three Stage Dispersing Module
- 3개의 Generator 사용 가능 (Generator : 2G/4M/6F Standard)
- 2G (Rough) and 6F (Fine)
- 가장 강력한 Dispersing Machine으로 가장 높은 Fineness를 가짐
● Idear for homogeneous and stable emulsions / suspensions
● Adjustable Speed : 3000 ~ 26000 rpm
● Inlet / Outlet Socket : Clamp 3/4” / Clamp 1/2”

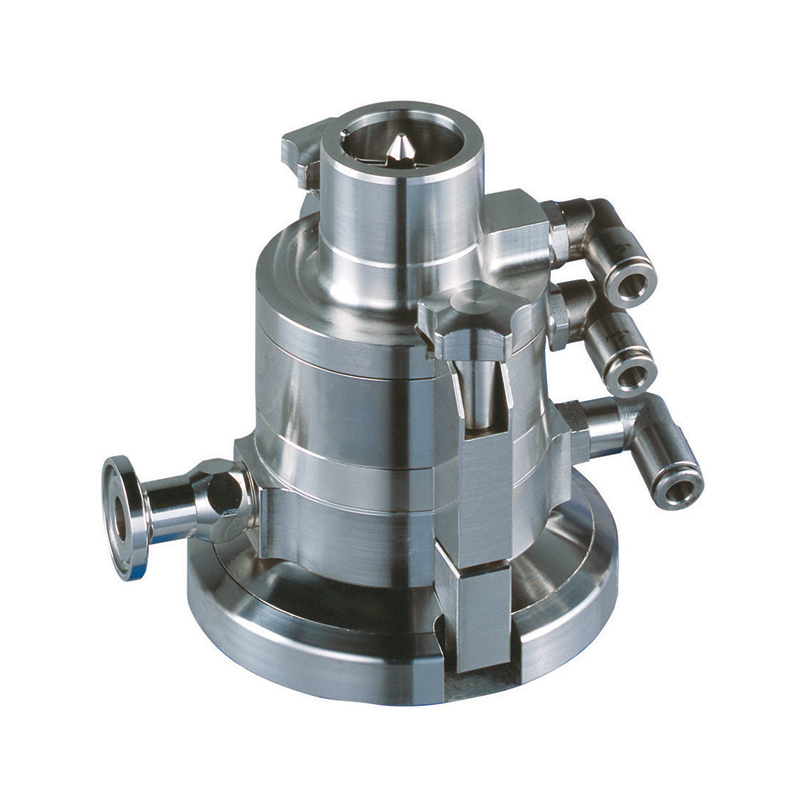

Module : MHD
Cat. No	Model	Type	Flow Rate	Speed
H01-05-068	U075262	MHD	60 L/hour	14600 rpm

● MHD : Mixing, Homogenising, Dispersing
● Module for continuous powder incorporation in liquid
● Fest wetting of solids
● Homogeneous agglomerations-free mixed product in only one pass
● Solids content up to 80% and viscosities up to 50000 mPas will be possible
● Adjustable Speed : 3000 ~ 20000 rpm
● Inlet Socket (Solid / Liquid) : (25 mm / 35 mm) / 6 mm
● Outlet Socket : Clamp 1/2”

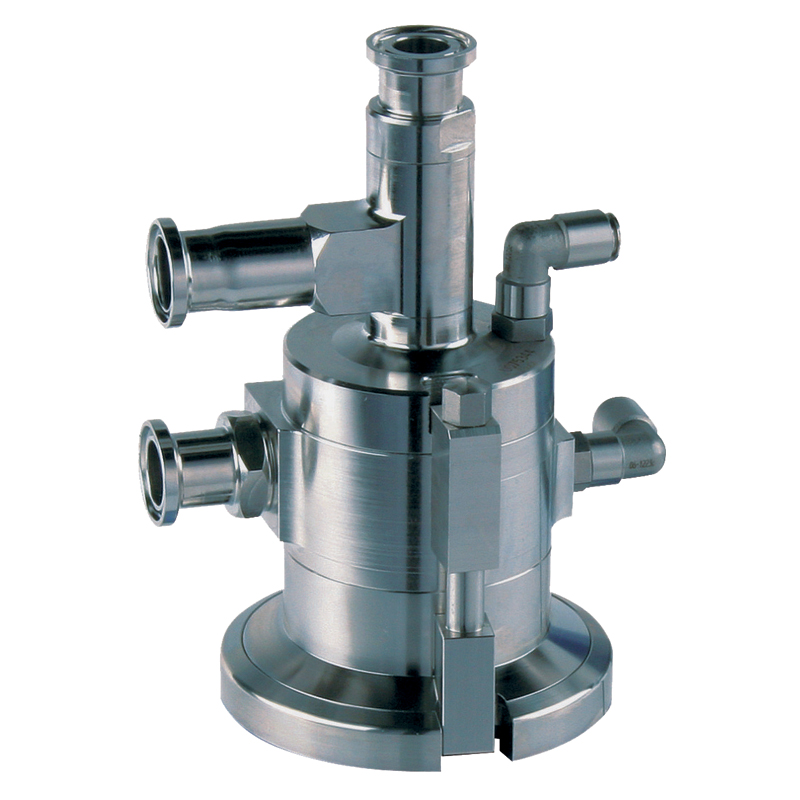

Module : CMS
Cat. No	Model	Type	Flow Rate	Speed
H01-05-072	U075333	CMS	1000 L/hour	11000 rpm
H01-05-076	U083136	-	CMS Plant Accessory

● For discontinuous passing of powder
● Produces a vacuum at the solid inlet to sucking the powders directly into
the mixing chamber of the machine without dust and agglomeration
● Suited for enrichment of liquids by powders in a recirculation process
● Adjustable Speed : 3000 ~ 16000 rpm
● Inlet Socket (Solid / Liquid) : Clamp 3/4” / Clamp 3/4”
● Outlet Socket : Clamp 3/4”
● V083136 : For powder incorporaion into liquid in recirculation mode

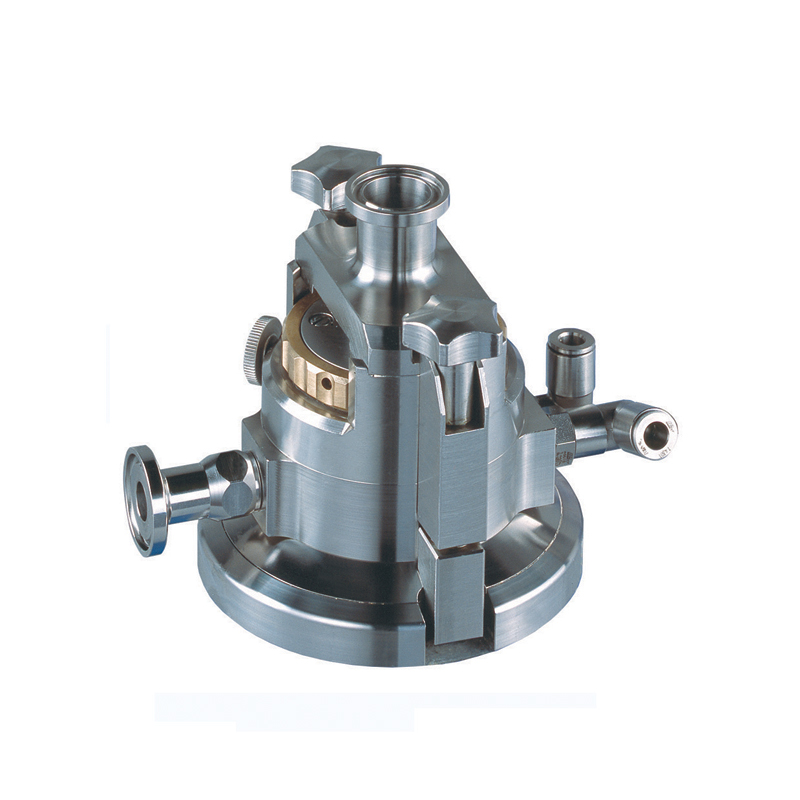

Module : Colloid mill MK / Cone Mill MKO
Cat. No	Model	Type	Flow Rate	Speed
H01-05-080	U076662	MK	200 L/hour	14600 rpm
H01-05-084	U079664	MKO	25 L/hour	14600 rpm

● For wet milling
● For production of fine suspensions and emulsions
● Flexible adjustable of milling gab between two cone
● Milling Tool Tungsten Carbide (WCCO) Coated - MKO Module
- Enlarged friction surface that enables to produce even finer suspensions
at reduced flow (More finer particle sharing as MK-module)
● Adjustable Speed : 3000 ~ 26000 rpm
● Inlet Socket : Clamp 3/4”
● Outlet Socket : Clamp 1/2”

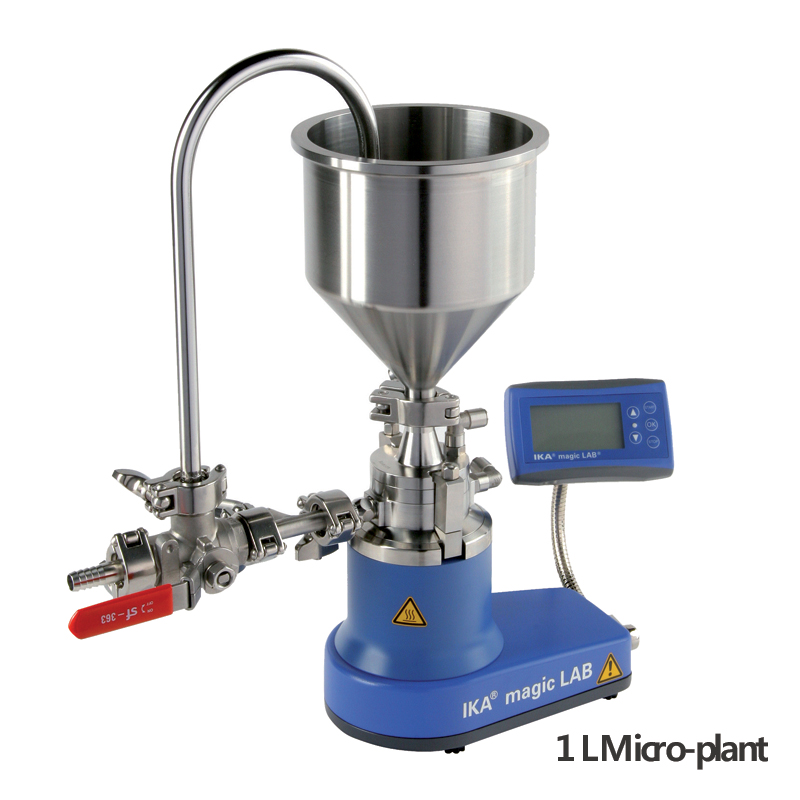

Module : Micro-Plant 1 L & 2 L
Cat. No	Model	Description
H01-05-088	U079665	1 L Micro-plant
H01-05-092	U082503	2 L Micro-plant

●For dispersion in circulaing processes
● Recirculation process use UTL, DR, MK, MKO Modules

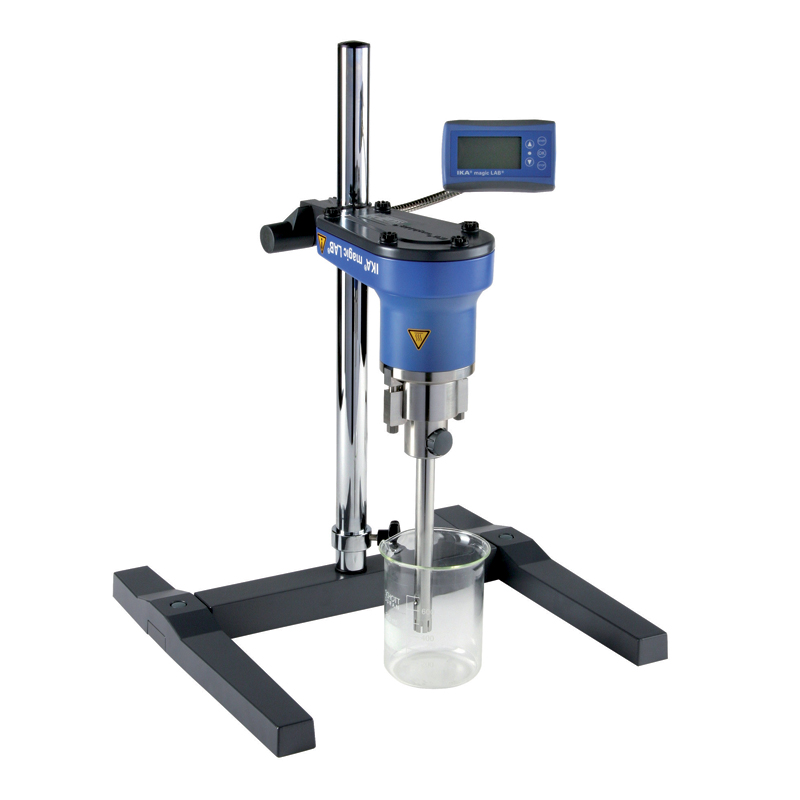

for Batch Process as ULTRA-TURRAX®
Cat. No	Model	Description
H01-05-100	U079767	for Batch Process

● Single Stage Batch Dispersing
