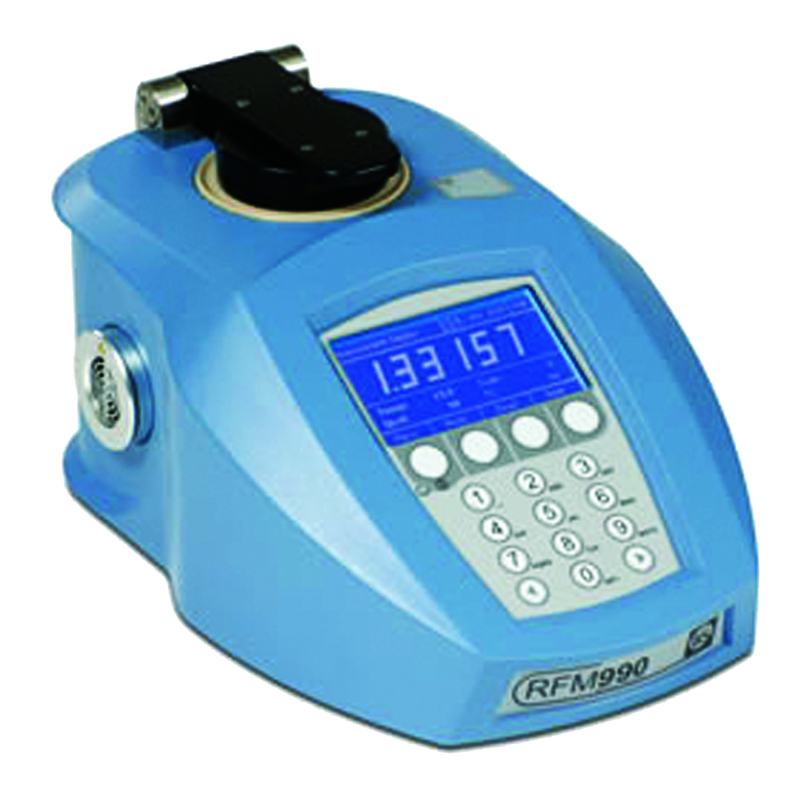

Automatic Digital Flow Refractometer / Á¤¹ÐÇü µðÁöÅÐ ±¼Àý°è, RI & % Sugar scale |
|

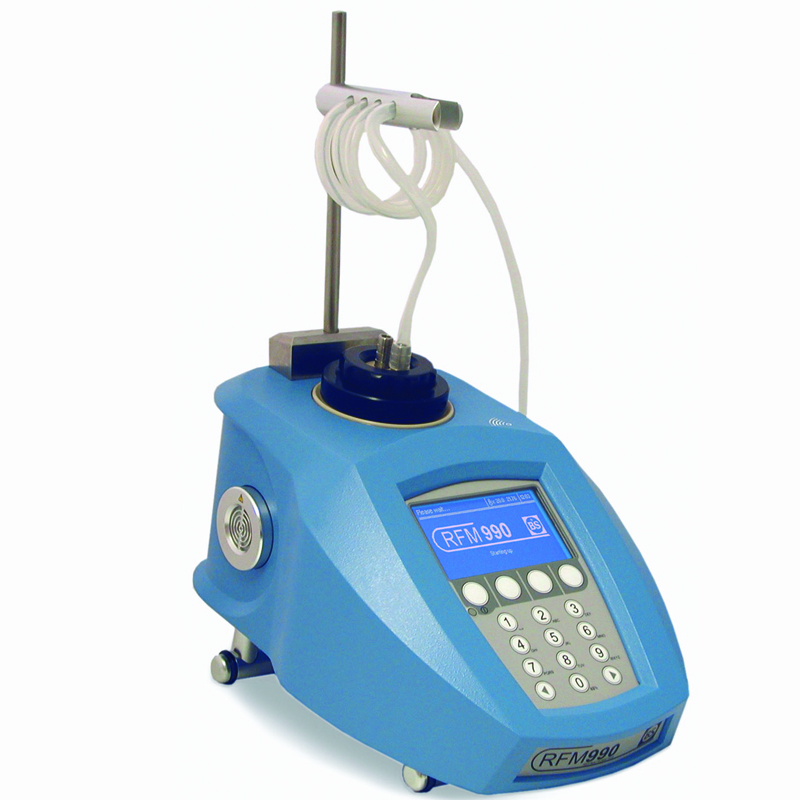

Optional Flow Cell |
|
|
|
|
|
|
|
»ó¼¼ ±Ô°Ý Ç¥
Cat. No. |
Model |
±¼Àý·ü (ºÐÇØ´É) |
¡£Brix (ºÐÇØ´É) |
R09-105-201 |
RFM990 |
1.30~1.70 (0.00001) |
0 ~ 100 (0.01) |
»ó¼¼ ±Ô°Ý Ç¥
Cat. No. |
R09-105-201 |
Model |
RFM990 |
Range |
RI |
1.30 ~ 1.70 |
Resolution |
0.0001 or 0.00001 (Selectable) |
Accuracy |
¡¾0.0001 or ¡¾0.00002 (Selectable) |
Sugar % |
0 ~ 100 |
Resolution |
0.1 or 0.01 (Selectable) |
Accuracy |
¡¾0.1 or ¡¾0.02 |
Reading time |
4 sec |
Measuring Temperature Range |
10¡É Below Ambient to 80¡É |
Temperature Sensor Accuracy |
¡¾0.03¡É |
Sample Temperature Stability |
¡¾0.05¡É |
Interface |
1 Parallel (Printer), 2 Serial (RS232) |
Prism / Prism Dish |
Synthetic Sapphire / 316 Stainless Steel |
Prism Gasket |
Kalrez¢ç |
Illumination |
Light Emitting Diode (100,000 Hours) |
Temperature Stability Checks |
Independently Selectable by Method |
Optional Flow Cell
Cat. No. |
Model |
Type |
Cell Volume |

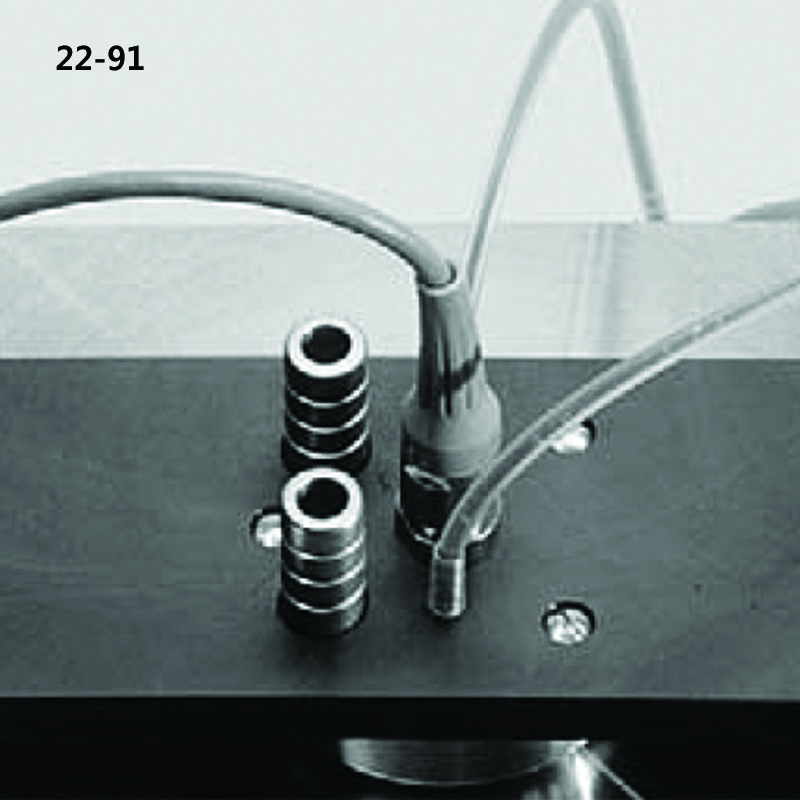

R09-105-760 |
22-91 |
Micro Flowcell |
0.6 ml |

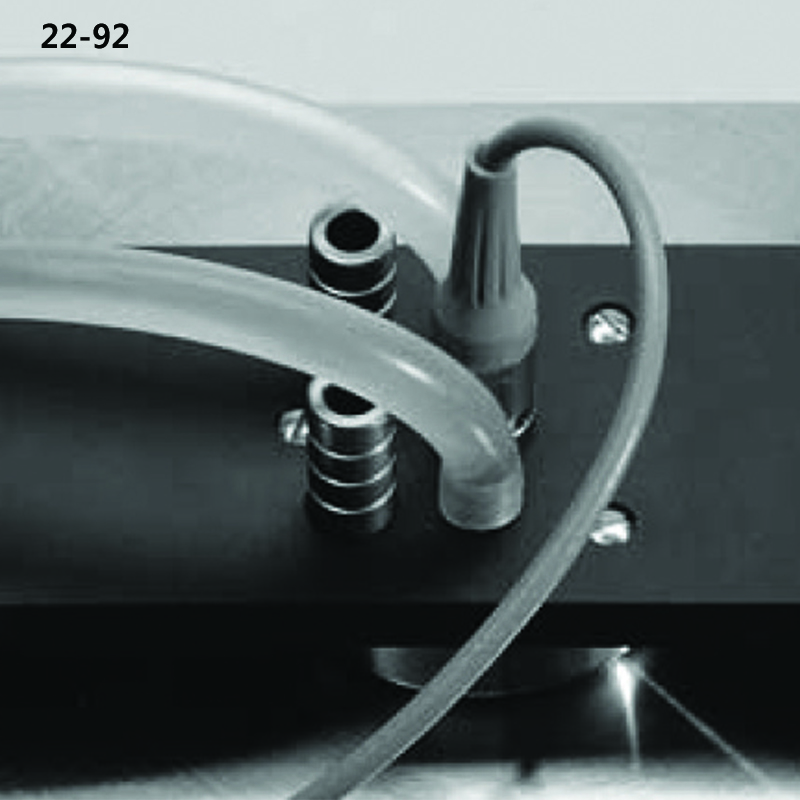

R09-105-765 |
22-92 |
Macro Flowcell |
1.2 ml |

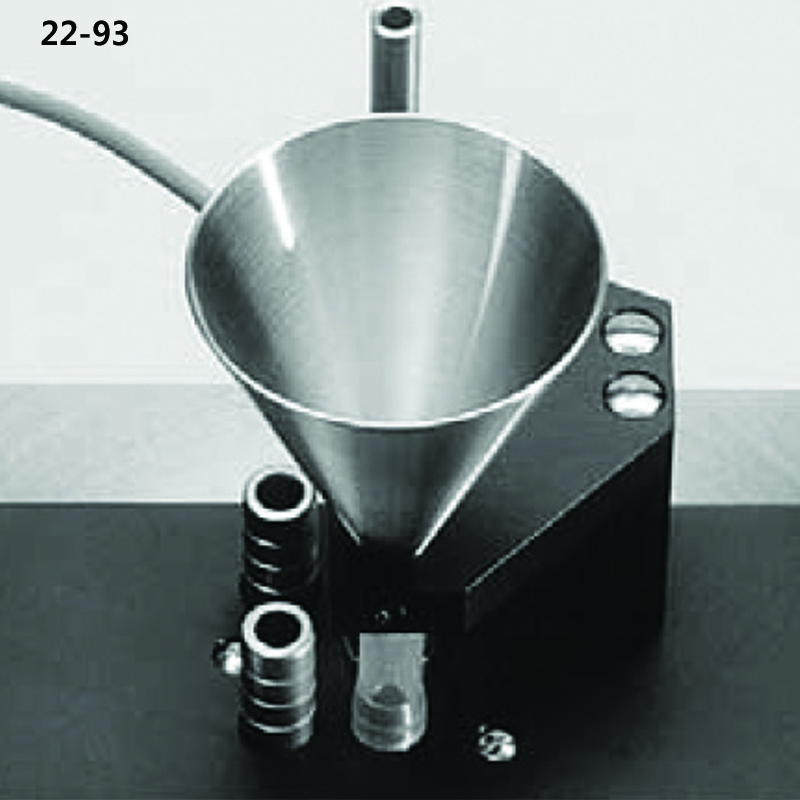

R09-105-679 |
22-93 |
Macro Funnel, 85 mm |
|
|
|
|
