Vacuum Manifold, AIRFREE¢ç / Áø°ø ¸Þ´ÏÆúµå, 5-port
¡á Vacuum Bank : ID 40 mm, 34/25 Ball Joint
¡á Àüü »çÀÌÁî : w1016¡¿h610 mm
¡á ±¸¼º

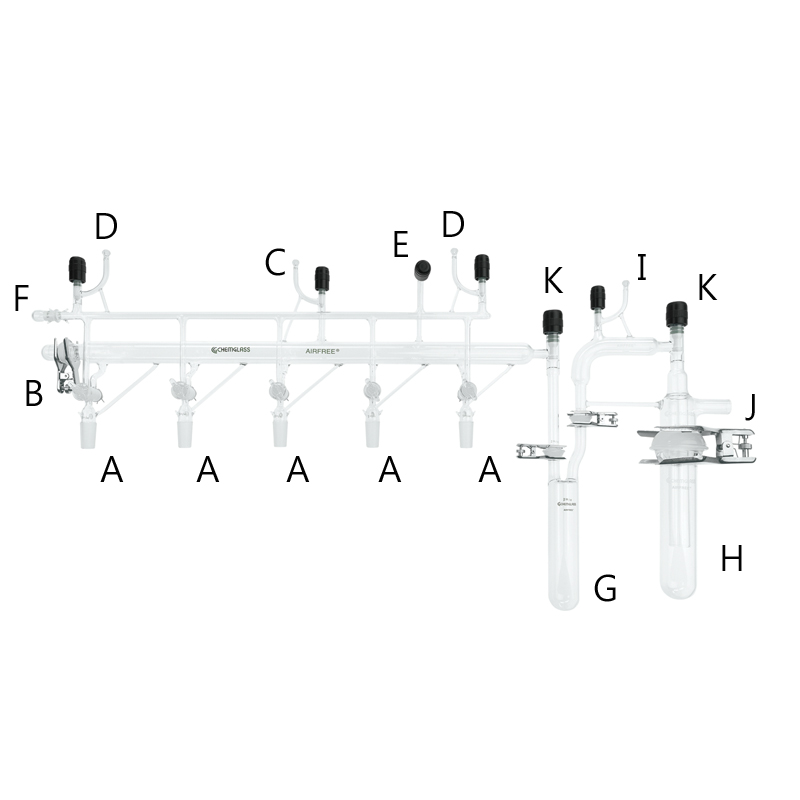

- A : 4 mm Solid Double Oblique High Vacuum Stopcock
(Pressure Retaining Device, 24/40 Inner Joint)
- B : 35/25 Socket Joint Cap (Vacuum Bank ¸¶°³)
- C : Valve Gauging Port (12/5 Ball Joint)
- D : Inert Gas Line (Gas Source ¿¬°áºÎ)
- E : Valve, Cross Over Line (Evacuation of the entire system)
- F : 14/20 Outer Joint Cap (Gas Line ¸¶°³)
- G : Pre-trap (od51¡¿h250 mm, »ó/ÇϺΠ¿¬°áºÎ 28/15 Ball Joint)
- H : Main Trap Body (od58¡¿h235 mm, »ó/ÇϺΠ¿¬°áºÎ 75/50 Ball Joint)
- I : Valveed Gauging port (Pre-trap & Main Trap ¿¬°áºÎ 12/5 Ball Joint)
- J : Pump ¿¬°áºÎ (od1¡±Tube)
- K : Isolation Valve (0 ~ 12 mm)
¡á Complete Set
- 5 Port Vacuum Manifold (1ea), Pre-trap (1ea), Main Trap (1ea),
#28 Pinch Clamp (2ea), #35 & #75 Pinch Clamp (°¢1ea),
1/2¡± Spring (2ea), 14/20 Outer Stopper (1ea), 34/25 Socket Stopper (1ea)
¡á Chemglass

(0°³)
Vacuum Manifold, AIRFREE¢ç / Áø°ø ¸Þ´ÏÆúµå, 5-port
Cat. No Model Description Unit Price
(VATº°µµ)
³³±â Àç°í ÁÖ¹®/°ßÀû
V08-132-301 AF-0450-01  Vacuum manifold AIRFREE, Chemglass 5-port, Right hand 1/EA 12,305,700¿ø 0 Day 0
V08-132-305 AF-0450-02  Vacuum manifold AIRFREE, Chemglass 5-port, Left hand 1/EA 12,305,700¿ø 0 Day 0
