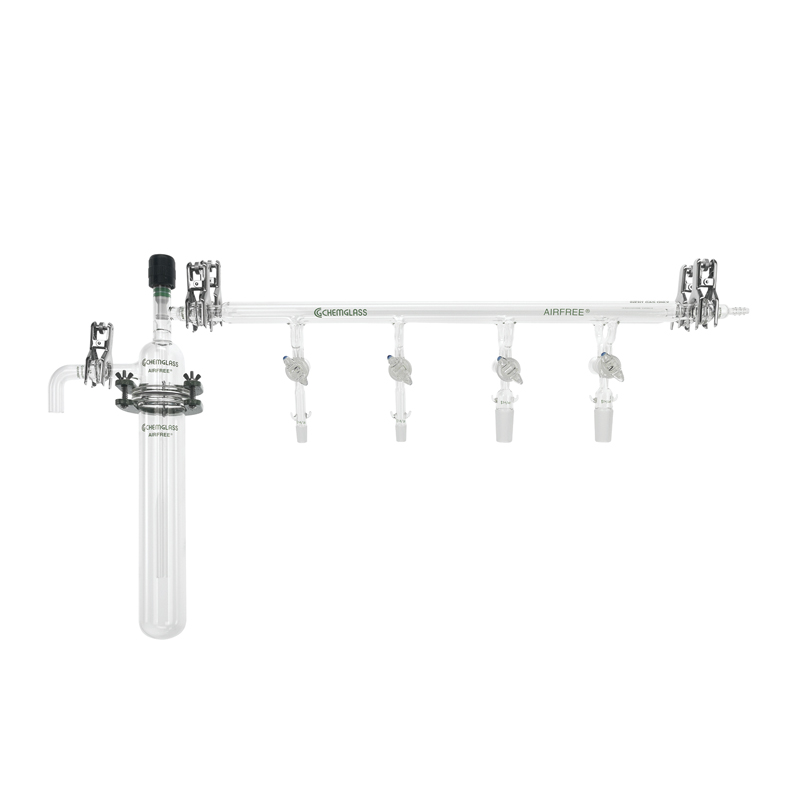

 Vacuum / Inert Line, AIRFREE® / 진공 메니폴드, 4-port |
|
| Spare Part |
|
|
Cat. No |
Model |
Description |
Unit |
Price
(VAT별도) |
납기 |
재고 |
주문/견적 |
|
|
V08-132-050 |
AF-0452-02 |
Vacuum manifold AIRFREE, SparePart for Vacuum Manifold Vacuum Manifold, Inert Line Only |
1/EA |
2,473,900원 |
0 Day |
0 |
|
|
|
V08-132-054 |
AF-0452-03 |
Vacuum manifold AIRFREE, SparePart for Vacuum Manifold Trap Assembly Only |
1/EA |
1,022,300원 |
0 Day |
0 |
|
|
|
V08-132-058 |
AF-0452-04 |
Vacuum manifold AIRFREE, SparePart for Vacuum Manifold Trap Stopper Only |
1/EA |
843,000원 |
0 Day |
0 |
|
|
|
V08-132-062 |
AF-0200-02 |
Vacuum Trap Body Only for AIRFREE Vacuum Manifold |
1/EA |
182,400원 |
0 Day |
0 |
|
|
|
V08-132-455 |
AF-0070-03 |
Tubing Adapter #15 O-ring Joint to 3/4 Tubing Straight |
1/EA |
59,400원 |
0 Day |
0 |
|
|
|
V08-132-459 |
AF-0070-20 |
Vacuum manifold AIRFREE, SparePart for Vacuum Manifold #15 O-ring Joint to 3/4 Tubing, Bent 90° |
1/EA |
212,400원 |
0 Day |
0 |
|
|
|
V08-132-463 |
AF-0070-05 |
Optional Port Adapter B type 10mm OD Serrated Hose Connector |
1/EA |
51,300원 |
0 Day |
0 |
|
|
|
V08-132-467 |
AF-0210-01 |
O-ring Stopper #15 AIRFREE Spare Part for Vacuum Manifold |
1/EA |
44,900원 |
0 Day |
0 |
|
|
|
V08-132-644 |
CG-305-116 |
Viton O-ring #116 for Portable Vacuum System |
1/EA |
3,700원 |
3 Day |
1 |
|
|
|
V08-132-914 |
CG-305-331 |
#331 Viton O-ring AIRFREE SparePart for Vacuum Manifold |
1/EA |
11,600원 |
0 Day |
0 |
|
|
|
V08-132-916 |
CG-139-02 |
57mm Horseshoe Clamp AIRFREE SparePart for Vacuum Manifold |
1/EA |
132,800원 |
3 Day |
1 |
|
|
|
|
 |
|
|
|
|

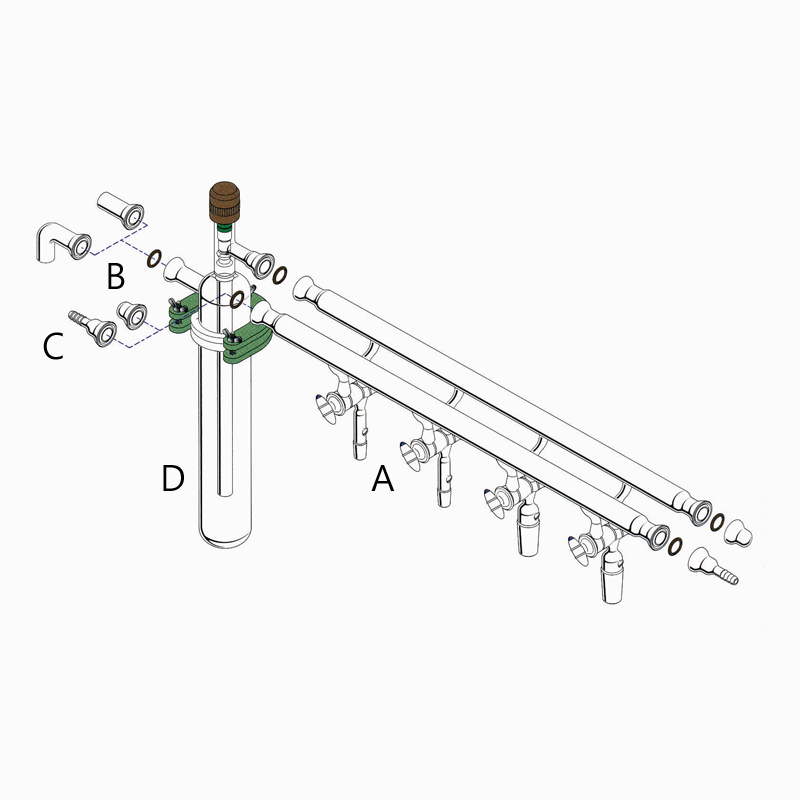

* 구성
- A : 4 mm Solid Double Oblique High Vacuum Stopcock(24/40 Inner Joint (2ea), 14/20 Inner Joint (2ea))
- B : #15 O-ring Joint Cap
- C : #15 O-ring Joint Hose Adpater
- D : Trap (od57×h300 mm), 0 - 12 mm Valve 상/하부 연결부 57mm Flat O-ring Flange
* 전체 사이즈 : w762×h457 mm
| Cat. No |
Model |
Description |
| V08-132-321 |
AF-0452-01 |
Vacuum / Innert Line |
Spare Part
| Cat. No |
Model |
Description |
| V08-132-050 |
AF-0452-02 |
Vacuum Manifold, Inert Line Only |
| V08-132-054 |
AF-0452-03 |
Trap Assembly Only |
| V08-132-058 |
AF-0452-04 |
Trap Stopper Only |
| V08-132-062 |
AF-0200-02 |
Trap Body Only |
| V08-132-455 |
AF-0070-03 |
#15 O-ring Joint to 3/4” Tubing, Straight |
| V08-132-459 |
AF-0070-20 |
#15 O-ring Joint to 3/4” Tubing, Bent 90˚ |
| V08-132-463 |
AF-0070-05 |
#15 O-ring Joint to Hose Connection |
| V08-132-467 |
AF-0210-01 |
#15 O-ring Stopper |
| V08-132-916 |
CG-139-02 |
57 mm Horseshoe Clamp |
| V08-132-644 |
CG-305-116 |
#116 Viton O-ring, 12/pk |
| V08-132-914 |
CG-305-331 |
#331 Viton O-ring, 1/pk |
-
● Complete Set
- 4 Port Vacuum Manifold (1ea), Trap (1ea),
#15 Stopper (2ea), #15 Hose Adpater (3ea),
57mm Horeshoe Clamp (1ea),
#15 Straight & Vent Adpater (각1ea),
#28 Pinch Clamp (5ea), #116 Viton O-ring (5ea)
|
|
|
|
