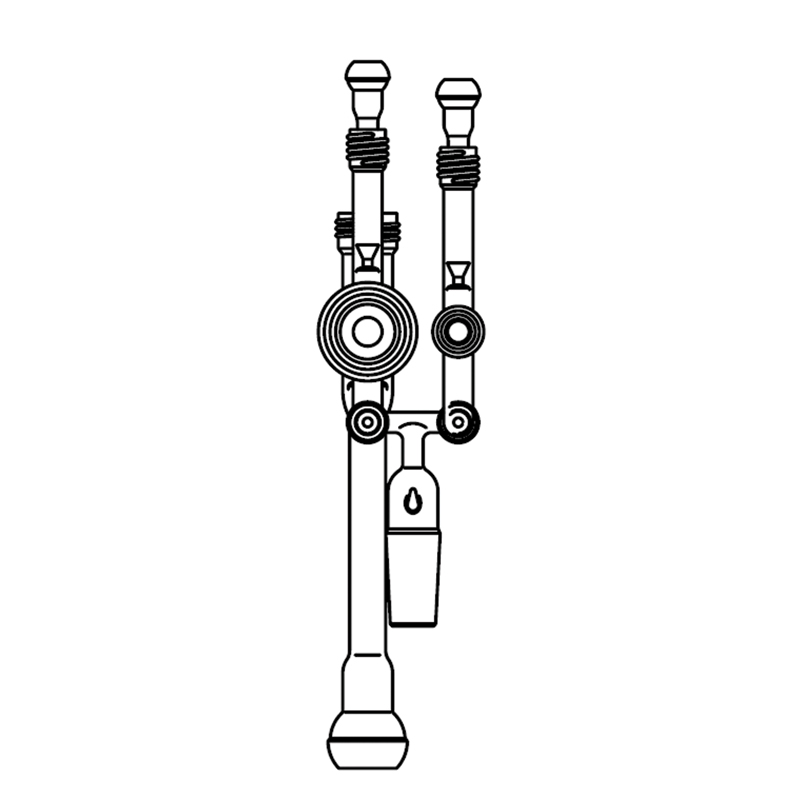

 Vacuum / Inert Gas Line, AIRFREE® / 진공 메니폴드, 4-port |
|
| Spare Part |
|
|
Cat. No |
Model |
Description |
Unit |
Price
(VAT별도) |
납기 |
재고 |
주문/견적 |
|
|
V08-132-477 |
AF-0454-02 |
Vacuum manifold AIRFREE, SparePart for Vacuum Manifold Pre-trap Only |
1/EA |
336,100원 |
0 Day |
0 |
|
|
|
V08-132-481 |
AF-0454-03 |
Vacuum manifold AIRFREE, SparePart for Vacuum Manifold Main Trap Only |
1/EA |
183,500원 |
0 Day |
0 |
|
|
|
V08-132-485 |
AF-0454-04 |
Vacuum manifold AIRFREE, SparePart for Vacuum Manifold #25 O-ring Joint Cap Stopper |
1/EA |
58,700원 |
0 Day |
0 |
|
|
|
V08-132-489 |
AF-0454-05 |
Vacuum manifold AIRFREE, SparePart for Vacuum Manifold #9 O-ring Joint Cap Stopper |
1/EA |
44,800원 |
0 Day |
0 |
|
|
|
V08-132-582 |
CG-961-01 |
0-4mm Stem & Control knob AIRFREE SparePart for Vacuum Manifold |
1/EA |
78,900원 |
0 Day |
0 |
|
|
|
V08-132-623 |
CG-150-06 |
Vacuum manifold AIRFREE, SparePart for Vacuum Manifold #35 SUS Pinch Clamp |
1/EA |
36,300원 |
0 Day |
0 |
|
|
|
V08-132-624 |
CG-150-09 |
S.S Pinch Clamp #65 for #40 O-ring Joint |
1/EA |
108,800원 |
0 Day |
0 |
|
|
|
V08-132-636 |
CG-150-03 |
#18 SUS Pinch Clamp for Vacuum Manifold |
1/EA |
19,300원 |
3 Day |
3 |
|
|
|
V08-132-905 |
CG-305-112 |
Vacuum manifold AIRFREE, SparePart for Vacuum Manifold #112 Viton O-ring (12ea/pk) |
12/PK |
22,800원 |
0 Day |
0 |
|
|
|
V08-132-913 |
CG-305-226 |
Viton O-ring #226 for #40 O-ring Joint |
3/PK |
23,100원 |
0 Day |
0 |
|
|
|
V08-132-968 |
CG-961-03 |
Spare Part for Vacuum Manifold AIRFREE 0-12mm Stem & Control knob |
1/EA |
89,400원 |
0 Day |
0 |
|
|
|
|
 |
|
|
|
|
* 구성

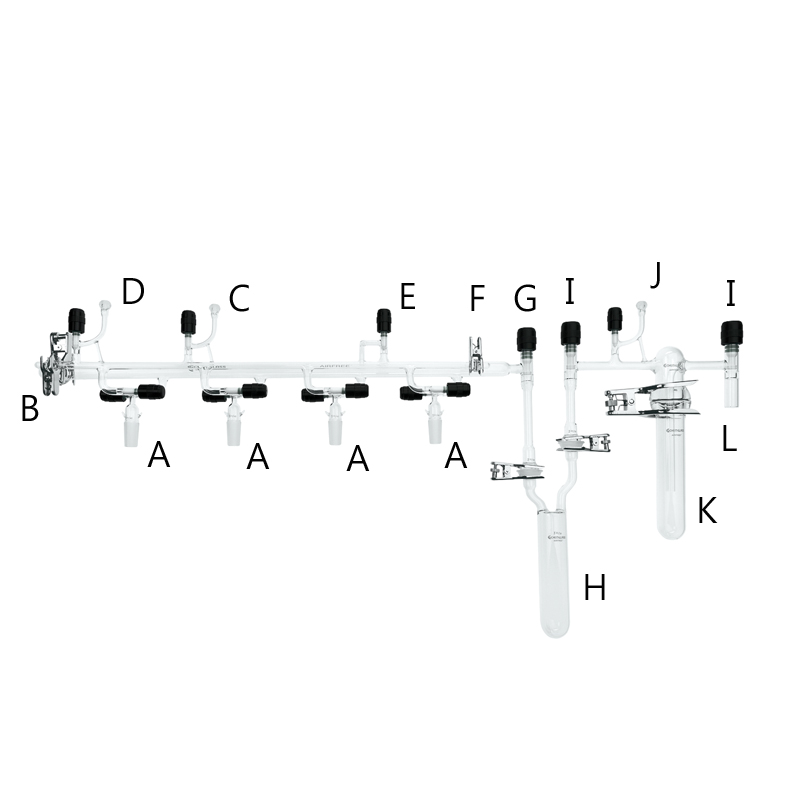

- A : 0 - 4 mm Valve(24/40 Inner Joint (2ea), 14/20 Inner Joint (2ea))
- B : Vacuum Line (#25 O-ring Joint Cap)
- C & J : Valved Gauging Port (18/9 Ball Joint)
- D : Inert Gas Line (18/9 Ball Joint, Inert Gas Source)
- E : Valved, Cross-over Line (for Evacuation of the entire system)
- F : End Cleanout (#9 O-ring Joint, w/ Stopper)
- G : Shotoff Valve (0 - 12 mm, Manifold와 Trap의 연결부위)
- H : Pre-trap (od50×h210 mm, 상/하부 연결부 35/20 Socket Joint)
- I : Isolation Valve (0 - 12 mm)
- J : Gaugeing Port (18/9 Ball Joint)
- K : Main Trap (od45×h210 mm, 상/하부 연결부 40 mm O-ring Joint)
- L : Vacuum Source 연결부 (od 22 mm)
| Cat. No. |
Model |
Description |
| V08-132-331 |
AF-0454-01 |
Vacuum / Innert Gas Line |
Spare Part
| Cat. No |
Model |
Description |
| V08-132-477 |
AF-0454-02 |
Pre-trap Only |
| V08-132-481 |
AF-0454-03 |
Main Trap Only |
| V08-132-485 |
AF-0454-04 |
#25 O-ring Joint Cap Stopper |
| V08-132-489 |
AF-0454-05 |
#9 O-ring Joint Cap Stopper |
| V08-132-905 |
CG-305-112 |
#112 Viton O-ring, 12/pk |
| V08-132-913 |
CG-305-226 |
#226 Viton O-ring, 3/pk |
| V08-132-636 |
CG-150-03 |
#18 SUS Pinch Clamp |
| V08-132-623 |
CG-150-06 |
#35 SUS Pinch Clamp |
| V08-132-624 |
CG-150-09 |
#65 SUS Pinch Clamp |
| V08-132-582 |
CG-961-01 |
0 - 4 mm Stem & Control Knob |
| V08-132-968 |
CG-961-03 |
0 - 12 mm Stem & Control Knob |
-
● Complete Set
- 4 Port Vacuum Manifold (1ea),
Pre-trap & Main Trap (각1ea), #25 Stopper (2ea),
#9 Stopper (2ea), #18 Pinch Clamp (2ea),
|
|
|
|
