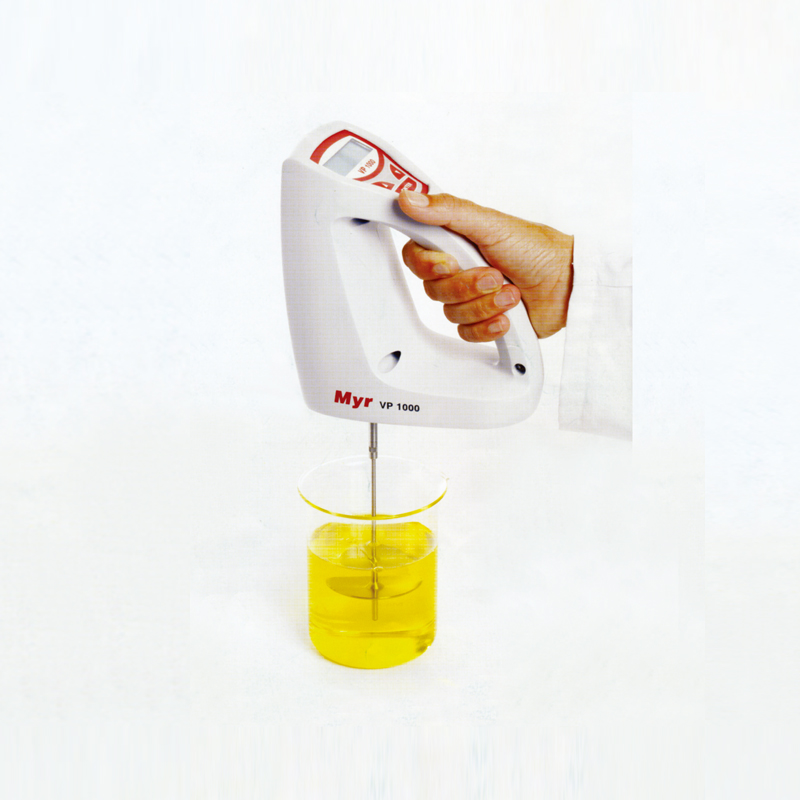

Portable Rotarty Viscometer / 휴대용 회전식 점도계

■ Compatible with the Brookfield Method
■ 6 Standard Spindle (R2-R3-R4-R5-R6-R7)
■ Spindle을 보호하기 위한 Protector가 들어 있음
■ 구성 : Portable Viscometer, Carring Case, Spindle Set, Certificatie,
Spindle Protector, Assembly Tool, Battery, and Manual
■ Stand는 별도임
■ Accessroy는 다음페이지 참조
■ Viscotech

(0개)

Portable Rotarty Viscometer / 휴대용 회전식 점도계

Cat. No	Model	Description	Unit	Price (VAT별도)	납기	재고	주문/견적
V02-38-312	VP-1020	Rotary Viscometer Portable 20rpm	1/EA	3,113,700원	0 Day	0	단종
V02-38-316	VP-1030	Rotary Viscometer Portable 30rpm	1/EA	3,113,700원	0 Day	0	단종
V02-38-320	VP-1050	Rotary Viscometer Portable 50rpm	1/EA	3,113,700원	0 Day	0	단종
V02-38-324	VP-1060	Rotary Viscometer Portable 60rpm	1/EA	3,113,700원	0 Day	0	단종

(0개)

상세 규격 표
Cat. No	Model	RPM	Range
V02-38-312	VP-1020	20 rpm	200 - 200,000 mPas
V02-38-316	VP-1030	30 rpm	130 - 133,300 mPas
V02-38-320	VP-1050	50 rpm	80 - 80,000 mPas
V02-38-324	VP-1060	60 rpm	66 - 66,600 mPas

상세 규격 표
Cat. No.	V02-38-312	V02-38-316	V02-38-320	V02-38-324
Model	VP-1020	VP-1030	VP-1050	VP-1060
Speed	20 rpm	30 rpm	50 rpm	60 rpm
Viscocity (mPas)	200-200,000	130-133,300	80-80,000	66-66,000
Viscosity Range (R1)	50-500	33-333	20-200	16-166
Accuracy	±2% Full Scale Range
Repeatability	±1%
Spindle Selected	R2 - R7 (R1 : Option)
Battery	4×AA/LR6 (6V)
