 Absorption Cell, 2-Side Polished / 흡광 셀, 2면 투명, Standard Cell with PTFE Cover, Type 1 |
|
|
Cat. No |
Model |
Description |
Unit |
Price
(VAT별도) |
납기 |
재고 |
주문/견적 |
|
|
S18-77-004 |
1-Q-1 |
Macro Cell Type 1 1mm, 0.4ml |
1/EA |
204,600원 |
3 Day |
1 |
|
|
|
S18-77-008 |
1-Q-2 |
Macro Cell Type 1 2mm, 0.7ml |
1/EA |
204,600원 |
3 Day |
1 |
|
|
|
S18-77-012 |
1-Q-5 |
Quartz Cell, Type 1 Absorption 5mm, 1.7ml |
1/EA |
188,600원 |
3 Day |
6 |
|
|
|
S18-77-016 |

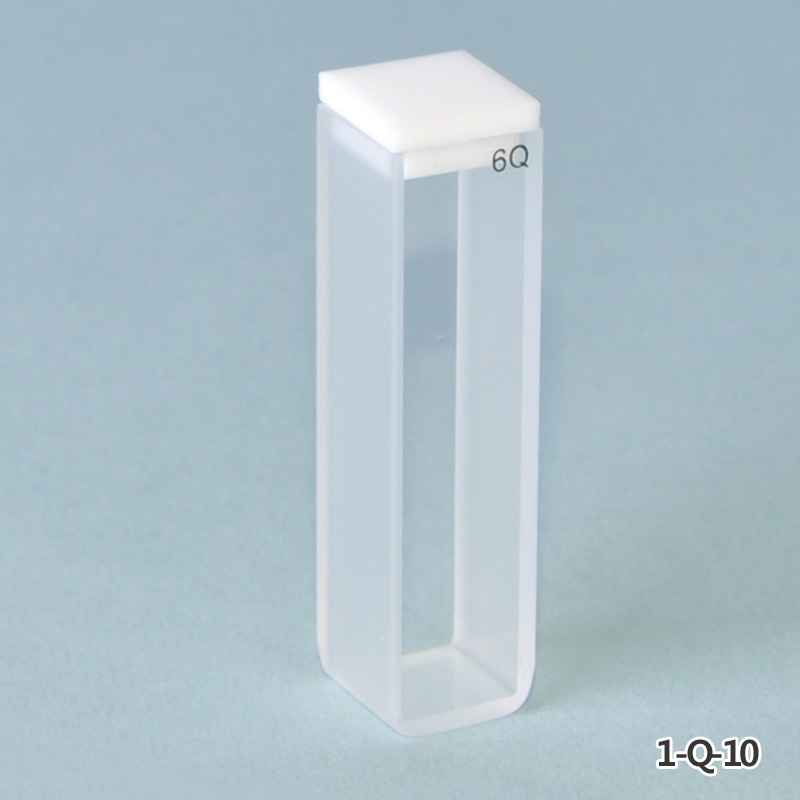

1-Q-10 |
Quartz Cell, Type 1 Absorption 10mm, 3.5ml |
1/EA |
98,700원 |
3 Day |
55 |
|
|
|
S18-77-020 |
1-Q-20 |
Macro Cell Type 1 20mm, 7ml |
1/EA |
234,200원 |
30 Day |
0 |
|
|
|
S18-77-028 |
1-Q-40 |
Macro Cell Type 1 40mm, 14ml |
1/EA |
315,300원 |
30 Day |
0 |
|
|
|
S18-77-032 |
1-Q-50 |
Macro Cell Type 1 50mm, 17.5ml |
1/EA |
337,300원 |
3 Day |
4 |
|
|
|
S18-77-036 |
1-Q-100 |
Macro Cell Type 1 100mm, 35ml |
1/EA |
547,000원 |
30 Day |
0 |
|
|
|
S18-77-040 |
1-B-Q-10 |
Quartz Black Cell, Type 1 Absorption 10mm, 3.5ml |
1/EA |
500,500원 |
3 Day |
2 |
|
|
|
|
 |
|
|
|
|

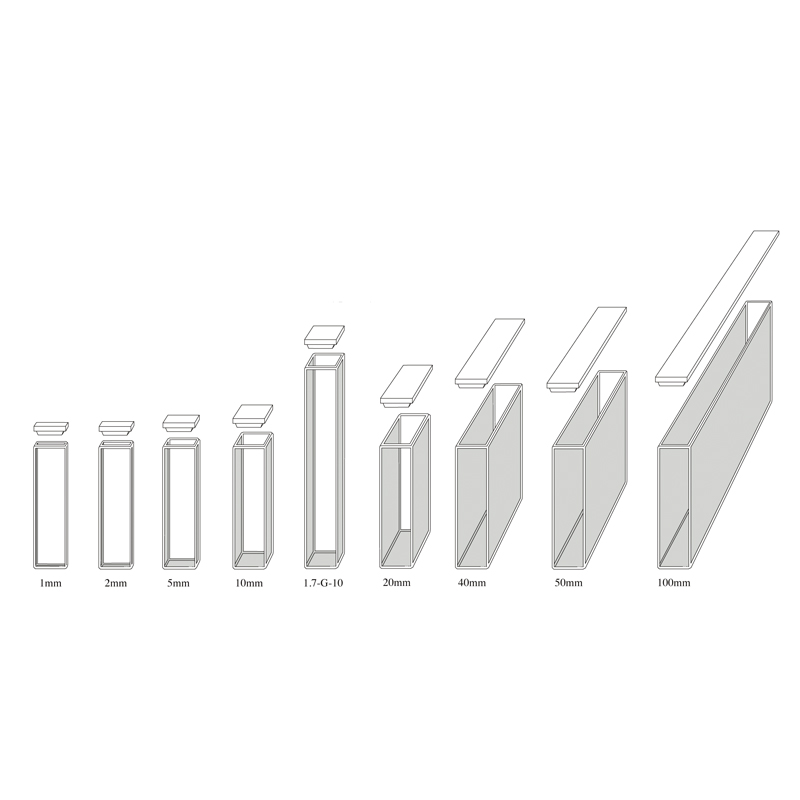

Macro / Standard Cell with PTFE Cover, Type 1
Light
Path |
Volume
(ml) |
Spectrosil® Quartz (190~2700 nm) |
| Cat No. |
Model |
| 1 mm |
0.4 |
S18-77-004 |
1-Q-1 |
Spacer 필요
(See 807 page) |
| 2 mm |
0.7 |
S18-77-008 |
1-Q-2 |
| 5 mm |
1.7 |
S18-77-012 |
1-Q-5 |
| 10 mm |
3.5 |
S18-77-016 |
1-Q-10 |
| 20 mm |
7.0 |
S18-77-020 |
1-Q-20 |
| 40 mm |
14.0 |
S18-77-028 |
1-Q-40 |
| 50 mm |
17.5 |
S18-77-032 |
1-Q-50 |
| 100 mm |
35.0 |
S18-77-036 |
1-Q-100 |
| 10 mm |
3.5 |
S18-77-040 |
1-B-Q-10 |
Black |
-
● Inside Width : 10 mm (단, Light Path 50, 100 mm : 9.5 mm)
● Light Path = 1, 2.5 mm 사용시 Spacer 필요
● Outside Dimension : w12.5×h45 mm, d(깊이) = Light Path + 2.5 mm

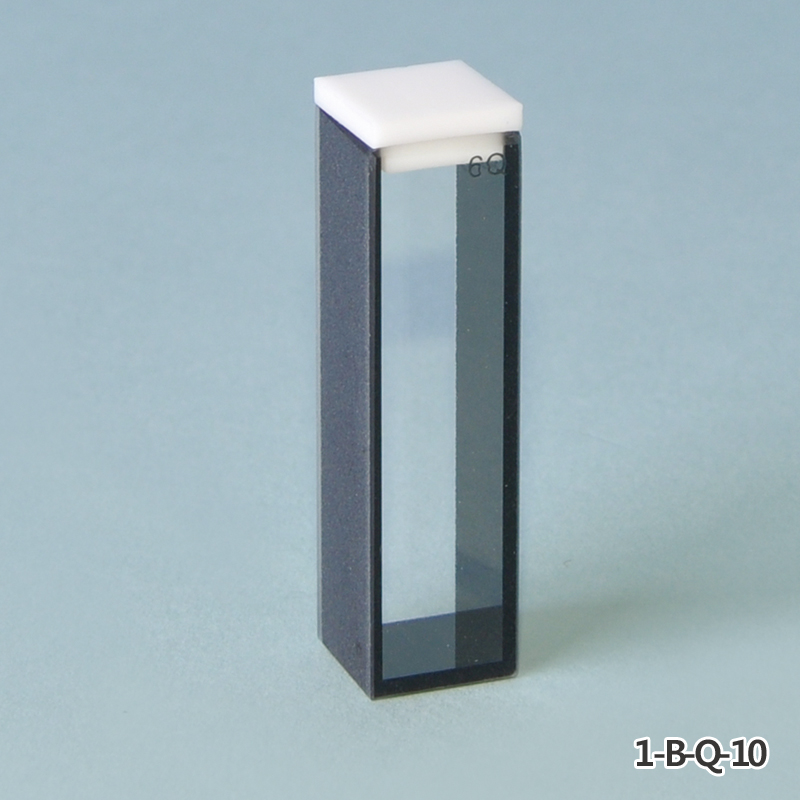

● 1-B-Q-10 : Black Side Wall
|
|
|
|
