General instrument > 제품별 분류 > Viscometer > 제품상세정보

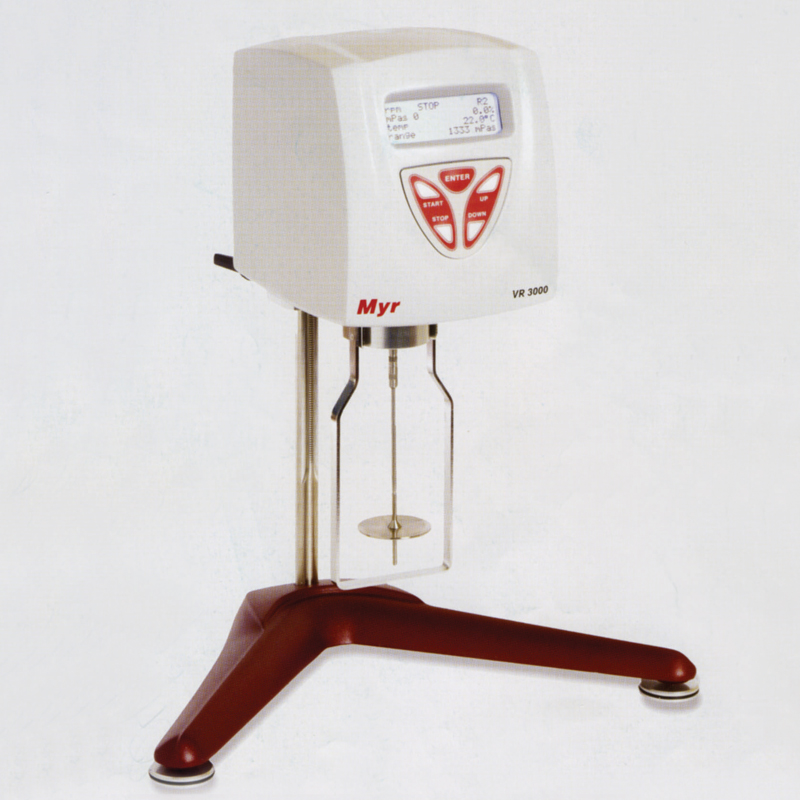

Rotarty Viscometer / 회전식 점도계, Brookfield Method

■ ISO 2555 및 ASTM 규격 인증
■ 100% Compatible with the Brookfield Method
■ Interface RS232 and software VisosoftBasic for data gathering
■ Temp. Probe PT100
■ Digital Display
■ Viscotech

(0개)

Standard Type

Cat. No	Model	Description	Unit	Price (VAT별도)	납기	재고	주문/견적
V02-38-112	VR3000 V1-L	Rotary Viscometer for Low Viscosity	1/EA	4,656,700원	0 Day	0	단종
V02-38-116	VR3000 V1-R	Rotary Viscometer for Medium Viscosity	1/EA	4,656,700원	0 Day	0	단종
V02-38-120	VR3000 V1-H	Rotary Viscometer for High Viscosity	1/EA	4,656,700원	0 Day	0	단종

Wide Range Type

Cat. No	Model	Description	Unit	Price (VAT별도)	납기	재고	주문/견적
V02-38-212	VR3000 V2-L	Rotary Viscometer for Low Viscosity	1/EA	5,310,700원	0 Day	0	단종
V02-38-216	VR3000 V2-R	Rotary Viscometer for Medium Viscosity	1/EA	5,310,700원	0 Day	0	단종
V02-38-220	VR3000 V2-H	Rotary Viscometer for High Viscosity	1/EA	5,310,700원	0 Day	0	단종

Spare Standard Spindle Set

Cat. No	Model	Description	Unit	Price (VAT별도)	납기	재고	주문/견적
V02-38-550	VM-005	Spindle Set (L1 - L4)	1/EA	607,100원	0 Day	0	단종
V02-38-555	VM-006	Spindle Set (R2 - R7)	1/EA	961,800원	0 Day	0	단종
V02-38-575	VM-007	Special Spindle R1	1/EA	333,600원	0 Day	0	단종

Adapter & Spindle Set for Small Volume

Cat. No	Model	Description	Unit	Price (VAT별도)	납기	재고	주문/견적
V02-38-610	APM-001	Adapter	1/EA	1,594,300원	0 Day	0	단종
V02-38-613	APM-001T	Adapter w/ Temp. Sensor	1/EA	2,175,700원	0 Day	0	단종
V02-38-652	APM-002	Special Spindle (TL5 - TL7)	1/EA	683,700원	0 Day	0	단종
V02-38-655	APM-003	Special Spindle (TR8 - TR11)	1/EA	915,400원	0 Day	0	단종

Adapter for Low Viscosity

Cat. No	Model	Description	Unit	Price (VAT별도)	납기	재고	주문/견적
V02-38-710	LCP-001	Adapter	1/EA	1,865,700원	0 Day	0	단종
V02-38-713	LCP-001T	Adapter w/ Temp. Sensor	1/EA	2,373,700원	0 Day	0	단종
V02-38-752	LCP-001H	Adapter for High Temperature	1/EA	1,587,300원	0 Day	0	단종

Adapter for Helicoidal Movement

	Cat. No	Model	Description	Unit	Price (VAT별도)	납기	재고	주문/견적
	V02-38-815	HEL-001	Adapter for Helicoidal Movement	1/EA	2,144,600원	0 Day	0	단종

기타 Accessory

Cat. No	Model	Description	Unit	Price (VAT별도)	납기	재고	주문/견적
V02-38-819	SFT-001	Software ViscosoftBasic	1/EA	200,400원	0 Day	0	단종
V02-38-823	SFT-002	Software ViscosoftPlus	1/EA	856,300원	0 Day	0	단종
V02-38-827	IMP-001	Termal Printer	1/EA	781,600원	0 Day	0	단종
V02-38-831	CAL-002	Calibration Oil 600ml	1/EA	350,800원	0 Day	0	단종

(0개)

Standard Type
Cat. No.	Model	Description
V02-38-112	VR3000 V1-L	Viscometer for Low Viscosity
V02-38-116	VR3000 V1-R	Viscometer for Medium Viscosity
V02-38-120	VR3000 V1-H	Viscometer for High Viscosity

Wide Range Type
Cat. No.	Model	Description
V02-38-212	VR3000 V2-L	Viscometer for Low Viscosity
V02-38-216	VR3000 V2-R	Viscometer for Medium Viscosity
V02-38-220	VR3000 V2-H	Viscometer for High Viscosity

● Bi-directional Interface RS232 and software VisosoftPlus (Option)

Specification
Technical Data
구분		Standard Type			Wide Range Type
Model		VR3000 V1-L	VR3000 V1-R	VR3000 V1-H	VR3000 V2-L	VR3000 V2-R	VR3000 V2-H
Speed		0.3, 0.5, 0.6, 1, 1.5, 2, 2.5, 3, 4, 5, 6, 10, 12, 20, 30, 50, 60, 100, 200 rpm			0.1, 0.2, 0.3, 0.5, 0.6, 1, 1.5, 2, 2.5, 3, 4, 5, 6, 10, 12, 20, 30, 50, 60, 100, 200 rpm
Spindle	(V1, V2) - L	4 Spindle (L1-L2-L3-L4)
	(V1, V2) - R	6 Spindle (R2-R3-R4-R5-R6-R7)
	(V1, V2) - H	6 Spindle (R2-R3-R4-R5-R6-R7)
Range	V1 - L	3 ~ 2,000,000 mPas/cP - 76 Range (19 Speeds with 4 Spindles)
	V1 - R	20 ~ 13,000,000 mPas/cP - 114 Range (19 Speeds with 6 Spindles)
	V1 - H	1.6 ~ 1,066,660 dPas/cP - 114 Range (19 Speeds with 6 Spindles)
	V2 - L	3 ~ 6,000,000 mPas/cP - 84 Range (21 Speeds with 4 Spindles)
	V2 - R	20 ~ 40,000,000 mPas/cP - 126 Range (21 Speeds with 6 Spindles)
	V2 - H	1.6 ~ 3,200,000 dPas/cP - 126 Range (21 Speeds with 6 Spindles)
Accuracy		±1% of Ful Scale
Repeatability		±0.2%
Temp.	Range	-15℃ ~ 180℃
	Resolution	0.1℃
	Accuracy	±0.1℃
Standard	BS	6075, 5350
	ISO	2555, 1652
	ASTM	115, 789, 1076, 1084, 1286, 1417, 1439, 1638, 1824, 2196, 2336, 2364, 2393, 2556, 2669, 2849, 2983, 2994, 3232, 3236, 3716

Optional Accessory

Spare Standard Spindle Set
Cat. No	Model	Description	적용모델
V02-38-550	VM-005	Spindle Set (L1 - L4)	V1-L, V2-L
V02-38-555	VM-006	Spindle Set (R2 - R7)	(V1-R, H) (V2-R, H)
V02-38-575	VM-007	Special Spindle (R1)	(V1-R, H) (V2-R, H)

● VM-007은 Lower Viscosity용
- with Model V1-R (5 ~ 33,000 mPas/cP)
- with Model V1-H (0.4 ~ 2,666 dPas/cP)
- with Model V2-R (5 ~ 100,000 mPas/cP)
- with Model V2-H (0.4 ~ 8,000 dPas/cP)

Adapter & Spindle Set for Small Volume
Cat. No	Model	Description	적용모델
V02-38-610	APM-001	Adapter	all
V02-38-613	APM-001T	Adapter w/ Temp. Sensor	all
V02-38-652	APM-002	Special Spindle (TL5 - TL7)	V1-L, V2-L
V02-38-655	APM-003	Special Spindle (TR8 - TR11)	(V1-R, H) (V2-R, H)

● Viscosity Range
- V1-L with APM-002 (1.5 ~ 200,000 mPas/cP)
- V2-L with APM-002 (1.5 ~ 600,000 mPas/cP)
- V1-R with APM-003 (25 ~ 3,300,000 mPas/cP)
- V2-R with APM-003 (25 ~ 10,000,000 mPas/cP)
- V1-H with APM-003 (2 ~ 266,000 dPas/cP)
- V2-H with APM-003 (2 ~ 800,000 dPas/cP)

Adapter for Low Viscosity
Cat. No	Model	Description	적용모델
V02-38-710	LCP-001	Adapter	all
V02-38-713	LCP-001T	Adapter w/ Temp. Sensor
V02-38-752	LCP-001H	Adapter for High Temp.

● Viscosity Range
- V1-L with Adapter (0.3 ~ 2,000 mPas/cP)
- V2-L with Adapter (0.3 ~ 6,000 mPas/cP)
- V1-R with Adapter (3.2 ~ 21,333 mPas/cP)
- V2-R with Adapter (3.2 ~ 64,000 mPas/cP)
- V1-H with Adapter (0.25 ~ 1,700 dPas/cP)
- V2-H with Adapter (0.25 ~ 5,120 dPas/cP)

Adapter for Helicoidal Movement
Cat. No	Model	Description
V02-38-815	HEL-001	Adapter for Helicoidal Movement w/ 6 T-type Special Spindles

● Viscosity Range
- V1-L with Adapter (156 ~ 3,120,000 mPas/cP)
- V2-L with Adapter (156 ~ 9,400,000 mPas/cP)
- V1-R with Adapter (1,660 ~ 33,300,000 mPas/cP)
- V2-R with Adapter (1,660 ~ 100,000,000 mPas/cP)
- V1-H with Adapter (133 ~ 2,666,660 dPas/cP)
- V2-H with Adapter (133 ~ 8,000,000 dPas/cP)

기타 Accessory
Cat. No.	Model	Description
V02-38-819	SFT-001	ViscosoftBasic Software
V02-38-823	SFT-002	ViscosoftPlus Software
V02-38-827	IMP-001	Thermal Printer
V02-38-831	CAL-002	Calibration Oil (Silicone) 600 ml
