Type 18 (Clear Wall) |
|
Cat. No |
Model |
Description |
Unit |
Price (VATº°µµ) |
³³±â |
Àç°í |
ÁÖ¹®/°ßÀû |
|
S18-77-132 |
18-Q-5 |
 Micro Cell Type 18 5mm, 0.35ml |
1/EA |
287,800¿ø |
30 Day |
0 |
|
|

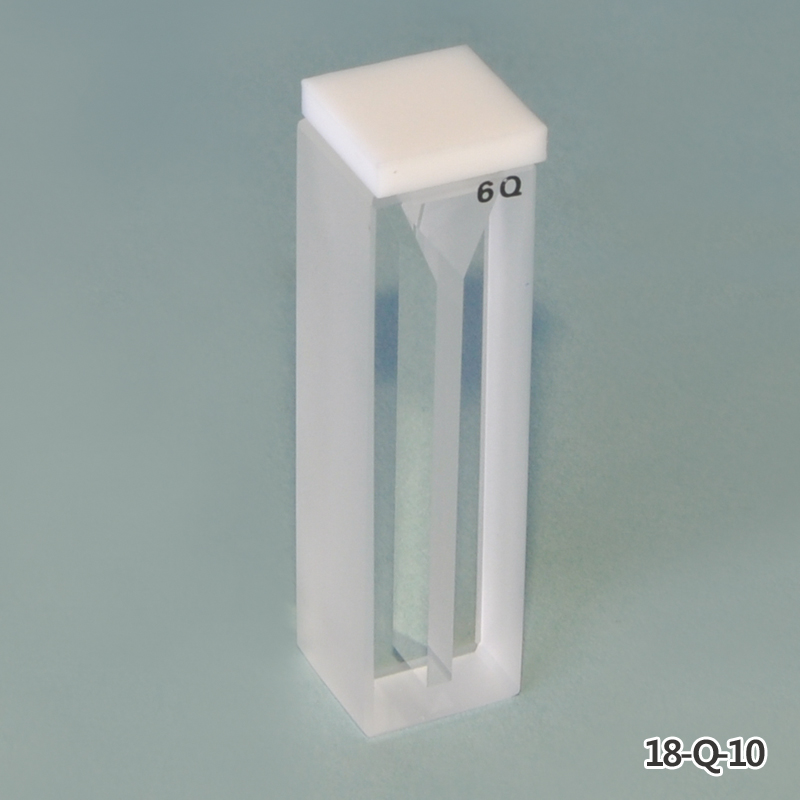

S18-77-136 |
18-Q-10 |
 Quartz Cell, Type18 Absorption 10mm (Light Path) |
1/EA |
223,000¿ø |
3 Day |
2 |
|
|
S18-77-140 |
18-Q-20 |
 Micro Cell Type 18 20mm, 1.4ml |
1/EA |
356,600¿ø |
3 Day |
1 |
|
|
S18-77-144 |
18-Q-40 |
 Micro Cell Type 18 40mm, 2.8ml |
1/EA |
448,900¿ø |
30 Day |
0 |
|
|
S18-77-148 |
18-Q-50 |
 Micro Cell Type 18 50mm, 3.5ml |
1/EA |
495,300¿ø |
30 Day |
0 |
|
|
S18-77-152 |
18-Q-100 |
 Micro Cell Type 18 100mm, 7ml |
1/EA |
785,700¿ø |
30 Day |
0 |
|
|
S18-77-156 |
18/9-Q-10 |
 Micro Cell Type 18 10mm, 0.58ml |
1/EA |
279,300¿ø |
30 Day |
0 |
|
|
|
Type 18/B (Black Wall) |
|
Cat. No |
Model |
Description |
Unit |
Price (VATº°µµ) |
³³±â |
Àç°í |
ÁÖ¹®/°ßÀû |
|
S18-77-732 |
18B-Q-5 |
 Quartz Cell, Type18B Absorption, Black 5mm (Light Path) |
1/EA |
506,400¿ø |
3 Day |
1 |
|
|

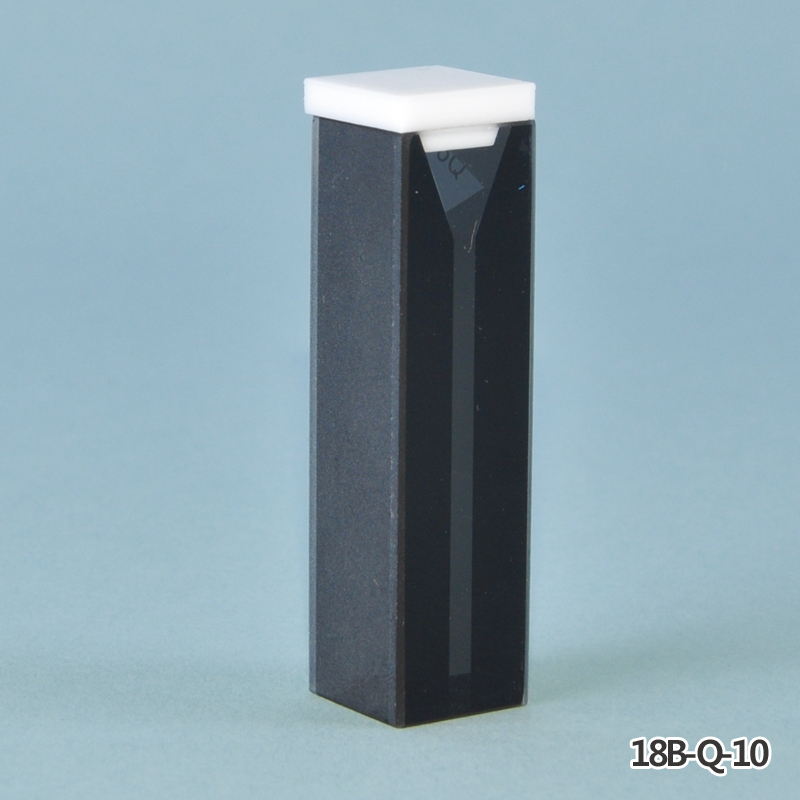

S18-77-736 |
18B-Q-10 |
 Quartz Cell, Type18B Absorption, Black 10mm (Light Path) |
1/EA |
404,000¿ø |
3 Day |
2 |
|
|
S18-77-740 |
18B-Q-20 |
 Micro Cell, Black Type 18B 20mm, 1.4ml |
1/EA |
605,800¿ø |
30 Day |
0 |
|
|
S18-77-744 |
18B-Q-40 |
 Micro Cell, Black Type 18B 40mm, 2.8ml |
1/EA |
763,400¿ø |
30 Day |
0 |
|
|
S18-77-748 |
18B-Q-50 |
 Micro Cell, Black Type 18B 50mm, 3.5ml |
1/EA |
907,500¿ø |
30 Day |
0 |
|
|
S18-77-756 |
18B/9-Q-10 |
 Micro Cell, Black Type 18/B 10mm, 0.58ml |
1/EA |
498,700¿ø |
3 Day |
2 |
|
|
|
|
|
|
|
|
|
Micro Cell with PTFE Cover, Type 18 & 18/B
Light
Path |
Volume
(ml) |
Spectrosil¢ç Quartz (190~2700 nm) |
Type 18 (Clear Wall) |
Type 18/B (Black Wall) |
Cat No. |
Model |
Cat No. |
Model |
5 mm |
0.35 |
S18-77-132 |
18-Q-5 |
S18-77-732 |
18B-Q-5 |
10 mm |
0.7 |
S18-77-136 |
18-Q-10 |
S18-77-736 |
18B-Q-10 |
20 mm |
1.4 |
S18-77-140 |
18-Q-20 |
S18-77-740 |
18B-Q-20 |
40 mm |
2.8 |
S18-77-144 |
18-Q-40 |
S18-77-744 |
18B-Q-40 |
50 mm |
3.5 |
S18-77-148 |
18-Q-50 |
S18-77-748 |
18B-Q-50 |
100 mm |
7.0 |
S18-77-152 |
18-Q-100 |
- |
- |
10 mm |
0.58 |
S18-77-156 |
18/9-Q-10 |
S18-77-756 |
18B/9-Q-10 |
-
¡Ü Inside Width : 2 mm
¡Ü Outside Dimension : w12.5¡¿h45 mm, d(±íÀÌ) = Light Path + 2.5 mm
¡Ü Base Thickness : 3 mm (18/9, 18B/9-Q-10Àº Base Thickness 9 mmÀÓ)
|
|
|
|
