 Absorption Cell, 2-Side Polished / 흡광 셀, 2면 투명, Short Light Path Cell, Demountable, Closed, Type 20/C |
|
|
 |
|
|
|
|

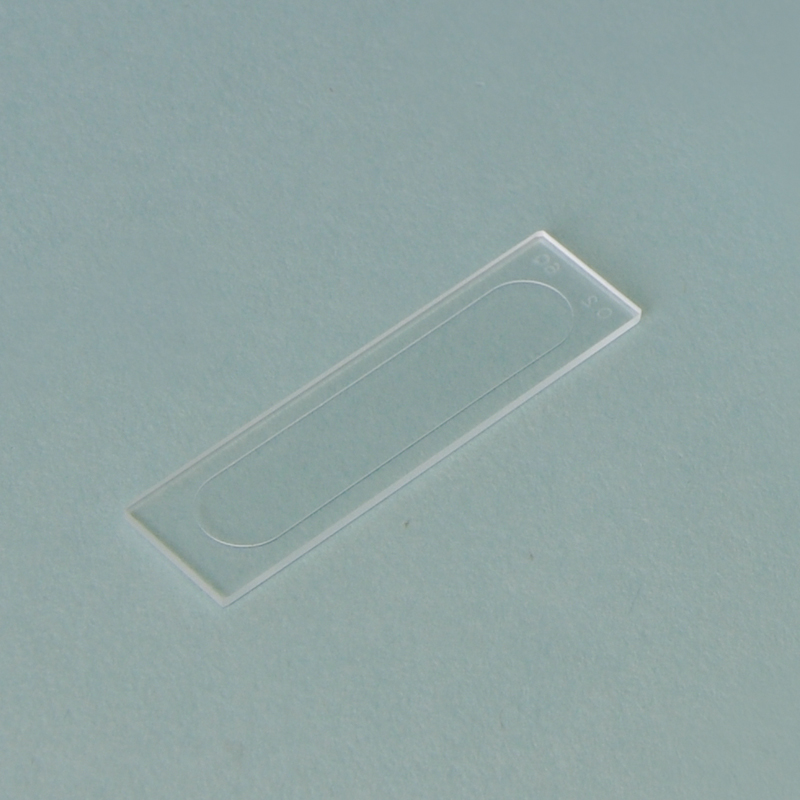

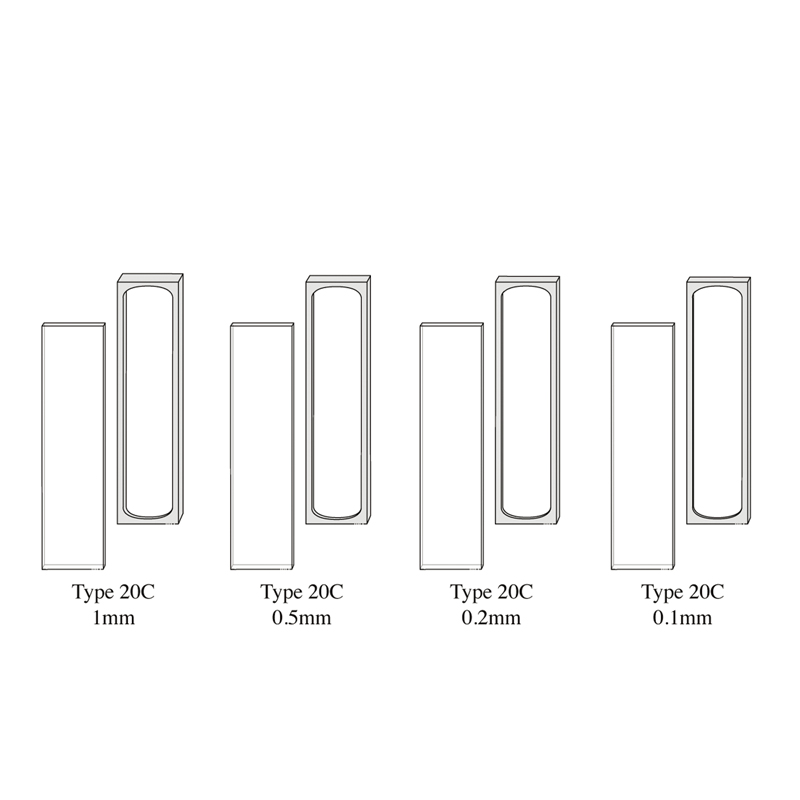

Short Light Path Cell, Demountable, Closed, Type 20/C
Light
Path |
Volume
(ml) |
Spectrosil® Quartz (190~2700 nm) |
| Cat No. |
Model |
| 0.008 mm |
0.002 |
S18-77-308 |
20/C-Q-0.008 |
| 0.01 mm |
0.003 |
S18-77-312 |
20/C-Q-0.01 |
| 0.05 mm |
0.015 |
S18-77-316 |
20/C-Q-0.05 |
| 0.1 mm |
0.030 |
S18-77-320 |
20/C-Q-0.1 |
| 0.2 mm |
0.060 |
S18-77-324 |
20/C-Q-0.2 |
| 0.5 mm |
0.150 |
S18-77-328 |
20/C-Q-0.5 |
-
● Inside Dimension : w8×h38 mm
● Outside Dimension : w12.5×h45 mm, d(깊이) = Light Path + 2.5 mm
● Totally enclosed when assembled
● A20 Cell Holder 필요
|
|
|
|
