Fluorescence Cell, 4-Side Polished / Çü±¤ ¼¿, 4¸é Åõ¸í, Standard Fluorometer Cell with PTFE Cover, Type 3 |
|
Cat. No |
Model |
Description |
Unit |
Price (VATº°µµ) |
³³±â |
Àç°í |
ÁÖ¹®/°ßÀû |
|
S18-77-504 |
3-Q-2 |
 Fluorometer Cell Type 3 2mm, 0.8ml |
1/EA |
387,200¿ø |
30 Day |
0 |
|
|
S18-77-508 |
3-Q-5 |
 Fluorometer Cell Type 3 5mm, 1.7ml |
1/EA |
370,000¿ø |
30 Day |
0 |
|
|

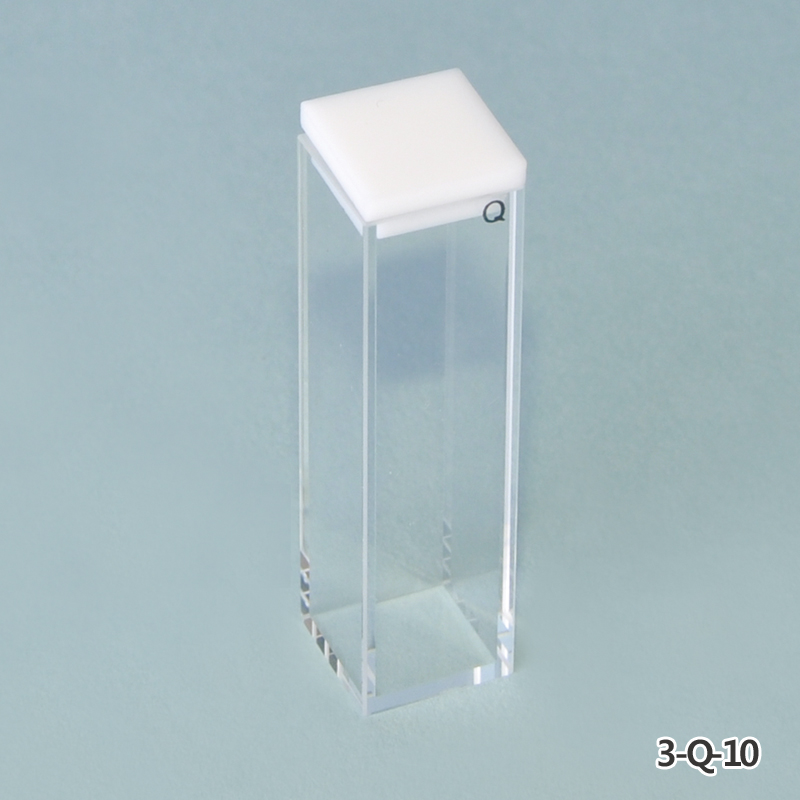

S18-77-512 |
3-Q-10 |
 Quartz Cell, Type 3 Fluorescence 10mm (Light Path) |
1/EA |
264,600¿ø |
3 Day |
3 |
|
|
S18-77-516 |
3-Q-20 |
 Fluorometer Cell Type 3 20mm, 7ml |
1/EA |
437,500¿ø |
3 Day |
1 |
|
|
S18-77-520 |
3-Q-40 |
 Fluorometer Cell Type 3 40mm, 14ml |
1/EA |
514,300¿ø |
3 Day |
1 |
|
|
S18-77-524 |
3-Q-50 |
 Fluorometer Cell Type 3 50mm, 17.5ml |
1/EA |
630,700¿ø |
30 Day |
0 |
|
|
S18-77-528 |
3-Q-100 |
 Fluorometer Cell Type 3 100mm, 35ml |
1/EA |
744,500¿ø |
30 Day |
0 |
|
|
|
|
|
|
|
|
|

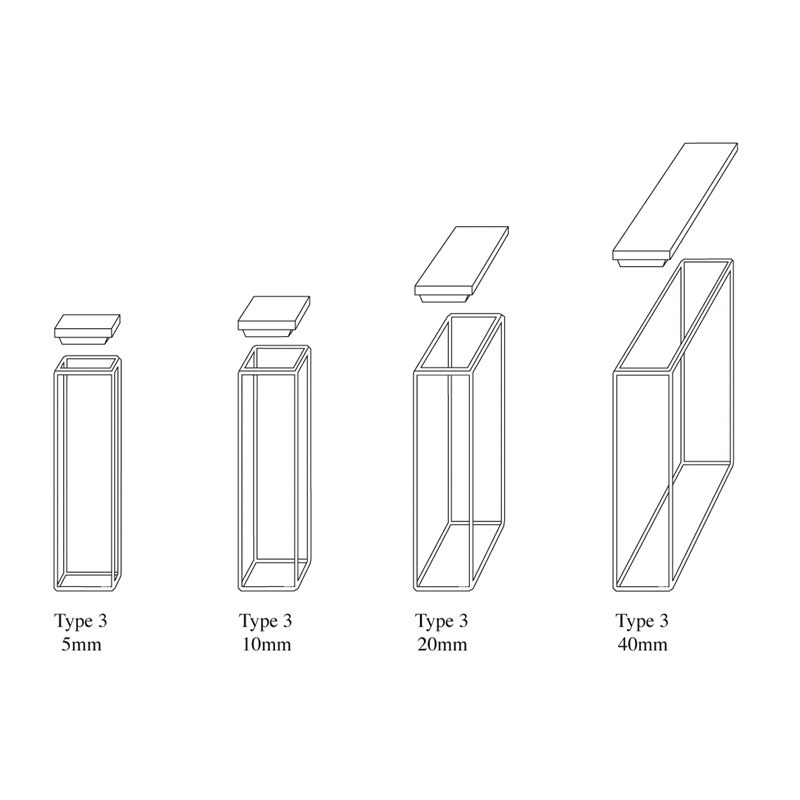

Standard Fluorometer Cell with PTFE Cover, Type 3
Light
Path |
Volume
(ml) |
Spectrosil¢ç Quartz (190~2700 nm) |
Cat No. |
Model |
2 mm |
0.8 |
S18-77-504 |
3-Q-2 |
5 mm |
1.7 |
S18-77-508 |
3-Q-5 |
10 mm |
3.5 |
S18-77-512 |
3-Q-10 |
20 mm |
7.0 |
S18-77-516 |
3-Q-20 |
40 mm |
14.0 |
S18-77-520 |
3-Q-40 |
50 mm |
17.5 |
S18-77-524 |
3-Q-50 |
100 mm |
35.0 |
S18-77-528 |
3-Q-100 |
-
¡Ü Inside Width : 10 mm (´Ü, Light Path 100 mm´Â ³ôÀÌ°¡ 9.5 mmÀÓ)
¡Ü Outside Dimension : w12.5¡¿h45 mm, d(±íÀÌ) = Light Path + 2.5 mm
|
|
|
|
