 Fluorescence Cell, 4-Side Polished / 형광 셀, 4면 투명, Standard Fluorometer Cell with PTFE Stopper, Type 23 |
|
|
Cat. No |
Model |
Description |
Unit |
Price
(VAT별도) |
납기 |
재고 |
주문/견적 |
|
|
S18-77-532 |
23-Q-5 |
Fluorometer Cell Type 23 5mm, 1.7ml |
1/EA |
437,500원 |
30 Day |
0 |
|
|
|
S18-77-536 |

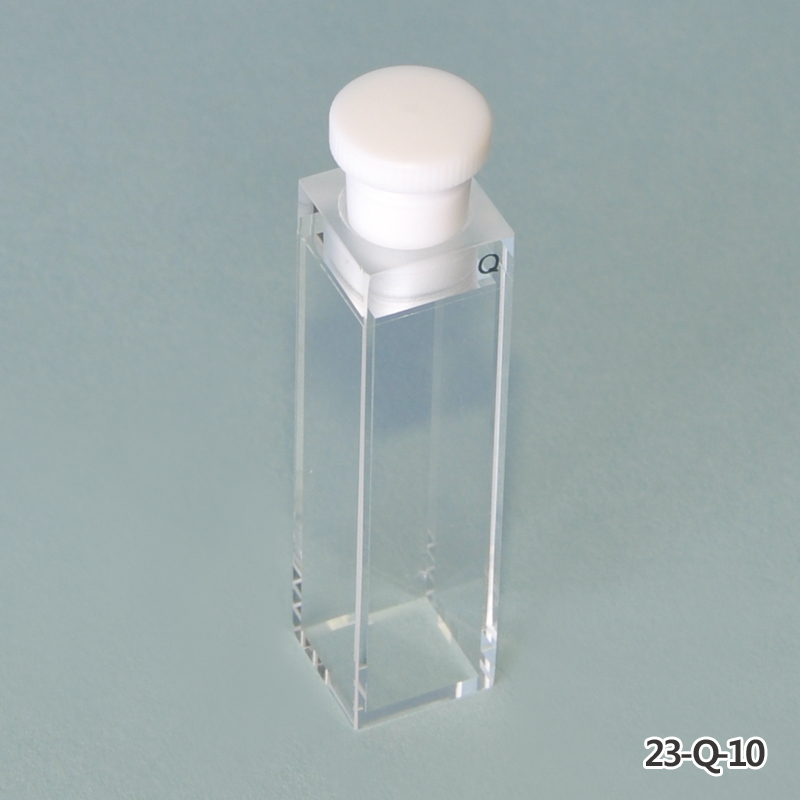

23-Q-10 |
Quartz Cell, Type23 Fluorescence 10mm (Light Path) |
1/EA |
348,300원 |
3 Day |
18 |
|
|
|
S18-77-540 |
23-Q-20 |
Fluorometer Cell Type 23 20mm, 7ml |
1/EA |
551,400원 |
30 Day |
0 |
|
|
|
S18-77-544 |
23-Q-40 |
Fluorometer Cell Type 23 40mm, 14ml |
1/EA |
676,700원 |
3 Day |
5 |
|
|
|
S18-77-548 |
23-Q-50 |
Fluorometer Cell Type 23 50mm, 17.5ml |
1/EA |
838,400원 |
30 Day |
0 |
|
|
|
S18-77-552 |
23-Q-100 |
Fluorometer Cell Type 23 100mm, 35ml |
1/EA |
1,190,500원 |
30 Day |
0 |
|
|
|
|
 |
|
|
|
|

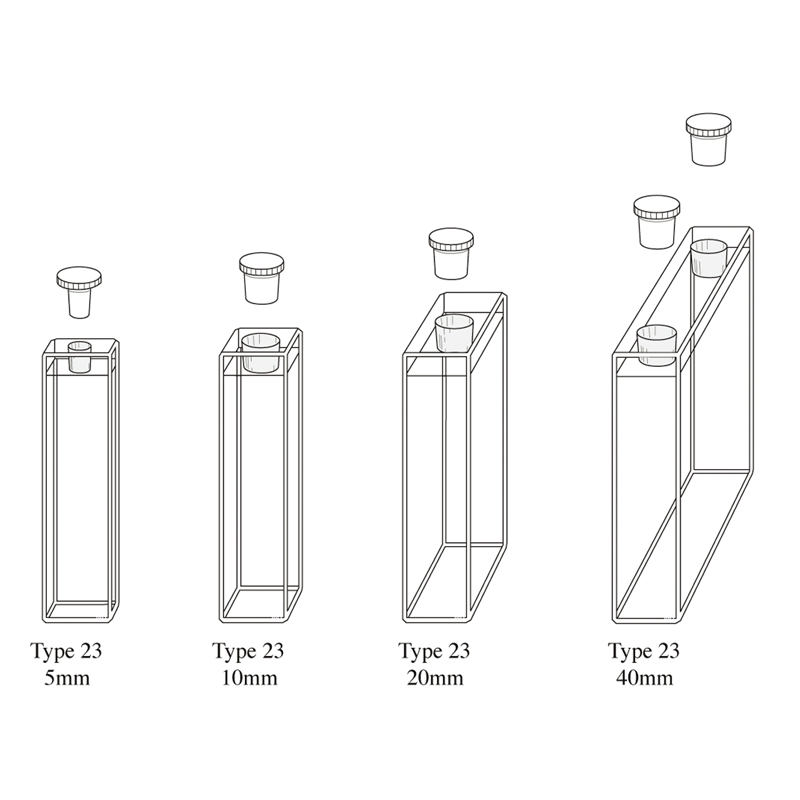

Standard Fluorometer Cell with PTFE Stopper, Type 23
Light
Path |
Volume
(ml) |
Spectrosil® Quartz (190~2700 nm) |
| Cat No. |
Model |
| 5 mm |
1.7 |
S18-77-532 |
23-Q-5 |
| 10 mm |
3.5 |
S18-77-536 |
23-Q-10 |
| 20 mm |
7.0 |
S18-77-540 |
23-Q-20 |
| 40 mm |
14.0 |
S18-77-544 |
23-Q-40 |
| 50 mm |
17.5 |
S18-77-548 |
23-Q-50 |
| 100 mm |
35.0 |
S18-77-552 |
23-Q-100 |
-
● Inside Width : 10 mm
● Outside Dimension : w12.5×h48 mm, d(깊이) = Light Path + 2.5 mm
● Light Path 40 mm 이상부터는 2개의 PTFE Stopper가 제공됨
|
|
|
|
