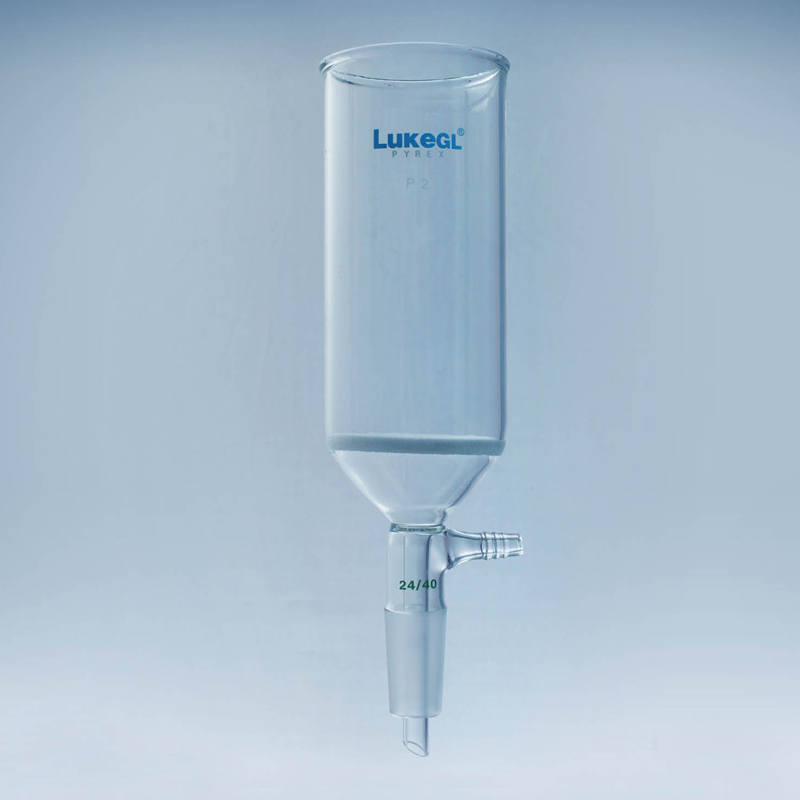

Cylindrical Glass Filter Funnel with Vacuum Adapter and Inner Joint / 진공 여과 유리 깔때기, Column Type, LukeGL®

● Borosilicate Glass 3.3
● 기본 Joint Size : 24/40

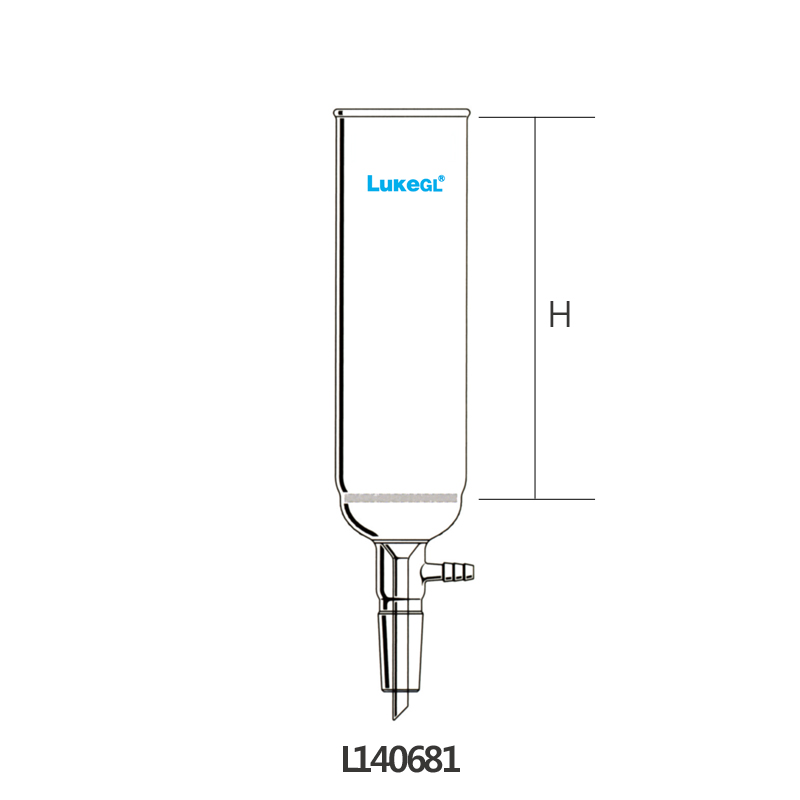

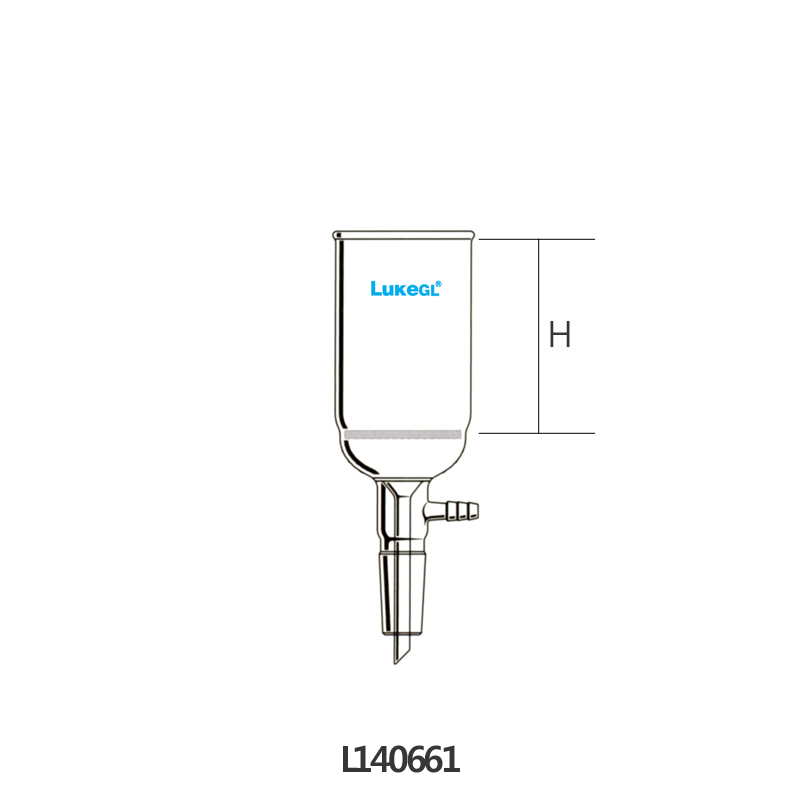

● Height : Filter Disk 위로의 높이
● 요청에 의해 규격외 사이즈 공급 가능
● ISO 규격에 따른 Porosity
● LukeGL®

(0개)

상세 규격 표
Cat. No	Model	용량	Pore	od	Height
F07-10-144	L140661	450 ml	2	Ø 70 mm	150 mm
F07-10-150	L140662		3
F07-10-156	L140663		4
F07-10-162	L140664	600 ml	2		200 mm
F07-10-168	L140665		3
F07-10-174	L140666		4
F07-10-180	L140667	700 ml	2		250 mm
F07-10-186	L140668		3
F07-10-192	L140669		4
F07-10-202	L140670	900 ml	2		300 mm
F07-10-208	L140671		3
F07-10-214	L140672		4
F07-10-220	L140673	850 ml	2	Ø 90 mm	150 mm
F07-10-226	L140674		3
F07-10-232	L140675		4
F07-10-238	L140676	1.2 L	2		200 mm
F07-10-244	L140677		3
F07-10-250	L140678		4
F07-10-256	L140679	1.5 L	2		250 mm
F07-10-262	L140680		3
F07-10-268	L140681		4
F07-10-274	L140682	1.7 L	2		300 mm
F07-10-280	L140683		3
F07-10-286	L140684		4

상세 규격 표
다공도	1	2	3	4
다공도	100-160um	40-100um	16-40um	10-16um
