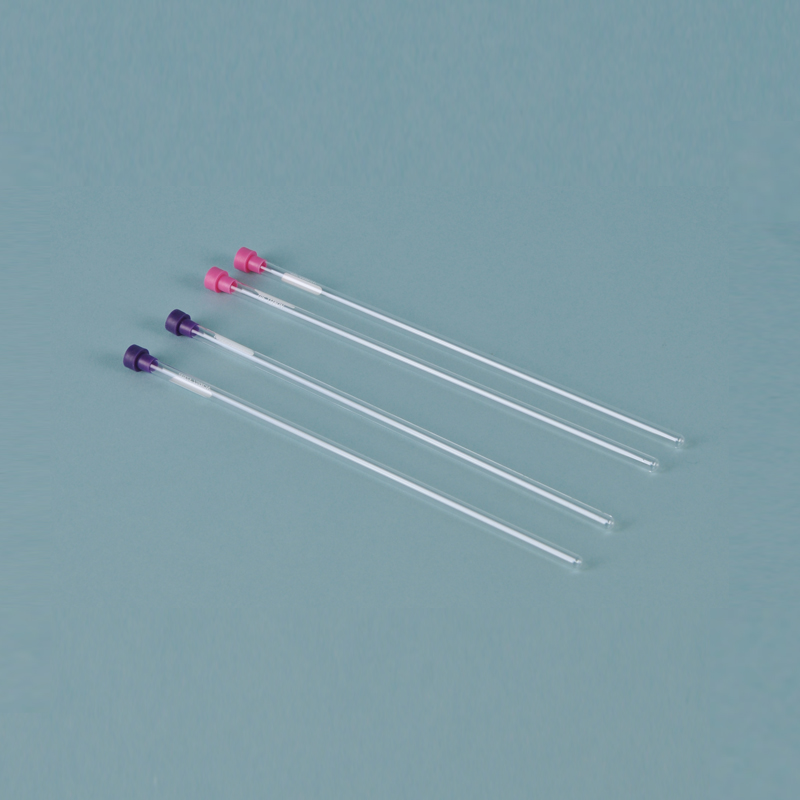

Clear NMR Tube |
|
Amber NMR Tube |
|
|
|
|
|
|
|
Clear NMR Tube
Cat. No |
Model |
MHz |
od (mm) |
Height |
T16-132-322 |
C-ST500-7 |
100 |
4.97¡¾0.070 |
178 mm
(7¡±) |
T16-132-329 |
C-502-7 |
100 |
4.97¡¾0.050 |
T16-132-336 |
C-505-P-7 |
200 |
4.97¡¾0.030 |
T16-132-343 |
C-XR-55-7 |
300 |
4.97¡¾0.025 |
T16-132-350 |
C-507-HP-7 |
400 |
4.97¡¾0.013 |
T16-132-357 |
C-508-UP-7 |
500 |
4.97¡¾0.013 |
T16-132-364 |
C-509-UP-7 |
600 |
4.97¡¾0.006 |
Amber NMR Tube
Cat. No |
Model |
MHz |
od (mm) |
Height |
T16-132-936 |
CS-5-200-7A |
200 |
4.97¡¾0.030 |
178 mm
(7¡±) |
T16-132-943 |
CS-5-300-7A |
300 |
4.97¡¾0.025 |
T16-132-950 |
CS-5-400-7A |
400 |
4.97¡¾0.013 |
T16-132-957 |
CS-5-500-7A |
500 |
4.97¡¾0.013 |
Specification
MHz |
id (mm) |
Concentricity |
Camber |
60 MHz |
4.20¡¾0.070 |
0.025 |
0.075 |
100 MHz |
4.20¡¾0.050 |
0.020 |
0.070 |
200 MHz |
4.20¡¾0.030 |
0.010 |
0.040 |
300 MHz |
4.20¡¾0.025 |
0.010 |
0.038 |
400 MHz |
4.20¡¾0.025 |
0.007 |
0.019 |
500 MHz |
4.20¡¾0.025 |
0.005 |
0.013 |
600 MHz |
4.20¡¾0.012 |
0.004 |
0.006 |
|
|
|
|
