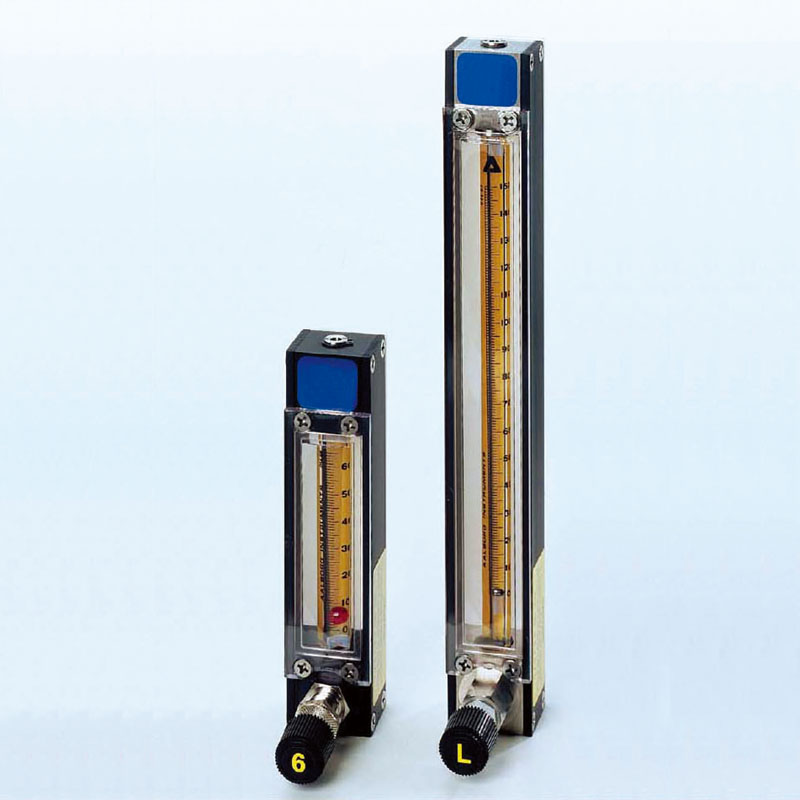

랩캠퍼스(Labcampus) : Precision Rotameter with Valve / 정밀형 유량 조절식 유량계

(0개)

Flow Tube 65 mm

Cat. No	Model	Description	Unit	Price (VAT별도)	납기	재고	주문/견적
F10-227-126	32044-04	Rotameter w/valve h65mm N2 51ml/min	1/EA	357,100원	7 Day	0
F10-227-133	32044-08	Rotameter w/valve h65mm N2 113ml/min	1/EA	357,100원	7 Day	0
F10-227-140	32044-06	Rotameter w/valve h65mm N2 149ml/min	1/EA	357,100원	7 Day	0
F10-227-147	32044-12	Rotameter w/valve h65mm N2 215ml/min	1/EA	357,100원	7 Day	0
F10-227-154	32044-10	Rotameter w/valve h65mm N2 312ml/min	1/EA	357,100원	7 Day	0
F10-227-162	32044-14	Rotameter w/valve h65mm N2 530ml/min	1/EA	357,100원	7 Day	0
F10-227-170	32044-15	Rotameter w/valve h65mm N2 1015ml/min	1/EA	357,100원	7 Day	0

Flow Tube 150 mm

Cat. No	Model	Description	Unit	Price (VAT별도)	납기	재고	주문/견적
F10-227-223	03227-18	Rotameter w/valve h150mm N2 1662ml/min	1/EA	462,200원	7 Day	0
F10-227-230	03227-20	Rotameter w/valve h150mm N2 2395ml/min	1/EA	462,200원	7 Day	0
F10-227-237	03227-24	Rotameter w/valve h150mm N2 3868ml/min	1/EA	462,200원	7 Day	0
F10-227-244	03227-22	Rotameter w/valve h150mm N2 4685ml/min	1/EA	462,200원	7 Day	0
F10-227-251	03227-28	Rotameter w/valve h150mm N2 8916ml/min	1/EA	462,200원	7 Day	0

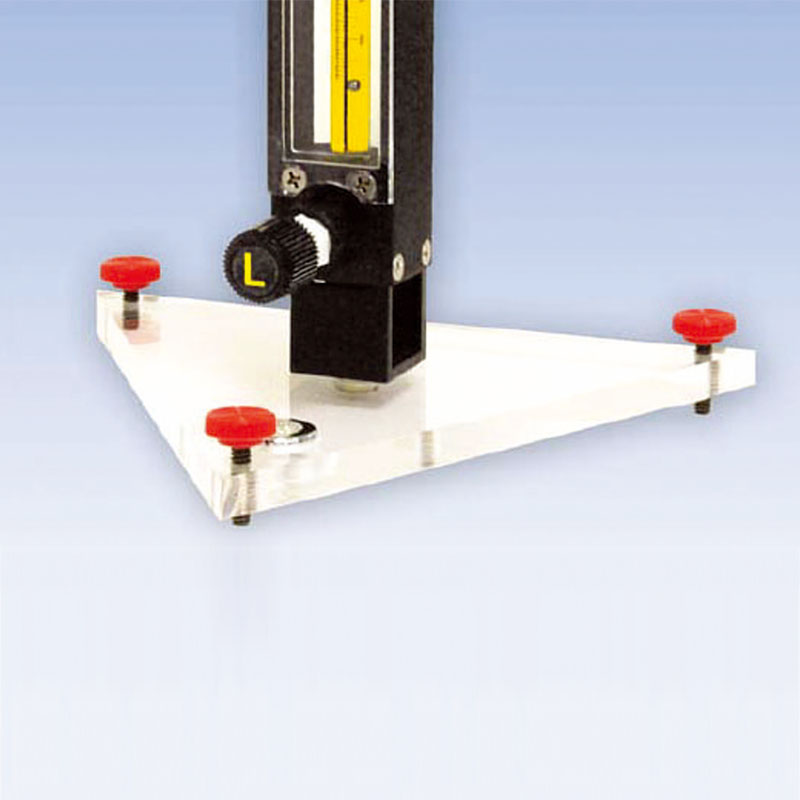

Optional Stand

Cat. No	Model	Description	Unit	Price (VAT별도)	납기	재고	주문/견적
F10-227-588	3226-10	Stand for Rotameter 1개용	1/EA	96,400원	7 Day	0	단종
F10-227-590	3226-30	Stand for Rotameter 3개용	1/EA	110,900원	7 Day	0	단종

(0개)

* Variable Area, Correlated Flowmeter
* Meterial : Aluminium(Fitting, Valve, Housing), Buna-N(O-ring), Borosilicate Glass(Flow Tube)
* Process Connection : 1/8inch NPT(F)
* Max Operating Temperature : 121℃
* Max Pressure : 200 psi
* Accuracy : ±2% full-scale
* Repeatability : ±0.25%
* Chemical용 Flowmeter는 요청에 의해 공급 가능

Flow Tube 65 mm
Cat. No	Model	Flow Rate (ml / min)					Float
Cat. No	Model	CO₂	O₂	N₂	Ar	H₂	Float
F10-227-126	32044-04	59.2	46	51	38	99	Glass
F10-227-133	32044-08	122	94	113	86	284	Glass
F10-227-140	32044-06	160	132	149	122	324	SUS316
F10-227-147	32044-12	221	189	215	174.2	502	Glass
F10-227-154	32044-10	310	268	312	246	828	Glass
F10-227-162	32044-14	489	480	530	429	1488	SUS316
F10-227-170	32044-15	883	970	1015	829	3218	Glass

Flow Tube 150 mm
Cat. No	Model	Flow Rate (ml / min)					Float
Cat. No	Model	CO₂	O₂	N₂	Ar	H₂	Float
F10-227-223	03227-18	1420	1545	1662	1380	5547	SUS316
F10-227-230	03227-20	2048	2169	2395	1949	7990	Glass
F10-227-237	03227-24	3374	3485	3868	3451	13105	Glass
F10-227-244	03227-22	3990	4341	4685	1903	15855	SUS316
F10-227-251	03227-28	7485	8269	8916	7366	39840	Glass

Optional Stand
Cat. No	Model	가능 거취 개수
F10-227-588	3226-10	1개
F10-227-590	3226-30	3개
