 Flowmeter |
|
|
Cat. No |
Model |
Description |
Unit |
Price
(VAT별도) |
납기 |
재고 |
주문/견적 |
|
|
F10-227-202 |
32908-55 |
Flowmeter Digital 0.1 to 10ml/min |
1/EA |
3,540,700원 |
7 Day |
0 |
|
|
|
F10-227-210 |
32908-57 |
Flowmeter Digital 0.5 to 50ml/min |
1/EA |
4,284,900원 |
7 Day |
0 |
|
|
|
F10-227-218 |
32908-59 |
Flowmeter Digital 1 to 100ml/min |
1/EA |
4,209,800원 |
7 Day |
0 |
|
|
|
F10-227-226 |
32908-61 |
Flowmeter Digital 2 to 200ml/min |
1/EA |
3,503,900원 |
7 Day |
0 |
|
|
|
F10-227-234 |
32908-63 |
Flowmeter Digital 5 to 500ml/min |
1/EA |
3,349,400원 |
7 Day |
0 |
|
|
|
| Controller |
|
|
Cat. No |
Model |
Description |
Unit |
Price
(VAT별도) |
납기 |
재고 |
주문/견적 |
|
|
F10-227-302 |
32907-55 |
Controller Digital 0.1 to 10ml/min |
1/EA |
5,914,900원 |
7 Day |
0 |
|
|
|
F10-227-310 |
32907-57 |
Controller Digital 0.5 to 50ml/min |
1/EA |
5,914,900원 |
7 Day |
0 |
|
|
|
F10-227-318 |
32907-59 |
Controller Digital 1 to 100ml/min |
1/EA |
5,353,600원 |
7 Day |
0 |
|
|
|
F10-227-326 |
32907-61 |
Controller Digital 2 to 200ml/min |
1/EA |
5,245,900원 |
7 Day |
0 |
|
|
|
F10-227-334 |
32907-63 |
Controller Digital 5 to 500ml/min |
1/EA |
4,151,700원 |
7 Day |
0 |
|
|
|
|
 |
|
|
|
|
● Laminar-Bared Mass Flowmeter
● 20개의 Standard Gas를 측정할 수 있음
● 정밀도 ±0.8% of Reading of ±0.2% Full Scale
● Max Particular Size : 20 um
● Operating Temp. : -10 to 50 ℃
● Response Time : 10msec (Flowmeter), 50msec (Flow Control)
● Max. Pressure: 145 psig
● Pressure Drop : 0.8 to 3.2 psig
● Input / Output Signal : 0 to 5 VDC, RS-232, 0 - 10 VSC
● Connection : 10-32UNF(5 - 10 ml/min), 1/8”FNPT(50 to 500 ml/min)
● 120V Power Adapter (220V용은 옵션으로 구매 가능)

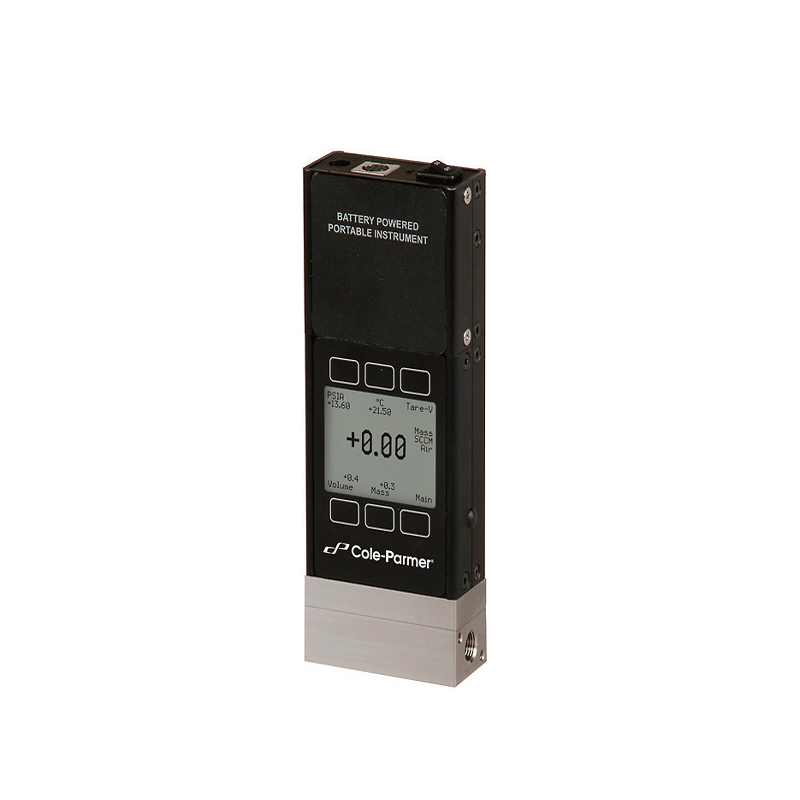

Flowmeter ①
| Cat. No |
Model |
Range |
| F10-227-202 |
32908-55 |
0.1 ~ 10 ml/min |
| F10-227-210 |
32908-57 |
0.5 ~ 50 ml/min |
| F10-227-218 |
32908-59 |
1 ~ 100 ml/min |
| F10-227-226 |
32908-61 |
2 ~ 200 ml/min |
| F10-227-234 |
32908-63 |
5 ~ 500 ml/min |

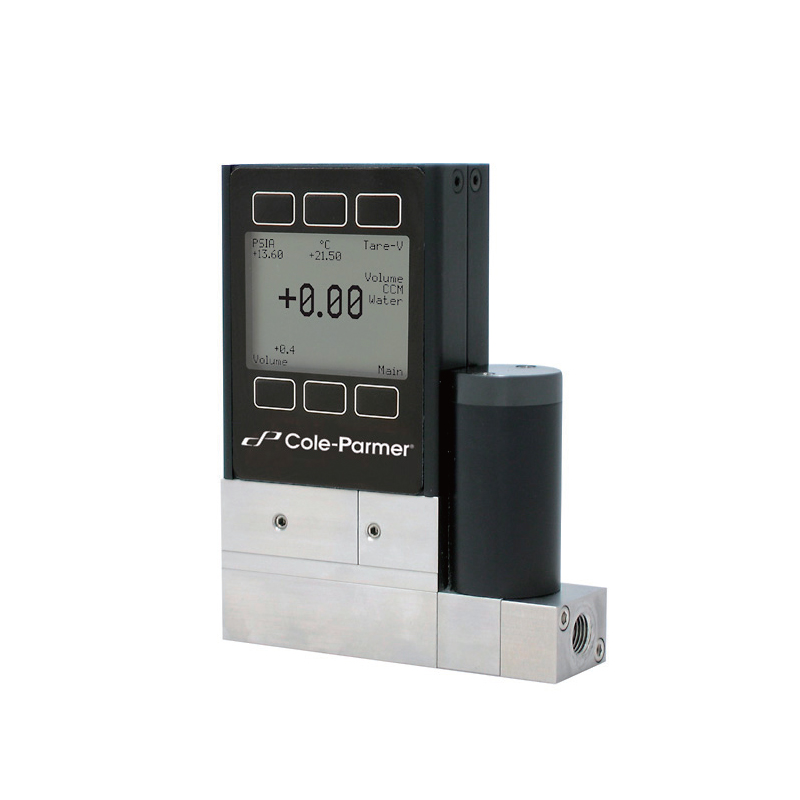

Proportional Controller ②
| Cat. No |
Model |
Range |
| F10-227-302 |
32907-55 |
0.1 ~ 10 ml/min |
| F10-227-310 |
32907-57 |
0.5 ~ 50 ml/min |
| F10-227-318 |
32907-59 |
1 ~ 100 ml/min |
| F10-227-326 |
32907-61 |
2 ~ 200 ml/min |
| F10-227-334 |
32907-63 |
5 ~ 500 ml/min |
|
|
|
|
