 PP / EDPM 점액부(Gamme/PPE) |
|
| PTFE / PTFE 점액부(Gamme/PVT) |
|
| Optional Accessory |
|
|
 |
|
|
|
|
PP / EDPM 점액부(Gamma/PPE)
| Cat. No |
Model |
최대용량 |
연결구(O.D X I.D) |
| P06-236-006 |
Gala1000-PPE |
0.74 L/h |
6 X 4mm |
| P06-236-012 |
Gala1601-PPE |
1.1 L/h |
| P06-236-018 |
Gala1602-PPE |
2.1 L/h |
| P06-236-024 |
Gala1005-PPE |
4.4 L/h |
8 X 5mm |
| P06-236-030 |
Gala0708-PPE |
7.1 L/h |
| P06-236-036 |
Gala0413-PPE |
12.3 L/h |
| P06-236-042 |
Gala0220-PPE |
19.0 L/h |
12 X 9mm |
| P06-236-048 |
Gala1605-PPE |
4.1 L/h |
8 X 5mm |
| P06-236-054 |
Gala1008-PPE |
6.8 L/h |
| P06-236-060 |
Gala0713-PPE |
11.0 L/h |
| P06-236-066 |
Gala0420-PPE |
17.1 L/h |
12 X 9mm |
| P06-236-072 |
Gala0232-PPE |
32.0 L/h |
PTFE / PTFE 점액부(Gamma/PVT)
| Cat. No |
Model |
최대용량 |
연결구(O.D X I.D) |
| P06-236-106 |
Gala1000-PVT |
0.74 L/h |
6 X 4mm |
| P06-236-112 |
Gala1601-PVT |
1.1 L/h |
| P06-236-118 |
Gala1602-PVT |
2.1 L/h |
| P06-236-124 |
Gala1005-PVT |
4.4 L/h |
8 X 5mm |
| P06-236-130 |
Gala0708-PVT |
7.1 L/h |
| P06-236-136 |
Gala0413-PVT |
12.3 L/h |
| P06-236-142 |
Gala0220-PVT |
19.0 L/h |
12 X 9mm |
| P06-236-148 |
Gala1605-PVT |
4.1 L/h |
8 X 5mm |
| P06-236-154 |
Gala1008-PVT |
6.8 L/h |
| P06-236-160 |
Gala0713-PVT |
11.0 L/h |
| P06-236-166 |
Gala0420-PVT |
17.1 L/h |
12 X 9mm |
| P06-236-172 |
Gala0232-PVT |
32.0 L/h |
| Type/Specification |
최대 역압하의 용량 |
평균 역압하의 용량 |
스트로크 속도
(Stroke/min) |
연결구
(O.D X I.D) |
| Bar |
L/h |
ml/stroke |
Bar |
L/h |
ml/stroke |
| Gala1000 |
10 |
0.74 |
0.07 |
5 |
0.82 |
0.08 |
180 |
6 X 4mm |
| Gala1601 |
16 |
1.1 |
0.10 |
8 |
1.4 |
0.13 |
| Gala1602 |
16 |
2.1 |
0.19 |
8 |
2.5 |
0.24 |
| Gala1005 |
10 |
4.4 |
0.41 |
5 |
5.0 |
0.46 |
8 X 5mm |
| Gala0708 |
7 |
7.1 |
0.66 |
3.5 |
8.4 |
0.78 |
| Gala0413 |
4 |
12.3 |
1.14 |
2 |
14.2 |
1.31 |
| Gala0220 |
2 |
19.0 |
1.76 |
1 |
20.9 |
1.94 |
12 X 9mm |
| Gala1605 |
16 |
4.1 |
0.38 |
8 |
4.9 |
0.45 |
8 X 5mm |
| Gala1008 |
10 |
6.8 |
0.63 |
5 |
8.3 |
0.76 |
| Gala0713 |
7 |
11.0 |
1.02 |
3.5 |
13.1 |
1.21 |
| Gala0420 |
4 |
17.1 |
1.58 |
2 |
19.1 |
1.77 |
12 X 9mm |
| Gala0232 |
2 |
32.0 |
2.96 |
1 |
36.2 |
3.35 |

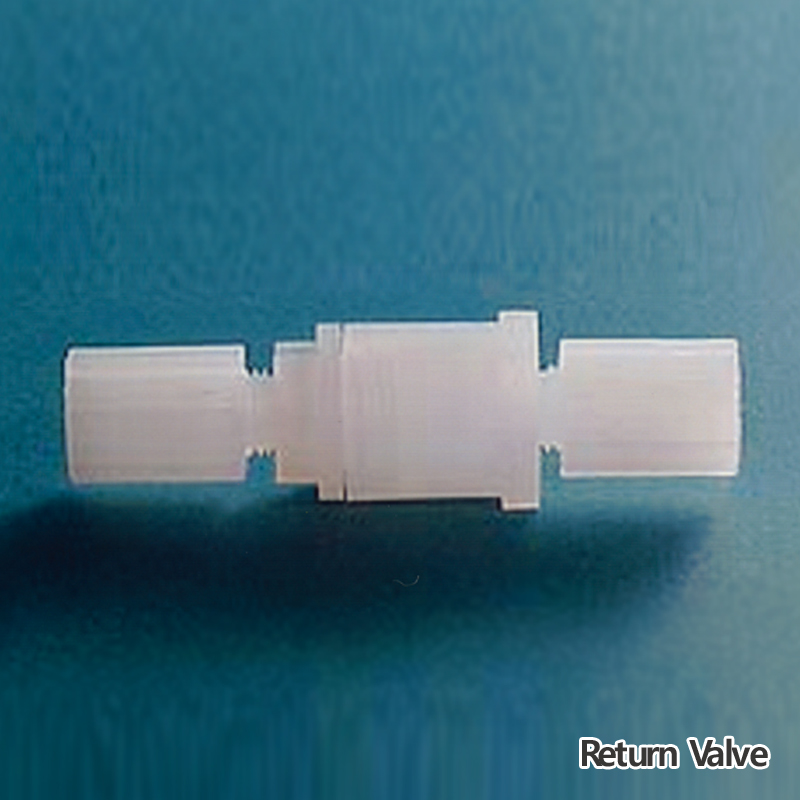

Optional Accessory
| Cat. No |
Model |
Description |
| P06-236-632 |
RV-0406 |
PVDF Return Valve, 4 X 6mm |
| P06-236-636 |
RV-0508 |
PVDF Return Valve, 5 X 8mm |
| P06-236-640 |
RV-0912 |
PVDF Return Valve, 9 X 12mm |
|
|
|
|
