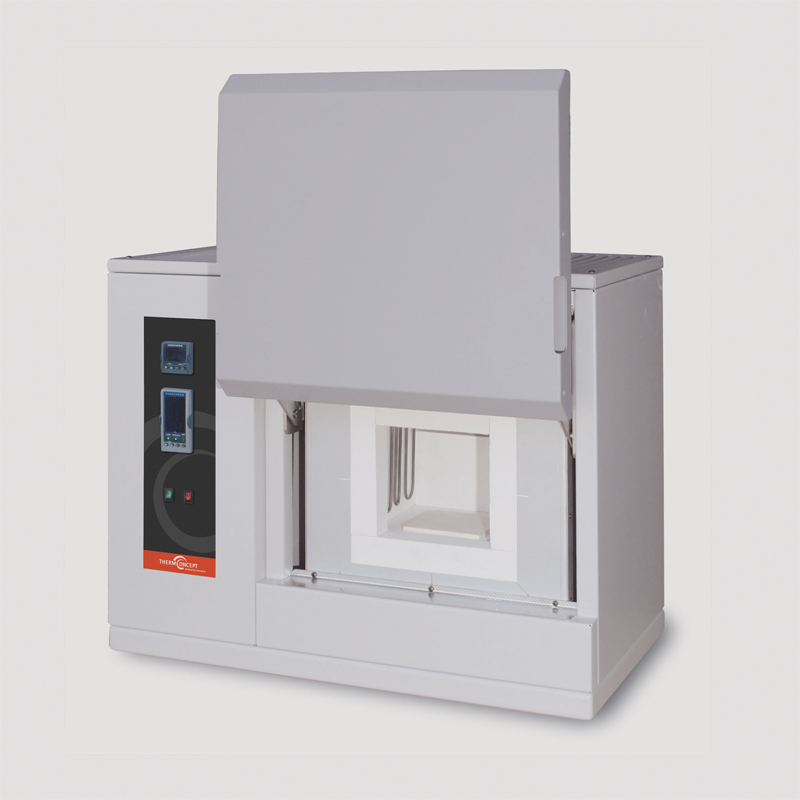

 1800℃ High Temp. Program Furnace / 프로그램식 초 고온 전기로 |
|
|
Cat. No |
Model |
Description |
Unit |
Price
(VAT별도) |
납기 |
재고 |
주문/견적 |
|
|
F08-101-823 |
HTL0216 |
High Temp. Program Furnace with Eurotherm 3208 Controller 2Lit. 1600℃ |
1/EA |
25,094,300원 |
0 Day |
0 |
|
|
|
F08-101-826 |
HTL0416 |
High Temp. Program Furnace with Eurotherm 3208 Controller 4Lit. 1600℃ |
1/EA |
28,824,300원 |
0 Day |
0 |
|
|
|
F08-101-829 |
HTL1016 |
High Temp. Program Furnace with Eurotherm 3208 Controller 10Lit. 1600℃ |
1/EA |
40,115,500원 |
0 Day |
0 |
|
|
|
F08-101-832 |
HTL0217 |
High Temp. Program Furnace with Eurotherm 3208 Controller 2Lit. 1750℃ |
1/EA |
27,733,200원 |
0 Day |
0 |
|
|
|
F08-101-835 |
HTL0417 |
High Temp. Program Furnace with Eurotherm 3208 Controller 4Lit. 1750℃ |
1/EA |
33,493,000원 |
0 Day |
0 |
|
|
|
F08-101-838 |
HTL1017 |
High Temp. Program Furnace with Eurotherm 3208 Controller 10Lit. 1750℃ |
1/EA |
36,889,100원 |
0 Day |
0 |
단종 |
|
|
F08-101-841 |
HTL0218 |
High Temp. Program Furnace with Eurotherm 3208 Controller 2Lit. 1800℃ |
1/EA |
39,937,800원 |
0 Day |
0 |
|
|
|
F08-101-844 |
HTL0418 |
High Temp. Program Furnace with Eurotherm 3208 Controller 4Lit. 1800℃ |
1/EA |
47,423,000원 |
0 Day |
0 |
|
|
|
F08-101-847 |
HTL1018 |
High Temp. Program Furnace with Eurotherm 3208 Controller 10Lit. 1800℃ |
1/EA |
58,054,600원 |
0 Day |
0 |
|
|
|
| Exhaust with Fan |
|
| Ceramic Bottom Plate |
|
| High Temp. Glove / 고온용 장갑 |
|
|
 |
|
|
|
|
* Heating on both side : 2면 가열식 (Chamber내 균일한 온도분포를 나타냄)
* Molybdenum Disilicide Heating Element
* Double-walled housing with rear-ventiation to ensure low outer casing temperatures
* Insulation made of high grade aluminium oxide fibre with low thermal mass for very fast heating
* Gas 배기구는 Furnace 윗면에 있음
* Paralled-guided door moving up-wards
* Adjustable Temperature Limiter (Option)
* Eurotherm 3208 Program Controller
* Programmable PID controller with realtime clock
* Simple, straightforward operation
* 1 Program - 8 Segments (4 Ramp and 4 Holding Time)
* Optional RS232 or RS485 interface for PC connection (iTools 소프트웨어)
상세 규격 표
| Cat. No |
Model |
Capacity |
Heater |
Max. Temp. |
| F08-101-823 |
HTL0216 |
2 L |
1.5 kW |
1600℃ |
| F08-101-826 |
HTL0416 |
4 L |
3.0 kW |
| F08-101-829 |
HTL1016 |
10 L |
4.0 kW |
| F08-101-832 |
HTL0217 |
2 L |
1.5 kW |
1750℃ |
| F08-101-835 |
HTL0417 |
4 L |
3.0 kW |
| F08-101-838 |
HTL1017 |
10 L |
4.0 kW |
| F08-101-841 |
HTL0218 |
2 L |
1.5 kW |
1800℃ |
| F08-101-844 |
HTL0418 |
4 L |
3.0 kW |
| F08-101-847 |
HTL1018 |
10 L |
4.0 kW |
Technical Data
| Cat. No. |
F08-101-823 |
F08-101-826 |
F08-101-829 |
| Model |
HTL0216 |
HTL0416 |
HTL1016 |
| Temp. Range |
Max. 1600℃ |
| Cat. No. |
F08-101-832 |
F08-101-835 |
F08-101-838 |
| Model |
HTL0217 |
HTL0417 |
HTL1017 |
| Temp. Range |
Max. 1750℃ |
| Cat. No. |
F08-101-841 |
F08-101-844 |
F08-101-847 |
| Model |
HTL0218 |
HTL0418 |
HTL1018 |
| Temp. Range |
Max. 1800℃ |
| Temp. Controller |
Eurotherm 3208 Program Controller |
| Capacity |
2 L |
4 L |
10 L |
| Dimension |
Internal |
w110×d120×h150 mm |
w150×d150×h150 mm |
w200×d250×h200 mm |
| External |
w740×d440×h630 mm |
w740×d440×h630 mm |
w790×d540×h680 mm |
| Heater Capa |
1.5 kW |
3.0 kW |
4.0 kW |
| Weight |
76 kg |
83 kg |
97 kg |
| Power |
230V, 1/N |
400V, 1/N |
Optional Accessory
Exhaust with Fan
| Cat. No. |
Model |
Description |
| F08-101-950 |
KL-EF |
KL-Type 전기로용 Vent Fan |

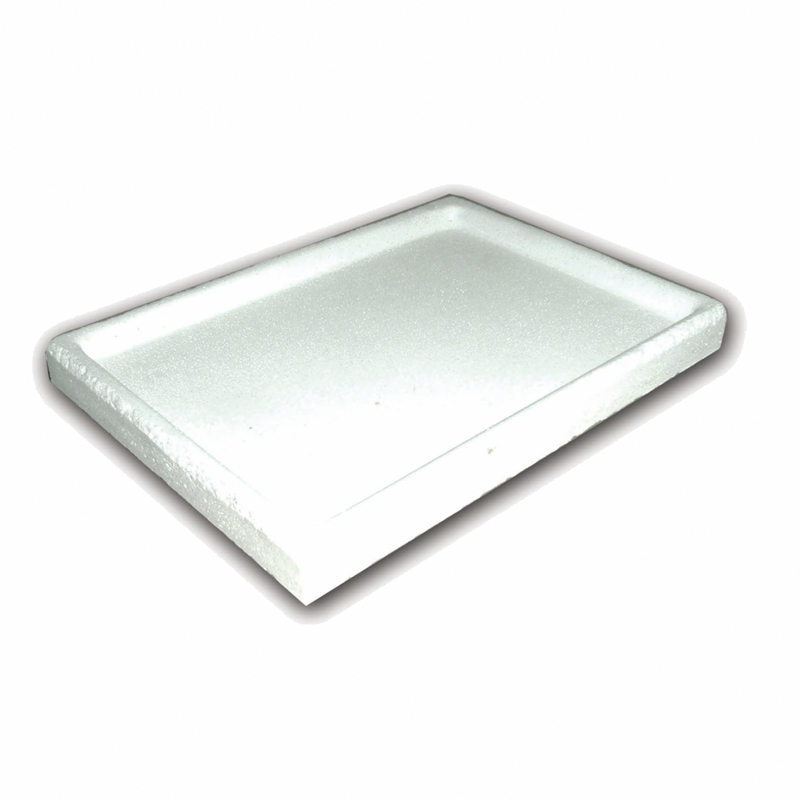

Ceramic Bottom Plate
| Cat. No |
Model |
Material |
Size |
| F08-101-955 |
KL06C |
Ceramic |
w190×d220 mm |
| F08-101-960 |
KL09C |
w220×d220 mm |
| F08-101-965 |
KL15C |
w240×d240 mm |
| F08-101-970 |
KL30C |
w300×d300 mm |

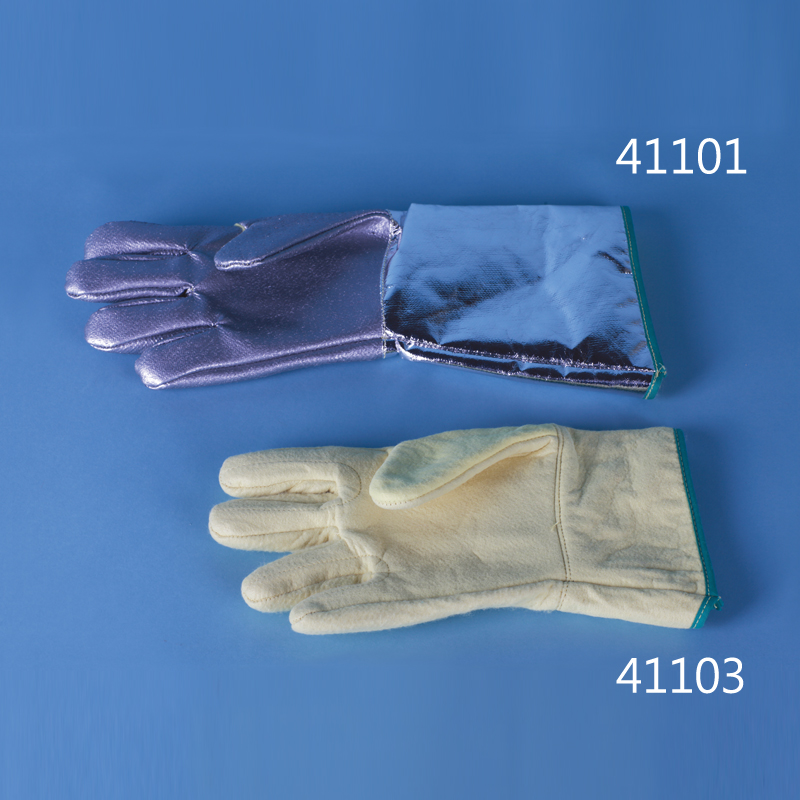

High Temp. Glove / 고온용 장갑
| Cat. No |
Model |
Description |
| F08-101-980 |
41103 |
Max. 500℃ |
| F08-101-990 |
41101 |
Max. 900℃ |
|
|
|
|
