Conical Ground Joint, Cone / 유리 죠인트, 콘

● Borosilicate Glass 3.3, USP Type I, ASTM E438, Type I, Class A
● Lenz

(0개)

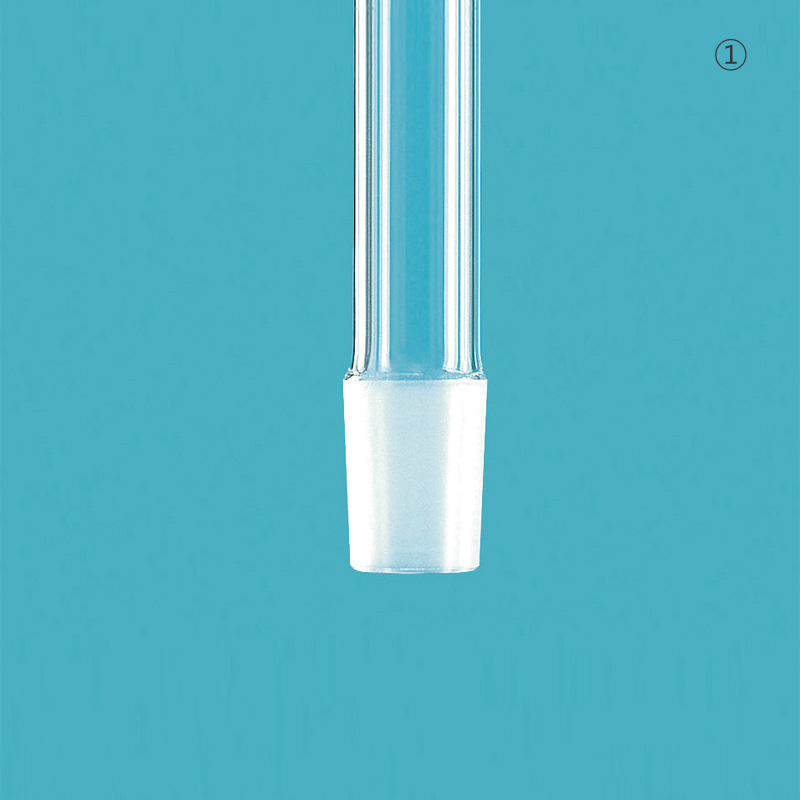

Cone Inner Joint, ①
Cat. No	Model	Cone NS	Dimension
J02-83-102	1100205	5/13	Ø4×h115 mm
J02-83-110	1100207	7/16	Ø6×h115 mm
J02-83-118	1100210	10/19	Ø8×h115 mm
J02-83-126	1100212	12/21	Ø11×h130 mm
J02-83-134	1100214	14/23	Ø13×h130 mm
J02-83-142	1100219	19/26	Ø17×h130 mm
J02-83-150	1100224	24/29	Ø22×h130 mm
J02-83-158	1100229	29/32	Ø26×h130 mm
J02-83-166	1100234	34/35	Ø30×h130 mm
J02-83-174	1100240	40/38	Ø36×h145 mm
J02-83-182	1100245	45/40	Ø40×h145 mm
J02-83-190	1100250	50/42	Ø46×h145 mm
J02-83-198	1100255	55/44	Ø50×h145 mm
J02-83-206	1100260	60/46	Ø54×h160 mm
J02-83-214	1100271	71/51	Ø65×h180 mm
J02-83-222	1100285	85/55	Ø80×h180 mm

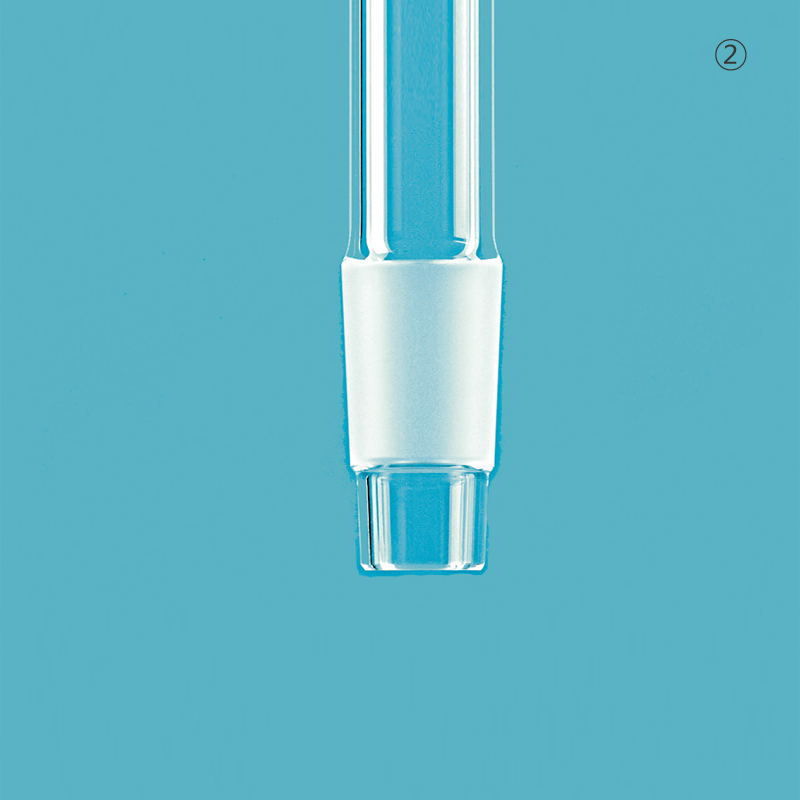

Cone with Cone Tip, ②
Cat. No	Model	Cone NS	Dimension
J02-83-256	1100312	12/21	Ø11×h130 mm
J02-83-264	1100314	14/23	Ø13×h130 mm
J02-83-272	1100319	19/26	Ø17×h130 mm
J02-83-280	1100324	24/29	Ø22×h130 mm
J02-83-288	1100329	29/32	Ø26×h130 mm
J02-83-296	1100334	34/35	Ø30×h130 mm
J02-83-304	1100345	45/40	Ø40×h145 mm

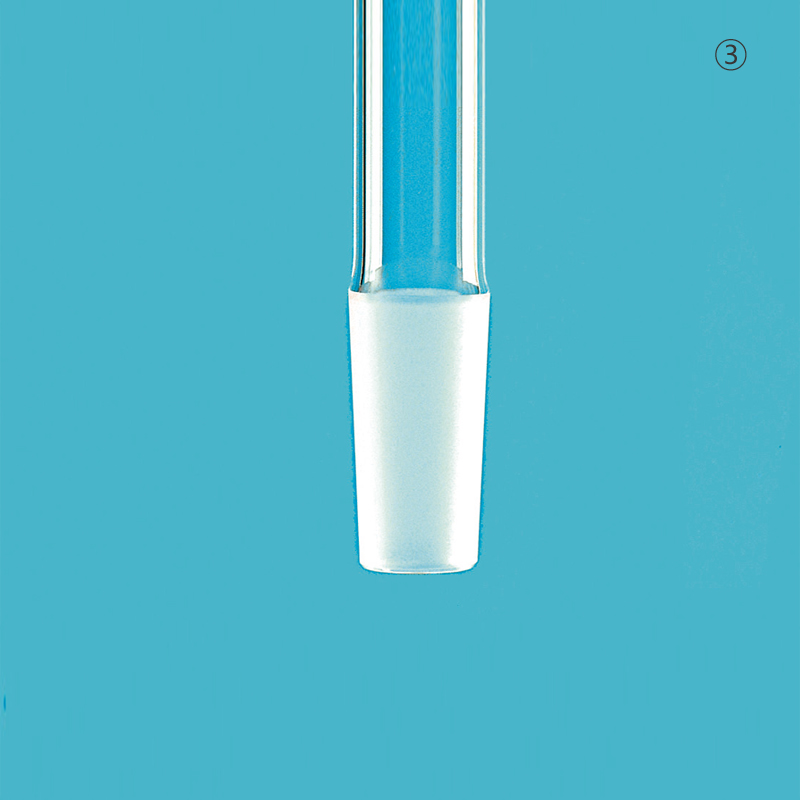

Cone Full Length, ③
Cat. No	Model	Cone NS	Dimension
J02-83-353	1100710	10/30	Ø8×h115 mm
J02-83-360	1100712	12/32	Ø11×h140 mm
J02-83-367	1100714	14/35	Ø13×h140 mm
J02-83-374	1100719	19/38	Ø17×h140 mm
J02-83-381	1100724	24/40	Ø22×h140 mm
J02-83-388	1100729	29/42	Ø26×h140 mm
J02-83-395	1100734	34/45	Ø30×h140 mm
J02-83-402	1100745	45/50	Ø40×h150 mm

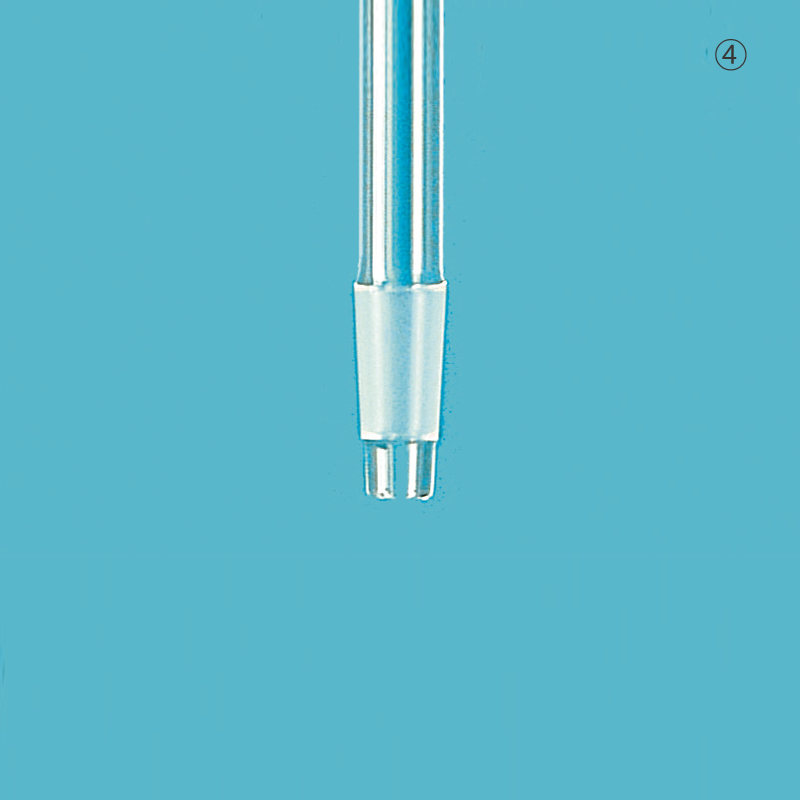

Cone with Cone Tip, Full Length, ④
Cat. No	Model	Cone NS	Dimension
J02-83-433	1100814	14/23	Ø13×h120 mm
J02-83-439	1100819	19/38	Ø17×h120 mm
J02-83-445	1100824	24/40	Ø22×h130 mm
J02-83-451	1100829	29/42	Ø26×h130 mm
