J Young High Vacuum Needle Valve Stopcock / 제이영 고진공용 니들 밸브

● 10-6 Torr까지의 고진공을 보장하는 고품질 니들 밸브
● -50℃ 이하 사용을 위한 저온용 Glass Piston도 공급 가능함
● PTFE Piston : USP Class Vl & FDA 21 CFR 177.1550에 적합
● Gleaseless Needle Valve
● J Young Brand

(0개)

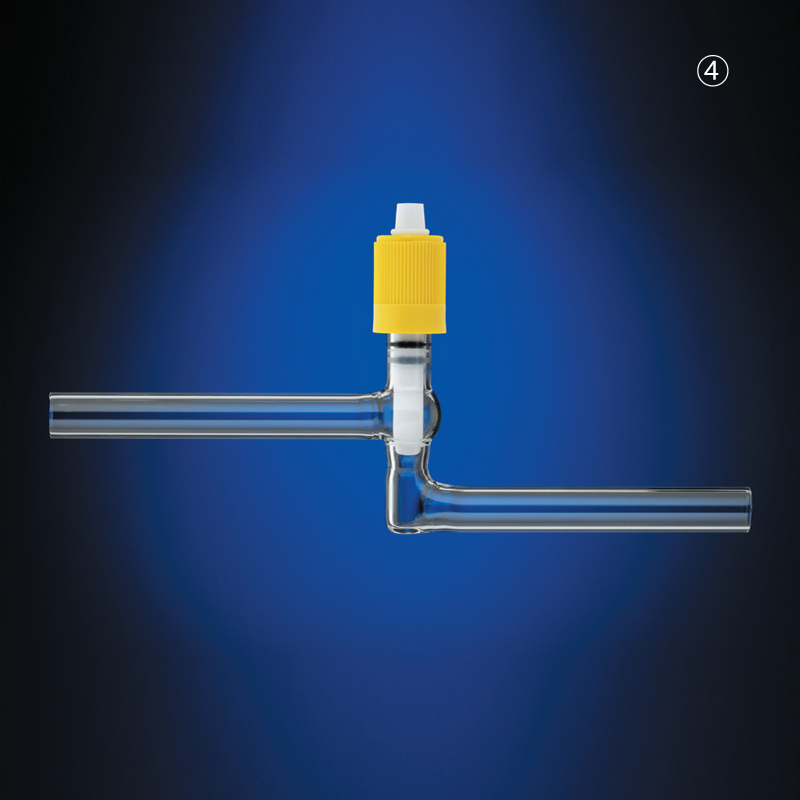

JY Straight Through Taps ④
Cat. No	Model	Size	Side Arm id	Side Arm od
S11-179-401	POR/1	1 mm	1.1	7
S11-179-403	POR/2	2 mm	2.2	7
S11-179-405	POR/3	3 mm	3	9
S11-179-407	POR/4	4 mm	4	7
S11-179-409	POR/5	5 mm	5	8
S11-179-411	POR/6	6 mm	6	9
S11-179-413	POR/8	8 mm	8	11
S11-179-415	POR/10	10 mm	10	13
S11-179-417	POR/15	15 mm	15.4	19
S11-179-419	POR/20	20 mm	19	24
S11-179-421	POR/25	25 mm	24	28

In Line Taps ⑤
Cat. No	Model	Size	Side Arm id	Side Arm od
S11-179-451	SPOR/1	1 mm	1.1	7
S11-179-453	SPOR/2	2 mm	2.2	7
S11-179-455	SPOR/3	3 mm	3	9
S11-179-457	SPOR/4	4 mm	4	7
S11-179-459	SPOR/5	5 mm	5	8
S11-179-461	SPOR/6	6 mm	6	9
S11-179-463	SPOR/8	8 mm	8	11
S11-179-465	SPOR/10	10 mm	10	13
S11-179-467	SPOR/15	15 mm	15.4	19
S11-179-469	SPOR/20	20 mm	19	24
S11-179-471	SPOR/25	25 mm	24	28

Right Angle Taps ⑥
Cat. No	Model	Size	Side Arm id	Side Arm od
S11-179-501	POR/1/RA	1 mm	1.1	7
S11-179-503	POR/2/RA	2 mm	2.2	7
S11-179-505	POR/3/RA	3 mm	3	9
S11-179-507	POR/4/RA	4 mm	4	7
S11-179-509	POR/5/RA	5 mm	5	8
S11-179-511	POR/6/RA	6 mm	6	9
S11-179-513	POR/8/RA	8 mm	8	11
S11-179-515	POR/10/RA	10 mm	10	13
S11-179-517	POR/15/RA	15 mm	15.4	19
S11-179-519	POR/20/RA	20 mm	19	24
S11-179-521	POR/25/RA	25 mm	24	28

Air Inlet Valve ⑦
Cat. No	Model	Bore	Type
S11-179-701	ALS/1	5 mm	Fine Control

Double Oblique Taps ⑧
Cat. No	Model	Size	Side Arm id	Side Arm od
S11-179-551	POR/D/1	1 mm	1.1	7
S11-179-553	POR/D/2	2 mm	2.2	7
S11-179-555	POR/D/3	3 mm	3	9
S11-179-557	POR/D/4	4 mm	4	7
S11-179-559	POR/D/5	5 mm	5	8
S11-179-561	POR/D/6	6 mm	6	9
S11-179-563	POR/D/8	8 mm	8	11
S11-179-565	POR/D/10	10 mm	10	13
S11-179-567	POR/D/15	15 mm	15.4	19
S11-179-569	POR/D/20	20 mm	19	24
S11-179-571	POR/D/25	25 mm	24	28

T Shape Taps ⑨
Cat. No	Model	Size	Side Arm id	Side Arm od
S11-179-601	POR/T/1	1 mm	1.1	7
S11-179-603	POR/T/2	2 mm	2.2	7
S11-179-605	POR/T/3	3 mm	3	9
S11-179-607	POR/T/4	4 mm	4	7
S11-179-609	POR/T/5	5 mm	5	8
S11-179-611	POR/T/6	6 mm	6	9
S11-179-613	POR/T/8	8 mm	8	11
S11-179-615	POR/T/10	10 mm	10	13
S11-179-617	POR/T/15	15 mm	15.4	19
S11-179-619	POR/T/20	20 mm	19	24
S11-179-621	POR/T/25	25 mm	24	28

T Bore Taps ⑩
Cat. No	Model	Size	Side Arm id	Side Arm od
S11-179-651	POR/W/1	1 mm	1.1	7
S11-179-653	POR/W/2	2 mm	2.2	7
S11-179-655	POR/W/3	3 mm	3	9
S11-179-657	POR/W/4	4 mm	4	7
S11-179-659	POR/W/5	5 mm	5	8
S11-179-661	POR/W/6	6 mm	6	9
S11-179-663	POR/W/8	8 mm	8	11
S11-179-665	POR/W/10	10 mm	10	13
S11-179-667	POR/W/15	15 mm	15.4	19
S11-179-669	POR/W/20	20 mm	19	24
S11-179-671	POR/W/25	25 mm	24	28
