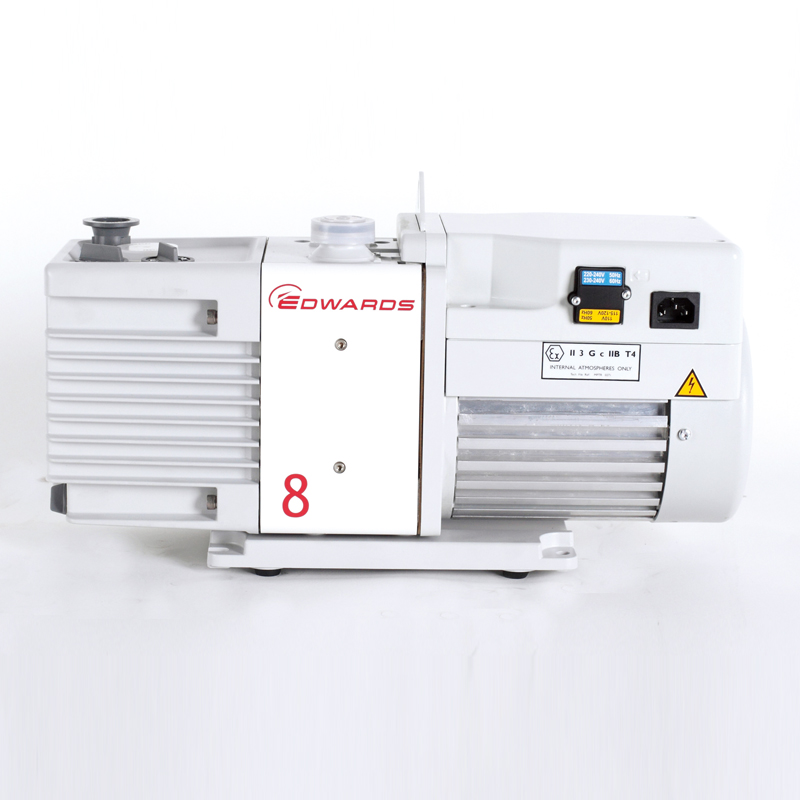

Vacuum Pump / Ç¥ÁØÇü Áø°ø ÆßÇÁ, Edwards |
|
Cat. No |
Model |
Description |
Unit |
Price (VATº°µµ) |
³³±â |
Àç°í |
ÁÖ¹®/°ßÀû |
|
P06-121-103 |
ED-RV3 |
 Vacuum Pump 65L/min, 220V, 60Hz Edward |
1/EA |
3,421,700¿ø 3,177,700¿ø |
3 Day |
3 |
|
|
P06-121-105 |
ED-RV5 |
 Vacuum Pump 103L/min, 220V,60Hz Edward |
1/EA |
3,506,000¿ø |
3 Day |
2 |
|
|
P06-121-108 |
ED-RV8 |
 Vacuum Pump 167L/min, 220V,60Hz Edward |
1/EA |
3,783,100¿ø |
3 Day |
3 |
|
|
P06-121-112 |
ED-RV12 |
 Vacuum Pump 238L/min, 220V,60Hz Edward |
1/EA |
4,048,200¿ø |
3 Day |
2 |
|
|
|
|
|
|
|
|
|
»ó¼¼ ±Ô°Ý Ç¥
Cat. No |
Model |
Pumping Speed |
Motor Power |
P06-121-103 |
ED-RV3 |
65 L/min |
550W |
P06-121-105 |
ED-RV5 |
103 L/min |
P06-121-108 |
ED-RV8 |
167 L/min |
P06-121-112 |
ED-RV12 |
238 L/min |
Cat. No |
P06-121-103 |
P06-121-105 |
P06-121-108 |
P06-121-112 |
Model |
ED-RV3 |
ED-RV5 |
ED-RV8 |
ED-RV12 |
Pumping Speed |
65 L/min |
103 L/min |
167 L/min |
238 L/min |
Ultimate Pressure
Ultimate Pressure GB1
Ultimate Pressure GB2 |
1.5 X 0.001 Torr
2.3 X 0.01 Torr
9.1 X 0.01 Torr |
1.5 X 0.001 Torr
2.3 X 0.01 Torr
7.5 X 0.01 Torr |
1.5 X 0.001 Torr
2.3 X 0.01 Torr
4.6 X 0.01 Torr |
1.5 X 0.001 Torr
2.3 X 0.01 Torr
4.6 X 0.01 Torr |
Motor Power |
550 W |
Motor Speed |
1800 rpm |
Oil Capacity |
700ml |
750ml |
1 L |
Inlet |
NW25, Nozzle 12mm(±âº»Æ÷ÇÔ) |
Outlet |
NW25 |
Weight |
25kg |
28kg |
29kg |
Operation Temp. Range |
12 ~ 40¡É |
Size |
w158¡¿d430¡¿h221 mm |
w158¡¿d470¡¿h221 mm |
w158¡¿d490¡¿h221 mm |
Voltage |
220V, 60Hz |
|
|
|
|
