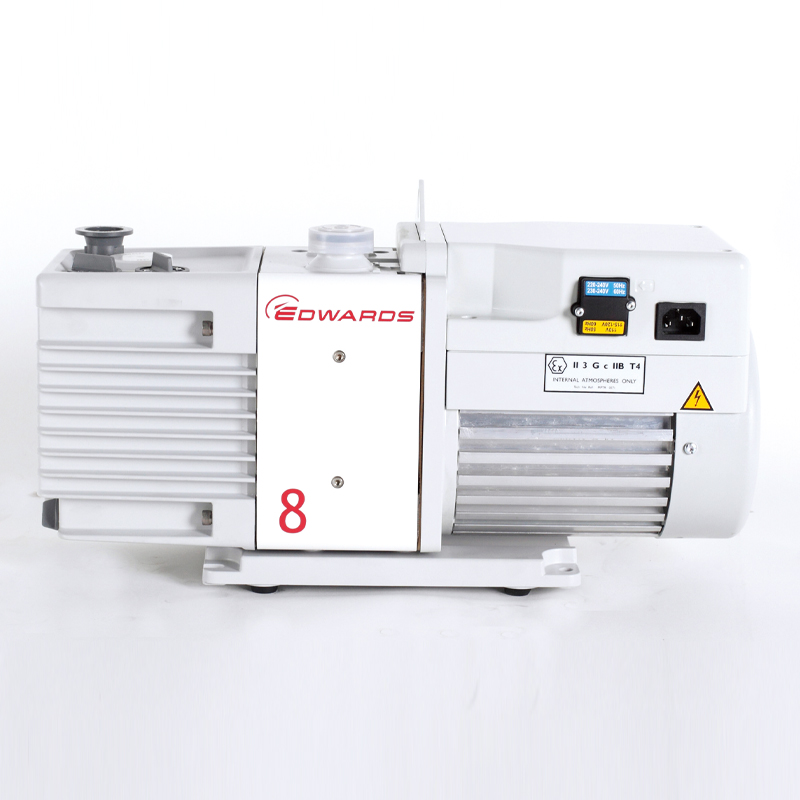

Vacuum Pump / ¼ÒÇü Áø°ø ÆßÇÁ, Edwards |
|
|
|
|
|
|
|
»ó¼¼ ±Ô°Ý Ç¥
Cat. No |
Model |
Pumping Speed |
Motor Power |
P06-121-081 |
ED-E2M0.7 |
16 L/min |
90W |
P06-121-091 |
ED-E2M1.5 |
33 L/min |
160W |
Cat. No |
P06-121-081 |
P06-121-091 |
Model |
ED-E2M0.7 |
ED-E2M1.5 |
Pumping Speed |
16 L/min |
33 L/min |
Ultimate Pressure
- without Gas Ballast
- with Gas Ballast |
2.3×10-3 Torr
1.5×10-1 Torr |
2.3×10-3 Torr
1.9×10-2 Torr |
Motor Power |
90W |
160W |
Motor Speed |
1700 rpm |
3400 rpm |
Oil Capacity |
280 ml |
Inlet |
NW10, Nozzle 11mm(±âº»Æ÷ÇÔ) |
Outlet |
3/8" BSP Tapped Hole |
Weight |
10kg |
Operation Temp. Range |
12 ~ 40¡É |
Size |
w142 X d323 X h166 |
Voltage |
220V, 60Hz |
|
|
|
|
