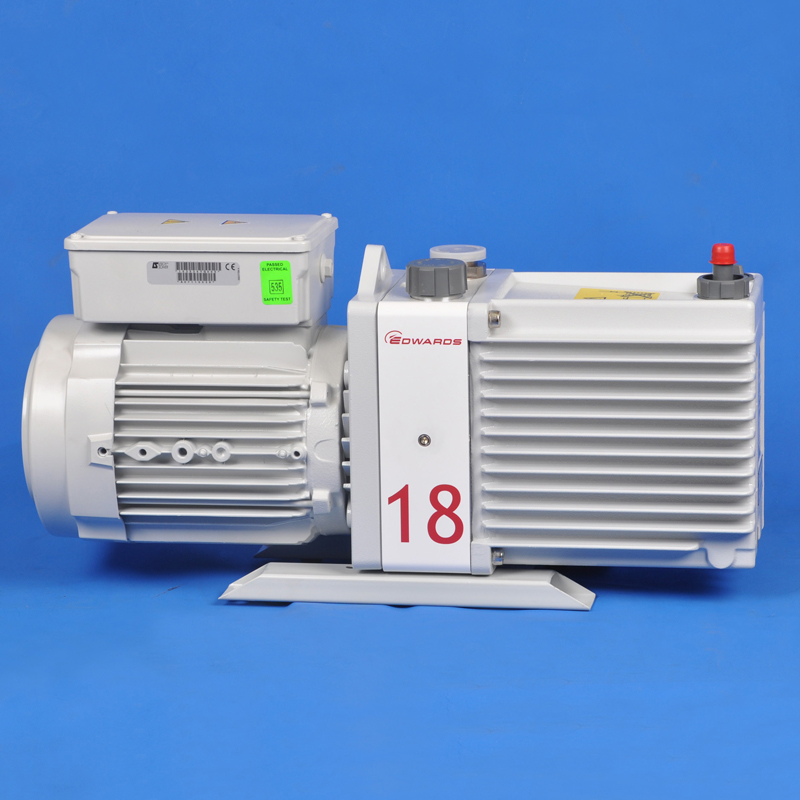

PFPE Non-Corrosive Vacuum Pump, Edwards / PFPE ³»ºÎ½Ä¼º Áø°ø ÆßÇÁ |
|
|
|
|
|
|
|
»ó¼¼ ±Ô°Ý Ç¥
Cat. No |
Model |
Pumping Speed |
Motor Power |
P06-121-355 |
ED-E2M18PFPE |
340 L/min |
750W |
P06-121-361 |
ED-E2M28PFPE |
550 L/min |
Cat. No |
P06-121-355 |
P06-121-361 |
Model |
ED-E2M18PFPE |
ED-E2M28PFPE |
Pumping Speed |
340 L/min |
550 L/min |
Ultimate Pressure
- without Gas Ballast
- with Gas Ballast |
7.4×0.0001 Torr
1.1×0.01 Torr |
7.5×0.0001 Torr
1.1×0.01 Torr |
Motor Power |
750W |
Motor Speed |
1720 rpm |
Oil Capacity |
1.05 L |
1.5 L |
Inlet |
NW25, Nozzle 15mm(±âº»Æ÷ÇÔ) |
Outlet |
3/8" BSP Tapped Hole |
Weight |
39kg |
40kg |
Operation Temp. Range |
12 ~ 40¡É |
Size (w×d×h) |
171×550×251 mm |
160×584×241 mm |
Voltage |
220V, 60Hz |
|
|
|
|
