Oil Rotary Vacuum Pump / º¸±ÞÇü Áø°øÆßÇÁ |
|
|
|
|
|
|
|
»ó¼¼ ±Ô°Ý Ç¥
Cat. No |
Model |
Pumping Speed |

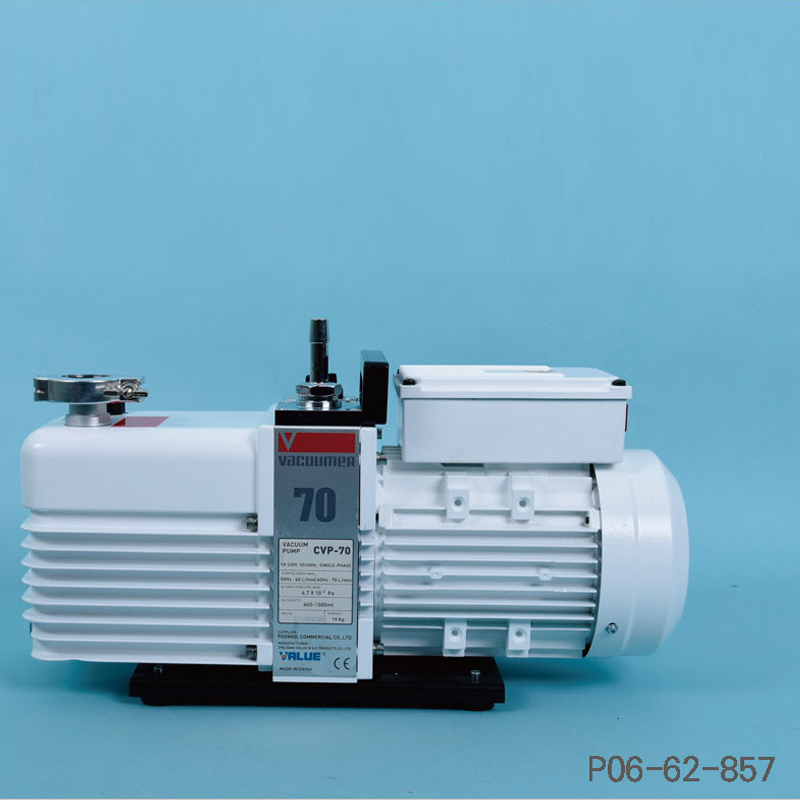

P06-62-857 |
CVP-70 |
70 L/min (60Hz) |

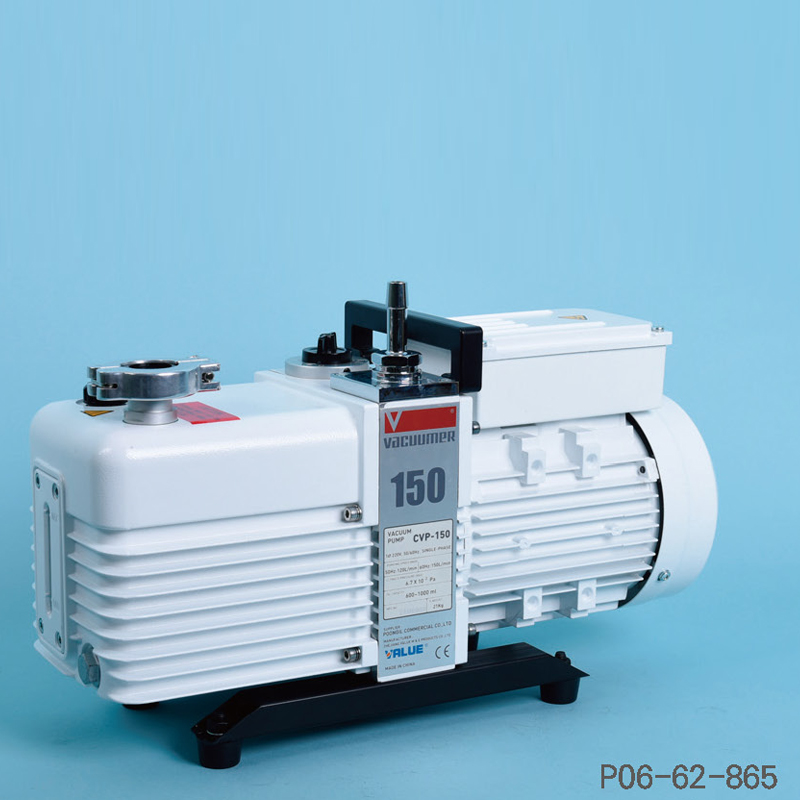

P06-62-865 |
CVP-150 |
150 L/min (60Hz) |
Cat. No |
P06-62-857 |
P06-62-865 |
Model |
CVP-70 |
CVP-150 |
Pumping Speed |
70 L/min (60Hz) |
150 L/min (60Hz) |
Ultimate Pressure |
0.5 Pa |
Motor Power |
0.25 kW |
0.37 kW |
Motor Speed |
1720 rpm |
Oil Capacity |
600 ~ 1000 ml |
Weight |
19kg |
21kg |
Inlet / Outlet |
KF25 / Hose Nipple OD15 mm Æ÷ÇÔ |
Size |
w144×d448×h224 mm |
Voltage |
220V, 50/60Hz |
|
|
|
|
