랩캠퍼스(Labcampus) : Semi-Micro & Micro Fluorometer Cell, 4-Side Polished / 세미 마이크로 & 마이크로 형광 셀, 4면 투명

General instrument > 제품별 분류 > Spectrophotometer Cell > 제품상세정보

Semi-Micro & Micro Fluorometer Cell, 4-Side Polished / 세미 마이크로 & 마이크로 형광 셀, 4면 투명

● 재질 : Spectrosil® Far UV Quartz
● 투과 범위 : 170 ~ 2700 nm
● PTFE 재질의 Cover 또는 Stopper 포함
● 표준 셀보다 소량 측정 가능
● Starna

(0개)

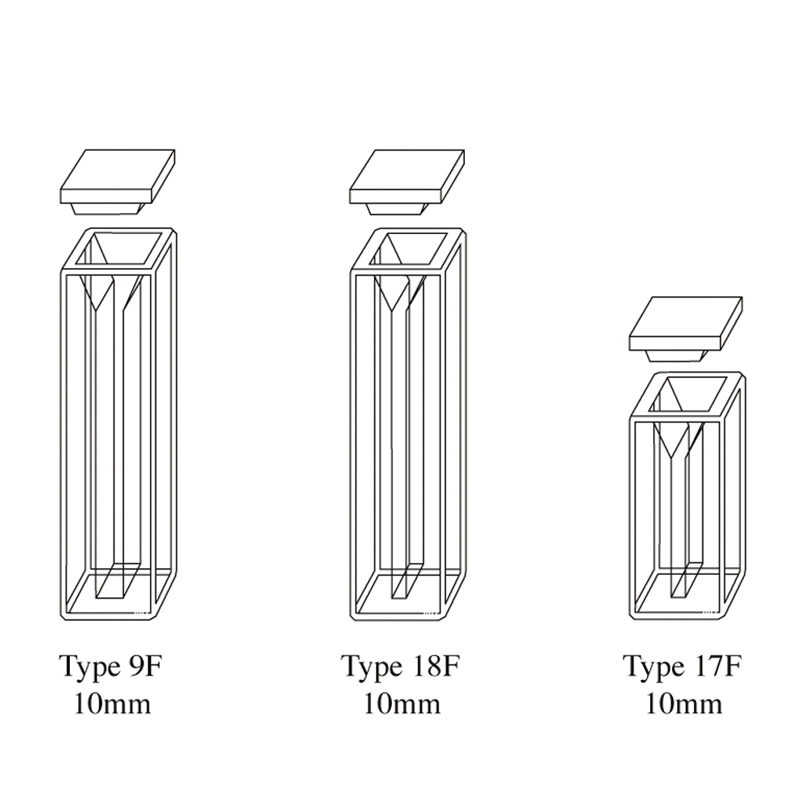

with PTFE Cover

Cat. No	Model	Description	Unit	Price (VAT별도)	납기	재고	주문/견적

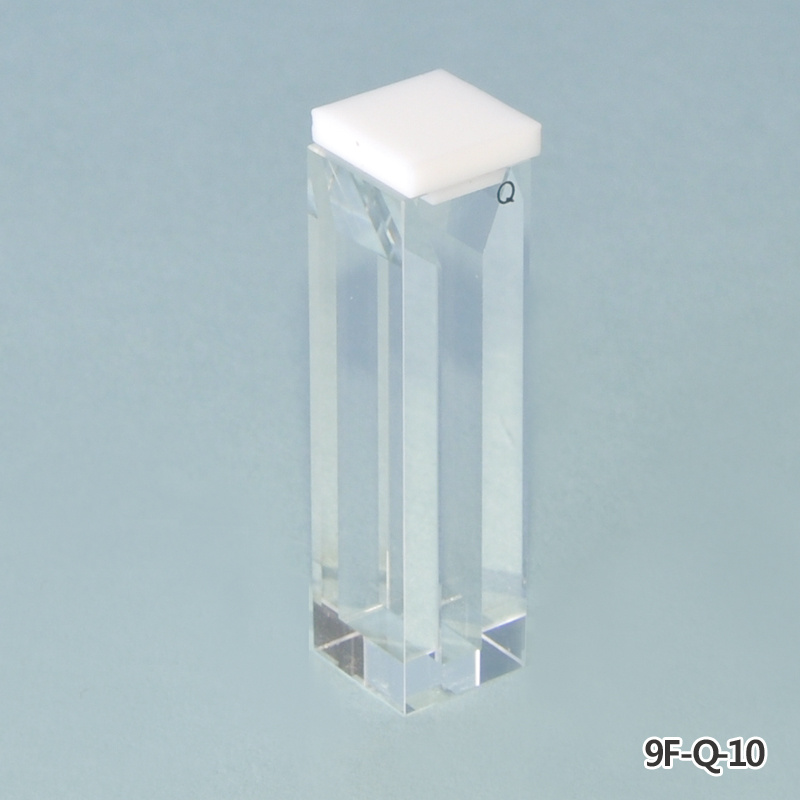

S18-77-556	9F-Q-10	Quartz Cell, Semi Micro Fluorescence 4mm (Light Path)	1/EA	486,600원	30 Day	0
S18-77-560	17F-Q-10	Semi-Micro Fluorometer Cell Type 17F 2mm, 0.4ml	1/EA	382,500원	30 Day	0
S18-77-564	18F-Q-10	Semi-Micro Fluorometer Cell Type 18F 2mm, 0.7ml	1/EA	502,300원	30 Day	0

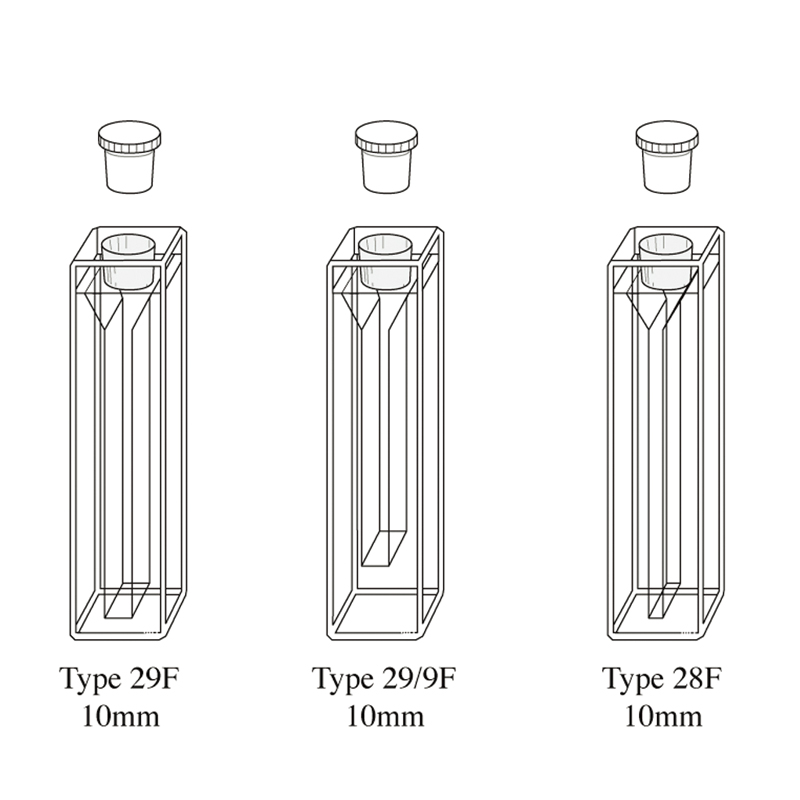

with PTFE Stopper

Cat. No	Model	Description	Unit	Price (VAT별도)	납기	재고	주문/견적
S18-77-568	28F-Q-10	Semi-Micro Fluorometer Cell Type 28F 2mm, 0.7ml	1/EA	581,000원	30 Day	0

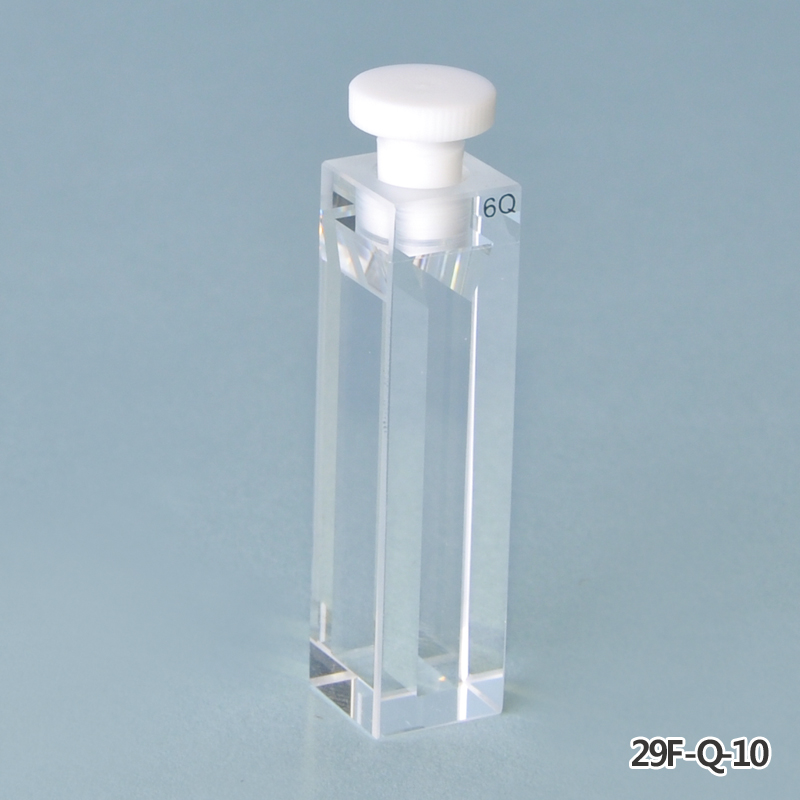

S18-77-572	29F-Q-10	Quartz Cell, Semi Micro Fluorescence 4mm (Light Path)	1/EA	569,400원	3 Day	2

(0개)

Small and Mid-size Cycler
Cat. No	Model	Type	Block
C12-07-030	³Prime base/02	³Prime	24×0.2 ml
C12-07-035	³Prime base/05	³Prime	18×0.5 ml
C12-07-040	³Prime X/02	³Prime X	48×0.2 ml
C12-07-045	³Prime X/05	³Prime X	30×0.5 ml
C12-07-050	³Prime G/02	³Prime G	48×0.2 ml
C12-07-055	³Prime G/05	³Prime G	30×0.5 ml

● Gradient기능 - 3Prime : 기본 Model
- 3PrimeX : 추후 사용자의 편의로 Gradient Upgrade 가능
- 3PrimeG : Gradient 기능 기본

Full Size Cycler
Cat. No	Model	Type	Block
C12-07-130	5Prime/02	Prime	96×0.2 ml
C12-07-135	5Prime/05		60×0.5 ml
C12-07-140	5Prime/384		384 Well Plate
C12-07-145	5Prime/C		Combi-Block
C12-07-150	5Prime G/02	Prime G	96×0.2 ml
C12-07-155	5Prime G/05		60×0.5 ml
C12-07-160	5Prime G/384		384 Well Plate
C12-07-170	5Prime G/C		Combi-Block

Cycler, Network Connectivity
Cat. No	Model	Type	Block
C12-07-230	ELITE/02	Prime Elite	96×0.2 ml
C12-07-235	ELITE/05		60×0.5 ml
C12-07-240	ELITE/384		384 Well Plate
C12-07-245	ELITE SAT/02	Prime Elite Satellite	96×0.2 ml
C12-07-250	ELITE SAT/05		60×0.5 ml
C12-07-260	ELITE SAT/384		384 Well Plate

● Prime Elite에 Satellite 3개까지 연결하여 사용 가능함(USB포트)
● Prime Elite Satellite 제품은 PC와 연결하여 사용 가능함
● 초당 5℃의 빠른 Ramp Rate

Ion-Selective Electrode
Type	³Prime	³Prime X	³Prime G	Prime	Prime G	Prime Elite	Prime Elite Satelite
Maximum heating rate	3.0℃/S			3.4℃/S		5.0℃/S
Temperature accuracy	± 0.25℃					±0.2℃
Temperature uniformity	± 0.3℃
Program Interface	3.5” VGA touch screen			5.7” VGA touch screen			Programmable via Prime Elite or PC Workbench software
Stord programs	1000
Networking capability	-					O
Adjustible heated lid	Fixed	O				Automatic
Gradient Range	-	Can be upgraded to 3PrimeG spec	30 ~ 80℃	Can be upgraded to 3PrimeG spec	30 ~ 80℃	4 ~ 100℃
Max Gradient	-		14℃	-	29℃, 25℃ CombiBlock, 19℃ 384-well	30℃
USB Connectivity	O
Dimensions	w210×d350×h180 mm			w240×d420×h240 mm		w276×d375×h312 mm
Licensed for gradient	-		O	-	O
