Radiometer / 방사계

■ 자동 단위 변환 기능 내장
■ 습도와 온도 측정 가능
■ 버튼 하나로 Min, Average, Max 값 Logging 가능
■ S/W를 통해 컴퓨터로 결과값 다운로드 가능
■ Sensor는 별도 구매 (NIST Traceable Calibation Report 포함)
■ 구성

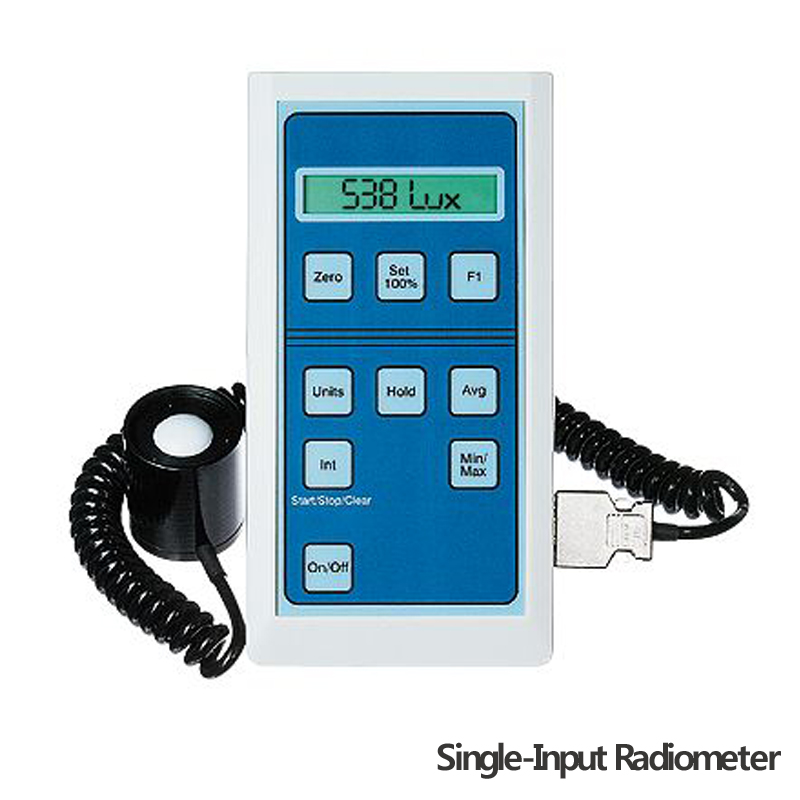

- Single Input : Radiometer, 4×AA Battery

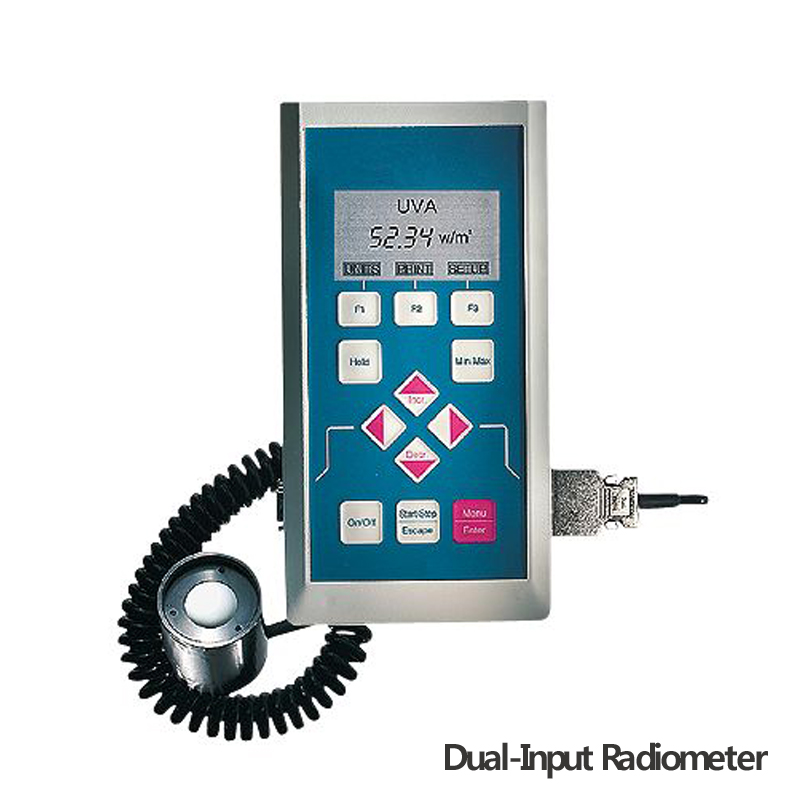

- Dual Input : Radiometer, 2×Wire AC Adapter/Charger (90~265 VAC, L183cm), RS-232 Cable, Battery, Carrying Case
■ Dual Input 제품은 1,024개의 값까지 저장 가능
■ Cole-Parmer

(0개)

상세 규격 표
Cat. No.	Model	Description
U01-55-003	97650-02	Single Input
U01-55-006	97650-00	Dual Input

상세 규격 표
Cat. No.	U01-55-003	U01-55-006
Model	97650-02	97650-00
Input	Single	Dual
Energy Range	± 4V	± 0.4V, ± 4V, Auto-Ranging
Probe Accuracy	0.2% FS
Display Accuracy	0.2% FS
Data Logging	No	1 min ~ 2 hr
Display	2 Line LCD	Graphical LCD
Size (w×d×h)	102×43×192 mm	100×43×192 mm
Power	4 × AA Battery	4 × AA Battery, 9 ~ 12V AC/DC Charger

Optional Sensor

UV Sensor
Cat. No	Model	Description	Spectral Response	Range	Resolution
U01-55-310	97650-52	UVA	320 ~ 400 nm	200 mW/㎠ 2,000 W/㎡	0.001 mW/㎠ 0.01 W/㎡
U01-55-313	97650-50	UVB	280 ~ 340 nm	200 MED/hr 1,160 uW/㎠	0.001 MED/hr 0.01 uW/㎠
U01-55-316	97650-61	UVC/Germicidal	249 ~ 261 nm	2,000 uW/㎠ 20,000 mW/㎡	0.01 uW/㎠ 0.1 mW/㎠
U01-55-319	97650-59	UV Radiation	200 ~ 400 nm	1,000 uW/㎠ 10,000 mW/㎡	0.01 uW/㎠ 0.1 mW/㎡

Visible Sensor
Cat. No	Model	Description	Spectral Response	Range	Resolution
U01-55-322	97650-54	Visible Photopic	380 ~ 780 nm	150,000 lux 200 W/㎡	1 lux 0.001 W/㎡
U01-55-325	97650-56	PAR	400 ~ 700 nm	20,000 uE/s/㎡	0.1 uE/s/㎡
U01-55-328	97650-60	Blue Light Safety	400 ~ 520 nm	20,000 uW/㎠ 20,000 mW/㎠	0.01 uW/㎠ 0.1 mW/㎠

Humidity/Temperature/Dew Point Sensor
Cat. No	Model	Description	Spectral Response	Range	Resolution
U01-55-331	97650-58	Humidity/Temperature Dew Point	-	0 ~ 100% pH	0.1% pH
