 Pump Set |
|
| Dirve Only |
|
| Pump Head, Standard |
|
|
Cat. No |
Model |
Description |
Unit |
Price
(VAT별도) |
납기 |
재고 |
주문/견적 |
|
|
P06-55-301 |
07019-20 |
Pump Head Standard CRS, IP73 |
1/EA |
968,900원 |
7 Day |
0 |
|
|
|
P06-55-305 |
07019-21 |
Pump Head Standard SS, IP73 |
1/EA |
1,370,300원 |
7 Day |
0 |
|
|
|
P06-55-309 |
07019-32 |
Pump Head Standard CRS, IP82 |
1/EA |
1,020,100원 |
7 Day |
0 |
|
|
|
P06-55-313 |
07019-31 |
Pump Head Standard SS, IP82 |
1/EA |
1,432,500원 |
7 Day |
0 |
|
|
|
| Pump Head, Easy-Load |
|
| Pump Head, High-Performance |
|
| Mounting Hardware |
|
|
 |
|
|
|
|

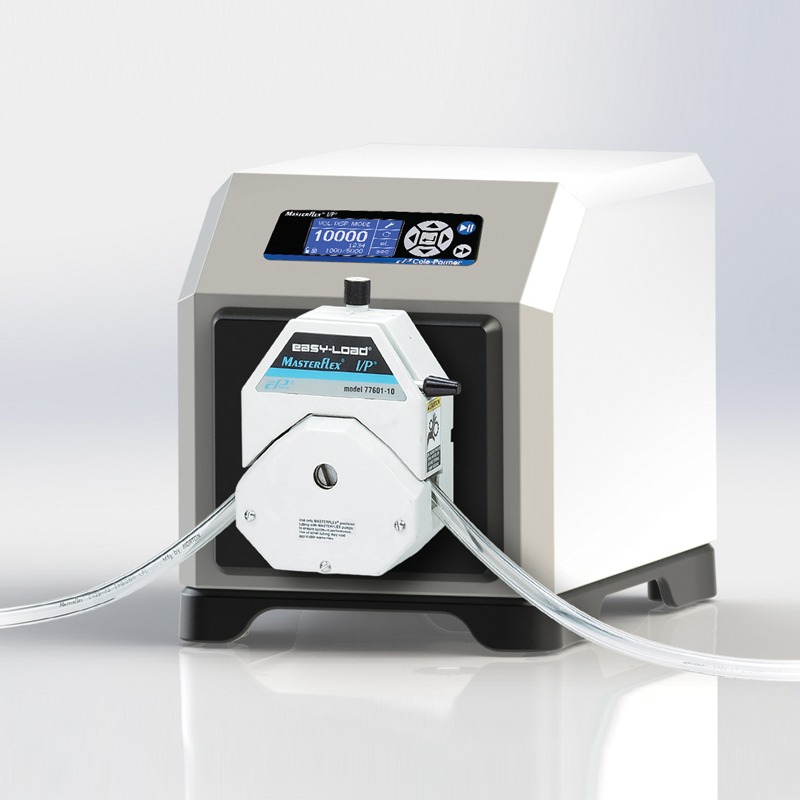

Pump Set
| Cat. No |
Model |
Flow Range |
Speed |
| P06-304-265 |
77964-20 |
0.001~8.0 lpm |
0.1 ~ 650 rpm |
| P06-304-269 |
77964-30 |
-
● 구성
- 77964-20 : Drive (77420-10), Pump Head, Easy-Load (77602-10), Tubing (06434-73)
- 77964-30 : Drive (77420-20), Pump Head, Easy-Load (77602-10), Tubing (06434-73)
Dirve Only
| Cat. No |
Model |
Housing |
Flow Rate |
Speed |
| P06-304-273 |
77420-10 |
316 Stainless Steel |
0.6 ~ 26000 mL/min |
0.1 ~ 650 rpm |

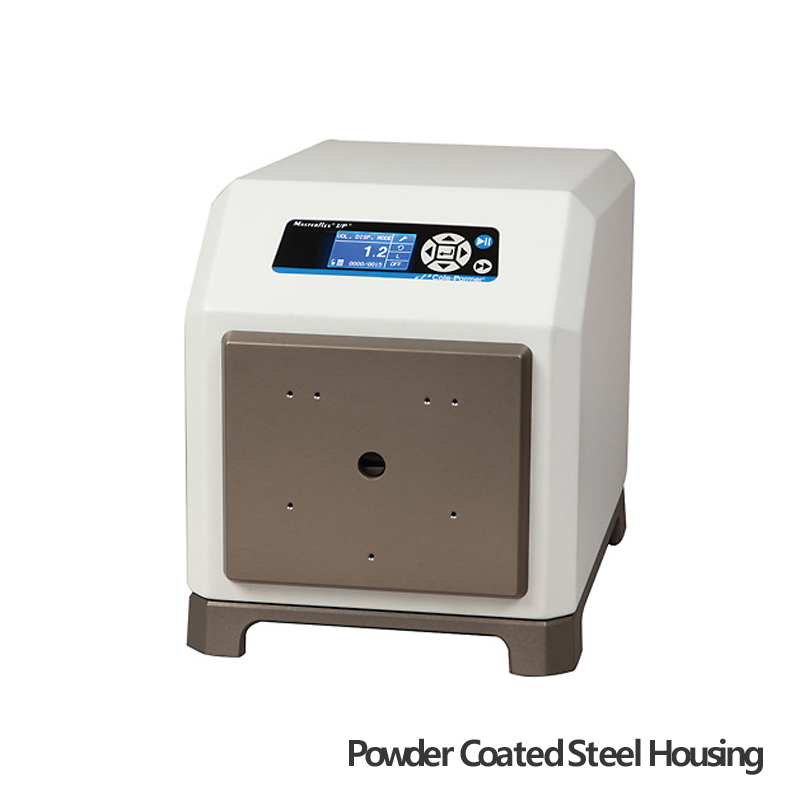

| P06-304-277 |
77420-20 |
Poweder Coated Steel |
Pump Head, Standard
| Cat. No |
Model |
Tubing Size |
Rotor |
| P06-304-301 |
07019-20 |
IP73 |
CRS |
| P06-304-305 |
07019-21 |
SS |
| P06-304-309 |
07019-32 |
IP82 |
CRS |
| P06-304-313 |
07019-31 |
SS |
-
● 재질 : PC Housing & CRS or SS Rotor
● Drive 연결용 1-Channel Mounting Hardware 기본 포함
● Dirve에 따라 2ea까지 연결하여 사용 가능 (Mounting Hardware는 별도임)
Pump Head, Easy-Load
| Cat. No |
Model |
Tubing Size |
Rotor |
| P06-304-317 |
77602-00 |
IP26, IP73, IP82 |
CRS |
| P06-304-321 |
77602-10 |
SS |
-
● 재질 : PSF Housing & CRS or SS Rotor
● Drive 연결용 1-Channel Mounting Hardware 기본 포함
● Dirve에 따라 2ea까지 연결하여 사용 가능 (Mounting Hardware는 별도임)
Pump Head, High-Performance
| Cat. No |
Model |
Tubing Size |
Rotor |
| P06-304-325 |
77600-62 |
IP70, IP88, IP89 |
SS |
-
● 재질 : Polyester and SS Housing & SS Rotor
Mounting Hardware
| Cat. No |
Model |
Pump Head 수 |
적용 Pump Head |
| P06-304-401 |
07019-95 |
1 ea |
Standard |
| P06-304-405 |
07019-96 |
2 ea |
| P06-304-409 |
77601-95 |
1 ea |
Easy-Load |
| P06-304-413 |
77601-96 |
2 ea |
-
● Pump Head를 다단으로 장착할 때 쓰임
Specification
| Speed |
0.1 ~ 650 rpm |
| Control Type |
Digital Variable Speed |
| Dimension |
w424×d282×h328 mm |
| Motor |
3/8 HP (280 W) |
| Speed Control (Repeatability) |
± 0.1% |
| IP Raing |
IP 66 |
| 장착 가능한 Pump Head 수 |
2ea |
| Power |
90 ~ 260V |
Tubing 종류에 따른 Flow Rte (L/min)
| LPM |
Precision Pump Tubing |
High Performance Precision Pump Tubing |
| IP26
| IP73
| IP82 |
IP70 |
IP88 |
IP89
|
| 0.001 ~ 4.0 |
0.001 ~ 8.0 |
0.002 ~ 13.0 |
0.001 ~ 8.0 |
0.002 ~ 17.0 |
0.002 ~ 19.0 |
|
|
|
|
