 Potter-Elvehjem with All Glass ① |
|
| Anodized Aluminum Stirrer Adapter |
|
| Large Volumn Potter-Elvehjem with PTFE Pestle & Glass Tube ② |
|
| Potter-Elvehjem with PTFE Tube & Graduated Glass Tube ③ |
|
| Potter-Elvehjem with PTFE Pestle & Glass Tube ④ |
|
|
Cat. No |
Model |
Description |
Unit |
Price
(VAT별도) |
납기 |
재고 |
주문/견적 |
|
|
T24-137-195 |
886000-0018 |
Tissue Grinder Potter-Elvehjem, w/ PTFE Pestle 0.5 ml |
1/EA |
367,800원 |
60 Day |
0 |
|
|
|
T24-137-199 |
886000-0019 |
Tissue Grinder Potter-Elvehjem, w/ PTFE Pestle 1 ml |
1/EA |
304,500원 |
60 Day |
0 |
|
|
|
T24-137-203 |
886000-0020 |
Tissue Grinder Potter-Elvehjem, w/ PTFE Pestle 3 ml |
1/EA |
325,500원 |
60 Day |
0 |
|
|
|
T24-137-207 |
886000-0021 |
Tissue Grinder Potter-Elvehjem, w/ PTFE Pestle 5 ml |
1/EA |
315,100원 |
3 Day |
2 |
|
|
|
T24-137-211 |
886000-0022 |
Tissue Grinder Potter-Elvehjem, w/ PTFE Pestle 8 ml |
1/EA |
304,500원 |
3 Day |
1 |
|
|
|
T24-137-215 |
886000-0023 |
Tissue Grinder Potter-Elvehjem, w/ PTFE Pestle 17 ml |
1/EA |
361,800원 |
60 Day |
0 |
|
|
|
T24-137-219 |
886000-0024 |
Tissue Grinder Potter-Elvehjem, w/ PTFE Pestle 45 ml |
1/EA |
401,000원 |
3 Day |
1 |
|
|
|
|
 |
|
|
|
|

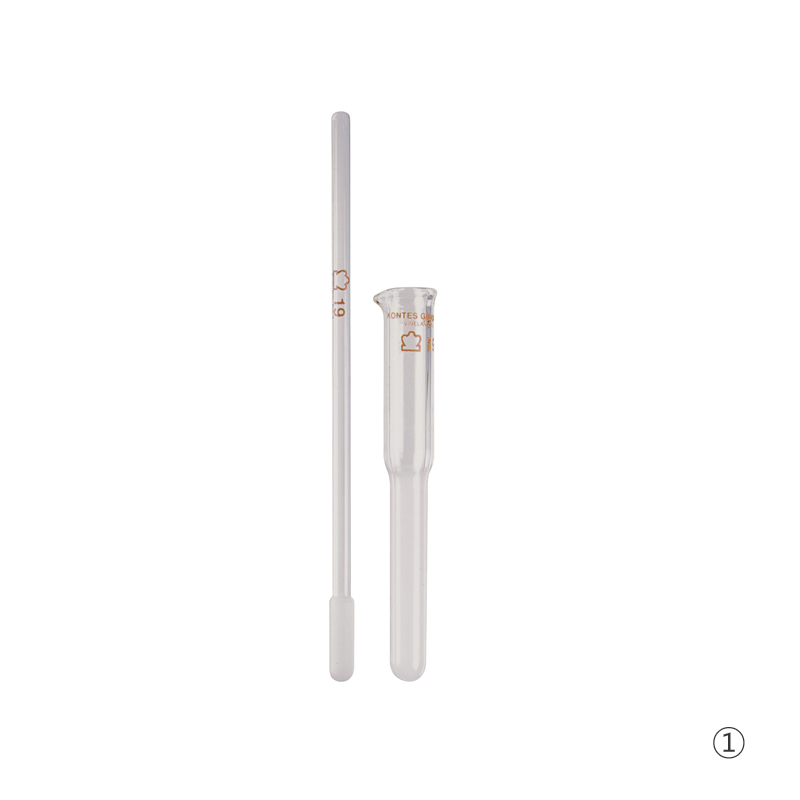

Potter-Elvehjem with All Glass ①
| Cat. No |
Model |
Working Capacity |
Pestle Shaft |
| T24-137-155 |
885500-0019 |
1 ml |
od5 mm |
| T24-137-159 |
885500-0021 |
5 ml |
od6 mm |
| T24-137-163 |
885500-0022 |
8 ml |
od8 mm |
| T24-137-167 |
885500-0023 |
17 ml |
OD10 mm |
| T24-137-171 |
885500-0024 |
45 ml |
-
■ Kimax® Borosilicate Glass 3.3, USP Type I, ASTM E438, Type I, Class A
■ Design for a Motor Dirve Using a 788000-0021 Stirrer Adapter
■ Pestle과 Tube 사이의 공간 : 0.010 ~ 0.015 mmm
Anodized Aluminum Stirrer Adapter
| Cat. No |
Model |
Shaft Diameter |
재질 |
| T24-137-995 |
788000-0021 |
8 ~ 10 mm |
Anodized Aluminum |
| T24-137-997 |
788010-0021 |
Polyacetal |

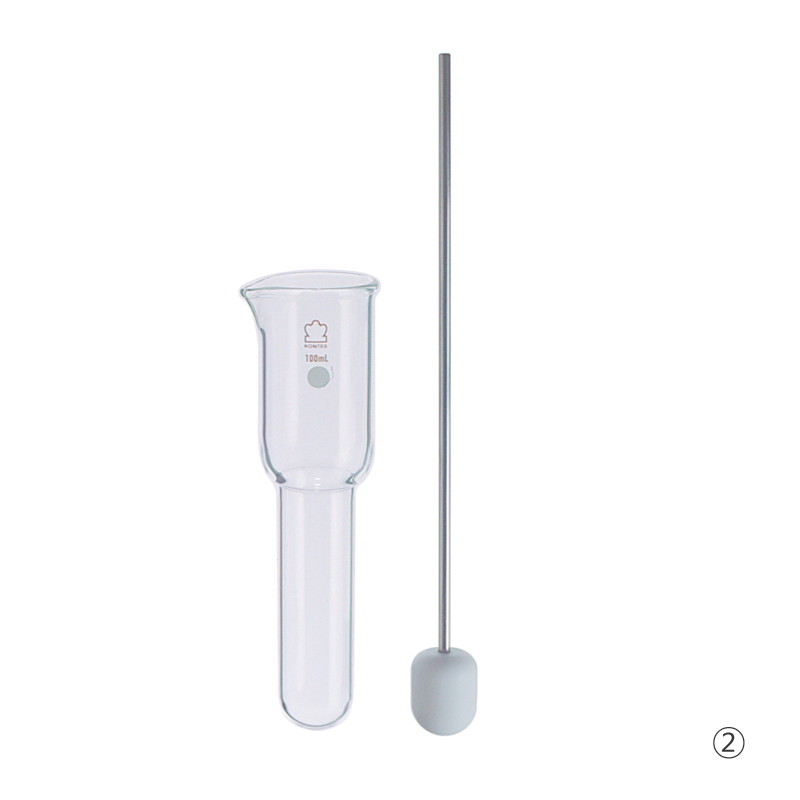

Large Volumn Potter-Elvehjem with PTFE Pestle & Glass Tube ②
| Cat. No |
Model |
Working Capacity |
Pestle Shaft |
| T24-137-175 |
885520-0100 |
100 ml |
od6 mm |
-
■ Kimax® Borosilicate Glass 3.3, USP Type I, ASTM E438, Type I, Class A
■ Pour Lip 타입의 Tube
■ Pestle Rod 는 Stainless Steel로 제작됨
■ Pestle과 Tube 사이의 공간 : 0.010 ~ 0.015 mm

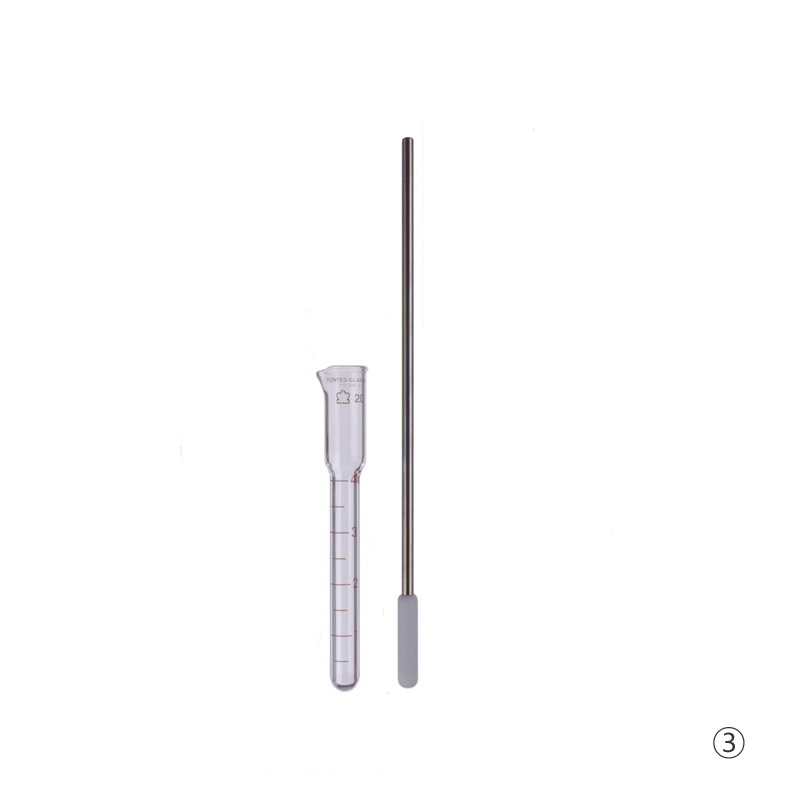

Potter-Elvehjem with PTFE Tube & Graduated Glass Tube ③
| Cat. No |
Model |
Working Capacity |
Pestle Shaft |
| T24-137-179 |
885510-0020 |
4 ml |
od4 mm |
| T24-137-183 |
885510-0021 |
10 ml |
od6 mm |
| T24-137-187 |
885510-0022 |
30 ml |
| T24-137-191 |
885510-0023 |
55 ml |
-
■ Kimax® Borosilicate Glass 3.3, USP Type I, ASTM E438, Type I, Class A
■ Pestle과 Tube 사이의 공간
-4 ml : 0.076 ~ 0.127 mm
- 10 ml : 0.102 ~ 0.152 mm
- 30 ml : 0.127 ~ 0.178 mm
- 55 ml : 0.152 ~ 0.229 mm

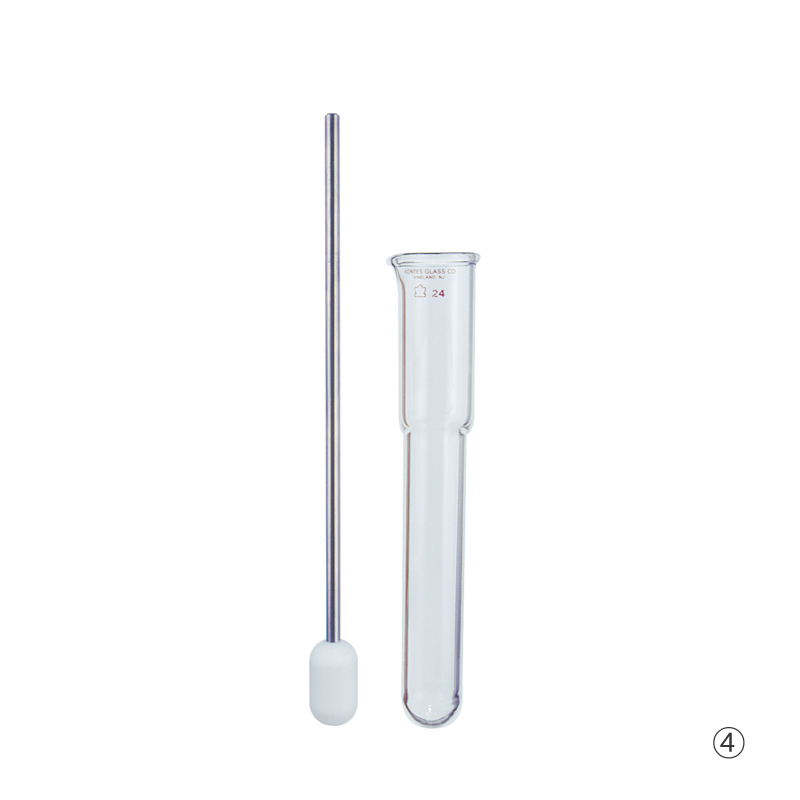

Potter-Elvehjem with PTFE Pestle & Glass Tube ④
| Cat. No |
Model |
Working Capacity |
Pestle Shaft |
| T24-137-195 |
886000-0018 |
0.5 ml |
od3 mm |
| T24-137-199 |
886000-0019 |
1 ml |
od5 mm |
| T24-137-203 |
886000-0020 |
3 ml |
| T24-137-207 |
886000-0021 |
5 ml |
od6 mm |
| T24-137-211 |
886000-0022 |
8 ml |
| T24-137-215 |
886000-0023 |
17 ml |
| T24-137-219 |
886000-0024 |
45 ml |
-
■ Kimax® Borosilicate Glass 3.3, USP Type I, ASTM E438, Type I, Class A
■ Similar to 885500 but with a PTFE pestle and an unground tube
■ 0021 ~ 0024 : Radial Serrations
■ PTFE 재질의 Pestle로 연조직에 사용하기에 알맞음
■ Pestle과 Tube 사이의 공간 : 0.010 ~ 0.015 mm
|
|
|
|
