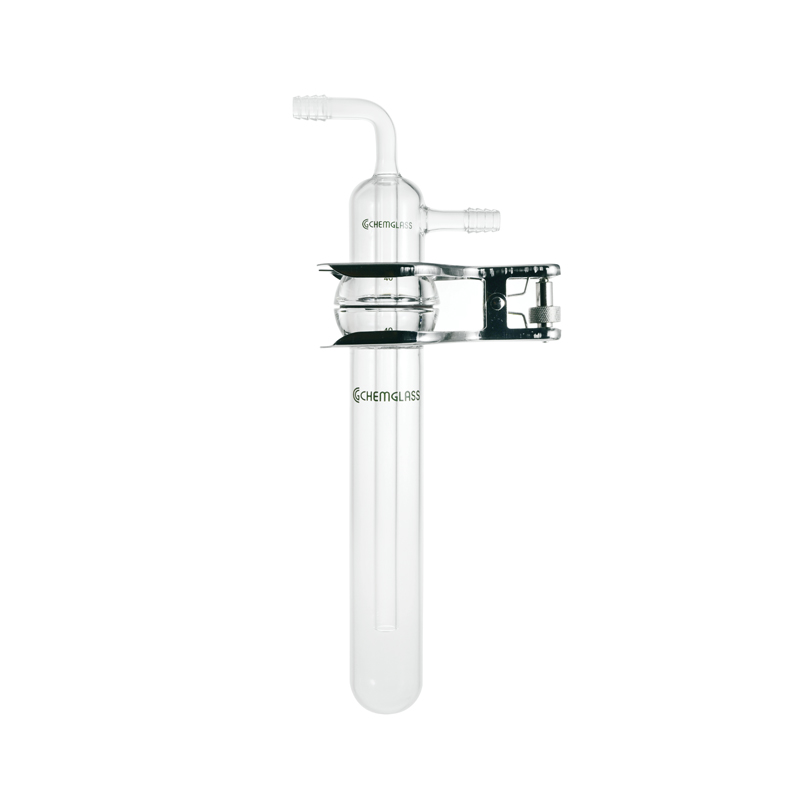

O-Ring Type Vacuum Trap / 오링형 진공 트랩

■ O-ring Joint형으로 Stopper에 Trap Body 연결
■ Vacuum Tight, Grease Free, 세척을 위해 쉽게 Stopper와 분리 가능
■ Hose Connection : 13.5 mm at Smallest Serration,
15.5 mm at the largest Serration
■ 구성 : Lower Body, Stopper, Viton O-ring, S.S Pinch Clamp
■ Chemglass

(0개)


Cat. No.	Model	Body (od×h, mm)	O-ring	Inner Tube (od, mm)
V03-132-917	4513-10	36×225	30	30
V03-132-919	4513-11	36×225	40	45
V03-132-921	4513-12	36×225	50	56

Replacement Part
Cat. No	Model	Description
V03-132-951	4513-20	Lower Body, #30 O-Ring
V03-132-953	4513-21	Lower Body, #40 O-Ring
V03-132-955	4513-22	Lower Body, #50 O-Ring
V03-132-957	4513-30	Stopper, #30 O-Ring
V03-132-959	4513-31	Stopper, #40 O-Ring
V03-132-961	4513-32	Stopper, #50 O-Ring
V08-132-626	150-08	Pinch Clamp, #30 O-Ring용
V08-132-624	150-09	Pinch Clamp, #40 O-Ring용
V08-132-620	150-21	Pinch Clamp, #50 O-Ring용
V08-132-912	305-223	Viton O-Ring, #30, (3pk)
V08-132-913	305-226	Viton O-Ring, #40, (3pk)
P05-132-579	305-229	Viton O-Ring, #50, (3pk)
