랩캠퍼스(Labcampus) : Digital Rotary Evaporator / 디지털 회전 농축기

(0개)

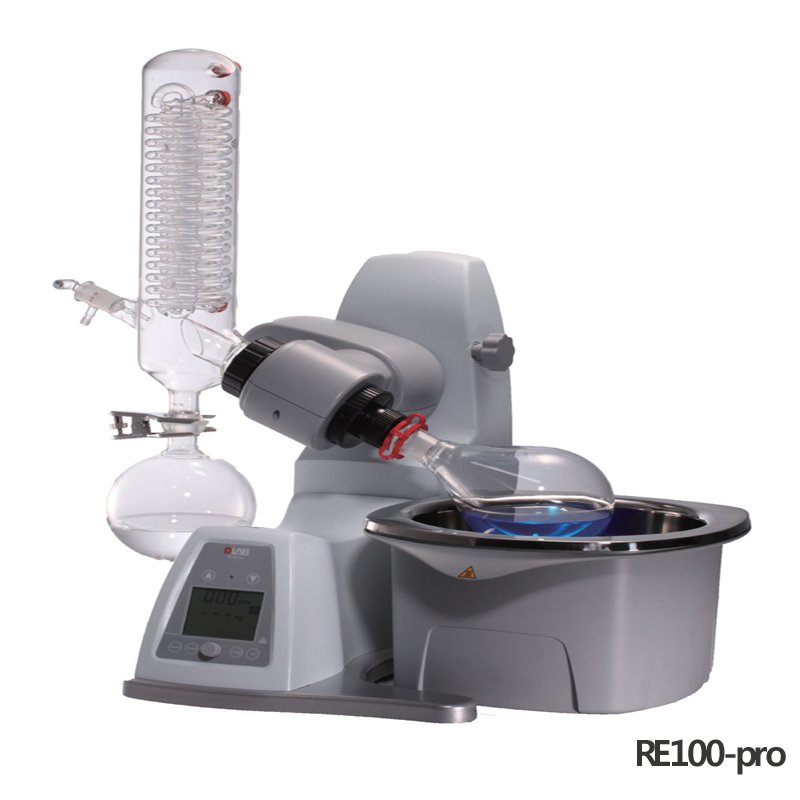

Digital Rotary Evaporator / 디지털 회전 농축기

Cat. No	Model	Description	Unit	Price (VAT별도)	납기	재고	주문/견적
E02-238-101	RE100-Pro	Rotary Evaporator Vertical 1 L	1/EA	3,542,200원	30 Day	0
E02-238-111	RE100B-Pro	Rotary Evaporator Diagonal 1 L	1/EA	3,542,200원	30 Day	0
E02-238-121	RE100C-Pro	Rotary Evaporator Dry Ice 1 L	1/EA	0원	30 Day	0	문의

Glassware only for "RE100" Evaporator, NS 24/40

Cat. No	Model	Description	Unit	Price (VAT별도)	납기	재고	주문/견적
E02-238-201	18900173	Glassware Set Vertical 1L NS 24/40, 1700㎠	1/EA	944,600원	30 Day	0
E02-238-205	18900171	Glassware Set Diagonal 1L NS 24/40, 1700㎠	1/EA	944,600원	30 Day	0
E02-238-209	18900192	Glassware Set Dry Ice 1 L	1/EA	0원	30 Day	0	문의

Vapor Tube for "RE100" Evaporator ①

	Cat. No	Model	Description	Unit	Price (VAT별도)	납기	재고	주문/견적
	E02-238-237	18300206	Vapor Tube NS 24/40	1/EA	125,400원	3 Day	4

Airtight Seal for "RE100" Evaporator ②

	Cat. No	Model	Description	Unit	Price (VAT별도)	납기	재고	주문/견적
	E02-238-241	18202027	PTFE Compound with SUS Spring	1/EA	51,300원	30 Day	0	단종

Vacuum Regulator & Moisture Trp

	Cat. No	Model	Description	Unit	Price (VAT별도)	납기	재고	주문/견적
	E02-238-243	18900186	Vacuum Gauge Pressure Valve	1/EA	324,700원	3 Day	2

Distillation Spider Only

	Cat. No	Model	Description	Unit	Price (VAT별도)	납기	재고	주문/견적
	E02-238-239	18900177	Distillation Spider 5 Flask 50 ml, NS 24/40	1/EA	124,200원	30 Day	0

(0개)

■ 구성 : Evaporator, 5 L Oil Bath, Glassware Set
■ Digital Display : Heating Temperature, Speed Rnage, Timer
■ 모터 구동 방식으로 Automatic Lift
■ Automatic Release : 전원 이상시 Flask가 자동으로 Top Position 위치
■ 정방향 / 역방향 회전 및 Interval Operation
■ 1500cm2의 Cooling Surface를 가진 Patented Condenser
■ Safety Temperature Cut Off 200℃
■ Chemical Resistant Double PTEE System Sealing
■ Pressure Spring을 통한 Excellent Sealing
■ USB Port 기본 장착, PC Control & Document

상세 규격 표
Cat. No	Model	Glassware Type	Joint
E02-238-101	RE100-Pro	Vertical	24/40
E02-238-111	RE100B-Pro	Diagonal
E02-238-121	RE100C-Pro	Dry Ice

상세 규격 표
Model	RE100
Flask	up to 3 L Evaporating / up to 2 L Receiving
Cooling Surface	1500 cm²
Cooler Type	Vertical / Diagonal / Dry Ice
Motor Type	Brushless DC Drive Motor
Speed Range	20 ~ 280 rpm
Rotation	Clockwise & Reverse Direction
Temperature Range	RT - 180℃, ±1℃ Control Accuracy
Lift	Motor Drive, Max.Stroke : 150 mm
Timer	1 ~ 999 min
Digital Display	Temperature / Speed / Timer
Connection	USB
Size	w457×d465×h583 mm, 15 kg
Power	200 ~ 240V, 50/60Hz, 1400 W
사용 조건	5 ~ 40℃, 80% Humidity, IP20

Glassware only for "RE100" Evaporator, NS 24/40
Cat. No	Model	Type	Joint
E02-238-201	18900173	Vertical Glassware	NS 24/40
E02-238-205	18900171	Diagonal Glassware
E02-238-209	18900192	Dry Ice Glassware

● 구성 : Condenser, 1 L Evaporating Flask, 1L Receving Flask (KS 35/20), Stopper, Connector
● 냉각 면적 : 1500 cm²

Vapor Tube for "RE100" Evaporator ①
Cat. No	Model	Description
E02-238-237	18300206	Vapor Tube NS 24/40

Airtight Seal for "RE100" Evaporator ②
Cat. No	Model	Description
E02-238-241	18100926	PTTE Compound with SUS Spring

Vacuum Regulator & Moisture Trp
Cat. No	Model	Description
E02-238-243	18900186	Vacuum Gauge Pressure Valve

Distillation Spider only
Cat. No	Model	Description
E02-238-239	18900177	for 50 ml×5개 Flask

● For Simultaneous Distillation from 5 Evaprating Flask
● Flask는 별도 구매해야 함
