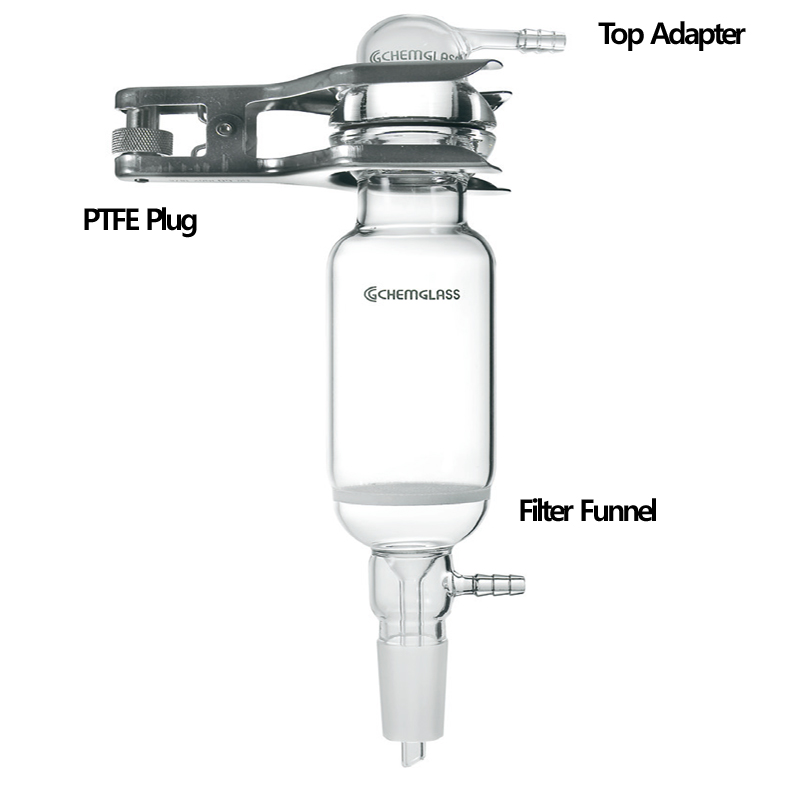

Pressure Filter Funnel / 정압식 필터 펀넬

● Borosilicate Glass 3.3, USP Type I, ASTM E438, Type I, Class A
● Porosity : Coarse, 40 ~ 60 um
● Positive Pressure Filtration용, up to 15 psi
● O-ring Joint : Large, Greasefree Opening
● 구성 : Filter Funnel, Top Inlet Adapter, Viton O-ring, Pinch Clamp
● Chemglass

(0개)

상세 규격 표
Cat. No	Model	용량	Disc od
F07-132-701	CG-1405-01	150 ml	50 mm
F07-132-703	CG-1405-03	250 ml	60 mm
F07-132-705	CG-1405-05	500 ml	70 mm
F07-132-707	CG-1405-07	1 L	90 mm

Filter Funnel Only
Cat. No	Model	용량	O-ring Joint	Clamp
F07-132-711	CG-1405-10	150 ml	#30	#50
F07-132-713	CG-1405-12	250 ml	#40	#65
F07-132-715	CG-1405-14	500 ml	#50	#75
F07-132-717	CG-1405-16	1L	#50	#75

Top Adapter Only
Cat. No	Model	O-ring Joint Size
F07-132-721	CG-1405-20	#30
F07-132-723	CG-1405-21	#40
F07-132-725	CG-1405-22	#50

Spare Pinch Clamp
Cat. No	Model	Size
V08-132-626	CG-150-08	#30
V08-132-624	CG-150-09	#40
V08-132-620	CG-150-21	#50

Spare Viton O-ring
Cat. No	Model	O-ring Size
V08-132-912	CG-305-223	#30
V08-132-913	CG-305-226	#40
P05-132-579	CG-305-229	#50
