LCD Touch Screen
LED Push Button
LN2 Back-up System for -80℃
CO2 Back-up System for -67℃
Chart Recorder (Include)
Freeze Rack for TSU Series
Accessory for TSE series
Sliding Drawer for 2" Box
Adustable Side AcessRack
LCD Touch Screen
Cat. No
Model
용량
2” Box 용량, boxes
F06-55-350
TSU300D
421 L
300개
F06-55-354
TSU400D
548 L
400개
F06-55-358
TSU500D
682 L
500개
F06-55-362
TSU600D
815 L
600개
F06-55-366
TSU700D
949 L
700개
LED Push Button
Cat. No
Model
용량
2” Box 용량, boxes
F06-55-370
TSE240
368 L
240개
F06-55-374
TSE320
490 L
320개
F06-55-378
TSE400
651 L
400개
F06-55-382
TSE600
793 L
600개
상세 기술 사양
Type
TSU, Touch Screen
TSE, LED Push Button
Display
LCD Touch-Screen
LED Push Button
On-Board Datalogging
Standard
Not Available
Setpoint Security
Standard
Not Available
Operating Modes
Two Modes ㅡ High-Performance or Energy-Savings
One Mode - Standard Operating
Key Lock Padlock
Standard
Standard With Unique Key Option
Compatible key
Standard
Not Available
Card Access
Optional
Not Available
Setpoint Security
Standard
Not Available
Monitoring Outputs
Standard: RS-485, 4-20mA, Dry Contacts
Standard: Dry Contacts; Optional PT100 Probe
Data Outputs
Log File Through USB
Not Available

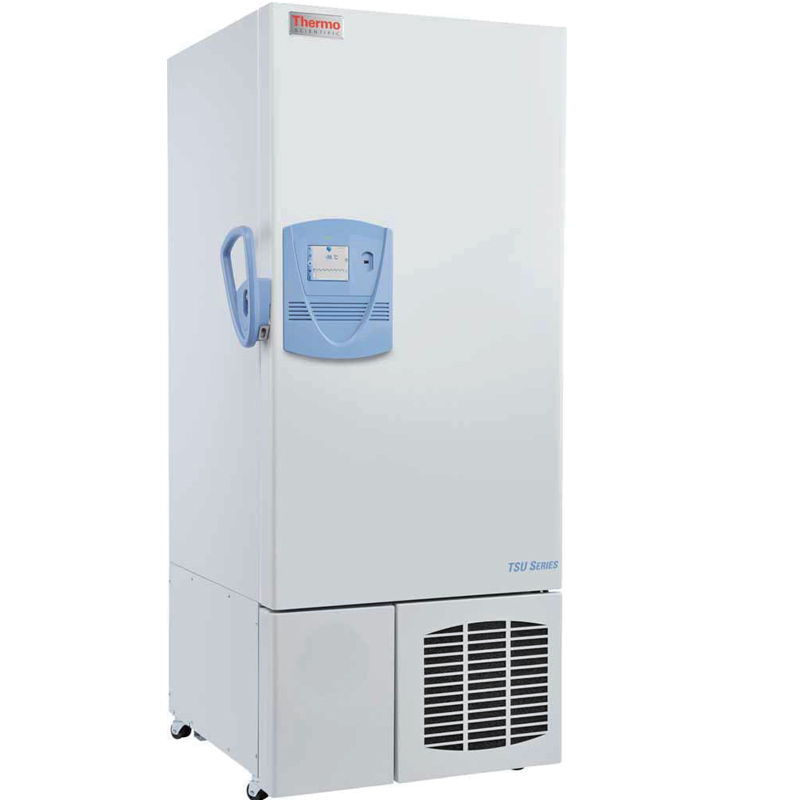

TSU-Series 상세사양, LCD Touch Sreen
Cat. No
F06-55-350
F06-55-354
F06-55-358
F06-55-362
F06-55-366
Model
TSU300D
TSU400D
TSU500D
TSU600D
TSU700D
용량
421 L
548 L
682 L
815 L
949 L
2” Box 용량
300개
400개
500개
600개
700개
외부 Size, (w x d x h, mm)
686 x 955 x 1981
822 x 955 x 1981
965 x 955 x 1981
1108 x 955 x 1981
1251 x 955 x 1981
내부 Size, (w x d x h, mm)
451.6 x 718.6 x 1301.1
587.4 x 718.6 x 1301.1
730.3 x 718.6 x 1301.1
873.1 x 718.6 x 1301.1
1016 x 718.6 x 1301.1
Peak Variation From -80 °C
+5.5 / -6.4
+5.6 / -5.3
+3.8 / -5.6
+2.9 / -4.9
+2.2 / -5.5
Door Opening Recovery
13 min
20 min
28 min
33 min
39 min
Warm-Up
-80 °C to -50 °C
213 min
225 min
237 min
240 min
241 min
Power
208-230V / 60Hz
TSE-Series 상세사양, LED Push Sreen
Cat. No
F06-55-370
F06-55-374
F06-55-378
F06-55-382
Model
TSE240
TSE320
TSE400
TSE600
용량, cu. ft. (liters)
368 L
490 L
651 L
793 L
2” Box 용량
240개
320개
400개
600개
외부 Size, (w x d x h, mm)
846 x 836 x 1979
846 x 988 x 1979
1036 x 988 x 1979
1189 x 988 x 1979
내부 Size, (w x d x h, mm)
584 x 490 x 1308
584 x 643 x 1308
777 x 643 x 1308
930 x 686 x 1308
Power
208-230V / 60Hz
Accessory for TSU series

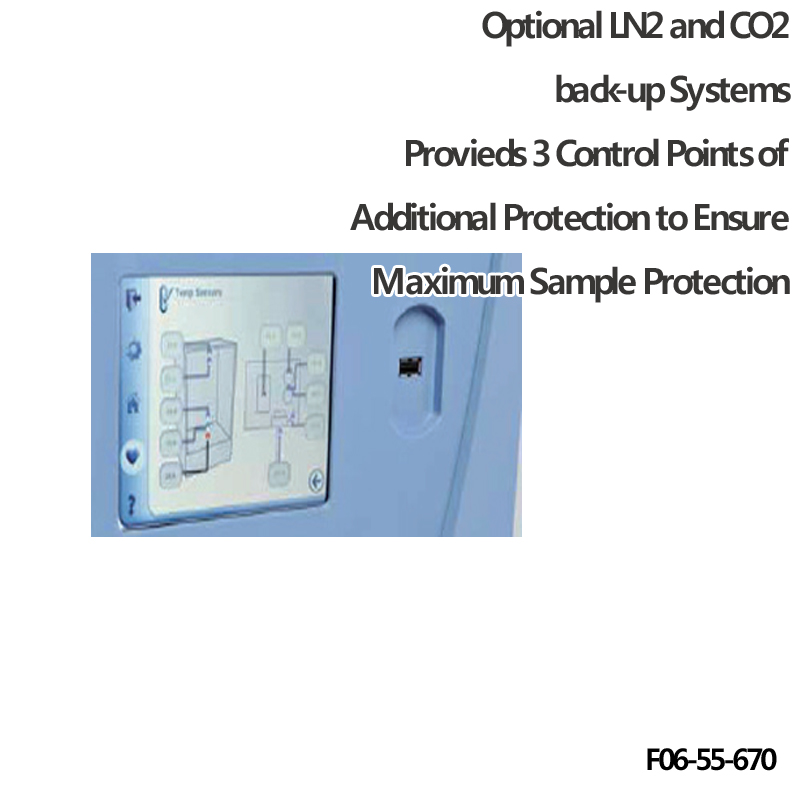

LN2
Back-up System for -80
°C
Cat. No
Model
Description
F06-55-670
FLN300D
for TSU300D, Stand Alone
F06-55-674
CN4567
for TSU400D ~ 700D
CO
2
Back-up System for -67
°C
Cat. No
Model
Description
F06-55-678
FCO300D
for TSU300D, Stand Alone
F06-55-682
FCO4567
for TSU400D ~ 700D

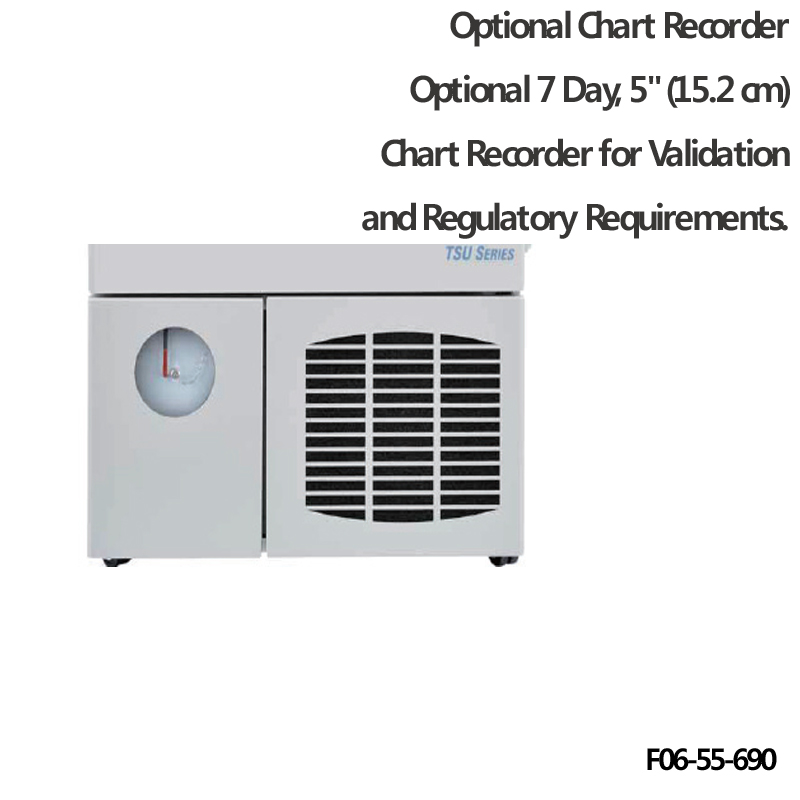

Chart Recorder (
Include)
Cat. No
Model
Description
F06-55-686
6383-67
for TSU300D, Stand Alone
F06-55-690
CRP4567
for TSU400D ~ 700D
● -100 °C to 30 °C, 2 °C Resolution

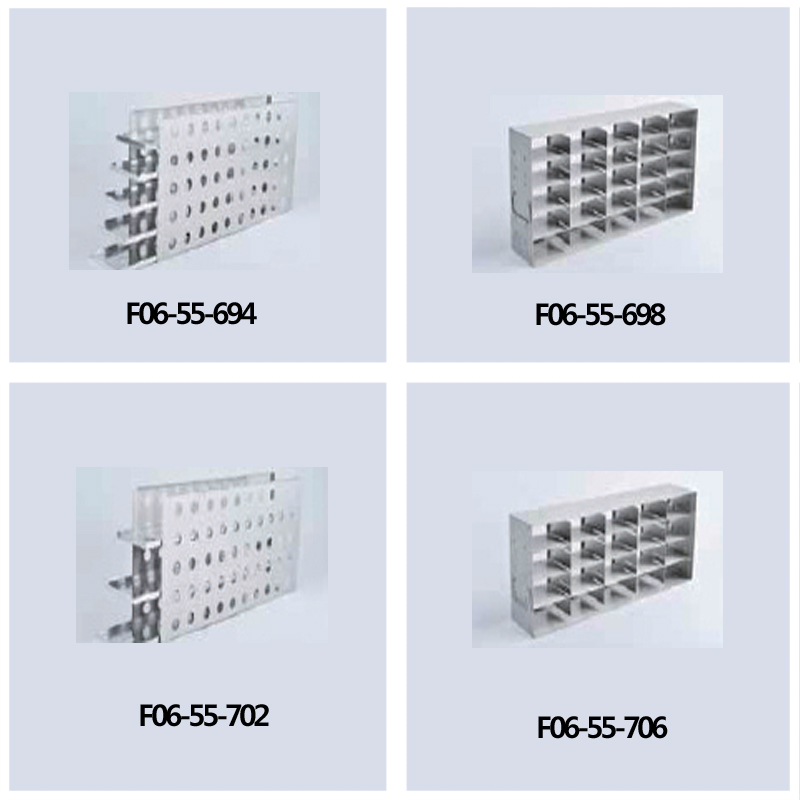

Freeze Rack
Cat. No
Model
Box
Type
F06-55-694
920090
2” 25ea
Sliding Drawer
F06-55-698
1950520
Adjustable Side Access
F06-55-702
920091
3” 15ea
Sliding Drawer
F06-55-706
1950521
Adjustable Side Access
상세 규격 표
Rack for Shelf / Rack to Freezer
Model
Size
TSU300D
TSU400D
TSU500D
TSU600D
TSU700D
920090
140 x 663 x 302
3 / 12
4 / 16
5 / 20
6 / 24
7 / 28
1950520
137 x 679 x 295
3 / 12
4 / 16
5 / 20
6 / 24
7 / 28
920091
140 x 663 x 302
3 / 12
4 / 16
5 / 20
6 / 24
7 / 28
1950521
137 x 679 x 295
3 / 12
4 / 16
5 / 20
6 / 24
7 / 28
Optional Accessory for TSE series
Cat. No
Model
Description
F06-55-721
1950447
CN2 Backup System for -80 ℃
F06-55-723
1950445
CO2 Backup System for -70 ℃
F06-55-725
201241
Chart Recorder, Φ 152 mm
F06-55-727
195915
Unique Key Lock
● 공장 세팅 기준임, 현장 실치시 문의 바람
Sliding Drawer for 2” Box
Cat. No
Model
Box
Size (wxdxh)
F06-55-731
920094
15
140 x 422 x 302 mm
F06-55-733
920096
20
140 x 559 x 302 mm
F06-55-735
1950726
25
140 x 665 x 302 mm
Adjustable Side AcessRack
Cat. No
Model
Box
Size (wxdxh)
F06-55-741
920015
15
137 x 419 x 295 mm
F06-55-743
920022
22
137 x 625 x 295 mm
F06-55-775
920018
20
137 x 558 x 295 mm
