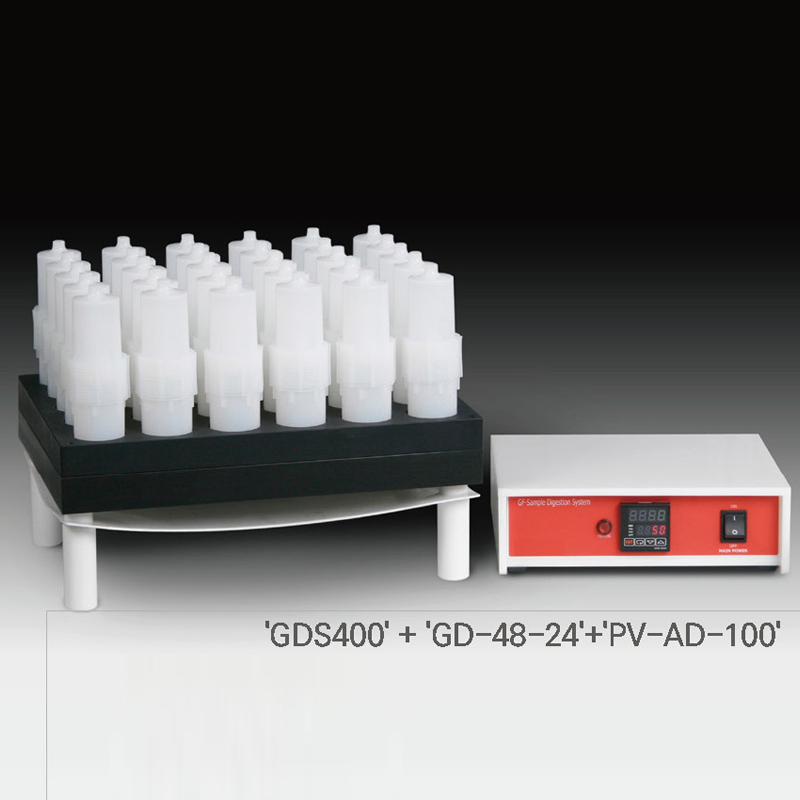

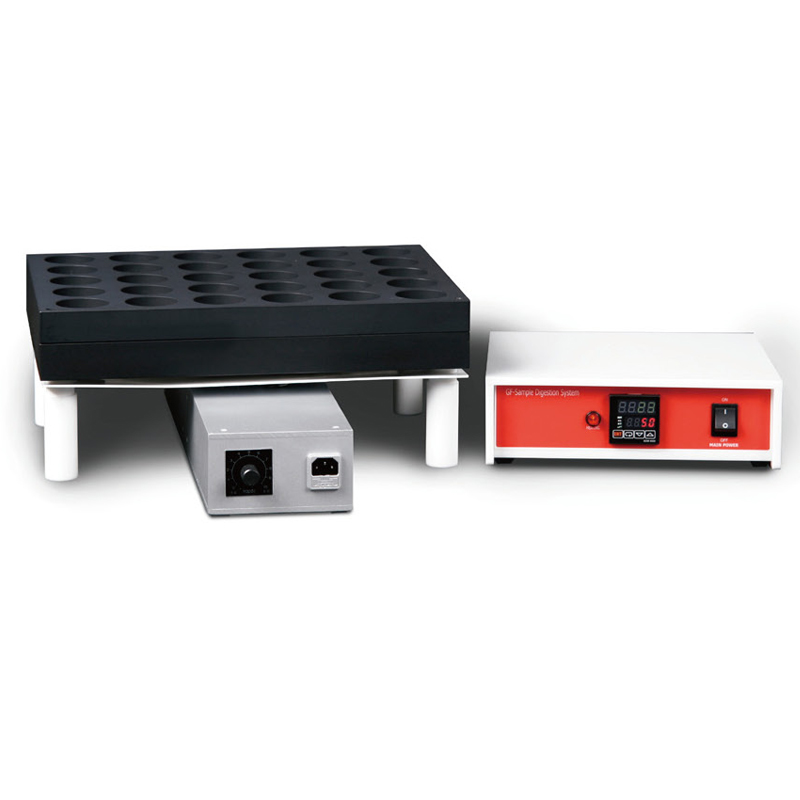

랩캠퍼스(Labcampus) : Graphite Digestion System / Heating Plate / 흑연 히팅 플레이트 & 시료전처리 장비, Block 별도

(0개)

Graphite Digestion System / Heating Plate / 흑연 히팅 플레이트 & 시료전처리 장비, Block 별도

Graphite Block Only / 흑연 블럭

Graphite Protective Plate

Cat. No	Model	Description	Unit	Price (VAT별도)	납기	재고	주문/견적
H04-1995-161	GB-PP-400	Graphite Protective Plate 두께7mm 400x300	1/EA	542,200원	7 Day	0
H04-1995-164	GB-PP-600	Graphite Protective Plate 두께7mm 600x300	1/EA	662,700원	7 Day	0

Multi Magnetic Stirrer & Bar

Cat. No	Model	Description	Unit	Price (VAT별도)	납기	재고	주문/견적
H04-1995-127	GDS-MS	Magnetic Stirrer for GDS system Bar 30개 포함	1/EA	3,614,500원	7 Day	0
H04-1995-129	GDS-SB	Teflon Coated Bar for Stirring GDS system	1/EA	120,500원	7 Day	0

Acid Cycle PFA Digestion Vessel Only / 테프론산순환 포집 분해 용기

Cat. No	Model	Description	Unit	Price (VAT별도)	납기	재고	주문/견적
H04-1995-171	PV-AD-015	PFA Digestion Vessel with Spare Cap 15ml	1/EA	183,100원	7 Day	0
H04-1995-174	PV-AD-030	PFA Digestion Vessel with Spare Cap 30ml	1/EA	190,800원	7 Day	0
H04-1995-177	PV-AD-060	PFA Digestion Vessel (spare cap X) 60ml	1/EA	294,500원	7 Day	0
H04-1995-180	PV-AD-100	PFA Digestion Vessel (spare cap X) 100ml	1/EA	307,200원	7 Day	0
H04-1995-183	PV-AD-300	PFA Digestion Vessel (spare cap X) 300ml	1/EA	350,800원	7 Day	0

Cap for PV-AD-60 & PV-AD-100

	Cat. No	Model	Description	Unit	Price (VAT별도)	납기	재고	주문/견적
	H04-1995-186	PV-CAP-47	PFA Cap for Low Pressur Vessel 60 &100ml	1/EA	51,200원	7 Day	0

Low Pressure PFA Digestion Vessel

Cat. No	Model	Description	Unit	Price (VAT별도)	납기	재고	주문/견적
H04-1995-189	PV-LP-015	PFA Vessel for Low Pressure 15ml	1/EA	35,900원	7 Day	0
H04-1995-192	PV-LP-030	PFA Vessel for Low Pressure 30ml	1/EA	43,600원	7 Day	0
H04-1995-195	PV-LP-060	PFA Vessel for Low Pressure 60ml	1/EA	84,300원	7 Day	0
H04-1995-198	PV-LP-100	PFA Vessel for Low Pressure 100ml	1/EA	95,200원	7 Day	0

(0개)

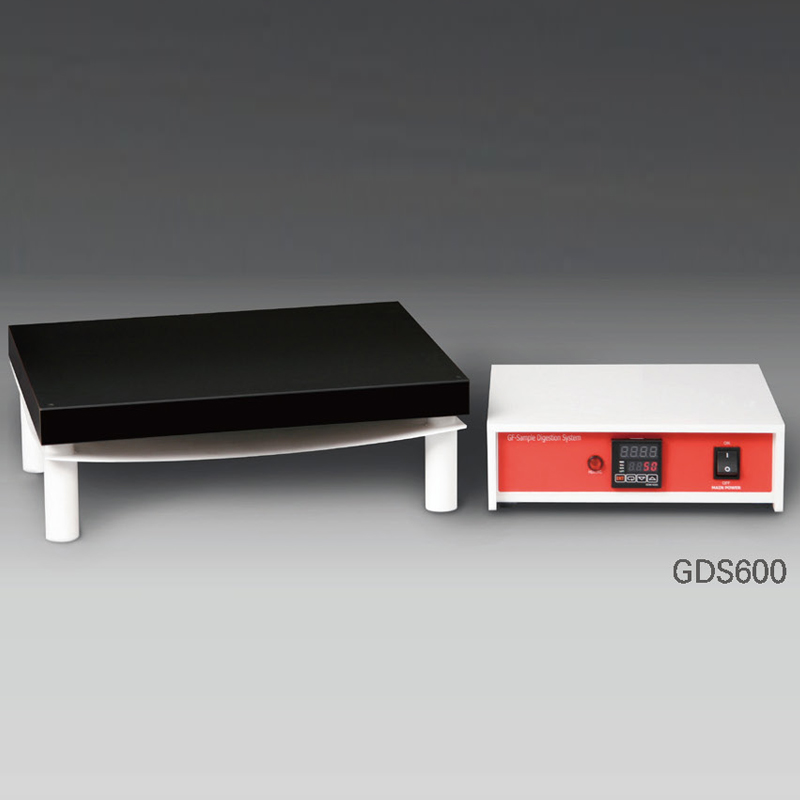

Graphite Heating Plate 상세 사양
Cat. No		H04-1995-121	H04-1995-123	H04-1995-125
Type		GDS300	GDS400	GDS600
Plate Size (w×d, mm)		300×210	400×300	600×300
Contorller	Control	PID Program
Contorller	Resoltuion	0.1℃
Temperature	Range	Ambient+5℃ to 250℃
	Accuracy at 30℃	±3℃
	Uniformity at 30℃	±3℃	±3℃	±5℃
Size (w×d×h, mm)		300×210×135	400×300×135	600×300×135
재질	Plate	Graphite
재질	Exterior	Graphite / Teflon
Electric	Power	1Phase / 200 ~ 240VAC / 50/60Hz
	Max Consumpution	1 kW	2 kW	3 kW
	Power Line	Standard Plug

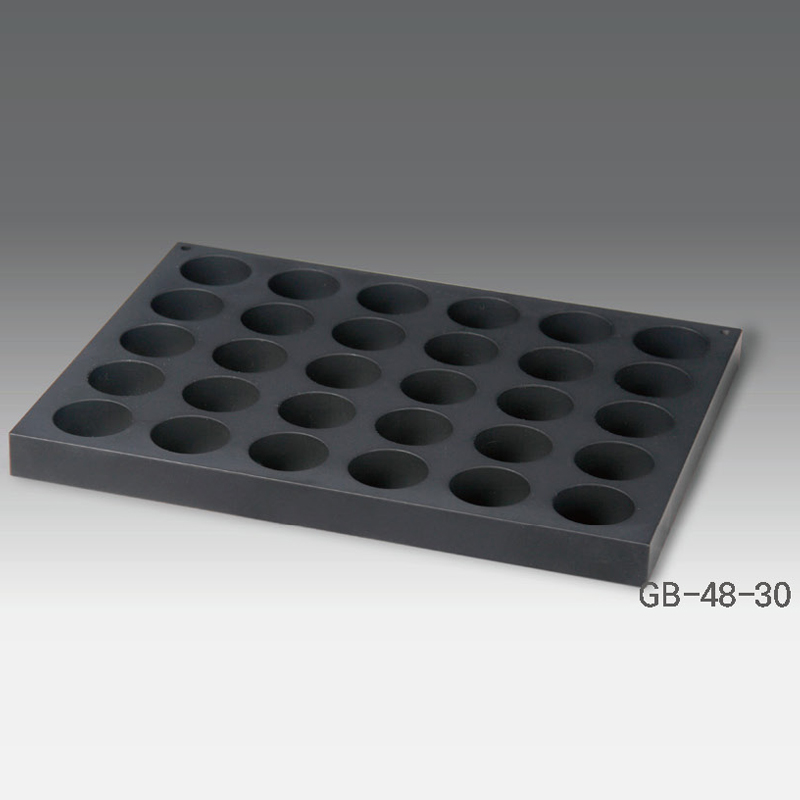

Graphite Block Only / 흑연 블럭
Cat. No	Model	Hole 수	Hole 지름	Size (w×h)
H04-1995-131	GB-48-12	12	48.5 mm	400×150 mm
H04-1995-134	GB-48-15	15	48.5 mm	300×230 mm
H04-1995-137	GB-50-20	20	50 mm	400×300 mm
H04-1995-140	GB-48-24	24	48.5 mm
H04-1995-143	GB-48-30	30	48.5 mm
H04-1995-146	GB-63-20	20	63 mm
H04-1995-149	GB-48-45	45	48.5 mm	600×300 mm
H04-1995-152	GB-63-28	28	63 mm	600×300 mm

Graphite Protective Plate
Cat. No	Model	Size (w×d×h)
H04-1995-161	GB-PP-400	400×300×7 mm
H04-1995-164	GB-PP-600	600×300×7 mm

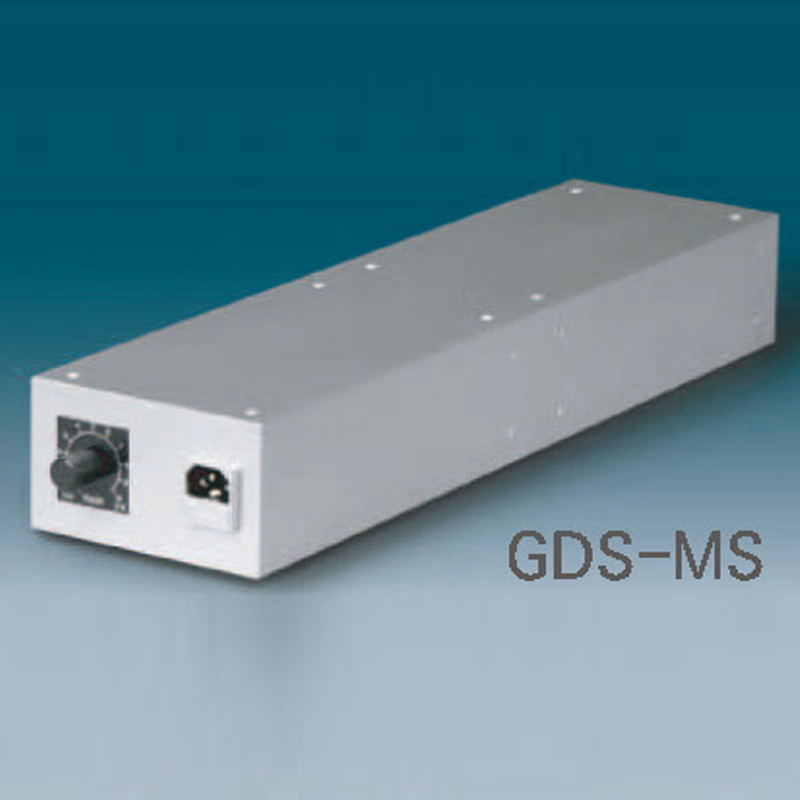

Multi Magnetic Stirrer & Bar
Cat. No	Model	Description
H04-1995-127	GDS-MS	Plastic Case Stirrer
H04-1995-129	GDS-SB	Teflon Coated Bar (10개/Set)

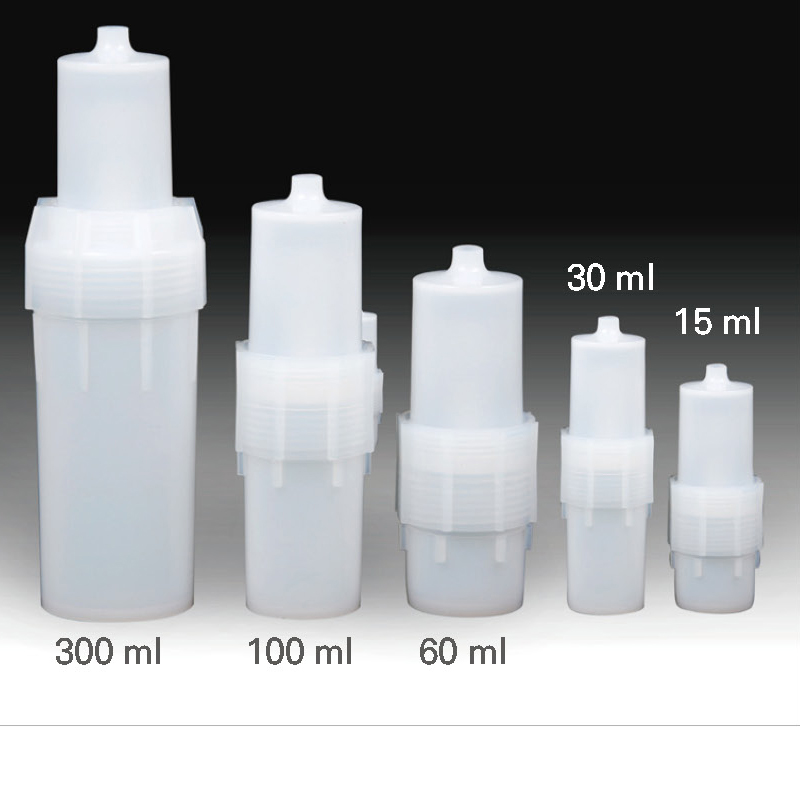

Acid Cycle PFA Digestion Vessel Only
테프론산순환 포집 분해 용기
Cat. No	Model	용량	Size (od×h)
H04-1995-171	PV-AD-015	15 ml	28.5×100 mm
H04-1995-174	PV-AD-030	30 ml	28.5×130 mm
H04-1995-177	PV-AD-060	60 ml	47×145 mm
H04-1995-180	PV-AD-100	100 ml	47×170 mm
H04-1995-183	PV-AD-300	300 ml	62×225 mm

Cap for PV-AD-60 & PV-AD-100
Cat. No	Model	Description
H04-1995-186	PV-CAP-47	PFA Cap Only

Low Pressure PFA Digestion Vessel
Cat. No	Model	용량	Size (Ø×h)
H04-1995-189	PV-LP-015	15 ml	28.5×45 mm
H04-1995-192	PV-LP-030	30 ml	28.5×75 mm
H04-1995-195	PV-LP-060	60 ml	47×75 mm
H04-1995-198	PV-LP-100	100 ml	47×95 mm
