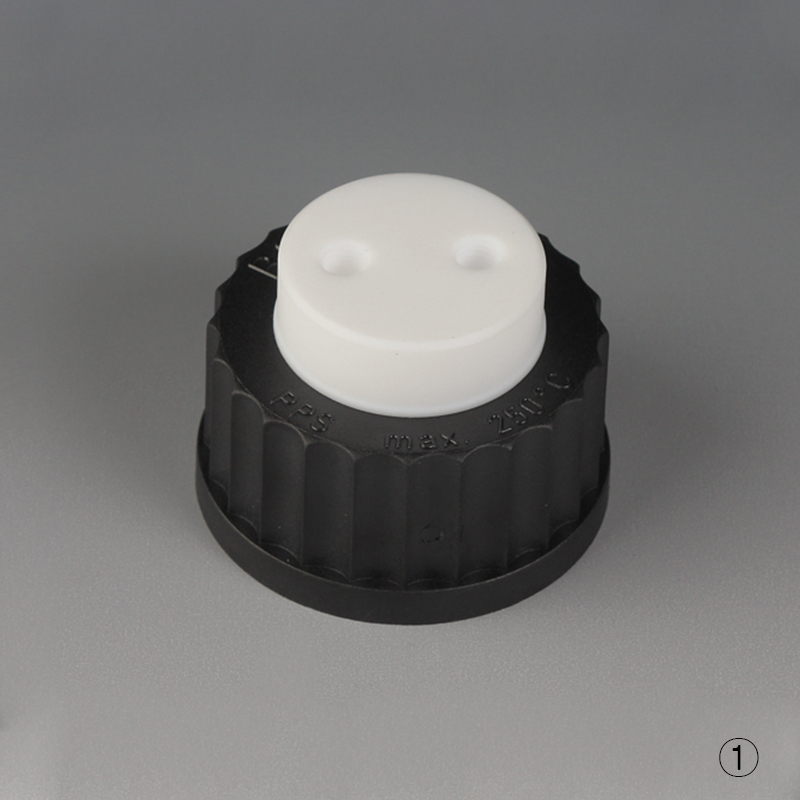

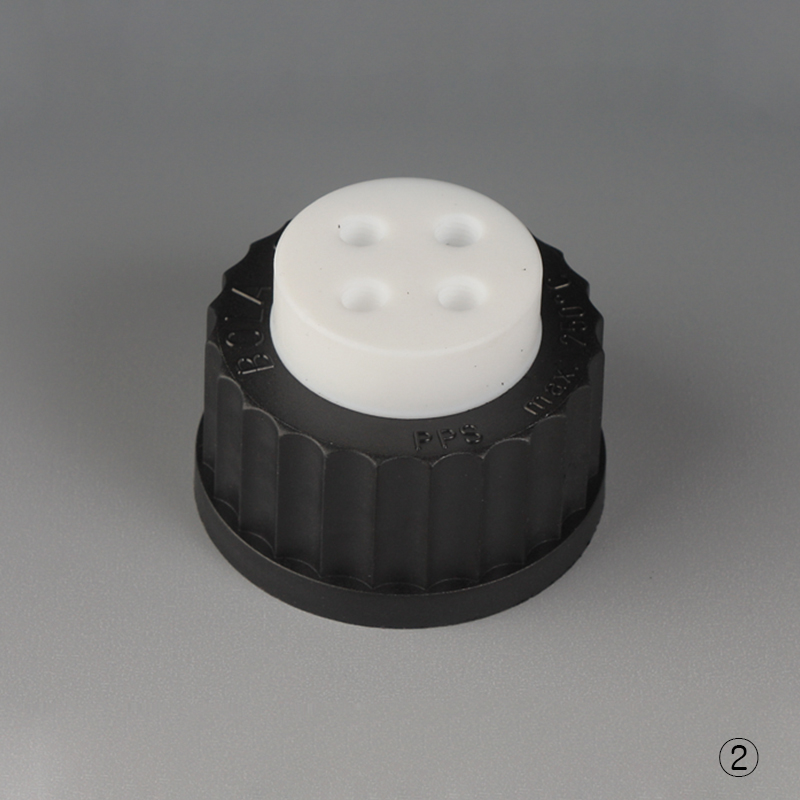

 Without Stopcock ①, ② |
|

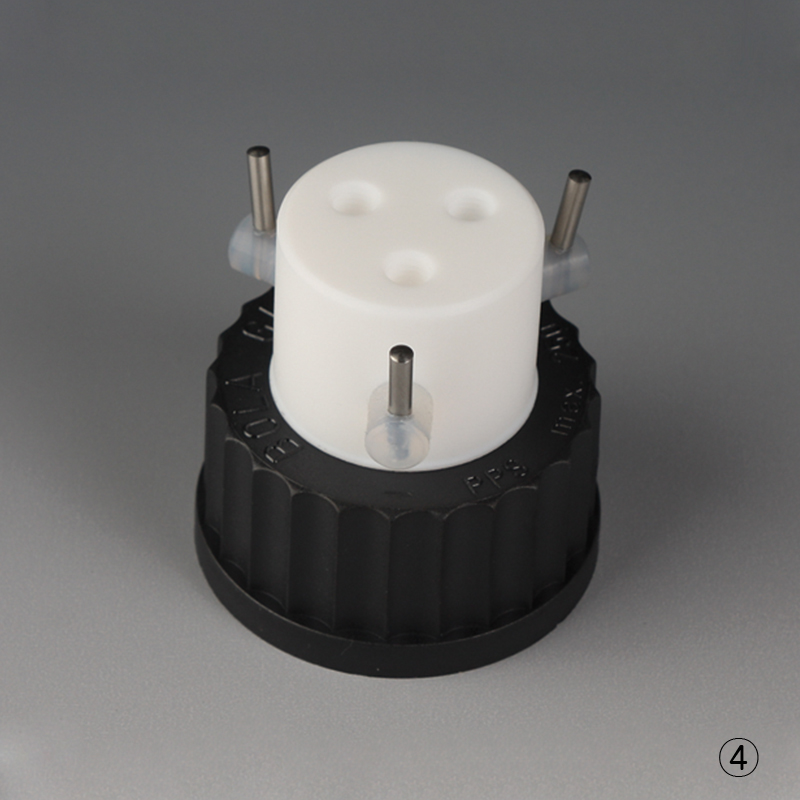

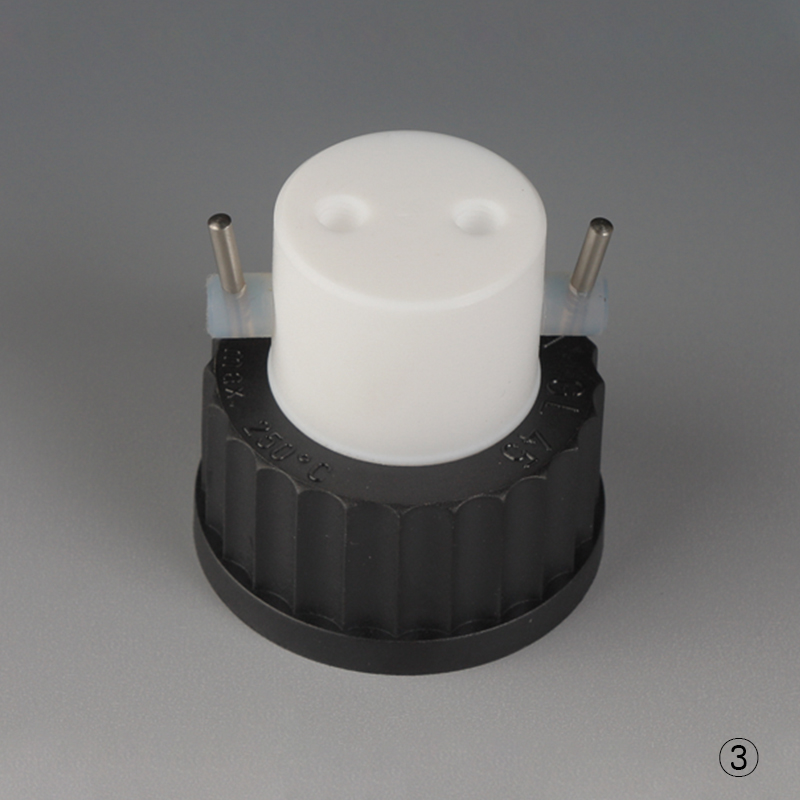

| With Stopcock ③, ④ |
|
|
 |
|
|
|
|
상세 규격 표
| Cat. No |
Model |
Bore 개수 |
Tubing Size (id x od) |
| B08-460-151 |
F745-02 |
2 |
Φ0.8 x Φ1.6 mm |
| B08-460-154 |
F745-04 |
Φ1.6 x Φ3.2 mm |
| B08-460-157 |
F745-10 |
4 |
Φ0.8 x Φ1.6 mm |
| B08-460-160 |
F745-12 |
Φ1.6 x Φ3.2 mm |
With Stopcock ③, ④
상세 규격 표
| Cat. No |
Model |
Bore 개수 |
Tubing Size (id x od) |
| B08-460-163 |
F746-02 |
2 |
Φ0.8 x Φ1.6 mm |
| B08-460-166 |
F746-04 |
Φ1.6 x Φ3.2 mm |
| B08-460-169 |
F746-10 |
3 |
Φ0.8 x Φ1.6 mm |
| B08-460-172 |
F746-12 |
Φ1.6 x Φ3.2 mm |
|
|
|
|
