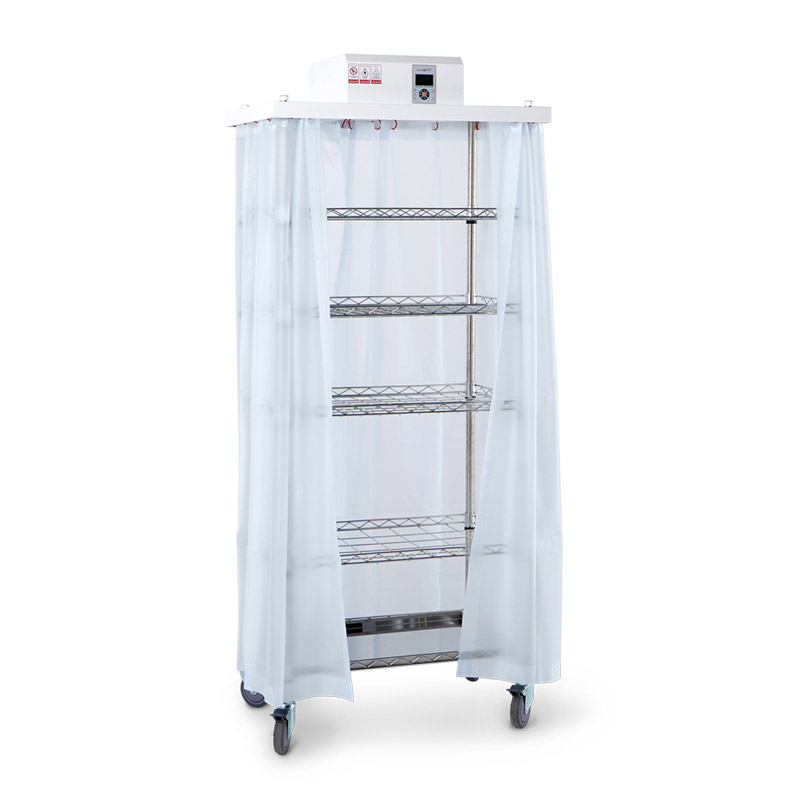

Electronic Wire Drying Rack / ¿Ç³Çü À̵¿½Ä ÃÊÀÚ °ÇÁ¶´ë, Á¶¸³½Ä |
|
Optional Accessory |
|
|
|
|
|
|
|
Cat. No |
Model |
Description |
C04-02-100 |
LD-700 |
w700 x d450 x h1600 mm |
C04-02-150 |
LD-900 |
w900 x d450 x h1600 mm |
Cat. No. |
C04-02-100 |
C04-02-150 |
Model |
LD-700 |
LD-900 |
Size |
w700 x d450 x h1600 mm |
w900 x d450 x h1600 mm |
Control |
Controller |
Digital PID Controller |
Temperature |
Resolution : Ambient +10 ¡ÆC ~ 50 ¡ÆC / Range : 0.1 ¡ÆC |
Timer |
1min ~ 99hr 59min or Continuous |
Material |
Main Frame |
304 Stainless Steel |
Contol Box |
Powder Coated Steel |
Electric Supply |
Power |
1 Phase / 220Vac / 50/60 Hz |
Max Consumption |
500 W (2.3 A) |
Power Line |
Standard Plug |
Shelf hole (mm) |
1´Ü(85 x 85), 2´Ü(50 x 50), 3´Ü(36 x 36), 4´Ü(25 x 25) |
Safety |
Over Temp. & Over Current Protection |
Optional Accessory
Cat. No. |
Model |
Description |
R01-11-920 |
LWRM011 |
Spare Curtain for LD-700 |
R01-11-926 |
LWRM012 |
Spare Curtain for LD-900 |
|
|
|
|
