랩캠퍼스(Labcampus) : Jumbo Soxhlet Extractor / 대용량 쏙시렛 추출 장치, Set

General instrument > 제품별 분류 > Extraction > 제품상세정보

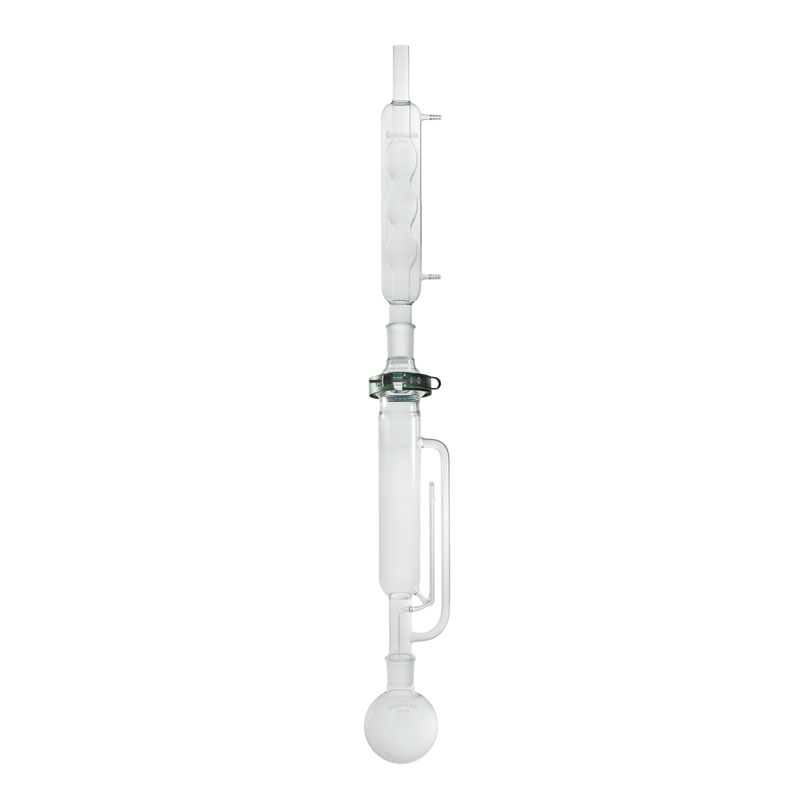

Jumbo Soxhlet Extractor / 대용량 쏙시렛 추출 장치, Set

■ Borosilicate Glass 3.3
■ O-ring형 Flange로 구성된 대용량 추출기
■ Teflon O-ring 기본포함　
■ Thimble Filter (별도 구매)
■ Chemglass

(3개)

Jumbo Soxhlet Extractor / 대용량 쏙시렛 추출 장치, Set

Cat. No	Model	Description	Unit	Price (VAT별도)	납기	재고	주문/견적
E03-132-036	L136806	Soxhlet Extractor for Solid 1 Lit. 71/60	1/EA	427,300원	3 Day	6
E03-132-042	1373-02	Soxhlet Extractor 3 Lit. Φ81×230 mm	1/EA	3,594,500원	7 Day	0
E03-132-048	1373-03	Soxhlet Extractor 12 Lit. Φ125×310 mm	1/EA	5,351,100원	7 Day	0

Optional Thimble Filter, Cellulose

Cat. No	Model	Description	Unit	Price (VAT별도)	납기	재고	주문/견적
E03-132-050	1037-TF-01	Thimble Filter Cellulose Φ48×200 mm	25/PK	610,000원	7 Day	0
E03-132-052	1037-TF-02	Thimble Filter Cellulose Φ75×250 mm	25/PK	823,000원	7 Day	0

(3개)


Cat. No	Model	용량	Top Flange	Thimble Size
E03-132-038	1373-01	1 L	60 mm	Φ58×170 mm
E03-132-042	1373-02	3 L	100 mm	Φ81×230 mm
E03-132-048	1373-03	12 L	150 mm	Φ125×310 mm

Specification
Model	1373-01	1373-02	1373-03
Extractor Capa.	500 ml	1500 ml	5000 ml
Extractor I.D.	68 mm	95 mm	140 mm
Extractor Flange	60	100	150
Lower joint	45/50	45/50	55/50
Condenser size	350 mm	400 mm	750 mm
Paper Thimble size	Φ58×170 mm	Φ81×230 mm	Φ125×310 mm
Flask Capacity	1 L	3 L	12 L

Optional Thimble Filter, Cellulose
Cat. No	Model	Size	적용 Joint
E03-132-050	1037-TF-01	Φ48×200 mm	34/45
E03-132-052	1037-TF-02	Φ75×250 mm	45/50
