랩캠퍼스(Labcampus) : Thimble Filter / 원통 여과지

General instrument > 제품별 분류 > Filter > 제품상세정보

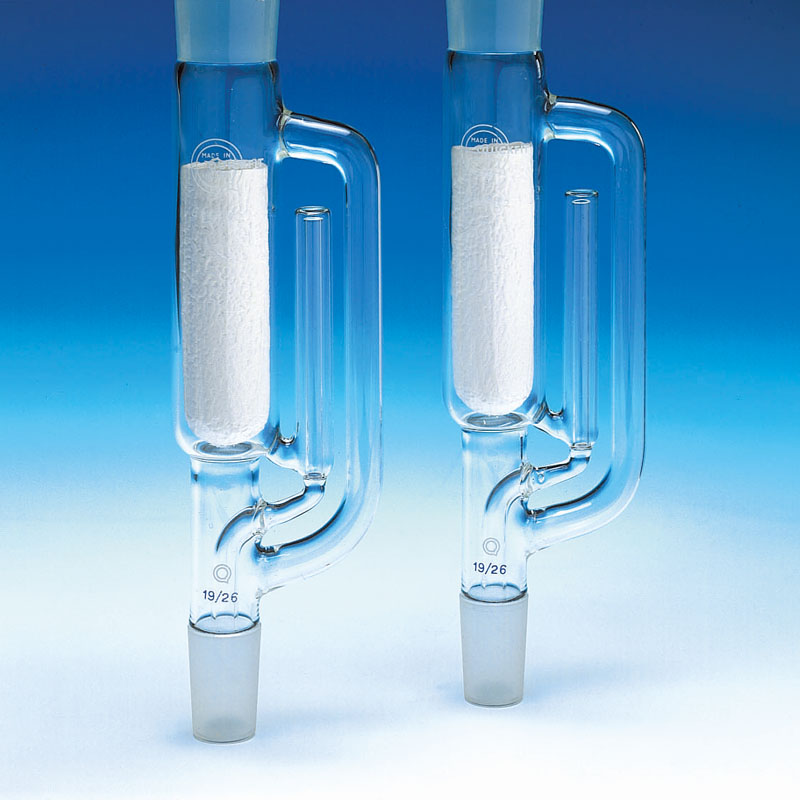

Thimble Filter / 원통 여과지

■ Whatman

(0개)


Grade	Pore Size	Thickness	재질	Max. Temp.
603	10 um	1 mm	Cellulose	120℃
603G	0.8 um	1.5 ~ 2 mm	Glass Fiber	500℃
603Q	-	2 mm	Quartz Fiber	1000℃

Grade 603 : Pore 10 um, 두께 1 mm
Cat. No.	Model	Size (od×id)	Height
F15-07-203	2800266	28×26 mm	60 mm
F15-07-205	2800288	30×28 mm	80 mm
F15-07-209	2800280	30×28 mm	100 mm
F15-07-215	2800308	32×30 mm	80 mm
F15-07-221	2800338	35×33 mm	80 mm
F15-07-229	2800373	39×37 mm	130 mm
F15-07-237	2800432	45×43 mm	123 mm
F15-07-244	2800608	62×60 mm	180 mm

Grade 603G : Pore 0.8 um, 두께 1.7 mm
Cat. No.	Model	Size (od×id)	Height
F15-07-363	2814259	29×25 mm	90 mm
F15-07-372	2814300	33×30 mm	100 mm
F15-07-379	2814432	46×43 mm	123 mm

Grade 603Q : 두께 2 mm
Cat. No.	Model	Size (od×id)	Height
F15-07-410	2812259	29×25 mm	90 mm
