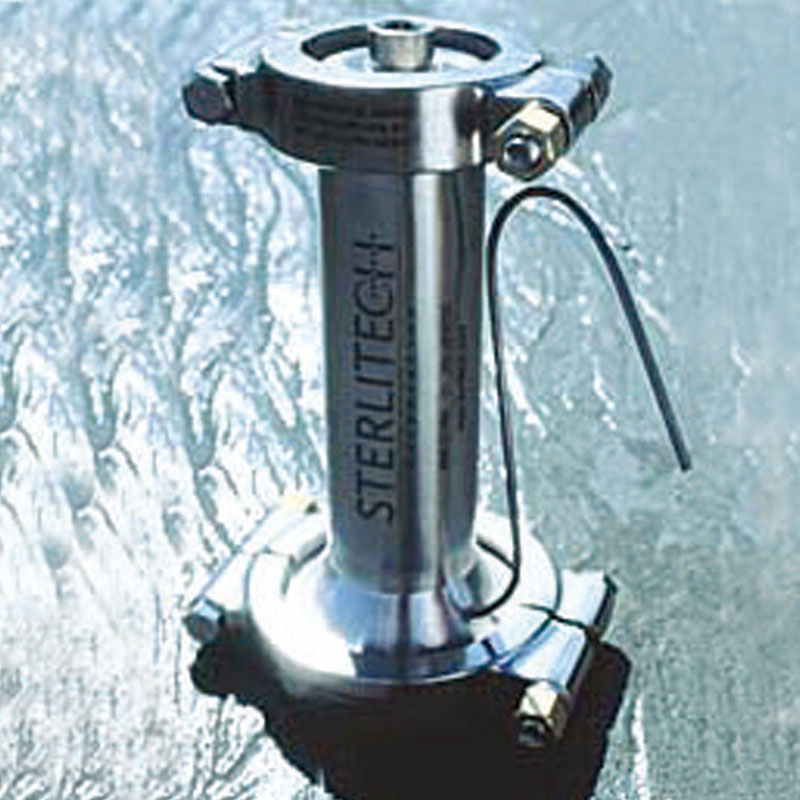

Stirred Cell / High Pressure Filter Holder / 고압용 필터 홀더 / 교반식 필터 홀더

● 재질 : Stainless Steel 316, Buna-N Gasket and O-ring
● Connection : 1/4” FNTP (Pressure Inlet), 0.125 dia. 316 SS Tubing
● Size : w146×h199 mm (Cell wide = 51 mm)
● Volume (300 ml), Max. Pressure (1000 psig (69 bar))
● Ø47 ~ 50 mm Membrane Filter용
● High Pressure and Low Hold-up Volume (1 ml)
● Chemically Resistant Stir Cell
● Reverse Osmosis, Nanofiltration, Ultrafiltration용
● Any Standard Stirring Plate와 같이 사용 가능
● RO, NF, UF을 위한 Membrane은 361 Page 참조
● Sterlitech

(0개)


Cat. No.	Model	Description
F03-157-500	HP4750	High Pressure Filter Holder

구성 Component
Cat. No.	Model	Description
F03-157-610	1149782	Cell Body
F03-157-620	1143073	Cell Bottom
F03-157-630	1114910	Porous Support disc
F03-157-640	1143109	Stir Bar Assembly
F03-157-650	1143891	Cell Top
F03-157-660	1149786	High Pressure Lower Coupling
F03-157-670	1149787	High Pressure Upper Coupling
F03-157-680	1144034	Buna-N, O-ring / Gasket Kit

Optional Accessory
Cat. No.	Model	Description
F03-157-710	1144026	Pressure Regulator Assembly, 1000 psig
F03-157-720	1155893	Pressure Relief Valve, 1000 psig
F03-157-730	1151427	High Pressure Hose, 6 ft
F03-157-740	1144028	PTFE O-ring / Gasket kit
F03-157-750	1144029	Viton, O-ring / Gasket kit
F03-157-760	1144027	PTFE Encapsulated Viton O-ring / Gasket kit
