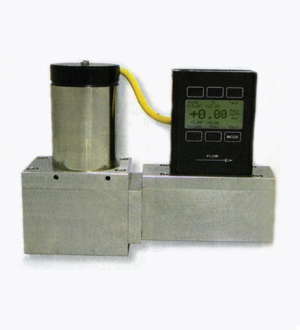

High Accuracy Flowmeter & Controller / 다용도 정밀 디지털 가스 유량계 - 유량조절계

● Laminar-Bared Mass Flowmeter
● 20개의 Standard Gas를 측정할 수 있음
● 정밀도 ±0.8% of Reading of ±0.2% Full Scale
● Max Particular Size : 20 um
● Wenk Labtec

(1개)

* Operating Temp. : -10 to 50 ℃
* Response Time : 10msec (Flowmeter), 50msec (Flow Control)
* Max. Pressure: 145 psig
* Pressure Drop : 0.8 to 3.2 psig
* Input / Output Signal : 0 to 5 VDC, RS-232, 0 - 10 VSC
* Connection : 10-32UNF(5 - 10 ml/min), 1/8”FNPT(50 to 500 ml/min)
* 120V Power Adapter (220V용은 옵션으로 구매 가능)

Flowmeter
Cat. No	Model	Range
F10-227-202	32908-55	0.1 to 10 ml/min
F10-227-210	32908-57	0.5 to 50 ml/min
F10-227-218	32908-59	1 to 100 ml/min
F10-227-226	32908-61	2 to 200 ml/min
F10-227-234	32908-63	5 to 500 ml/min

Controller
Cat. No	Model	Range
F10-227-302	32907-55	0.1 to 10 ml/min
F10-227-310	32907-57	0.5 to 50 ml/min
F10-227-318	32907-59	1 to 100 ml/min
F10-227-326	32907-61	2 to 200 ml/min
F10-227-334	32907-63	5 to 500 ml/min
