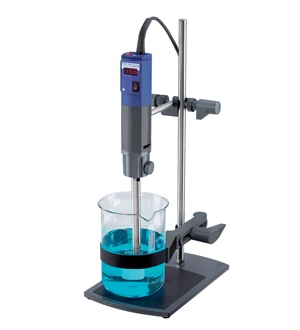

 IKA Homogenizer for Medium Volume / 중형 균질기 |
|
| Tool/Dispersing Element |
|
|
Cat. No |
Model |
Description |
Unit |
Price
(VAT별도) |
납기 |
재고 |
주문/견적 |
|
|
H01-05-532 |
L004639 |
S18N-10G Tool/Dispersing Element 1~100ml |
1/EA |
1,920,000원 |
30 Day |
0 |
|
|
|
H01-05-538 |
L004640 |
S18N-19G Tool/Dispersing Element 10~1,500ml |
1/EA |
1,990,000원 |
30 Day |
0 |
|
|
|
H01-05-544 |
1024200 |
S25N-8G Tool/Dispersing Element 1~50ml |
1/EA |
1,530,000원 |
3 Day |
2 |
|
|
|
H01-05-550 |
0594000 |
S25N-10G Tool/Dispersing Element 1~100ml |
1/EA |
1,990,000원 |
30 Day |
0 |
|
|
|
H01-05-556 |
0593400 |
S25N-18G Tool/Dispersing Element 10~1,500ml |
1/EA |
2,140,000원 |
3 Day |
1 |
|
|
|
H01-05-562 |
1713300 |
S25N-25G Tool/Dispersing Element 50~2,000ml |
1/EA |
2,240,000원 |
3 Day |
4 |
|
|
|
H01-05-568 |
1713800 |

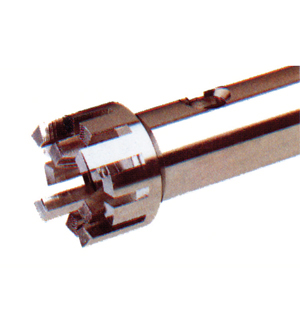

S25N-25F Tool/Dispersing Element 100~2,000ml |
1/EA |
2,350,000원 |
3 Day |
1 |
|
|
|
| Plastic Dispersing Element for T18, T25 Digital |
|
|
 |
|
|
|
|
제목 없음
|
Cat. No.
|
Model
|
Type
|
사용가능용량
|
속도표시
|
|
H01-05-130
|
3561000
|

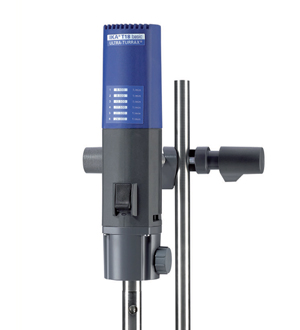

T18
|
1 ~ 1500 ml
|
Scale (6단)
|
|
H01-05-140
|
3565000
|

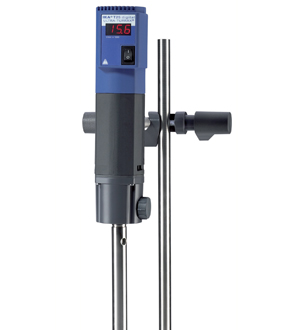

T25 digital
|
1 ~ 2000 ml
|
Digital
|
|
H01-05-145
|
3565000P
|
T25 package
|
1 ~ 2000 ml
|
Digital
|
|
Cat. No.
|
T18
|
T25 Digital
|
|
Motor Rating in/out
|
500W /300W
|
500W / 300W
|
|
Volume Range
|
1 ~ 1500 ml (H2O)
|
1 ~ 2000 ml (H2O)
|
|
Max, Viscosity
|
5000 mPas
|
|
Speed Range
|
3500 ~ 24000 rpm
|
3400 ~ 24000 rpm
|
|
Speed 조절
|
6 단 Stepless
|
Steless
|
|
Speed display
|
Scale
|
Digital
|
|
Extension Arm
|
od13 x L175 mm
|
|
Size
|
w65 x d80 x h240 mm
|

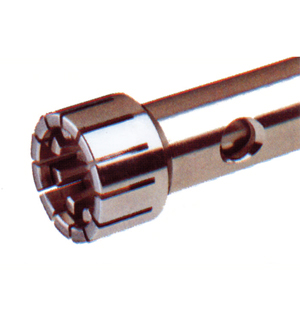

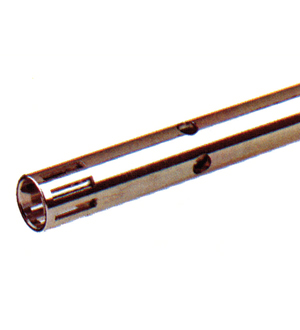

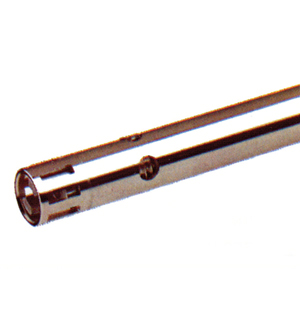

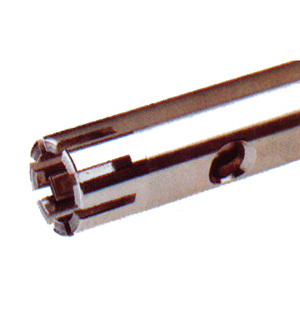

Tool/Dispersing Element
|
적용 Model
|
T18
|
T25 digital
|
|
Cat. No.
|
H01-05-532
|
H01-05-538
|
H01-05-544
|
H01-05-550
|
H01-05-556
|
H01-05-562
|
H01-05-568
|
|
Model
|
S18N-10G
|
S18N-19G
|
S25N-8G
|
S25N-10G
|
S25N-18G
|
S25N-25G
|
S25N-25F
|
|
Working Range
|
1 ~ 100 ml
|
10 ~ 1500 ml
|
1 ~ 50
|
1 ~ 100
|
10 ~ 1500
|
50 ~ 2000
|
100 ~ 2000
|
|
Stator Diameter
|
10 mm
|
19 mm
|
8 mm
|
10 mm
|
18 mm
|
25 mm
|
25 mm
|
|
Roter Diameter
|
7.5 mm
|
12.7 mm
|
6.1 mm
|
7.5 mm
|
12.7 mm
|
17 mm
|
18 mm
|
|
Immersion min/max
|
25/70 mm
|
35 /170 mm
|
27/85 mm
|
22/85 mm
|
40/165 mm
|
40/165 mm
|
40/165 mm
|
|
Shaft length
|
108 mm
|
204 mm
|
108 mm
|
105 mm
|
194 mm
|
194 mm
|
194 mm
|
|
Ultimate Suspension
|
10-50 um
|
1-50 um
|
15-50 um
|
5-25 um
|
|
Ultimate Emulsion
|
1-10 um
|
1-10 um
|
1-5 um
|
* 재질 : AISI 316L 과 PTFE bearing, 내열온도 : 최대 180℃

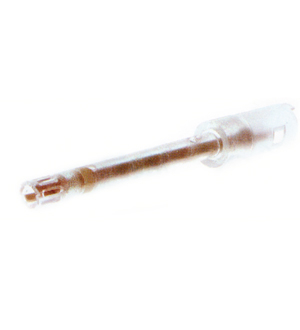

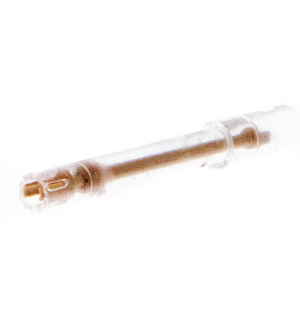

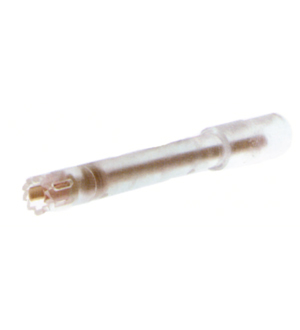

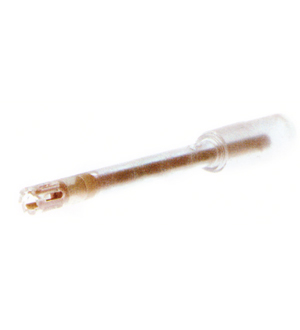

Plastic Dispersing Element for T18, T25 Digital
|
적용 Model
|
T18
|
T25
|
|
Cat. No.
|
H01-05-841
|
H01-05-853
|
H01-05-865
|
H01-05-877
|
|
Model
|
S18D-10G-10
|
S18D-14G-10
|
S25D-10G-10
|
S25D-14G-10
|
|
Package
|
10 ea/pk
|
10 ea/pk
|
10 ea/pk
|
10 ea/pk
|
|
Working Range
|
10 ~ 100 ml
|
10 ~ 500 ml
|
10 ~ 100 ml
|
10 ~ 500 ml
|
|
Stator Diameter
|
10 mm
|
14 mm
|
10 mm
|
14 mm
|
|
Roter Diameter
|
6.75 mm
|
9.5 mm
|
6.75 mm
|
9.5 mm
|
|
Immersion min/max
|
18/85 mm
|
18/85 mm
|
|
Shaft length
|
150 mm
|
150 mm
|
|
Max. Temperature
|
100℃, Autoclavable
|
100℃, Autoclavable
|
|
재질
|
Polycarbonate (PC) & Polyetheretherketon (PEEK)
|
Polycarbonate (PC) & Polyetheretherketon (PEEK)
|
|
|
|
|
