랩캠퍼스(Labcampus) : Microfine Grinder - Continuously Cutting Mill / 연속 분쇄 밀, MF 10 basic & Package

(2개)

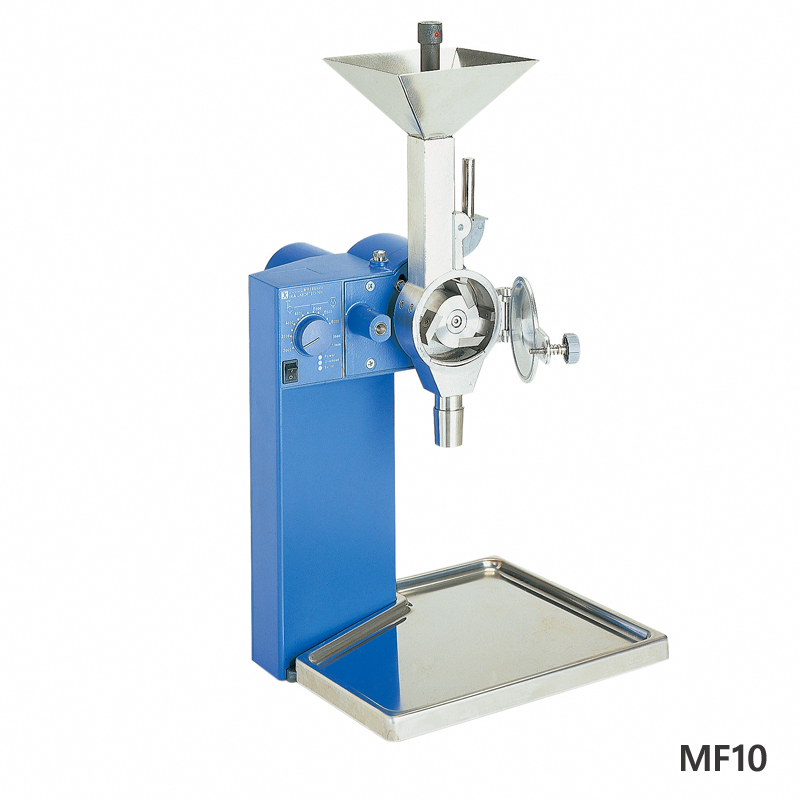

Microfine Grinder - Continuously Cutting Mill / 연속 분쇄 밀, MF 10 basic & Package

Cat. No	Model	Description	Unit	Price (VAT별도)	납기	재고	주문/견적
M03-05-110	2836000P1	MF10-P1 Cutting Mill MF10.1 Package, Sieve 1개	1/EA	17,300,000원	30 Day	0
M03-05-115	2836000P2	MF10-P2 Cutting Mill MF10.2 Package, Sieve 1개	1/EA	16,410,000원	30 Day	0

Microfine Grinding Drive, MF10 basic

	Cat. No	Model	Description	Unit	Price (VAT별도)	납기	재고	주문/견적
	M03-05-081	2836000	MF10 basic Grinding Drive Only	1/EA	9,340,000원	30 Day	0

Cutting Grinding Head, MF10.1

	Cat. No	Model	Description	Unit	Price (VAT별도)	납기	재고	주문/견적
	M03-05-612	2870900	MF10.1 Cutting Grinding Head 24.5 m/s, 15mm	1/EA	~~8,540,000원~~ 5,880,000원	3 Day	1

Impact Grinding Head, MF10.2

	Cat. No	Model	Description	Unit	Price (VAT별도)	납기	재고	주문/견적
	M03-05-622	2871000	MF10.2 Impack Grinding Head 34m/s, 10mm	1/EA	7,620,000원	30 Day	0

MF Sieve

Cat. No	Model	Description	Unit	Price (VAT별도)	납기	재고	주문/견적
M03-05-632	2938900	MF0.25 MF sieve 0.25mm	1/EA	310,000원	30 Day	0
M03-05-642	2939000	MF0.5 MF sieve 0.5mm	1/EA	110,000원	30 Day	0
M03-05-652	2939200	MF1.0 MF sieve 1.0mm	1/EA	110,000원	30 Day	0
M03-05-662	2939400	MF2.0 MF sieve 2.0mm	1/EA	110,000원	30 Day	0
M03-05-672	2939500	MF3.0 MF sieve 3.0mm	1/EA	110,000원	30 Day	0

(2개)

* 연속 작업용 Universal Grinder Package
* MF10-P1 구성 : MF10 basic, MF10.1, Sieve 1개
* MF10-P2 구성 : MF10 basic, MF10.2, Sieve 1개
* 2종류의 Grinding-head가 있으며, 1개의 Drive에 교체해서 사용 가능함
- MF 10.1 Cutting Grinding-head (22.5 m/sec) : 섬유질 (종이, 야채, 곡물등) 시료나 Plastic 용에 적합
- MF 10.2 Impact Grinding-head (31.4 m/sec) : 고강도의 거의 모든 시료용에 적합
* Head 안쪽에 교체 가능한 Sieve를 설치하여 원하는 크기로 분쇄된 Sample을 얻을 수 있음
* Protection class acc. to DIN EN 60529 (IP22)

Cat. No	Model	Type	Description
M03-05-110	2836000P1	MF10-P1	MF10.1 Grinder Package
M03-05-115	2836000P2	MF10-P2	MF10.2 Grinder Package

Cat. No.	M03-05-110 / M03-05-115
Type	MF10-P1 / MF10-P2
Motor Rating (in/output)	1000 / 500 W
Speed	3,000 ~ 6,500 rpm
Circumferential Speed	PAC 1 : MF 10.1 (22.5 m/sec) PAC 2 : MF 10.2 (31.4 m/sec)
Duty Cycle On/Off	120 min / 30 min
Overload Protection	Yes
Material in Contact W / Medium	Stainless Steel (AISI 304)
Dimension	PAC 1 : w320× d300× h560 mm PAC 2 : w320× d300× h450 mm
Power	230V, 50/60 Hz

Microfine Grinding Drive, MF10 basic
Cat. No	Model	Type	Description
M03-05-081	2836000	MF10 basic	Grinding Drive Only

● Size : w320× d320× h380 mm

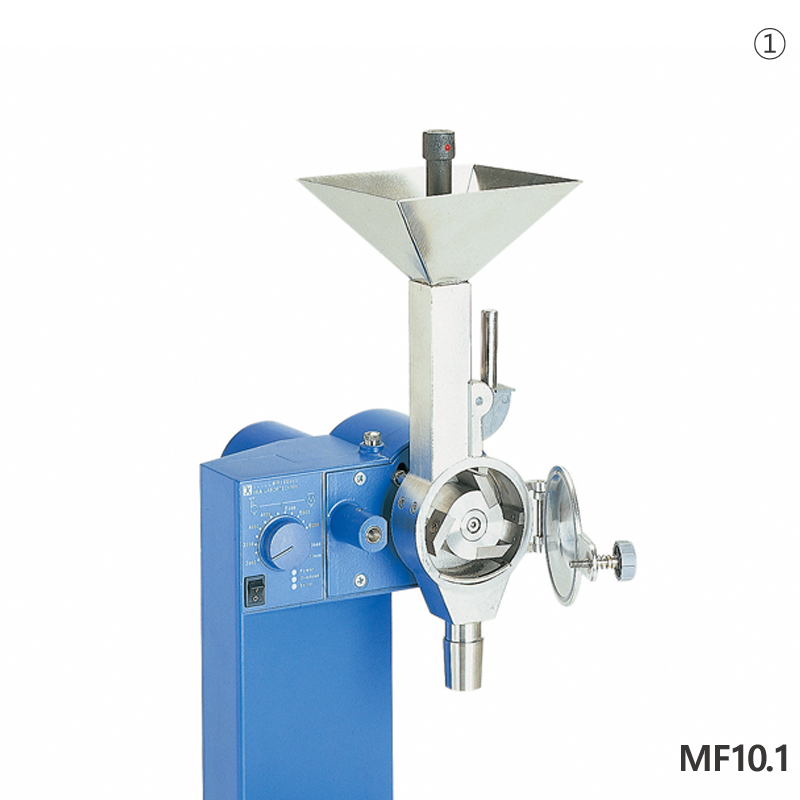

Cutting Grinding Head, MF10.1 ①
Cat. No	Model	Type	원주의 속도	최대 시료 크기
M03-05-612	2870900	MF10.1	22.5 m/s	15 mm

● For crushing fibrous substances such as paper and vegetation, but also for plastics and material with a low volume weight.
● 분쇄용 헤드 하부 Joint Size : NS29/32

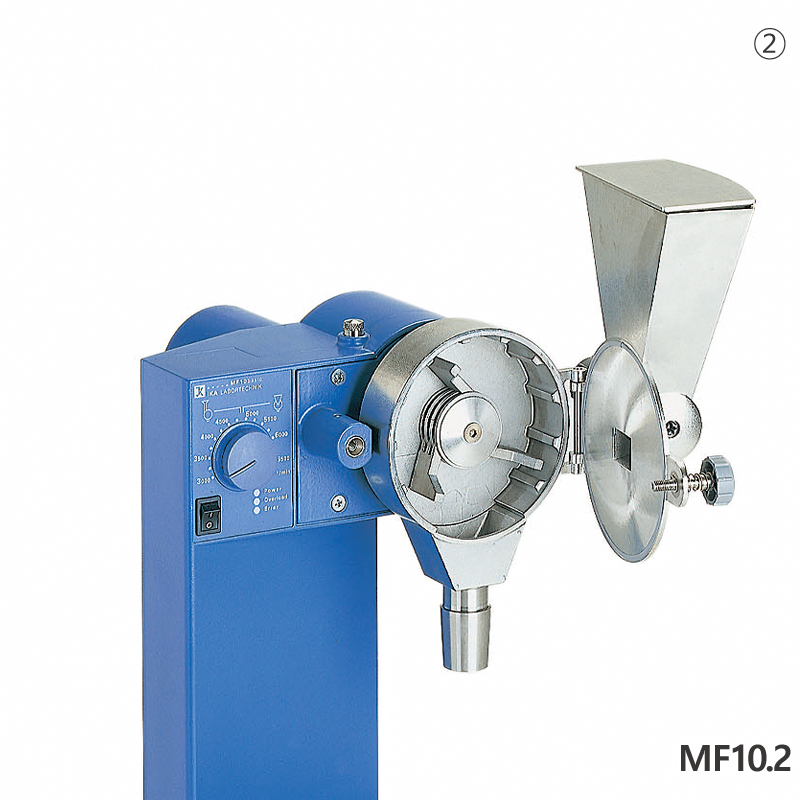

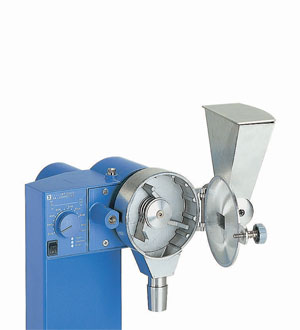

Impact Grinding Head, MF10.2 ②
Cat. No	Model	Type	원주의 속도	최대 시료 크기
M03-05-622	2871000	MF10.2	31.4 m/s	10 mm

● For crushing brittle, hard materials such as minerals, building materials up to Mohs hardness 6
● 분쇄용 헤드 하부 Joint Size : NS29/32

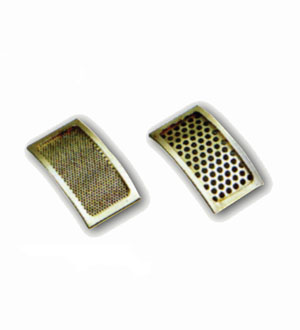

MF Sieve ③
Cat. No	Model	Type	Description
M03-05-632	2938900	MF0.25	0.25 mm
M03-05-642	2939000	MF0.5	0.5 mm
M03-05-652	2939200	MF1.0	1.0 mm
M03-05-662	2939400	MF2.0	2.0 mm
M03-05-672	2939500	MF3.0	3.0 mm
M03-05-682	2939600	MF4.0	4.0 mm
