랩캠퍼스(Labcampus) : IKA Vortex Mixer/볼텍스 믹서, IKA MS 3

(14개)

IKA Vortex Mixer/볼텍스 믹서, IKA MS 3

Cat. No	Model	Description	Unit	Price (VAT별도)	납기	재고	주문/견적
M04-05-115	3617000	MS3 basic Vortex Mixer Analog, 0~3000rpm	1/EA	1,120,000원	3 Day	2
M04-05-125	3319000	MS3 digital Vortex Mixer Digital, 0~3000rpm	1/EA	0원	30 Day	0	문의

Optional Accessory

Cat. No	Model	Description	Unit	Price (VAT별도)	납기	재고	주문/견적
M04-05-502	3426300	MS3.1 Standard attachment	1/EA	60,000원	3 Day	2
M04-05-507	3426600	MS3.3 Universal attachment	1/EA	45,000원	3 Day	1
M04-05-513	3426400	MS3.4 Microtiter attachment	1/EA	~~140,000원~~ 112,000원	3 Day	1
M04-05-519	L001540	MS1.21 One-hand insert	1/EA	65,000원	30 Day	0
M04-05-524	L001840	MS1.31 Test tube insert Φ10mm 14개	1/EA	140,000원	30 Day	0
M04-05-530	L001850	MS1.32 Test tube insert Φ12mm 6개	1/EA	140,000원	30 Day	0
M04-05-536	L001860	MS1.33 Test tube insert Φ16mm 4개	1/EA	140,000원	30 Day	0
M04-05-542	L001830	MS1.34 Test tube insert without hole	1/EA	70,000원	30 Day	0

(14개)

* Two Operation Mode
- Mode A (Safe Mode with Attachment Detection)
: Standard Attachment (MS3.1 in Touch mode)를 사용할 경우에는 3,000 rpm
가능하나 다른 Attachement에서는 1,300 rpm으로 가동
- Mode B (Without Attachment Detection)
: 모든 Attachment를 3,000 rpm에서 사용가능함

* Countdown Timer 기능이 있어 정밀한 실험 수행에 효과적 (Only MS 3 digital)

* 구성
- MS 3 basic : MS 3 basic, MS 3.1 Standard attachment,
MS 3.3 Universal attachment, MS 1.21 One-hand insert
- MS 3 digital : MS 3 digital, MS 3.1Standard attachment,
MS 3.3 Universal attachment, MS 1.21 One-hand insert,
MS 3.4 Microtiter attachment and MS 1.32 Test tube Insert

* Protection class acc. to DIN EN 60529 (IP21)

Cat. No	Model	Type	Timer	Speed

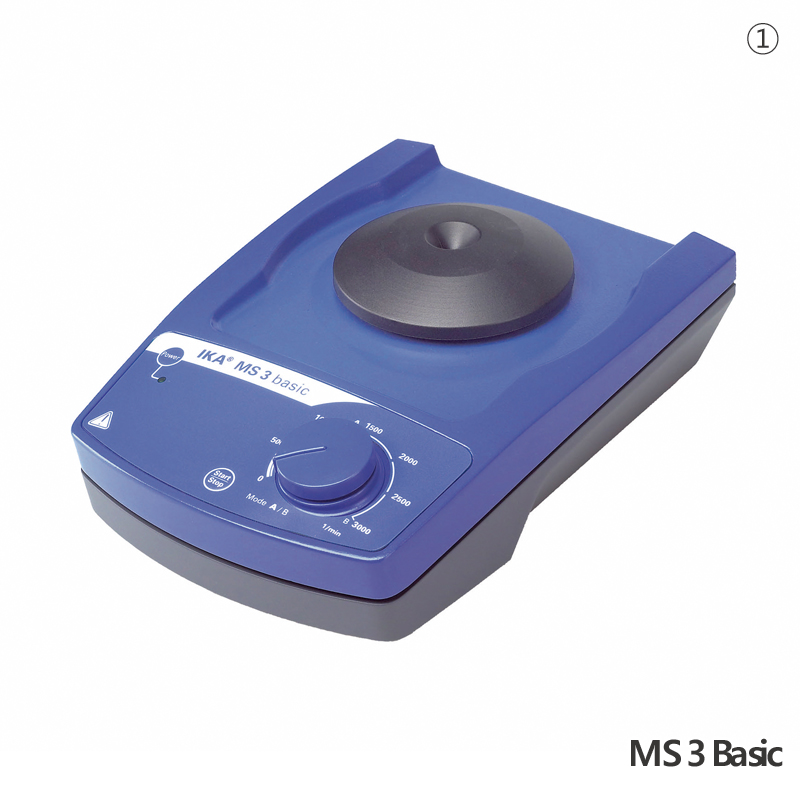

M04-05-115	3617000	MS 3 basic ①	No	0 ~ 3,000 rpm
M04-05-125	3319000	MS 3 digital ②	Yes(Digital)	0 ~ 3,000 rpm

Cat. No.	M04-05-115	M04-05-125
Type	MS 3 basic	MS 3 digital
Motor Rating (in/output)	10 / 8 W
Speed	0 ~ 3,000 rpm
Orbital diameter	4.5 mm
Speed display	Scale
Timer	No	1 sec ~ 999 min
Operation	Continuous / touch operation	Timer and continuous / touch operation
Size / Weight	w148×d205×h63 mm / 2.9 kg
Power	100 ~ 240V, 50/60 Hz

Optional Accessory
Cat. No	Model	Type	Description
M04-05-502	3426300	MS 3.1	기본 - Φ50 mm까지 사용
M04-05-507	3426600	MS 3.3	Universal - for Various Form
M04-05-513	3426400	MS 3.4	for Microtiter Plate
M04-05-515	3428000	MS 3.5	for PCR Plate(96 well)
M04-05-519	L001540	MS 1.21	Universal - One Hand Insert
M04-05-524	L001840	MS 1.31	for Φ10mm(up to 14 tubes)
M04-05-530	L001850	MS 1.32	for Φ12mm(up to 6 tubes)
M04-05-536	L001860	MS 1.33	for Φ16mm(up to 4 tubes)
M04-05-542	L001830	MS 1.34	Customizable Attachment

③ MS 3.1 : Spare Standard Attachment
④ MS 3.3 : Spare Universal Attachment - For various foam insert
⑤ MS 3.4 : Microtiter Attachment - For use with a microtiter plate
⑥ MS 3.5 : PCR Plate용
⑦ MS 1.21 : Spare One-hand Insert
⑧ MS 1.31 : Test Tube Insert - For 14 test tubes Φ10 mm
⑨ MS 1.32 : Test Tube Insert - For 6 test tubes Φ12 mm
⑩ MS 1.33 : Test Tube Insert - For 4 test tubes Φ16 mm
⑪ MS 1.34 : Test Tube Insert - For any number of bore holes
