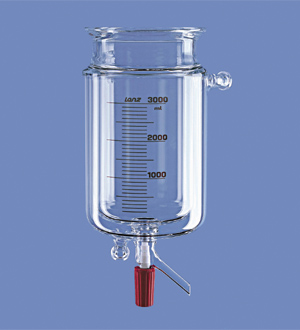

Jacketed Reaction Vessel / 밸브식 이중 자켓 반응조

■ Lenz
■ Borosilicate Glass 3.3
■ Laboratory Flange LF with Groove (O-ring을 끼울수 있는 원형 홈)
■ With Graduation (대략적인 용량 표시)
■ KF Flange 용 Adapter 및 Coupling 은 별도구매 해야함 (Accessory 참조)

(0개)

**Reaction Vessel, Cylindrical - Type**
Cat.No.	Model	용량	Flange	O.D./Thick (mm)	높이 (mm)	연결
R06-83-555	6030137	100 ml	LF60	90/65	215	GL14
R06-83-560	6030149	250 ml	LF60	90/65	270	GL14
R06-83-565	6030249	250 ml	LF100	130/105	230	GL18
R06-83-570	6030158	500 ml	LF60	90/65	355	GL14
R06-83-575	6030258	500 ml	LF100	130/105	275	GL18
R06-83-580	6030170	1 Lit.	LF60	105/80	350	GL14
R06-83-585	6030270	1 Lit.	LF100	130/105	340	GL18
R06-83-590	6030273	2 Lit.	LF100	130/105	470
R06-83-595	6030473	2 Lit.	LF150	190/160	370
R06-83-600	6030276	3 Lit.	LF100		420
R06-83-605	6030476	3 Lit.	LF150		415
R06-83-610	6030279	4 Lit.	LF100		475
R06-83-615	6030479	4 Lit.	LF150		470
R06-83-620	6030482	5 Lit.			5225
R06-83-625	6030485	6 Lit.			580
R06-83-630	6031579	6 Lit.	LF200	250/215	520
R06-83-635	6031489	10 Lit.	LF150	315/250	620	KF15
R06-83-640	6031588	10 Lit.	LF200	250/215	680	KF15
R06-83-645	6031495	20 Lit.	LF150	315/250	875	KF25
R06-83-650	6031594	20 Lit.	LF200	365/315	760	KF25
