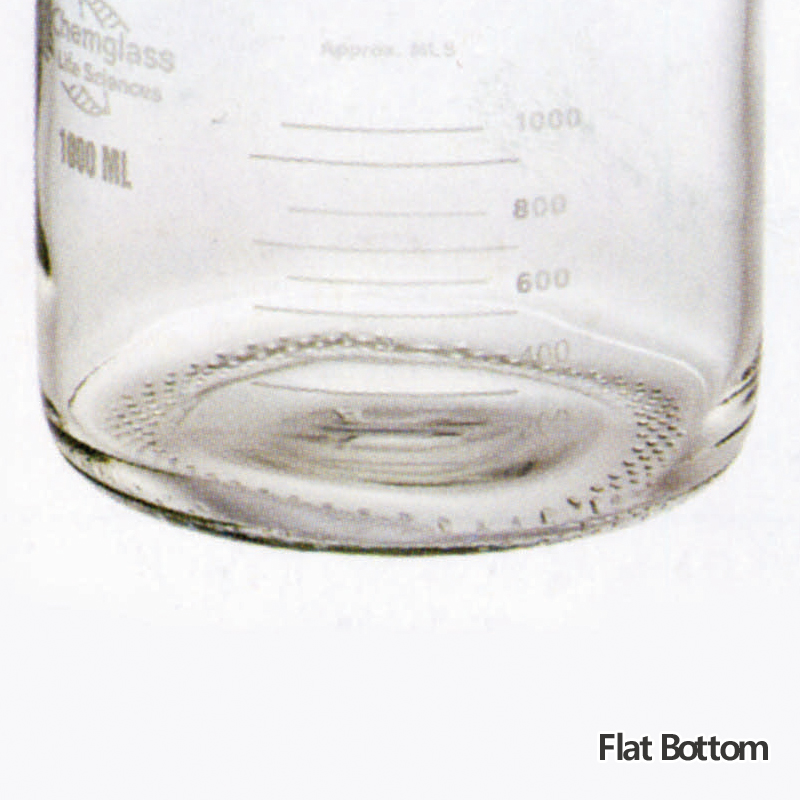

 Standard Type, Flat Bottom |
|

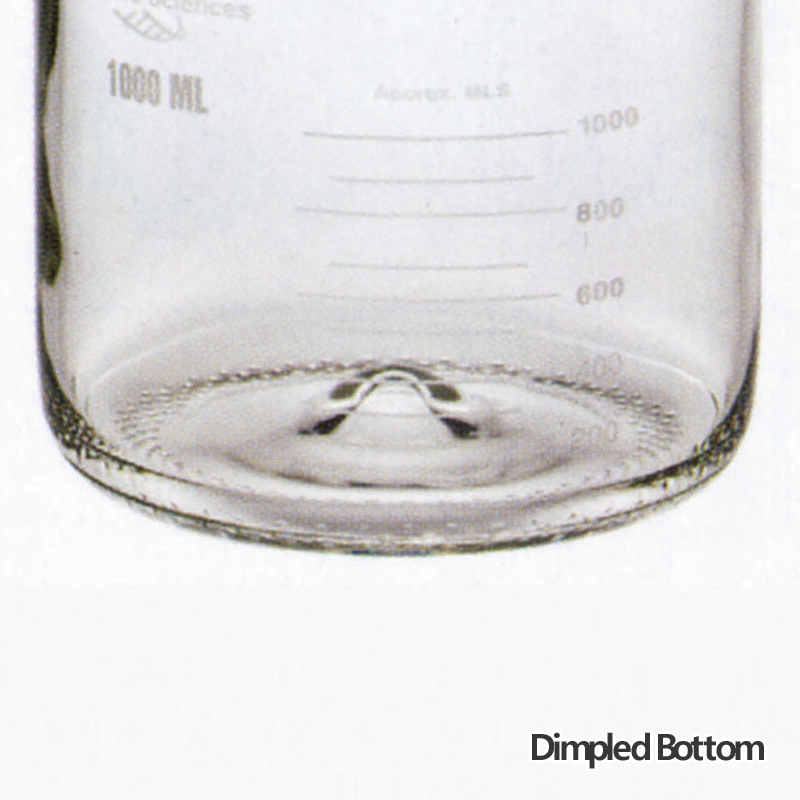

| Dimpled Bottom |
|

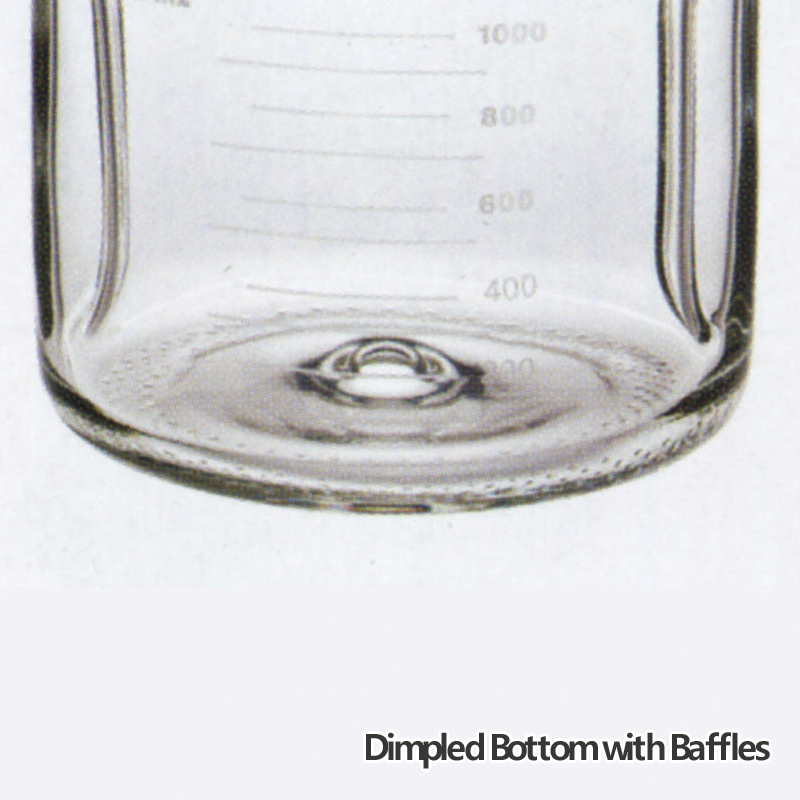

| Dimpled Bottom with Baffles |
|

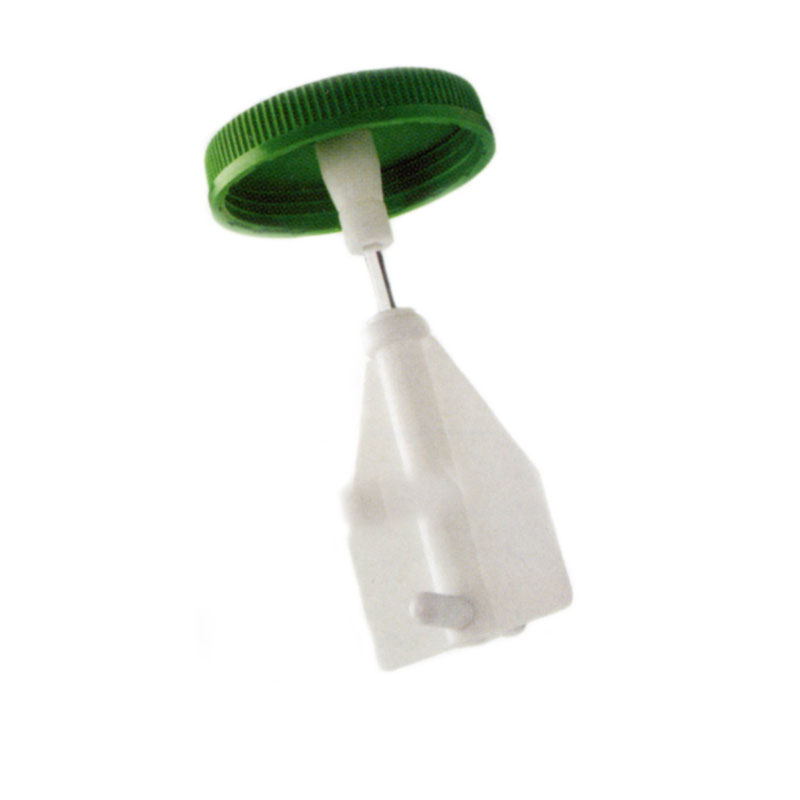

| Internal Stirring Assembly |
|
|
 |
|
|
|
|

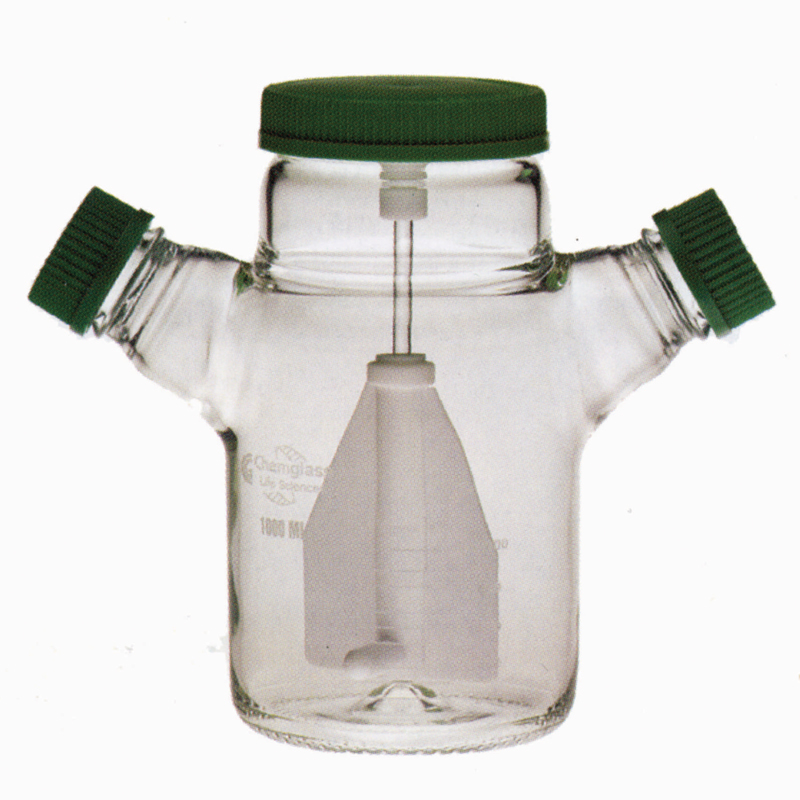

■ Magnetic Stirrer용 배양 플라스크 (Ideal for suspension cultures)
■ Conforms to ASTM Type 1 and USP Type 1
■ Stirring Assembly가 완전히 Flask 내에 존재하여 오염의 위험도가 적음
■ 구성 : 3구 Flask, 유리봉 Teflon Impeller, Silicon Rubble Lined Cap
■ 3 Styles
- Flat Bottom
- Dimpled Bottom
(To improve circulation while preventing cell accumulation in the center of the flask)
- Dimpled Bottom With Baffle
(To further improve overall aeration while preventing cell accumulation in the center/bottom of the flask)
■ Autoclavable at 121℃
Standard Type, Flat Bottom
| Cat. No |
Model |
용량 |
Size (Ø×h) |
Cap |
Side Arm |
| F04-132-632 |
1414-100 |
100 ml |
70×110 mm |
70-400 |
GL32 |
| F04-132-636 |
1414-250 |
250 ml |
85×145 mm |
| F04-132-640 |
1414-500 |
500 ml |
110×185 mm |
GL45 |
| F04-132-644 |
1414-1L |
1 L |
135×240 mm |
100-400 |
| F04-132-648 |
1414-3L |
3 L |
165×290 mm |
Internal Stirring Assembly
| Cat. No |
Model |
적용 Flask |
| F04-132-902 |
1426-10 |
100 ~ 250 ml Flask |
| F04-132-905 |
1426-11 |
500 ml Flask |
| F04-132-908 |
1426-12 |
1 L Flask |
| F04-132-911 |
1426-13 |
3 L Flask |
|
|
|
|
|
 |
|
