 2-Arm LED Illuminator |
|
| Digital Photo Video - OptikamⓇ Photo Video Camera for PC-USE |
|
| Digital Photo Video - OptikamⓇ Photo Video Camera for PC-USE |
|
| Digital Video Camera 12Mpixels |
|
|
 |
|
|
|
|

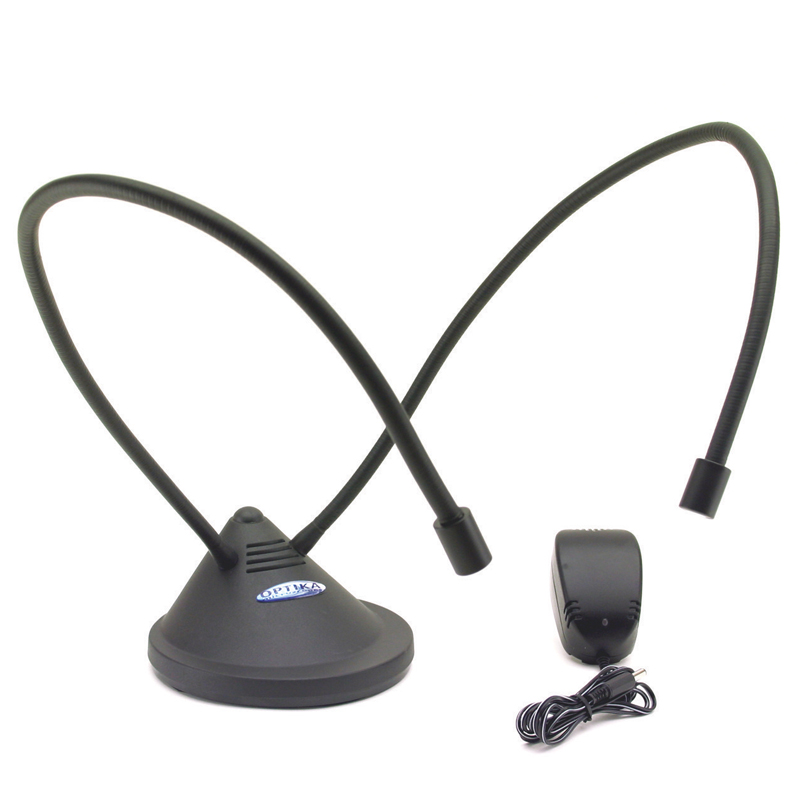

2-Arm LED Illuminator
| Cat. No. |
Model
| Description
| 밝기 조절
|
| M02-29-552 |
CL-30 |
LED Illuminator |
X |
| M02-29-555 |
CL-31 |
O |
-
● 2W High Efficiency LED (2 Light Sources)
● Luminous Flux : 80 lm (Typical)
● Emission Angle : 35˚
● Chromaticity coordinates (x, y): 0.320, 0.320
● Power Supply : 12 V DC, 1500 mA

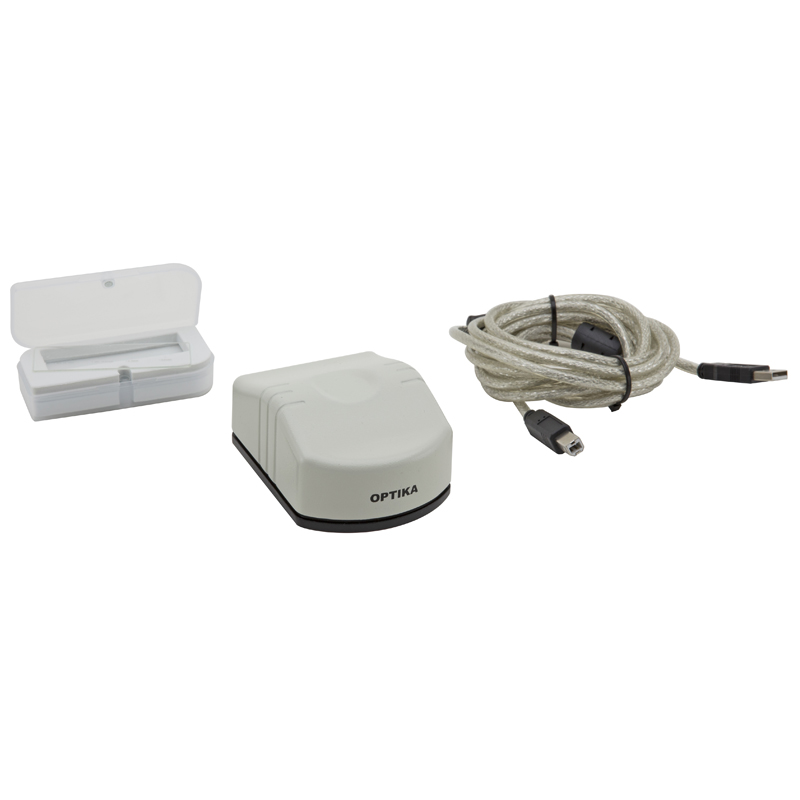

Digital Photo Video
Optikam® Digital Camera
| Cat. No. |
Model
| Resolution
| Frame Rate
|
| M02-29-562 |
Optikam B05 |
640× 480pixels |
30 frame/sec |
| M02-29-565 |
Optikam B1 |
1280× 1024pixels |
15 frame/sec |
| M02-29-568 |
Optikam B2 |
1600×1200pixels |
10 frame/sec |
| Cat. No. |
M02-29-562 |
M02-29-565 |
M02-29-568 |
| Model |
Optikam B05 |
Optikam B1 |
Optikam B2 |
| C-Mount |
NO |
YES |
| Sensitivity |
1,9 V/Lux-second |
1,0 V/Lux-second |
| System Required |
Windows XP/Vista, Win7, Win8, 32-64 bit, USB 2.0 port |
| Capture Features |
Continuous auto white balance, continuous auto exposure |
| Software |
Optika Vision Lite /
OPTIKA MIPro |
Optika Vision Lite /
OPTIKA View |
Optika Vision Lite
/ OPTIKA MIPro |
| Accessories included |
1.5 m USB cable,
carton box |
1.8 m USB cable, carton box |

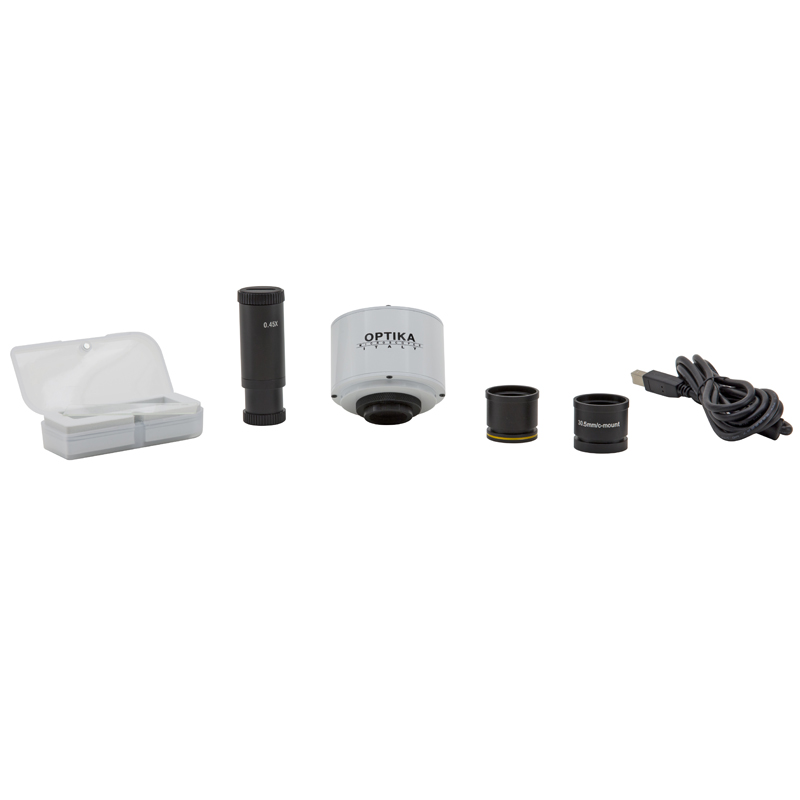

Optikam® Photo Video Camera for PC-USB
| Cat. No. |
Model
| Resolution
| Frame Rate
|
| M02-29-572 |
Optikam PRO3 |
2048× 1536pixels |
12 frame/sec |
| M02-29-575 |
Optikam PRO5 |
2560× 1920pixels |
3 frame/sec |
| Cat. No. |
M02-29-572 |
M02-29-575 |
| Model |
Optikam PRO 3LT |
Optikam PRO 5LT |
| Data Output |
24 bit |
| Sensitivity |
1.0 V/Lus-second |
0.53V/Lus-second |
| System Required |
Window XP SP2 or Later, USB 2.0 Port |
| Included |
3M USB Cable, C-Monut Cap,
76× 24mm Micrometric Calibration Slide, Box |

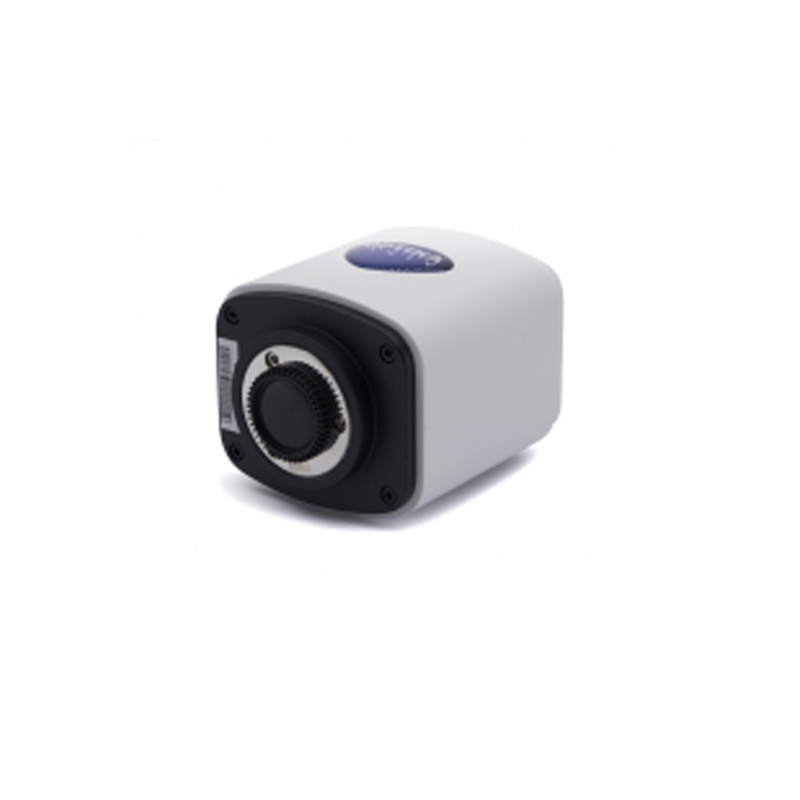

USB and HDMI Camera
| Cat. No. |
Model
| Description |
| M02-29-584 |
Optikam Pro HDMI |
USB and HDMI Camera |
- ● 디지털 카메라와 동영상 기록이 가능함
● 5M Pixels 해상도의 센서와 Micro SD-Card 포함
| Cat. No. |
M02-29-584 |
| Model |
Optikam Pro HDMI |
| Sensor |
1-2.8" Sony Cmos Sensor |
| External Ports |
HDMI, USB, Micro SD-Card |
Resolution
(HDMI / USB) |
1920×1080, 30 fps |
| System Required |
HDMI, Window XP, Vista, Win 7, Win 8, 32/64 bit |
|
|
|
|
|
 |
|
