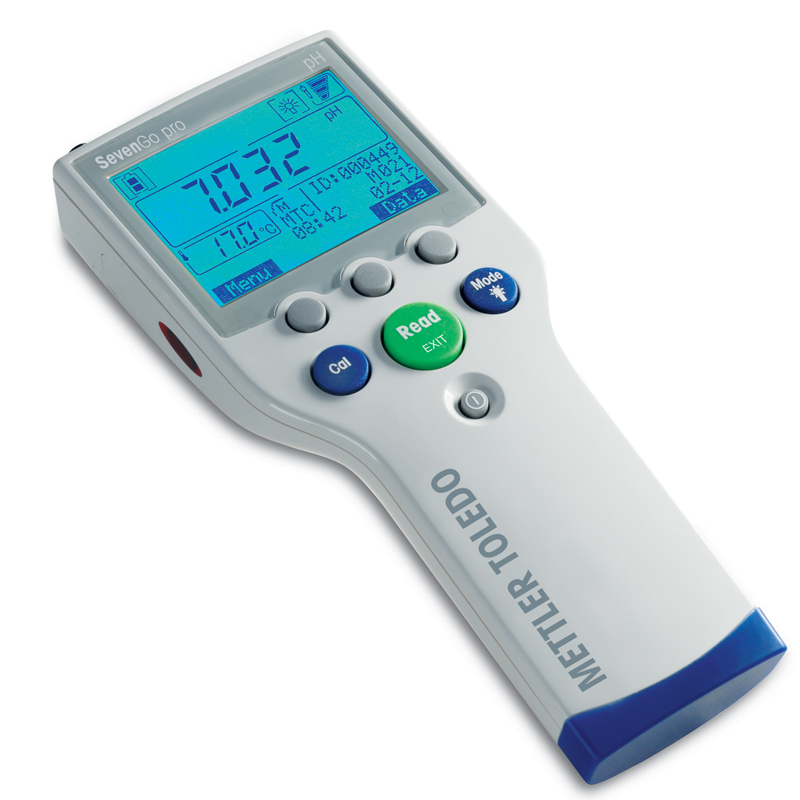

Portable Multi Meter / 휴대용 멀티 미터, SevenGo Duo Pro™

■ 최상의 요구를 만족하는 pH/ 이온/ 용존산소 미터 (IP67)
■ 7개의 미리 설정된 보정점 중에서 5점 pH보정 또는 사용자가 정한 보정점에서 보정
■ 500개의 GLP 데이터 저장 (날짜 / 시간, 센서ID, SN, 사용자 및 샘플 ID)
■ 적외선 통신
■ Intelligent Sensor Management (ISM®)
■ Mettler Toledo

(0개)

pH/이온 / 용존 산소 미터, SG68
Cat. No	Model	Standard Equipment
P02-162-250	SG68-B	Measuring Instrument
P02-162-254	SG68-ELK	Electrode kit Inlab Expert Pro-ISM, Inlab 605-ISM(both IP67, 1.8m cable)
P02-162-258	SG68-FK2	Electrode kit Inlab Expert Pro-ISM, Inlab 605-ISM(both IP67, 1.8m cable)
P02-162-262	SG68-FK5	Field kit with Inlab Expert Pro-ISM-5m, Inlab 605-ISM-5m(both IP67, 5m cable)

● pH, mV, Conductivity, 이온 농도, DO를 측정할 수 있는 휴대용 2 채널 미터

pH/이온 / 전도도 미터, SG78
Cat. No	Model	Standard Equipment
P02-162-282	SG78-B	Measuring Instrument
P02-162-286	SG78-ELK	Electrode kit Inlab Expert Pro-ISM, Inlab 738-ISM(both IP67, 1.8m cable)
P02-162-290	SG78-ELK	Field kit with Inlab Expert Pro-ISM, Inlab 738-ISM(both IP 67, 1.8m cable)
P02-162-294	SG78-USP/EP	Field kit with Inlab Expert Pro-ISM, Inlab 738-ISM(both IP 67, 1.8m cable)

● pH, mV, Conductivity, 이온 농도, 전도도 TDS (Total Dissolved Solids), 염도 및 저항을 측정할 수 있는 휴대용 2 채널 미터

Specification
Model		SG68	SG78
pH	Range	-2.000 ~ 19.999	-2.000 ~ 19.999
	Resolution	0.001	0.001
	Accuracy	±0.002	±0.002
Temperature	Range	-5.0℃ ~ 130.0℃	-5.0℃ ~ 130.0℃
	Resolution	0.1℃	0.1℃
	Accuracy	±0.2℃	±0.2℃
mV	Range	-1999 ~ 1999	-1999 ~ 1999
	Resolution	1	0.1
	Accuracy	±1	±0.1
Ion	Range	0.000 to 999.9%	-
	Resolution	1	-
	Accuracy	±5%	-
Saturation	Range	0.0 ~ 600%	-
	Resolution	0.1 ~ 1℃	-
	Accuracy	±0.5%	-
Oxygen	Range	0.00 ~ 99.00	-
	Resolution	0.01	-
	Accuracy	±0.5% max. 0.03	-
Conductivity	Range	-	0.01uS/cm ~1000mS/cm
	Resolution	-	0.01
	Accuracy	-	±0.5%
TDS	Range	-	0.01mg/L ~ 600g/L
	Resolution	-	0.01 ~ 1
	Accuracy	-	±0.5%
Salinity	Range	-	0.00 ~ 80.00 ppt

공통사양
Sensor Inputs	BNC (>10¹² Ω); NTC 30 ㏀ (both IP67)
Out Puts	IR to printer or PC via RS232 or USB (Only SG8)
Power Requirements	4×AA batteries 1.5 V or NiMH accumulators 1.3V
Operation Conitions	0℃ ~ 40℃, 5%~80% rel. humidity (non-cond)
Package Size	w220×d90×h45 mm

Accessories for SG68 & SG78
Cat. No.	Model	Description
P02-162-411	51302332	Infrared-USB adapter
P02-162-415	51302333	Infrared-RS232 adapter

Other Accessory
Cat. No.	Model	Description
P02-162-455	51302325	Clip
P02-162-459	51302319	2-electrode Clip
P02-162-463	51302321	Protective Clip
